The Slot Antenna: Flipping the Script on Amateur Radio Theory

1,771 words, 9 minutes read time.

Most people in the radio world are playing with toys. They’re obsessed with flimsy wires and “whip” antennas that snap in the wind or create massive drag. If you want to dominate the spectrum, you need to stop looking at the wire and start looking at the void. The slot antenna isn’t just an alternative; it’s a masterclass in electromagnetic duality. We’re talking about carving a hole in a slab of steel and turning that “nothingness” into a high-gain radiation machine.

The Physics of the Void

The uninitiated think a hole in metal is just a leak. They’re wrong. In a standard dipole, current flows along a wire to create an electric field. In a slot antenna, we flip the physics on its head. When you hit the edges of that slot with RF, the surrounding metal carries the current, and the gap itself becomes the source of the field.

This is Babinet’s Principle in action. It’s not a “trick”—it’s a fundamental law of the universe. Because the antenna is flush with the surface, it’s the ultimate choice for high-speed aircraft and tactical vehicles. A traditional antenna gets sheared off by the elements. A slot antenna is part of the armor. It doesn’t just survive the environment; it owns it.

Engineering the Perfect Cut

Resonance is non-negotiable. Typically, you’re cutting a slot half a wavelength long. But the width is where you prove you know your stuff. The width dictates your impedance and your bandwidth. A wider slot moves massive data at high speeds.

Here is the part where most amateurs fail: Polarization. A vertical wire produces vertical polarization. A vertical slot cut into a metal sheet produces horizontal polarization. If you don’t account for that flip, you’re wasting power and shouting into a vacuum. Match the polarization, or stay home.

Command and Control

Feeding the beast is where the skill is. You don’t just “hook up” a wire. You bridge the gap with a coaxial cable—center conductor to one side, shield to the other—or you go elite with a waveguide.

When you cut a series of slots into a metal pipe (a waveguide), you create a Slotted Waveguide Array. As the signal hammers down that pipe, energy “leaks” out of each slot. If your machining is precise, those waves reinforce each other, creating a directional beam of energy so tight it can track a jet at Mach 2. This is the secret behind airport radar and warships. It’s precision physics meeting raw power.

Tactical Survival: The Ground Plane

In the real world, you don’t have “ideal conditions.” You have the hull of a ship, the side of a building, or a heavy-duty equipment rack. The metal structure itself becomes the antenna’s ground plane. High-level proficiency is knowing how to turn a structural slab of metal into a massive radiator.

This tech was forged in the fire of WWII because we needed radar that was stealthy and aerodynamic. The ability to hide an antenna inside the skin of a plane changed warfare forever. It’s about being invisible while remaining lethal.

The Future of Mastery

This isn’t “old-school” tech; it’s the backbone of 5G and satellite hardware. As we push into millimeter-wave bands, a fraction of a millimeter in your cut determines success or failure. Mastering the slot antenna means mastering the dual nature of the universe—the push and pull of electric and magnetic forces.

Move Toward the Build

If you’re serious about this craft, stop reading and start cutting. The study of slot antennas is a rite of passage. It demands spatial reasoning and a grip on 3D energy flow. Grab some copper foil or aluminum sheets and build a slot antenna for the 2.4 GHz band. Measure the SWR. Feel the polarization shift.

Hands-on experience is the only thing that separates a casual observer from a true expert. Build it. Repair it. Optimize it. Master the void.

TAKE ACTION

Don’t just lurk. If you’ve got the guts to show off your own builds, drop a comment below.

• SUBSCRIBE: Get the technical deep dives that actually matter.
• CONTACT ME: Reach out for professional RF consults or technical questions.
• SUPPORT THE SIGNAL: If this saved you hours of troubleshooting, Buy Me a Coffee and keep the research moving.

D. Bryan King

Sources

• ARRL – The American Radio Relay League: http://www.arrl.org/slot-antenna
• Antenna-Theory.com – Slot Antenna Basics: http://www.antenna-theory.com/antennas/aperture/slot.php
• Microwaves101 – Slot Antennas: https://www.microwaves101.com/encyclopedias/slot-antennas
• IEEE Xplore – Analysis of Slotted Waveguide Antennas: https://ieeexplore.ieee.org/document/1138242
• Electronics Notes – Slot Antenna: https://www.electronics-notes.com/articles/antennas-propagation/slot-antenna/basics.php
• NIST – Antenna Characterization Metrology: https://www.nist.gov/pml/electromagnetics/antenna-metrology
• RSGB – Radio Society of Great Britain: https://rsgb.org/main/technical/antennas/
• NASA – High Gain Slot Antenna Systems: https://ntrs.nasa.gov/citations/19710013564
• CERN Document Server – RF Engineering: https://cds.cern.ch/record/1041045
• The Radio Amateur’s Handbook (Classic Archives): https://archive.org/details/TheRadioAmateursHandbook1945
• W6SAI Antenna Handbook – Bill Orr: https://www.cq-amateur-radio.com/index.html
• QST Magazine Archives: http://www.arrl.org/qst
• Sandia National Laboratories – RF Research: https://www.sandia.gov/research/

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

The Power of the Whisper: How WSPR and WSJT-X are Redefining Long-Distance Radio

1,250 words, 7 minutes read time.

Amateur radio operators and technology enthusiasts are currently utilizing the Weak Signal Propagation Reporter, commonly known as WSPR, and the WSJT-X software suite to achieve global communication using minimal power. Developed by Nobel laureate Joe Taylor, K1JT, this digital protocol allows stations to send and receive signals that are often completely buried in background noise, making it possible to map atmospheric conditions and radio propagation in real-time. This technology serves as a critical entry point for men looking to understand the mechanics of the ionosphere and the efficiency of modern digital signal processing. By leveraging advanced mathematical algorithms, WSPR proves that high-power amplifiers and massive antenna towers are no longer the only way to reach across the ocean, offering a technical challenge that rewards precision and patience over brute force.

The core of this system lies in the software known as WSJT-X. This program implements several digital protocols designed specifically for making reliable communication under extreme conditions where traditional voice or Morse code signals would fail. While WSPR is not a conversational mode, it acts as a global beacon system. A station transmits a brief packet containing its callsign, location grid square, and power level. Thousands of other stations around the world, running the same software, listen for these signals and automatically report any successful decodes to a central internet database called WSPRnet. This creates a living, breathing map of how radio waves are traveling across the planet at any given second, providing invaluable data for anyone interested in the science of communication.

Understanding the physics behind this process is what separates a casual observer from a true radio technician. The Earth’s ionosphere, a layer of the atmosphere ionized by solar radiation, acts as a mirror for certain radio frequencies. Depending on the time of day, solar flare activity, and the season, these signals can skip off the sky and land thousands of miles away. In the past, confirming these paths required luck and high-power transmissions. Joe Taylor once noted that the goal of these modes is to utilize the information-theoretic limits of the channel. This means squeezing every bit of data through the smallest amount of bandwidth possible, allowing a station running only one watt of power to be heard in Antarctica from a backyard in Michigan.

For the man standing on the threshold of earning his amateur radio license, WSPR is the ultimate proof of concept. It removes the intimidation factor of “talking” to strangers and replaces it with a pure engineering objective: How far can my signal go with the least amount of effort? Setting up a WSPR station requires a computer, a transceiver, and a simple wire antenna. The software handles the heavy lifting of Forward Error Correction and narrow-band filtering. This process teaches the fundamentals of station grounding, signal-to-noise ratios, and frequency stability—skills that are mandatory for passing the licensing exam and, more importantly, for operating a professional-grade station.

The hardware requirements are surprisingly modest, which appeals to the practical, DIY-oriented mind. Many enthusiasts use a Raspberry Pi or an older laptop dedicated to the task. The interface between the radio and the computer is the critical link, ensuring that the audio generated by the software is cleanly injected into the radio’s transmitter. If the audio levels are too high, the signal becomes distorted, “splattering” across the band and becoming unreadable. This level of technical discipline is exactly what is required in high-stakes fields like aviation or telecommunications. Mastering the “clean” signal is a badge of honor in the ham radio community, signifying a man who knows his equipment inside and out.

As we look at the data generated by WSPR, we see more than just dots on a map; we see the pulse of the sun. Because radio propagation is tied directly to solar activity, WSPR users are often the first to notice a solar storm or a sudden ionospheric disturbance. When the sun emits a massive burst of energy, the higher frequency bands might “open up,” allowing for incredible distances to be covered on low power. Conversely, a solar blackout can shut down communication entirely. Being able to read these signs and adjust one’s strategy accordingly is a core component of the hobby. It turns a simple radio into a scientific instrument used for environmental monitoring.

The community surrounding WSJT-X is one of rigorous peer review and constant improvement. The software is open-source, meaning the code is available for anyone to inspect and refine. This transparency has led to a rapid evolution of the protocols. While WSPR is for propagation reporting, other modes within the suite like FT8 or FST4 are used for rapid-fire contacts. However, WSPR remains the gold standard for testing antennas. If a man builds a new wire antenna in his yard, he doesn’t have to wait for someone to answer his call to know if it works. He can run WSPR for an hour, check the online map, and see exactly where his signal landed. It provides immediate, objective feedback that is essential for any technical project.

The future of this technology points toward even more robust communication in the face of increasing electronic noise. As our cities become more crowded with Wi-Fi, power lines, and electronics, the “noise floor” of the radio spectrum is rising. Traditional modes are struggling to compete. Digital modes like those found in WSJT-X are the solution, using digital signal processing to “dig” signals out of the static. This represents the next frontier of amateur radio—the transition from analog heritage to digital mastery. For those looking to get involved, the barrier to entry has never been lower, and the potential for discovery has never been higher.

In the broader context of emergency preparedness and global infrastructure, the lessons learned from WSPR are invaluable. In a scenario where satellites or internet backbones fail, the ability to bounce low-power signals off the atmosphere remains one of the only viable long-distance communication methods. A man who understands how to deploy a WSPR-capable station is a man who can provide data and connectivity when everything else goes dark. This sense of utility and self-reliance is a driving force for many who pursue their license. It is not just about a hobby; it is about mastering a fundamental force of nature to ensure that the lines of communication stay open, no matter the circumstances.

Call to Action

If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.

D. Bryan King

Sources

• WSJT-X Main Page: physics.princeton.edu/pulsar/k1jt/wsjtx.html
• WSPRnet Official Site: wsprnet.org/drupal/
• ARRL – What is WSPR?: arrl.org/wspr
• K1JT’s WSPR Implementation Guide: physics.princeton.edu/pulsar/k1jt/WSPR_Instructions.pdf
• WSPR on Raspberry Pi – GitHub: github.com/JamesP6000/WsprryPi
• Make Magazine – Ham Radio for Beginners: makezine.com/projects/ham-radio-for-beginners/
• Introduction to Digital Modes – OnAllBands: onallbands.com/digital-modes-101-wspr/
• DX Engineering – WSPR Equipment: dxengineering.com/search/product-line/wsjt-x-interfaces
• Radio Society of Great Britain – WSPR Intro: rsgb.org/main/get-started-in-ham-radio/digital-modes/wspr/
• Ham Radio School – Digital Mode Basics: hamradioschool.com/digital-modes-introduction/
• The History of WSJT-X – Princeton University: princeton.edu/news/2017/10/18/nobel-prize-winner-taylor-channels-passion-radio
• WSPR Rocks – Real-time Database: wspr.rocks
• Antenna Theory for Digital Modes: antenna-theory.com
• HF Propagation Basics – NOAA: swpc.noaa.gov/phenomena/hf-radio-propagation
• Digital Radio Mondiale and WSPR – IEEE: ieee.org/publications/wspr-technical-overview

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

FT8: The Digital Revolution of Modern Amateur Radio

2,237 words, 12 minutes read time.

FT8 is a digital communication protocol released in 2017 by Joe Taylor, K1JT, and Steve Franke, K9AN, designed to allow radio amateurs to exchange contact information under extreme weak-signal conditions. Operating primarily on High Frequency (HF) bands, FT8 uses a precise 15-second sequence of structured data bursts to transmit call signs, signal reports, and grid squares even when the human ear can hear nothing but static. This mode has fundamentally shifted the landscape of ham radio by enabling reliable global communication during the low points of the solar cycle, ensuring that operators can maintain “workable” signals despite poor ionospheric propagation. Its rapid adoption stems from its efficiency and the fact that it allows modest stations with simple wire antennas and low power to compete with massive “big gun” contest stations.

The technical backbone of FT8 is a specialized form of digital modulation known as 8-slot Frequency Shift Keying (8-FSK). This means the signal shifts between eight distinct tones, each representing a specific piece of data. Because the bandwidth is incredibly narrow—only 50 Hz—multiple conversations can happen simultaneously within a standard 3 kHz single-sideband radio channel without interfering with one another. To make this work, the protocol requires absolute synchronization. Every participating computer must have its internal clock set to within one second of Coordinated Universal Time (UTC). This allows the software to know exactly when to start listening for a message and when to begin transmitting its own response. Without this temporal precision, the sequence breaks down and the data becomes unreadable noise.

The “how” of FT8 is a masterclass in forward error correction and data compression. A standard FT8 message is only 75 bits long, yet it contains everything necessary to confirm a legal and valid contact. Joe Taylor, a Nobel Prize-winning astrophysicist, applied the same principles used to detect faint signals from deep space to the world of amateur radio. By using sophisticated algorithms, the software can reconstruct a message even if a significant portion of the signal is lost to fading or atmospheric interference. This capability allows FT8 to function at signal-to-noise ratios as low as -21 dB. To put that in perspective, an FT8 signal can be decoded when it is significantly weaker than the background noise of the universe itself.

The impact of this mode on the hobby cannot be overstated. Before FT8, many men found themselves frustrated by “dead bands” where hours of calling “CQ” yielded no results. FT8 turned the hobby into a 24/7 pursuit. According to the ARRL (American Radio Relay League), FT8 and its successor modes now account for a massive percentage of all amateur radio activity globally. It has bridged the gap between traditional radio technology and modern computing, appealing to men who enjoy the technical challenge of optimizing a digital interface while still respecting the core physics of radio wave propagation. It is the tool of the modern digital woodsman, carving out a path through the noise of a crowded spectrum.

The Mechanics of the 15-Second Cycle

Understanding the rhythm of FT8 is essential for any man looking to master the digital airwaves. The protocol operates on a rigid 15-second “time slot” system. In the first 12.64 seconds of a slot, the message is transmitted; the remaining time is used for the software to process the data and for the operator to prepare the next response. This “even/odd” sequence ensures that two stations aren’t talking over each other. One station transmits on the even-numbered minutes and 15-second intervals, while the other listens, then they swap. This disciplined structure removes the guesswork and chaos often found in voice or Morse code pile-ups, creating an orderly flow of information that maximizes the use of available airtime.

To get on the air with FT8, an operator needs more than just a radio and an antenna; he needs a bridge between the analog and digital worlds. This is usually achieved through a dedicated USB interface or a built-in sound card in modern transceivers. The software—most commonly WSJT-X—takes the digital data from the computer, converts it into audio tones, and feeds those tones into the radio’s transmitter. On the receiving end, the process is reversed. The radio “hears” a series of chirps and warbles, which the sound card captures and the software decodes back into text on the screen. This synergy of hardware and software is what makes FT8 a true “hybrid” mode of communication.

The software interface provides a “waterfall” display, a visual representation of the radio spectrum where signals appear as vertical blue or yellow streaks. This allows an operator to see exactly where the activity is and find an open “slot” to transmit. It is a highly visual and tactical way to operate. Instead of spinning a dial and listening for a faint voice, you are scanning a digital landscape, looking for the telltale signatures of other stations. For many men, this adds a layer of strategy to the hobby that is deeply engaging, akin to a high-stakes game of electronic chess where the board is the entire planet.

Why Signal-to-Noise Ratio Matters

In the world of radio, the Signal-to-Noise Ratio (SNR) is the ultimate metric of success. It is the difference between the strength of the desired signal and the level of background atmospheric noise. FT8 excels because it is “wideband” in its ability to hear, but “narrowband” in its transmission. Because the tones are so precise and the error correction so robust, FT8 can pull a signal out of a “noise floor” that would render a voice transmission completely unintelligible. This is the primary reason why FT8 is the go-to mode for “DXing”—the art of contacting long-distance stations. It levels the playing field, allowing a man with a 100-watt radio and a wire in his backyard to talk to someone in Antarctica or Japan.

The mathematical genius behind FT8 involves a process called “Costas arrays” and “Low-Density Parity-Check” (LDPC) codes. These are not just buzzwords; they are the tools that allow the software to identify the start of a transmission and fix any bits that were flipped or lost during the journey through the ionosphere. As Joe Taylor noted in his technical documentation for the WSJT-X suite, the goal was to create a mode that was “optimized for the specific characteristics of HF propagation.” By focusing on short, structured bursts rather than long-form conversation, FT8 prioritizes the successful completion of a contact over everything else.

This efficiency does come with a trade-off. FT8 is not a “rag-chewing” mode. You won’t be discussing the weather or your favorite sports team. The messages are strictly limited to the essentials: call sign, signal report (in dB), and location (maidenhead grid square). However, for many men, the thrill is in the “catch.” The satisfaction comes from seeing a distant, rare station pop up on the screen and successfully completing that 60-second digital handshake. It is a hobby centered on the achievement of technical milestones and the collection of digital “QSL” cards that prove you reached the far corners of the earth.

Integration with Modern Computing

The rise of FT8 has coincided with the ubiquity of high-speed internet and powerful home computers. This integration has led to the creation of the “PSK Reporter” network, a massive, real-time map of global radio propagation. When your computer decodes an FT8 signal, it can automatically upload that data to a central server. This allows any operator in the world to see exactly where their signal is being heard in real-time. It is a revolutionary tool for understanding the ionosphere. A man can send out a few “CQ” calls and then check a website to see that he is being heard in Spain, Australia, and Brazil, all within seconds.

This real-time feedback loop has changed the way men approach radio. It removes the mystery and replaces it with data. If you aren’t being heard, you can immediately troubleshoot your antenna or wait for the bands to open up. This data-driven approach appeals to the problem-solving nature of the masculine mind. It turns amateur radio into a laboratory where the results are visible and measurable. You aren’t just shouting into the void; you are probing the atmosphere and receiving instant confirmation of your reach.

Furthermore, FT8 has fostered a global community of “citizen scientists.” By contributing data to these networks, ham operators are helping researchers understand solar cycles and their impact on global communications. As noted in various IEEE publications, the sheer volume of data generated by FT8 operators provides a unique look at the Earth’s upper atmosphere that was previously impossible to obtain on such a scale. When you engage in FT8, you aren’t just playing with a radio; you are part of a global sensor network that monitors the very fringes of our planet’s environment.

The Role of Precision Timing

As mentioned, timing is the lifeblood of FT8. Because the protocol relies on such tight windows of transmission, even a two-second drift in your computer’s clock can make you invisible to the rest of the world. This has led to the widespread use of time-synchronization software like Dimension 4 or Meinberg NTP. For the radio enthusiast, this adds another layer of technical “shack” maintenance. Ensuring that your station is perfectly synced to the atomic clocks in Colorado or via GPS is a point of pride. It represents the discipline required to participate in high-level digital communications.

This requirement for precision also highlights the evolution of the amateur radio station. The modern “shack” is often a clean, streamlined desk featuring a high-resolution monitor and a sleek transceiver. Gone are the days of massive, heat-spewing vacuum tube amplifiers—though those still have their place. The FT8 operator is a digital navigator, managing signal levels, gain settings, and software configurations to ensure the cleanest possible signal. Over-driving the audio, for instance, creates “splatter” that ruins the frequency for others. Mastery of FT8 requires a gentleman’s agreement to maintain a clean signal and respect the shared bandwidth of the community.

The discipline of the 15-second cycle also introduces a meditative quality to the hobby. There is a cadence to it—transmit, wait, decode, respond. It requires focus and patience. You are watching the waterfall, waiting for that specific signal to emerge from the static. When the software finally highlights a successful decode in bright red or green, there is a genuine sense of accomplishment. It is a modern manifestation of the same thrill early radio pioneers felt when they first heard a Morse code signal crackle through their headsets a century ago.

FT8 and the Future of Amateur Radio

While some traditionalists argue that FT8 has taken the “human element” out of radio, the reality is that it has saved the hobby for thousands of men. In an era of high urban noise and restricted antenna space, FT8 allows a man to remain active and competitive. You don’t need a 100-foot tower to be a successful FT8 operator; a simple wire hidden in the attic can often be enough to work the world. It has democratized the airwaves, making the thrill of long-distance communication accessible to anyone with a basic radio and a laptop.

Looking forward, FT8 is just the beginning. The principles of weak-signal digital communication are being applied to even more robust modes like FT4 (a faster version for contesting) and JS8Call (which allows for actual keyboard-to-keyboard messaging). The technology is constantly evolving, driven by the same spirit of innovation that has defined amateur radio since its inception. As we move deeper into the 21st century, the marriage of radio physics and digital signal processing will only grow stronger, ensuring that the airwaves remain a vibrant frontier for exploration and discovery.

In conclusion, FT8 represents the pinnacle of modern amateur radio engineering. It is a mode built on the foundations of advanced mathematics, precise timing, and a deep understanding of the natural world. For the man who is looking to earn his license, FT8 offers a clear path toward global connectivity and technical mastery. It is a testament to the fact that even when the sun is quiet and the bands seem dead, there is always a way to reach out and touch the other side of the planet. The digital revolution is here, and it is chirping across the HF bands in 15-second increments, waiting for the next generation of operators to join the conversation.

Call to Action

If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.

D. Bryan King

Sources

• WSJT-X Official Home Page – Princeton University
• ARRL: FT8 Most Popular Digital Mode
• PSK Reporter Real-Time Propagation Map
• Getting Started with FT8 – Essex Ham
• A Guide to FT8 Operating – QSL.net
• WSJT-X Users Group – Groups.io
• Digital Mode Interfaces – DX Engineering
• The FT8 Protocol White Paper
• RSGB FT8 Operating Guide
• Time.is – Synchronize Your Computer Clock
• FT8 Technical Overview – HF Underground Wiki
• Fldigi and Digital Mode Resources
• Icom Amateur Radio Digital Modes Overview

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

Understanding LoRa Modulation: How Chirps Enable Long Range Wireless Communication

1,523 words, 8 minutes read time.

Long Range (LoRa) modulation is one of the most innovative digital radio techniques available today, widely used in IoT networks and by hobbyists exploring the potential of long-distance low-power communication. At its core is Chirp Spread Spectrum (CSS) — a method that spreads information across a frequency sweep, rather than encoding it solely on amplitude or phase. This allows signals to travel far, penetrate obstacles, and resist noise better than many traditional modulation schemes.

LoRa emerged in the 2010s as engineers sought low-power solutions for sensors, meters, and devices that needed to communicate over kilometers without draining batteries. While it’s most commonly associated with the Internet of Things, the principles behind LoRa have direct relevance to amateur radio enthusiasts, particularly those interested in long-distance digital modes. Understanding the physics of chirps, spreading factors, and symbol encoding is not just theory; it forms a foundation for grasping modern RF communications.

This document explains LoRa’s modulation in detail, highlighting why CSS is effective, how chirps encode data, and why receivers can detect signals far below the noise floor. By mastering these concepts, aspiring operators build a deep understanding of frequency manipulation, signal correlation, and processing gain — skills applicable well beyond LoRa itself.

What is Chirp Spread Spectrum (CSS)?

Chirp Spread Spectrum is a type of wideband modulation where the frequency of a signal linearly increases or decreases over time. These sweeping frequencies, called chirps, encode data based on their timing and phase relative to other chirps. This technique originates from radar and sonar, where chirps help detect weak echoes over noisy backgrounds. LoRa adapts this concept for digital data transmission, using chirps to represent symbols rather than simple binary states.

Unlike traditional amplitude or frequency shift keying, which toggles between discrete values, CSS spreads information over the entire bandwidth. This not only improves robustness against interference but also provides processing gain, allowing the receiver to extract weak signals buried in noise. The result is a system capable of communicating over distances and under conditions where conventional narrowband radios would fail.

LoRa’s implementation of CSS further optimizes the technique by introducing cyclic shifts of chirps. Each unique shift represents a distinct symbol. By adjusting the starting point of a chirp within its sweep, LoRa encodes multiple bits per symbol. This design creates a high-efficiency, M-ary modulation system that balances range, sensitivity, and data rate.

Finally, the spreading factor (SF) determines how many symbols are available per chirp. Lower SFs mean shorter chirps, higher data rates, and shorter range, while higher SFs produce longer chirps, lower data rates, but vastly improved sensitivity. This flexibility allows LoRa to scale performance based on specific application needs, from dense urban deployments to remote rural sensors.

How LoRa Encodes Data with Chirps

Each LoRa symbol represents multiple bits, encoded by cyclically shifting a chirp within the channel bandwidth. For example, a spreading factor of SF = 7 allows for 128 possible shifts per symbol, while SF = 12 offers 4096 options. Each shift is precisely timed and frequency-controlled, effectively turning a frequency sweep into a rich constellation of data points.

The receiver decodes these chirps using correlation detection. By comparing received signals with reference chirps, the system identifies the correct cyclic shift and extracts the underlying symbol. This approach allows the receiver to recognize signals far below the noise floor, a capability uncommon in most conventional digital modes.

The combination of cyclic shifts, spreading factors, and correlation detection allows LoRa to operate in environments that would challenge standard FM or digital radio systems. Devices can coexist on the same frequency channel with different SFs due to the orthogonality of the chirps. This means that a gateway can simultaneously detect multiple transmissions, improving network capacity and reliability.

Finally, the choice of bandwidth directly influences symbol rate and sensitivity. Narrower bandwidth increases the time per chirp, enhancing sensitivity and range but reducing throughput. Wider bandwidth allows faster communication at the cost of reduced link margin. LoRa’s careful balance of these parameters makes it highly adaptable for a wide variety of low-power, long-range applications.

Why LoRa Works Below the Noise Floor

One of LoRa’s most remarkable traits is its ability to decode signals significantly below the noise floor. Traditional radios fail when the signal drops just a few decibels below noise. LoRa achieves this due to the processing gain inherent in CSS and the correlation properties of chirps.

When a chirp is received, the system performs a correlation with a reference chirp, effectively summing energy across the entire symbol period. This accumulation allows the receiver to detect weak patterns that would otherwise be lost. Because random noise rarely mimics the predictable linear frequency sweep of a chirp, most interference is rejected naturally.

This property is why LoRa devices can communicate over kilometers while consuming only a few tens of milliwatts of power. A signal that would be undetectable with narrowband FM can be recovered reliably using a CSS receiver, enabling ultra-long-range, low-power networks.

Finally, this capability is invaluable to amateur radio operators exploring low-power, long-distance communication. By studying LoRa, operators learn how spread-spectrum techniques, correlation detection, and careful frequency planning can dramatically extend range without increasing power or bandwidth.

Spreading Factors and Network Design

The spreading factor (SF) in LoRa defines the number of possible chirp offsets and directly impacts performance. A lower SF enables faster data rates and shorter chirps, ideal for local communication or high-throughput applications. A higher SF produces longer chirps and more possible offsets, dramatically improving sensitivity and long-range performance.

Bandwidth, symbol duration, and spreading factor together determine time-on-air, affecting latency, throughput, and energy consumption. Network designers must balance these parameters to meet specific requirements, whether for a dense urban network or a remote sensing deployment.

Additionally, the orthogonality of chirps with different SFs allows multiple devices to transmit simultaneously on the same frequency. This property increases network capacity and reduces interference, a practical consideration for IoT networks, but also a valuable insight for amateur radio enthusiasts exploring multi-user digital modes.

Understanding these relationships is key for anyone interested in RF design or digital communication. By experimenting with different SFs and bandwidths, learners gain intuition about trade-offs in real-world wireless networks.

Practical Applications for Amateur Radio Enthusiasts

While LoRa is not a standard Amateur Radio mode, studying its modulation provides invaluable insights into RF engineering, digital signal processing, and wireless network design. Knowledge of CSS principles applies broadly, from HF digital modes to satellite communications and experimental high-frequency systems.

For the aspiring Amateur Radio operator, experimenting with LoRa modules or building custom receivers can teach critical skills: correlating signals, understanding link budgets, and designing for long-range communication in noisy environments. These lessons are directly transferable to more traditional ham radio projects.

Moreover, LoRa’s low-power, high-range performance inspires innovative approaches to emergency communication, remote monitoring, and experimental digital networks. Amateur operators who understand these concepts are well-positioned to contribute to novel applications, from sensor arrays to hybrid radio networks.

Finally, mastering LoRa principles strengthens the operator’s intuition about spectrum, modulation, and signal detection. It’s a practical, hands-on way to deepen RF literacy while staying on the cutting edge of low-power wireless technology.

Future Developments in Long-Range Wireless Communication

Chirp Spread Spectrum and LoRa modulation continue to influence research in low-power, resilient communication. Advanced networks, hybrid IoT-amateur setups, and urban sensor deployments all benefit from the core principles pioneered by LoRa.

Future enhancements may include adaptive spreading factors, multi-channel correlation, and improved interference mitigation, further extending range and reliability. As spectrum becomes more crowded, these techniques will be increasingly valuable for both commercial and hobbyist radio users.

For Amateur Radio operators, understanding LoRa’s underlying physics equips them for the next generation of digital radio experimentation. From long-distance sensors to robust low-power networks, the skills developed studying LoRa modulation have lasting relevance across the radio spectrum.

In summary, LoRa modulation demonstrates how clever manipulation of frequency, timing, and correlation allows information to travel far, efficiently, and reliably. By grasping chirp-based communication, aspiring operators gain expertise that strengthens both theoretical understanding and practical radio skills.

Call to Action

If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.

D. Bryan King

Sources

• LoRa Alliance – LoRa & LoRaWAN Technical Book (PDF)
• LocalMesh – LoRa Technology Explained
• Raveon Technologies – LoRa Protocol Overview
• nolilab.com – Simple Guide to LoRa & LoRaWAN
• HamRadio.my – LoRa and CSS Modulation Explained
• All About Circuits – Demystifying LoRa Networks
• DN.org – Chirp Spread Spectrum Fundamentals
• Wikipedia – LoRa (Overview & PHY Layer)
• Medium – What Is LoRa: The Fundamentals
• The Things Network – Spreading Factors Explanation
• Gyulab – LoRa/CSS Overview, Demodulation & Decoding
• Wikipedia – Chirp Spread Spectrum (CSS)
• MOKOSmart – Technology Behind LoRa Frequency
• ADS/ArXiv – A Tutorial on Chirp Spread Spectrum Modulation
• arXiv – Design of LoRa Communication Systems Research

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

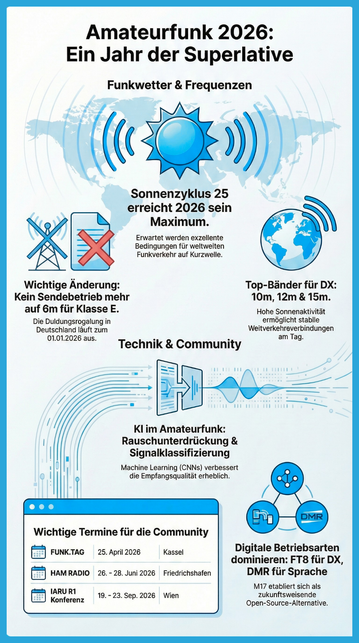

🌍 Die Renaissance des Amateurfunks: Technologische Sprünge im Solar-Maximum 2026 📡
