FT8: The Digital Revolution of Modern Amateur Radio

2,237 words, 12 minutes read time.

FT8 is a digital communication protocol released in 2017 by Joe Taylor, K1JT, and Steve Franke, K9AN, designed to allow radio amateurs to exchange contact information under extreme weak-signal conditions. Operating primarily on High Frequency (HF) bands, FT8 uses a precise 15-second sequence of structured data bursts to transmit call signs, signal reports, and grid squares even when the human ear can hear nothing but static. This mode has fundamentally shifted the landscape of ham radio by enabling reliable global communication during the low points of the solar cycle, ensuring that operators can maintain “workable” signals despite poor ionospheric propagation. Its rapid adoption stems from its efficiency and the fact that it allows modest stations with simple wire antennas and low power to compete with massive “big gun” contest stations.

The technical backbone of FT8 is a specialized form of digital modulation known as 8-slot Frequency Shift Keying (8-FSK). This means the signal shifts between eight distinct tones, each representing a specific piece of data. Because the bandwidth is incredibly narrow—only 50 Hz—multiple conversations can happen simultaneously within a standard 3 kHz single-sideband radio channel without interfering with one another. To make this work, the protocol requires absolute synchronization. Every participating computer must have its internal clock set to within one second of Coordinated Universal Time (UTC). This allows the software to know exactly when to start listening for a message and when to begin transmitting its own response. Without this temporal precision, the sequence breaks down and the data becomes unreadable noise.

The “how” of FT8 is a masterclass in forward error correction and data compression. A standard FT8 message is only 75 bits long, yet it contains everything necessary to confirm a legal and valid contact. Joe Taylor, a Nobel Prize-winning astrophysicist, applied the same principles used to detect faint signals from deep space to the world of amateur radio. By using sophisticated algorithms, the software can reconstruct a message even if a significant portion of the signal is lost to fading or atmospheric interference. This capability allows FT8 to function at signal-to-noise ratios as low as -21 dB. To put that in perspective, an FT8 signal can be decoded when it is significantly weaker than the background noise of the universe itself.

The impact of this mode on the hobby cannot be overstated. Before FT8, many men found themselves frustrated by “dead bands” where hours of calling “CQ” yielded no results. FT8 turned the hobby into a 24/7 pursuit. According to the ARRL (American Radio Relay League), FT8 and its successor modes now account for a massive percentage of all amateur radio activity globally. It has bridged the gap between traditional radio technology and modern computing, appealing to men who enjoy the technical challenge of optimizing a digital interface while still respecting the core physics of radio wave propagation. It is the tool of the modern digital woodsman, carving out a path through the noise of a crowded spectrum.

The Mechanics of the 15-Second Cycle

Understanding the rhythm of FT8 is essential for any man looking to master the digital airwaves. The protocol operates on a rigid 15-second “time slot” system. In the first 12.64 seconds of a slot, the message is transmitted; the remaining time is used for the software to process the data and for the operator to prepare the next response. This “even/odd” sequence ensures that two stations aren’t talking over each other. One station transmits on the even-numbered minutes and 15-second intervals, while the other listens, then they swap. This disciplined structure removes the guesswork and chaos often found in voice or Morse code pile-ups, creating an orderly flow of information that maximizes the use of available airtime.

To get on the air with FT8, an operator needs more than just a radio and an antenna; he needs a bridge between the analog and digital worlds. This is usually achieved through a dedicated USB interface or a built-in sound card in modern transceivers. The software—most commonly WSJT-X—takes the digital data from the computer, converts it into audio tones, and feeds those tones into the radio’s transmitter. On the receiving end, the process is reversed. The radio “hears” a series of chirps and warbles, which the sound card captures and the software decodes back into text on the screen. This synergy of hardware and software is what makes FT8 a true “hybrid” mode of communication.

The software interface provides a “waterfall” display, a visual representation of the radio spectrum where signals appear as vertical blue or yellow streaks. This allows an operator to see exactly where the activity is and find an open “slot” to transmit. It is a highly visual and tactical way to operate. Instead of spinning a dial and listening for a faint voice, you are scanning a digital landscape, looking for the telltale signatures of other stations. For many men, this adds a layer of strategy to the hobby that is deeply engaging, akin to a high-stakes game of electronic chess where the board is the entire planet.

Why Signal-to-Noise Ratio Matters

In the world of radio, the Signal-to-Noise Ratio (SNR) is the ultimate metric of success. It is the difference between the strength of the desired signal and the level of background atmospheric noise. FT8 excels because it is “wideband” in its ability to hear, but “narrowband” in its transmission. Because the tones are so precise and the error correction so robust, FT8 can pull a signal out of a “noise floor” that would render a voice transmission completely unintelligible. This is the primary reason why FT8 is the go-to mode for “DXing”—the art of contacting long-distance stations. It levels the playing field, allowing a man with a 100-watt radio and a wire in his backyard to talk to someone in Antarctica or Japan.

The mathematical genius behind FT8 involves a process called “Costas arrays” and “Low-Density Parity-Check” (LDPC) codes. These are not just buzzwords; they are the tools that allow the software to identify the start of a transmission and fix any bits that were flipped or lost during the journey through the ionosphere. As Joe Taylor noted in his technical documentation for the WSJT-X suite, the goal was to create a mode that was “optimized for the specific characteristics of HF propagation.” By focusing on short, structured bursts rather than long-form conversation, FT8 prioritizes the successful completion of a contact over everything else.

This efficiency does come with a trade-off. FT8 is not a “rag-chewing” mode. You won’t be discussing the weather or your favorite sports team. The messages are strictly limited to the essentials: call sign, signal report (in dB), and location (maidenhead grid square). However, for many men, the thrill is in the “catch.” The satisfaction comes from seeing a distant, rare station pop up on the screen and successfully completing that 60-second digital handshake. It is a hobby centered on the achievement of technical milestones and the collection of digital “QSL” cards that prove you reached the far corners of the earth.

Integration with Modern Computing

The rise of FT8 has coincided with the ubiquity of high-speed internet and powerful home computers. This integration has led to the creation of the “PSK Reporter” network, a massive, real-time map of global radio propagation. When your computer decodes an FT8 signal, it can automatically upload that data to a central server. This allows any operator in the world to see exactly where their signal is being heard in real-time. It is a revolutionary tool for understanding the ionosphere. A man can send out a few “CQ” calls and then check a website to see that he is being heard in Spain, Australia, and Brazil, all within seconds.

This real-time feedback loop has changed the way men approach radio. It removes the mystery and replaces it with data. If you aren’t being heard, you can immediately troubleshoot your antenna or wait for the bands to open up. This data-driven approach appeals to the problem-solving nature of the masculine mind. It turns amateur radio into a laboratory where the results are visible and measurable. You aren’t just shouting into the void; you are probing the atmosphere and receiving instant confirmation of your reach.

Furthermore, FT8 has fostered a global community of “citizen scientists.” By contributing data to these networks, ham operators are helping researchers understand solar cycles and their impact on global communications. As noted in various IEEE publications, the sheer volume of data generated by FT8 operators provides a unique look at the Earth’s upper atmosphere that was previously impossible to obtain on such a scale. When you engage in FT8, you aren’t just playing with a radio; you are part of a global sensor network that monitors the very fringes of our planet’s environment.

The Role of Precision Timing

As mentioned, timing is the lifeblood of FT8. Because the protocol relies on such tight windows of transmission, even a two-second drift in your computer’s clock can make you invisible to the rest of the world. This has led to the widespread use of time-synchronization software like Dimension 4 or Meinberg NTP. For the radio enthusiast, this adds another layer of technical “shack” maintenance. Ensuring that your station is perfectly synced to the atomic clocks in Colorado or via GPS is a point of pride. It represents the discipline required to participate in high-level digital communications.

This requirement for precision also highlights the evolution of the amateur radio station. The modern “shack” is often a clean, streamlined desk featuring a high-resolution monitor and a sleek transceiver. Gone are the days of massive, heat-spewing vacuum tube amplifiers—though those still have their place. The FT8 operator is a digital navigator, managing signal levels, gain settings, and software configurations to ensure the cleanest possible signal. Over-driving the audio, for instance, creates “splatter” that ruins the frequency for others. Mastery of FT8 requires a gentleman’s agreement to maintain a clean signal and respect the shared bandwidth of the community.

The discipline of the 15-second cycle also introduces a meditative quality to the hobby. There is a cadence to it—transmit, wait, decode, respond. It requires focus and patience. You are watching the waterfall, waiting for that specific signal to emerge from the static. When the software finally highlights a successful decode in bright red or green, there is a genuine sense of accomplishment. It is a modern manifestation of the same thrill early radio pioneers felt when they first heard a Morse code signal crackle through their headsets a century ago.

FT8 and the Future of Amateur Radio

While some traditionalists argue that FT8 has taken the “human element” out of radio, the reality is that it has saved the hobby for thousands of men. In an era of high urban noise and restricted antenna space, FT8 allows a man to remain active and competitive. You don’t need a 100-foot tower to be a successful FT8 operator; a simple wire hidden in the attic can often be enough to work the world. It has democratized the airwaves, making the thrill of long-distance communication accessible to anyone with a basic radio and a laptop.

Looking forward, FT8 is just the beginning. The principles of weak-signal digital communication are being applied to even more robust modes like FT4 (a faster version for contesting) and JS8Call (which allows for actual keyboard-to-keyboard messaging). The technology is constantly evolving, driven by the same spirit of innovation that has defined amateur radio since its inception. As we move deeper into the 21st century, the marriage of radio physics and digital signal processing will only grow stronger, ensuring that the airwaves remain a vibrant frontier for exploration and discovery.

In conclusion, FT8 represents the pinnacle of modern amateur radio engineering. It is a mode built on the foundations of advanced mathematics, precise timing, and a deep understanding of the natural world. For the man who is looking to earn his license, FT8 offers a clear path toward global connectivity and technical mastery. It is a testament to the fact that even when the sun is quiet and the bands seem dead, there is always a way to reach out and touch the other side of the planet. The digital revolution is here, and it is chirping across the HF bands in 15-second increments, waiting for the next generation of operators to join the conversation.

Call to Action

If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.

D. Bryan King

Sources

• WSJT-X Official Home Page – Princeton University
• ARRL: FT8 Most Popular Digital Mode
• PSK Reporter Real-Time Propagation Map
• Getting Started with FT8 – Essex Ham
• A Guide to FT8 Operating – QSL.net
• WSJT-X Users Group – Groups.io
• Digital Mode Interfaces – DX Engineering
• The FT8 Protocol White Paper
• RSGB FT8 Operating Guide
• Time.is – Synchronize Your Computer Clock
• FT8 Technical Overview – HF Underground Wiki
• Fldigi and Digital Mode Resources
• Icom Amateur Radio Digital Modes Overview

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

The Simple Dipole: How It Works and How to Get On the Air

1,706 words, 9 minutes read time.

Amateur radio is both a science and an art, and few tools illustrate this duality better than the dipole antenna. For men preparing to enter the world of amateur radio, mastering the dipole provides both practical communication ability and an understanding of RF principles that will serve across the hobby. The dipole is simple, reliable, and educational, offering a starting point that is technically satisfying without requiring complex equipment.

Understanding the Dipole Antenna

The dipole antenna consists of two conductive elements of equal length, aligned in a straight line with a central feedpoint. This straightforward construction allows it to function effectively across many HF bands. Each half of the antenna resonates at approximately one-quarter wavelength of the target frequency, resulting in a total length near one-half wavelength. The antenna’s resonance is critical; it ensures that electrical energy is efficiently converted into radio waves with minimal reflection back to the transmitter. As described by ARRL resources, the dipole’s simplicity and efficiency have made it a foundational element in amateur radio since the early 20th century.

Height and orientation directly influence the radiation pattern of the dipole. Mounted at roughly half a wavelength above ground, it produces low-angle radiation ideal for long-distance DX contacts. Lower heights create higher-angle lobes suitable for near-vertical incidence skywave (NVIS) communication. Orientation relative to the intended transmission path determines directionality; a dipole aligned north-south favors east-west propagation and vice versa. Inverted-V configurations, where the ends slope downward from the central support, offer nearly equivalent performance while reducing installation complexity.

Feedline considerations are straightforward. Coaxial cable provides a convenient, low-loss path for RF energy from the transceiver to the antenna. A center insulator supports the antenna mechanically and helps maintain symmetry, while optional baluns prevent common-mode currents that may cause noise. For beginners, the simplest center-fed coaxial dipole is sufficient to achieve reliable communication, highlighting the dipole’s accessibility.

Constructing a Dipole

Material selection impacts both durability and performance. Copper and aluminum wires are common choices, providing low resistance and consistent signal radiation. Synthetic insulators like PVC or nylon rope ensure mechanical stability. Secure attachment points, such as tree branches or poles, prevent sagging and maintain the antenna’s intended geometry. While ideal placement is desirable, the dipole is forgiving of small deviations in angle or elevation, making it practical for backyards, parks, or temporary field operations.

The classic length formula, 468 divided by frequency in megahertz, provides a reliable starting point for determining total dipole length in feet. For instance, the 20-meter band (~14 MHz) requires approximately 33 feet total, or 16.5 feet per leg. Small adjustments during installation and tuning may be necessary, and using an SWR meter or antenna analyzer can refine resonance. While more advanced configurations exist, beginners benefit from starting with a straightforward, correctly calculated dipole to build confidence.

Historical context enhances appreciation. Early amateur radio operators used half-wave dipoles because they were inexpensive, easy to construct, and effective for long-range communication. This antenna type set the standard for experimentation, teaching principles of resonance, radiation patterns, and impedance matching that remain relevant today. Understanding the historical significance also reinforces the dipole’s value as an enduring educational tool.

Practical Deployment Tips

Successful dipole operation relies on careful consideration of height, orientation, and local environment. Even minor obstacles, such as nearby metal fences or power lines, can alter the radiation pattern and increase SWR. Trees and poles can serve as convenient supports, but ensuring clearance and stability is essential. For portable operation or temporary setups, lightweight supports and rope insulators provide flexibility while maintaining the antenna’s integrity.

Feedline placement should avoid proximity to conductive surfaces that may introduce interference. Proper grounding and secure connections enhance both safety and signal clarity. Beginners often underestimate the role of small details, yet careful installation ensures that the dipole performs reliably without adding unnecessary complexity.

Experimentation is encouraged. Slight variations in height, angle, or leg length allow operators to observe changes in signal reports and coverage areas. Recording these observations develops an intuitive understanding of antenna behavior and helps operators make informed adjustments. Practical experience reinforces the theoretical knowledge gained from study, bridging the gap between calculation and real-world performance.

Safety Considerations

Safety is paramount when installing antennas. Dipoles should never be placed near power lines, and care must be taken when working at heights. Securing the antenna to prevent movement or detachment minimizes risk, while proper grounding protects equipment and operators from electrical hazards. Experienced operators emphasize that following standard safety practices ensures a successful and secure installation.

Mechanical considerations, such as tensioning wires to prevent sag and using robust insulators, enhance both longevity and safety. Environmental factors like wind, snow, or ice can stress antenna components, so reinforcing attachment points and selecting durable materials are important. By prioritizing safety, new operators can focus on learning and experimentation with confidence.

Scaling and Variations

Once comfortable with a basic dipole, operators can explore enhancements. Trap dipoles allow operation on multiple bands without complex switching. Off-center-fed dipoles provide broader bandwidth and different radiation patterns. Inverted-V arrangements optimize performance in limited spaces. Each variation builds on the foundational principles of the simple half-wave dipole, enabling continued learning and experimentation.

Multi-element arrays, directional antennas, and portable configurations all trace their conceptual roots to the dipole. Mastering the basic design facilitates understanding of these more advanced setups, illustrating how a simple, well-understood antenna can serve as a stepping stone to complex systems. These experiences deepen knowledge and encourage practical experimentation, reinforcing the learning process.

SEO Section: HF Antenna Fundamentals

A dipole is a fundamental HF antenna that introduces new operators to the physics of radio waves. Understanding half-wave resonance, feedpoint impedance, and radiation patterns provides insight into how antennas convert electrical energy into RF signals. This foundational knowledge is essential for troubleshooting, optimizing SWR, and improving communication efficiency. By emphasizing principles over complexity, beginners gain confidence in both construction and operation.

Radiation patterns, including main lobes and nulls, help operators predict performance in different directions. For instance, horizontal dipoles favor low-angle propagation ideal for DX contacts, while lower heights enhance NVIS communication. Hands-on observation of these effects reinforces theory, creating a practical understanding that supports further experimentation. Combining calculation, measurement, and observation ensures comprehensive learning.

Feedline interaction with the antenna is another critical area. Understanding the role of coaxial cables, baluns, and common-mode currents prevents signal degradation and noise introduction. Proper installation of these components complements the dipole’s performance, ensuring that energy reaches the air efficiently. SEO-friendly discussions of feedline types, impedance, and SWR optimization make the content accessible and relevant to search engines while educating readers.

SEO Section: Practical Deployment and Experimentation

Practical deployment tips enhance the learning experience. Emphasizing placement, height, and orientation prepares operators for real-world installation. Diagrams and illustrations of dipole configurations assist comprehension, while descriptive explanations connect theory to practice. Hands-on experimentation, including SWR measurement and signal reporting, allows readers to observe the immediate effects of changes in antenna setup.

Portable operation offers additional opportunities for learning. Lightweight supports, rope insulators, and flexible feedline arrangements demonstrate adaptability. Documenting results reinforces the link between adjustments and performance, creating a feedback loop that enhances understanding. These practices engage readers in active learning, encouraging both experimentation and consistent improvement.

Community involvement further strengthens practical application. Participation in club demonstrations, online forums, and local events provides guidance, mentorship, and insight into regional propagation characteristics. Sharing experiences with other operators allows new hams to validate their observations and learn alternative approaches, fostering a collaborative environment conducive to growth.

SEO Section: Safety, Materials, and Longevity

Safety considerations are essential in antenna deployment. Placement clearances, secure supports, grounding, and avoidance of power lines ensure operator protection. Selecting durable materials, such as copper or aluminum conductors and synthetic insulators, contributes to long-term reliability. Reinforced attachment points prevent mechanical failures due to wind, ice, or environmental stress.

Proper tensioning of wires and careful alignment maintain intended radiation patterns. Minor adjustments can influence SWR and overall performance, highlighting the importance of meticulous installation. Safety, combined with thoughtful material selection, ensures that beginners experience both immediate functionality and long-term stability in their dipole setups.

Routine inspections and adjustments enhance longevity. Observing wear on insulators, checking for corrosion, and verifying secure attachments prevent unexpected failures. This approach encourages disciplined maintenance practices and reinforces the importance of responsibility in antenna management, ensuring that operators can safely and reliably use their dipoles for years.

SEO Section: Scaling, Variations, and Future Exploration

After mastering the basic dipole, new operators can explore trap dipoles for multi-band use, off-center-fed designs for wider bandwidth, and inverted-V configurations for constrained spaces. Each variation demonstrates the adaptability of the dipole and provides opportunities for continued learning. Understanding these modifications deepens comprehension of RF principles and enhances practical skills.

Advanced applications, such as multi-element arrays or portable field setups, rely on the foundational knowledge gained from dipole experimentation. Observing how basic concepts scale to complex systems reinforces learning and encourages innovation. By exploring these variations, operators develop both technical expertise and confidence in problem-solving.

Future exploration includes integrating the dipole with emerging digital modes, monitoring propagation patterns, and experimenting with automated tuning systems. The dipole’s enduring relevance ensures that new operators can continually expand their capabilities while remaining grounded in essential principles. SEO-focused content highlighting these applications provides valuable guidance for readers seeking both practical and theoretical growth.

Call to Action

If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.

D. Bryan King

Sources

• ARRL Antenna Resources
• eHam.net Technical Articles
• QRZ.com Antenna Guides
• RigPix Antenna Technical Data
• Ham Universe Antenna Tutorials
• DX Engineering Technical Guides
• K0BG Antenna Insights
• VE3VN Antenna Reference
• Electronics Tutorials: HF Dipoles
• AMSAT Antenna Information
• RF Engineering Antenna Designs
• Ham Radio Pages Antenna Section
• IK3OQV Dipole Experiments
• W1AEX Antenna Notes
• ARRL Antenna Handbook PDF

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

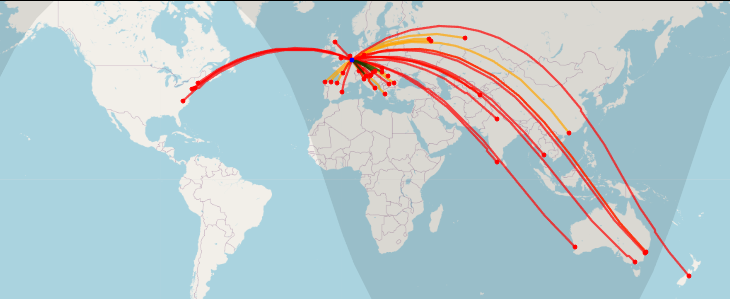

#floodthezone with 10.1MHz QRO CW.

I made 4500+ QSO so far for the OP0WWA activity. Mostly CW and a few nice SSB runs.
Lots of nice DX calling in.

Next week firing up the shack on a weekday will be useless again. Apart from the FT8 bots, no one seems to care.
No one answers a plain old Belgian CQ.

#WorldWideAward ~ love it or hate it but it keeps the #hamradio #hfbands alive.

#amateurradio == #greatesthobbyintheworld

The Silent Siege: Defending the Radio Spectrum in an Age of Noise

3,286 words, 17 minutes read time.

The electromagnetic spectrum is currently facing an unprecedented siege from commercial expansion, environmental noise pollution, and regulatory encroachment, threatening the viability of independent communication. This conflict involves a diverse cast of actors ranging from multinational telecommunications conglomerates and unsuspecting homeowners to a dedicated community of radio operators who stand as the last line of defense for this invisible public resource. While the general public remains largely unaware of the radio waves passing through them, a fierce battle is being waged for control of these frequencies, occurring in corporate boardrooms, legislative chambers, and the backyards of suburban neighborhoods. The stakes are considerably higher than mere hobbyist chatter; at risk is the ability to maintain decentralized, resilient communication infrastructures independent of the fragile commercial grid. As the demand for wireless data explodes and the noise floor rises, the preservation of the spectrum requires a concerted response from informed men willing to understand the physics, the policy, and the practical application of radio technology.

The Commercial Encroachment on Finite Resources

The most immediate and powerful threat to the radio spectrum comes from the insatiable commercial appetite for bandwidth. As modern society transitions into an era defined by the Internet of Things and 5G connectivity, corporate entities are aggressively lobbying for access to every available slice of the radio frequency pie. This creates a direct conflict with existing services, including the bands historically allocated for amateur and emergency use. The spectrum is a finite physical resource; unlike fiber optic cables where more strands can be laid, there is only one electromagnetic spectrum. When a frequency band is auctioned off to the highest bidder for billions of dollars, it is often lost to the public domain forever. This commoditization of the airwaves treats a law of nature as a piece of real estate to be fenced off and monetized.

The pressure is particularly intense because the specific frequencies that are most desirable for long-range communication or high-penetration data signals are the very same frequencies that have been cultivated by amateur operators for decades. Telecommunications giants view these bands as underutilized assets waiting to be exploited for profit. The concept of “use it or lose it” has never been more relevant. If a community of capable operators does not actively occupy and defend these frequencies through demonstrated utility and public service, regulators face immense pressure to reallocate them to commercial interests. This reality turns every licensed operator into a stakeholder in a global resource management crisis. The defense against this encroachment is not just about complaining to regulators; it involves demonstrating the unique value of non-commercial spectrum access, particularly its role in disaster recovery when profit-driven networks fail.

The Rising Tide of the Noise Floor

While commercial reallocation attempts to steal the spectrum from above, a more insidious threat is rising from below: Radio Frequency Interference (RFI). This phenomenon is often referred to as the rising “noise floor.” In the past, turning on a radio receiver resulted in a quiet hiss of static, out of which a voice or signal would clearly emerge. Today, that quiet background is increasingly replaced by an angry roar of electronic smog. This pollution is generated by millions of poorly shielded consumer electronic devices. LED light bulbs, variable speed pool pumps, cheap switching power supplies, and solar panel inverters spew stray radio frequency energy into the environment. To a casual observer, these devices are harmless conveniences; to a radio operator, they are jammers that blind receivers and render communication impossible.

This environmental degradation of the electromagnetic spectrum creates a scenario where even if the frequencies are legally protected, they become practically useless. It is akin to owning a plot of land that has been flooded by toxic waste; you may hold the deed, but you cannot build on it. The physics of radio reception rely on the signal-to-noise ratio. As the noise floor rises, stronger and stronger signals are required to break through, effectively shrinking the range of communication systems. A handheld radio that could once talk to a station thirty miles away might now struggle to reach three miles across a noisy city. This threat is largely unregulated at the consumer level, as the enforcement of interference standards has lagged behind the proliferation of cheap electronics imported from manufacturers who cut corners on shielding.

Community Response and Technical Stewardship

The response to these threats has catalyzed a sophisticated movement within the radio community focused on stewardship and technical innovation. This is not a passive group; it consists of technically minded individuals who view the spectrum as a public trust. The primary weapon in this response is education and technical adaptation. Operators are developing new digital transmission modes designed specifically to function in high-noise environments. These modes use advanced signal processing and error correction to decode messages that are buried deep beneath the electronic smog, effectively reclaiming territory that was thought to be lost. This demonstrates a resilience and ingenuity that defines the spirit of the radio community. Rather than surrendering to the noise, they engineer their way through it.

Furthermore, the community response involves active monitoring and “fox hunting”—the practice of locating sources of interference. When a rogue signal or a malfunctioning device disrupts communications, operators use directional antennas and triangulation techniques to physically track down the source. This can lead to diplomatic engagements with utility companies to fix arcing power lines or helping a neighbor replace a noisy power supply. It is a form of neighborhood watch, but for the electromagnetic environment. This hands-on approach requires a deep understanding of wave propagation and electronics, skills that are honed through the pursuit of licensure and regular practice. It reinforces the idea that the spectrum is a shared backyard, and it is the responsibility of the residents to keep it clean.

The Regulatory Battlefield and Property Rights

Beyond the technical challenges, a significant battle is being fought on the regulatory front involving Homeowners Associations (HOAs) and private land covenants. These restrictions often prohibit the installation of external antennas, effectively locking millions of potential operators out of the spectrum. The “CC&Rs” (Covenants, Conditions, and Restrictions) that govern many modern housing developments prioritize aesthetic uniformity over functional resilience. This creates a paradox where a resident may legally hold a federal license to operate a radio station for emergency communications but is contractually banned from erecting the antenna necessary to use it. This represents a clash between private contract law and the public interest in maintaining a dispersed, capable civil defense network.

The community response to this has been a mix of legislative lobbying and stealth engineering. Legislation like the Amateur Radio Parity Act has been introduced in various forms to try and force a compromise, arguing that reasonable accommodation for antennas is a matter of national safety. On the ground, operators have become masters of stealth, deploying “invisible” antennas disguised as flagpoles, hidden in attics, or woven into landscaping. This ingenuity allows men to remain active and capable despite the restrictions, maintaining their readiness and their connection to the airwaves. It is a quiet act of rebellion, asserting the right to communicate and the duty to be prepared, regardless of arbitrary rules set by a housing board.

Strategic Implications of Spectrum Dominance

The importance of this subject extends into the realm of national security and strategic independence. In an era of cyber warfare and potential infrastructure attacks, reliance on centralized communication networks—like cell towers and the internet—is a vulnerability. These systems are fragile; they depend on the power grid, fiber backbones, and complex software stacks that can be hacked or jammed. The radio spectrum, accessed through decentralized amateur equipment, offers a fallback layer that is robust because of its simplicity and distribution. There is no central switch to turn off the ionosphere. There is no server farm to bomb that will silence point-to-point radio communication.

Understanding the spectrum allows an individual to step outside the “matrix” of commercial dependency. When the cellular networks are congested during a crisis, or when internet service providers suffer outages, the radio operator remains connected. This capability is not just about personal safety; it is a community asset. The response to spectrum threats is fundamentally about preserving this capability for the greater good. It aligns with a masculine ethos of protection and provision—ensuring that when the primary systems fail, a secondary, hardened system is ready to take over. This requires a workforce of licensed operators who are not just hobbyists, but disciplined communicators who understand the strategic value of the frequencies they guard.

Historical Context of Spectrum Allocation

To fully appreciate the current threats, one must understand the history of how the spectrum was tamed. In the early days of radio, the airwaves were a chaotic frontier, much like the Wild West. There were no lanes, no rules, and constant interference. The catalyst for order was the sinking of the Titanic in 1912. The tragedy highlighted the deadly consequences of unregulated communication, where distress calls could be missed or jammed by irrelevant chatter. This led to the Radio Act of 1912, which established the principle that the spectrum is a public resource to be managed by the government for the public good. It established the licensing structure that exists today, creating a hierarchy of users and prioritizing safety of life.

Over the last century, this allocation has evolved into a complex map of frequency blocks assigned to military, aviation, maritime, commercial, and amateur users. The amateur allocation was not a gift; it was carved out by pioneers who proved that the “useless” shortwave frequencies could actually span the globe. Today’s operators are the inheritors of that legacy. They occupy the bands that their predecessors explored and charted. The threat of losing these bands is a threat to erase that history and the public’s right to access the airwaves directly. The historical perspective reinforces why the community is so defensive of its privileges; they know that once a frequency is surrendered to commercial interests, it is never returned.

The Human Element of the Network

Technology and policy are critical, but the most vital component of spectrum defense is the human operator. A radio is merely a collection of capacitors and transistors until it is powered by a human intent on communicating. The decline in the number of active, knowledgeable operators is perhaps the greatest threat of all. A spectrum that is silent is a spectrum that is vulnerable to reallocation. The community needs fresh blood—men who are willing to learn the code, understand the electronics, and join the network. This is not about nostalgia for old technology; it is about maintaining a vital skill set in the modern world.

The culture of the radio community is one of mentorship and rigor. It welcomes those who are willing to put in the work to understand the medium. When a man decides to study the spectrum, he is not just preparing for a test; he is learning the language of the universe. He learns how the sun’s cycles affect communication, how the terrain shapes a signal, and how to build systems that survive when others fail. This human element is the ultimate check against the threats of noise and encroachment. An educated, active populace is the strongest argument for the continued preservation of the amateur bands.

Technological Adaptation and the Future

Looking forward, the defense of the spectrum will rely heavily on software-defined radio (SDR) and cognitive radio technologies. These advancements allow radios to be smarter, sensing the environment and finding clear frequencies automatically. The community is at the forefront of experimenting with these tools. By pushing the boundaries of what is possible with limited power and bandwidth, amateur operators often innovate solutions that are later adopted by the commercial and military sectors. The fight against spectrum pollution is driving the development of better filters and more robust digital protocols.

This technological evolution transforms the operator from a passive user into an active researcher. It makes the pursuit of a license an entry point into a world of high-tech experimentation. The threats facing the spectrum are forcing the community to up its game, resulting in a renaissance of technical learning. Men who engage with this subject find themselves gaining proficiency in computer networking, antenna physics, and signal processing—skills that are highly transferrable and economically valuable in the modern marketplace. The defense of the hobby thus becomes a pathway to professional development and technical mastery.

The Role of Organized Advocacy

No individual can fight the telecommunications lobby or the tide of electronic noise alone. The response is coordinated through national and international bodies that represent the interests of the non-commercial user. Organizations act as the shield, employing legal experts and engineers to testify before government commissions and international bodies like the International Telecommunication Union (ITU). They monitor legislative proposals, file comments on rule-making proceedings, and alert the membership when immediate action is required.

Supporting these organizations is a key part of the community response. It involves a recognition that rights must be defended collectively. The effectiveness of this advocacy depends on the size and engagement of the membership. A large, active body of licensed operators commands respect in Washington and Geneva. It signals to regulators that this is a voting block and a skilled workforce that cannot be ignored. The political aspect of spectrum defense is dry and often bureaucratic, but it is the trench warfare that keeps the frequencies open for the operator to use.

Natural Threats and Solar Cycles

The spectrum is also subject to threats that are entirely natural and beyond human control. The sun, the ultimate source of all radio propagation on Earth, goes through eleven-year cycles of activity. During the peak of these cycles, solar flares and coronal mass ejections can cause radio blackouts, wiping out communication across entire hemispheres. While this is not a “threat” in the sense of a malicious actor, it is a challenge that requires a deep understanding of space weather. The operator must know how to read the solar indices and adjust their strategies accordingly.

This connection to the cosmos adds a profound dimension to the spectrum. It reminds the operator that they are dealing with forces of nature. The community response to solar weather involves building networks of automated beacons that monitor propagation in real-time, providing data that is used not just by hams, but by scientific institutions. It turns the operator into a citizen scientist, contributing to our understanding of the sun-earth connection. This resilience in the face of natural variation is part of what makes radio operators so valuable during earthly disasters; they are accustomed to adapting to changing conditions.

The Economic Reality of Spectrum Auctions

It is impossible to discuss spectrum threats without addressing the sheer scale of the money involved. Governments view spectrum auctions as a painless way to raise revenue. Billions of dollars are exchanged for the exclusive rights to transmit on specific frequencies. This creates a David and Goliath dynamic. The amateur community cannot buy the spectrum; they can only argue for its value based on public service and educational merit. This is a difficult argument to make in a capitalist system that prioritizes immediate revenue over long-term resilience.

However, the economic argument is shifting. As infrastructure becomes more vulnerable to cyber-attacks, the “insurance policy” value of a trained volunteer radio corps is being reassessed. The cost of a total communications blackout during a hurricane or terrorist attack is astronomical. The community argues that the spectrum they occupy is a down payment on national safety. By maintaining these frequencies for public use, the government avoids the cost of building and maintaining a redundant emergency network of their own. It is a symbiotic relationship, but one that requires constant reminder and defense against the lure of quick auction cash.

Cybersecurity and the Radio Spectrum

The convergence of radio and computing has introduced cyber threats into the spectrum domain. Modern radios are often computers with antennas, and like any computer, they can be vulnerable. Malicious actors can exploit software vulnerabilities to jam networks, spoof signals, or inject false data. The “spectrum threat” now includes the possibility of hostile state actors using electronic warfare techniques to disrupt civil society.

The community response has been to embrace cybersecurity best practices. This includes verifying signal integrity, using digital signatures, and developing “air-gapped” systems that can operate without connection to the public internet. The modern operator must be part hacker, part engineer. This evolution appeals to men who are interested in information security and systems architecture. It frames the license not just as a permit to talk, but as a credential in the field of information assurance.

The Imperative of Self-Reliance

Ultimately, the drive to understand and defend the spectrum is rooted in the imperative of self-reliance. In a world where systems are increasingly interconnected and interdependent, the failure of one component can lead to cascading collapse. The man who holds a radio license and understands the spectrum possesses a tool of independence. He is not reliant on a monthly subscription or a functioning cell tower to ensure the safety of his family or community.

This self-reliance is the core motivation that drives the community response. It is why they build their own antennas, why they fight the HOAs, and why they study for the exams. It is a refusal to be helpless. The spectrum is the medium through which this independence is exercised. Protecting it is protecting the ability to act when others are paralyzed by a loss of connectivity. It is a masculine pursuit of competence and readiness in an unpredictable world.

Conclusion: The Future of the Frequency

The future of the radio spectrum is far from guaranteed. It stands at a crossroads between total commercialization and a balanced model that preserves public access. The threats of noise, regulation, and encroachment are unrelenting. However, the response from the community has been equally persistent. Through technical innovation, political advocacy, and a commitment to service, the guardians of the airwaves are holding the line.

For the man looking from the outside, this struggle represents an opportunity. It is a chance to join a fraternity of capable individuals who are not content to be passive consumers of technology. By engaging with the subject, understanding the physics, and eventually stepping up to earn the credentials, one becomes part of the solution. The spectrum is a heritage and a responsibility. It requires vigilant defense to ensure that when the world goes silent, there is still a signal in the noise, clear and strong, ready to carry the message.

Call to Action

If this breakdown helped you think a little clearer about the threats out there, don’t just click away. Subscribe for more no-nonsense security insights, drop a comment with your thoughts or questions, or reach out if there’s a topic you want me to tackle next. Stay sharp out there.

D. Bryan King

Sources

• Federal Communications Commission – RF Safety and Spectrum Engineering
• ARRL – Regulatory and Advocacy: Defending the Frequencies
• International Telecommunication Union (ITU) – Radiocommunication Sector Mission
• IEEE Spectrum – Telecommunications and RF News
• National Telecommunications and Information Administration (NTIA) – Spectrum Management
• RFI Services – Understanding Radio Frequency Interference
• Homeland Security Newswire – Critical Infrastructure and Communications
• Historic Naval Ships Association – History of Radio Communications
• Ofcom – Spectrum Management and Strategy
• NASA – Space Communications and Navigation: Spectrum Policy
• NOAA Space Weather Prediction Center – Radio Blackouts and Solar Threats
• CISA – Emergency Communications Division
• W5YI – Amateur Radio Testing and Regulatory Updates

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

#5GExpansion #AirGappedSystems #Airwaves #AmateurRadio #AntennaParity #antennaTheory #BandwidthScarcity #CivilDefense #CognitiveRadio #CommercialEncroachment #CommunicationBlackout #CoronalMassEjections #cyberSecurity #DecentralizedNetworks #digitalModes #DigitalSignatures #DirectionFinding #DisasterRecovery #electromagneticSpectrum #ElectronicSmog #ElectronicWarfare #ElectronicsHobby #emergencyCommunications #errorCorrection #FCCRegulations #FoxHunting #FrequencyAllocation #frequencyCoordination #FrequencyGuard #FutureOfRadio #GridDown #hamRadio #HFBands #HOARestrictions #IndependentInfrastructure #InformationAssurance #InterferenceHunting #IonosphericSkip #ITUStandards #LicensedOperator #MensHobbies #MicrowaveFrequencies #MonitoringStations #NationalSecurity #NeighborhoodWatch #NetworkResilience #NoiseFloor #OffGridComms #Preparedness #PropertyRights #PublicResource #publicSafety #RadioAct #radioBlackout #RadioEngineering #RadioFrequencyInterference #RadioLicensing #RadioPhysics #radioReceiver #RadioSilence #radioSpectrum #ResilientSystems #RFI #SDRTechnology #SecureComms #SelfReliance #shortwaveRadio #signalProcessing #signalStrength #SignalToNoiseRatio #softwareDefinedRadio #SolarCycles #SpaceWeather #SpectrumAnalyzer #SpectrumAuctions #SpectrumDefense #SpectrumManagement #SpectrumThreats #StealthAntennas #STEMSkills #StrategicIndependence #TacticalRadio #TechnicalMastery #TechnicalStewardship #TelecommunicationsLobby #TitanicRadioHistory #transceiver #VHFUHF #VolunteerCorps #WavePropagation #WirelessPolicy #WirelessTelegraphy

The Science Behind Radio Propagation: Understanding the Ionosphere

2,060 words, 11 minutes read time.

If you’re serious about becoming an amateur radio operator, understanding the invisible medium through which your signals travel is not just helpful — it’s essential. The ionosphere, that electrically charged region of Earth’s upper atmosphere, is where physics meets practical radio operation. Signals you transmit can bounce across continents or disappear without a trace depending on how well you understand this layer of our atmosphere. Grasping ionospheric science will give you a level of insight that separates the curious hobbyist from the skilled operator, and it’s knowledge that serves as a foundation for everything you’ll do behind the microphone.

The ionosphere is not a single, static entity. It is a dynamic, multilayered plasma affected by solar radiation, geomagnetic conditions, and the rhythms of day and night. Radio propagation through this region is a blend of science and art — where knowledge of physics directly informs practical decisions about frequencies, timing, and antennas. In this article, we will explore the ionosphere in depth, discuss its layers and their behaviors, explain the impact of solar activity, and examine how understanding these processes translates into better communication.

The Ionosphere: A Layered Radio Playground

Rising roughly fifty kilometers above the surface of the Earth and extending up to 600 kilometers, the ionosphere is formed when solar ultraviolet light and X-rays strip electrons from neutral molecules, creating ions and free electrons. This process results in a conductive layer of plasma that interacts strongly with radio waves. Unlike lower layers of the atmosphere, where signals travel largely in straight lines, the ionosphere can bend, reflect, or absorb radio energy depending on its density and structure. This bending is what allows for long-distance skywave propagation, giving amateur operators the ability to reach locations far beyond the line of sight.

The ionosphere is divided into several layers, commonly known as the D, E, and F regions, each with distinct characteristics. The D layer, closest to Earth, exists from roughly 50 to 90 kilometers. It is a daytime phenomenon, heavily influenced by sunlight, and primarily acts as an absorber of lower frequency signals. The E layer, positioned between 90 and 120 kilometers, is more variable but can refract medium frequencies and, under certain conditions, sporadically refract higher frequencies as well. The F layer, extending from around 200 to 400 kilometers, is the most important for high-frequency (HF) communication. Its density and persistence allow signals to be refracted back to Earth over hundreds or thousands of kilometers. During the day, the F layer often splits into F1 and F2 sub-layers, recombining at night into a single F layer that sustains long-distance propagation after sunset.

Understanding these layers is crucial. The D layer’s tendency to absorb signals explains why lower frequencies are often unusable during the day. The E layer’s sporadic patches can create unexpected opportunities for local or regional contacts. The F2 layer, with its high electron density, is the workhorse of DX communications, capable of reflecting higher frequency HF signals around the globe when conditions are favorable. The interplay between these layers is complex, and conditions can change dramatically with time of day, season, and solar activity.

Day and Night: The Ionosphere in Motion

Time of day dramatically affects how radio waves propagate. During daylight, solar radiation increases ionization, particularly in the D and E layers. The D layer absorbs lower HF frequencies, making bands like 160 and 80 meters difficult or impossible to use for long-distance communication. The E layer, although less absorptive, can still interfere with certain frequencies. Meanwhile, the F layers become highly ionized, raising the maximum usable frequency (MUF) and enabling long-range contacts on higher HF bands. The result is a constantly shifting radio environment that requires operators to adjust their frequencies and expectations throughout the day.

At night, the situation changes dramatically. The D layer largely disappears, eliminating much of the absorption that hindered lower frequencies. This opens bands like 160 meters and 80 meters for night-time communication. The F layer remains ionized enough to continue reflecting HF signals, making DX contacts possible over much greater distances. Operators who understand these rhythms can strategically plan their activities, choosing the best bands at the right times and adjusting their antennas to maximize takeoff angles for long-distance propagation.

Seasonal variations also play a role. During winter, the ionosphere’s density is generally lower, which can affect the optimal frequency for a given path. Conversely, summer brings longer daylight hours and stronger D and E layer ionization, altering absorption patterns. Combined with the 11-year solar sunspot cycle, these factors create a constantly evolving propagation landscape. For an operator, this means learning to read the environment, rather than relying on fixed rules.

Solar Activity: The Ultimate Driver

Solar radiation is the primary energy source for the ionosphere, but not all solar activity is created equal. Ultraviolet (UV) and X-ray emissions from the sun ionize atmospheric molecules, creating the free electrons necessary for reflection. Sunspots, solar flares, and coronal mass ejections (CMEs) all impact ionization levels and, consequently, radio propagation.

The 11-year sunspot cycle, in particular, profoundly affects HF communications. During solar maxima, higher sunspot numbers mean increased UV radiation, greater electron densities in the F2 layer, and higher maximum usable frequencies. This is why bands like 15 meters or 10 meters, which may be dead during a solar minimum, can suddenly burst to life during the peak of the cycle. Conversely, during solar minima, electron density decreases, MUF drops, and operators must rely more heavily on lower frequencies for long-distance contacts.

Solar flares can also produce sudden, dramatic effects. When a flare strikes, the D layer can become intensely ionized, absorbing lower HF signals and causing temporary radio blackouts on affected paths. Geomagnetic storms triggered by CMEs can distort the F layer, creating unpredictable propagation paths or rapid fading. For the operator in training, understanding these solar influences is crucial for interpreting daily propagation forecasts and making strategic decisions about frequencies, antennas, and operating times.

Critical Frequency, MUF, and LUF: Making Sense of the Numbers

Two concepts dominate practical HF planning: the maximum usable frequency (MUF) and the lowest usable frequency (LUF). The MUF is the highest frequency that can be used on a particular path given the ionospheric conditions and antenna angles. Signals above this frequency will escape the ionosphere rather than being refracted back to Earth. The LUF, conversely, is determined by absorption, particularly in the D layer, below which signals are too weak to be useful. Between these two thresholds lies the optimal operating range for any given path and time.

The critical frequency is closely related: it represents the maximum frequency that can be reflected vertically by a layer. Operators use critical frequency measurements, often provided in propagation forecasts, to estimate the MUF for oblique paths. By combining knowledge of critical frequencies, MUF, and LUF with local band conditions and takeoff angles, an operator can maximize their chance of making successful contacts, even under variable ionospheric conditions.

Antennas and Takeoff Angles: Launching Your Signal

Understanding the ionosphere is only half the battle. The geometry of your transmission — particularly the angle at which it leaves your antenna — greatly influences propagation. Low-angle radiation favors long-distance contacts by striking the F layer at the optimal angle for refraction back to Earth. High-angle radiation may result in short skip or even escape the ionosphere entirely. Choosing or designing antennas with suitable radiation patterns, along with adjusting height and orientation, allows operators to exploit the ionosphere’s characteristics effectively.

Multiple-hop propagation is another factor to consider. Signals can bounce from Earth to ionosphere multiple times, covering vast distances. While this can enable global communication, it also introduces variability. Each hop is influenced by layer density, absorption, and irregularities in the ionosphere, which can cause fading, signal distortion, or intermittent contacts. Experienced operators learn to anticipate these effects, adjusting frequency and timing to compensate.

Propagation Variability: Expect the Unexpected

Despite sophisticated models and forecasts, the ionosphere remains unpredictable. Traveling ionospheric disturbances, geomagnetic storms, and sporadic-E events can create unexpected propagation opportunities or challenges. Multipath interference can reinforce or cancel signals, creating strong or weak reception at the same time in different locations. The variability of the ionosphere makes real-world experience critical. Logging contacts, noting signal strengths, and correlating observations with solar and geomagnetic conditions helps operators build intuition that no model can fully replicate.

Experimentation and observation are therefore essential. Operators who track the results of different frequencies, antenna orientations, and times of day gradually develop a mental map of how the ionosphere behaves under various conditions. This knowledge becomes an invaluable asset, allowing the operator to make informed decisions and optimize their communication strategy in real time.

Learning From the Science: Practical Applications

For anyone training for a license, ionospheric science is more than theory — it’s practical guidance. Knowing which bands are likely to be active at what times helps avoid wasted effort and maximizes successful contacts. Understanding solar cycles and sunspot activity allows operators to anticipate long-term propagation trends. Awareness of absorption, refraction, and reflection patterns guides antenna selection and deployment. Most importantly, familiarity with these principles fosters a mindset of curiosity and experimentation that underpins all great amateur radio practice.

Integrating this knowledge with modern tools, such as MUF maps, solar flux measurements, and real-time propagation reports, empowers the operator to plan effectively. Beyond mere technical competence, it cultivates strategic thinking and adaptability — traits that define skillful, confident radio operators.

The Art and Science of Becoming a Skilled Operator

Mastering ionospheric propagation is a journey, blending scientific understanding with practical experience. It requires patience, observation, and a willingness to learn from both success and failure. The ionosphere is not static, and no single formula guarantees a contact. Instead, proficiency comes from continuously adapting to a dynamic environment, experimenting with frequencies and antennas, and learning to interpret the subtle signals of a shifting atmosphere.

The reward is significant. Once you internalize the behavior of the ionosphere, you can reliably communicate over distances that once seemed impossible. You gain an intuitive sense of when to operate, which bands to use, and how to optimize your setup for long-distance contacts. That knowledge transforms radio from a mere hobby into a technical and strategic craft, where skill and insight translate directly into successful communication.

Conclusion: Speak the Language of the Sky

In the end, understanding the ionosphere is not just academic; it is empowering. It allows you to anticipate propagation patterns, select the right frequencies, adjust antennas for optimal takeoff angles, and respond intelligently to changing conditions. This knowledge is the foundation upon which every skilled operator builds, whether reaching across the county or around the world. By learning to read the rhythms of the ionosphere, you gain not just technical competence but a deeper appreciation for the invisible forces that connect us across vast distances.

Radio propagation is a dialogue with the sky. The more fluently you understand its rules and tendencies, the more effectively you can participate in that conversation. Mastering the science of the ionosphere transforms every transmission from a shot in the dark into a calculated, intentional communication — a skill that will serve you throughout your journey as an amateur radio operator.

Call to Action

If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.

D. Bryan King

Sources

The Ionosphere – Humber Fortress DX Amateur Radio Club
The Ionosphere and Its Effect on Long‑Distance Communication – Ham Radio Academy
The Ionosphere and Skywave Propagation – ICO Optics
Atmospheric Layers & Their Effect on Radio Propagation – ICO Optics
Amateur Radio HF Communications – SARCNET
HF Propagation (presentation) – RCARC
Intermediate Amateur Radio Manual – G0HRS / G7OHO
Solar Activity and the Ionosphere – VU2NSB.com
BRATS QTH – Ionization & F Layer Ionisation
Ionospheric Radio Propagation Explained – AllElectroHub
AU‑18: Atmospheric and Ionospheric Propagation (Air University)
First Radar — CubeSat Transionospheric HF Propagation Observations
Direct Observations of Traveling Ionospheric Disturbances – arXiv
Simulation Study of HF Radio Waves Interacting With the Ionosphere – arXiv
Maximum Usable Frequency (Wikipedia)

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

#10Meters #15Meters #160Meters #20Meters #40Meters #80Meters #AmateurRadio #amateurRadioHobby #amateurRadioLearning #amateurRadioTips #antennaOptimization #antennaRadiation #bandSelection #DLayer #DLayerAbsorption #daytimePropagation #DXCommunication #DXPathPrediction #ELayer #ELayerRefraction #electronDensity #FLayer #FLayerReflection #F2Layer #frequencySelection #geomagneticStormEffects #geomagneticStorms #hamRadioScience #HFAntennaPlanning #HFBandPlanning #HFBands #HFCommunication #HFCommunicationTechniques #HFContactStrategy #HFOperatorInsight #HFPathPlanning #HFPathPrediction #HFPropagationGuide #HFPropagationTechniques #HFSignalAnalysis #ionization #ionosphere #ionosphereKnowledge #ionospherePhysics #ionosphereVariability #ionosphericDisturbance #ionosphericExperiment #ionosphericForecast #ionosphericIrregularities #ionosphericLayers #ionosphericObservation #longDistanceDX #longDistanceRadio #longHaulRadio #lowestUsableFrequency #LUF #maximumUsableFrequency #MUF #multipathFading #nighttimePropagation #plasmaLayer #propagationEducation #propagationExperience #propagationForecasting #propagationObservation #propagationPatterns #propagationScience #propagationStudy #propagationTiming #radioAbsorption #radioBlackout #radioExperiment #radioOperatorSkill #radioOperatorTraining #radioPropagation #radioScience #radioWaveBending #RFPropagation #signalFading #skipPropagation #skywaveDX #skywavePropagation #solarActivity #solarFlares #solarFlux #solarMaximum #solarMinimum #solarUVRadiation #solarDrivenPropagation #sporadicE #sunspotCycle #takeoffAngle #XRayIonization
