The Cloud-Burner: How to Master NVIS for Reliable Local Comms
1,593 words, 8 minutes read time.
If you have just earned your Technician or General class license, you have probably already realized that the radio world is full of “dead zones.” You might be able to talk to a guy in Italy using a massive tower, or a guy across town using a local repeater, but what about the people two counties over? Often, that sixty to two-hundred-mile range is a “skip zone” where your signal just flies right over their heads. This is where Near-Vertical Incidence Skywave, or NVIS, comes in. Think of it as taking your radio signal and pointing it straight up at the sky, using the atmosphere like a giant mirror to bounce that energy right back down into your local region. It is the ultimate tool for keeping your community connected when the internet goes out or the repeaters fail. It doesn’t require a hundred-foot tower or a thousand-dollar antenna; it requires a little bit of wire, a low branch, and the willingness to learn how the air above your head actually works.
Understanding the Ionospheric Mirror
To get a handle on NVIS, you have to understand that the ionosphere isn’t just empty space; it’s a layer of the atmosphere filled with particles that have been “charged up” by the sun. We call this ionization. During the day, the sun is hitting these layers hard, making them thick and reflective. At night, they thin out. For NVIS to work, we need to pick a frequency that is low enough to be reflected back down rather than passing through into space. This is governed by something called the Critical Frequency, or $f_c$. If you try to send a signal straight up at a frequency higher than $f_c$, it’s gone forever. For new hams, the rule of thumb is simple: use the 40-meter band (7 MHz) during the bright part of the day, and move down to the 80-meter band (3.5 MHz) or 160-meter band (1.8 MHz) as the sun goes down.
The goal here is to keep your “angle of incidence” near ninety degrees. Imagine standing in a room with a flashlight and a mirror on the ceiling. If you shine the light at a sharp angle toward the wall, the light bounces off and hits the far corner of the room—that is your standard long-distance “DX” skip. But if you shine that flashlight straight up at the ceiling, the light bounces right back down onto your head. That is NVIS. By “burning the clouds” with your signal, you create a solid umbrella of coverage that fills in all those local gaps. The math behind this is surprisingly straightforward. The Maximum Usable Frequency (MUF) for your local area is roughly equal to that Critical Frequency because the “Secant” of your ninety-degree angle is essentially one:
$$MUF = f_c \cdot \sec(0^\circ) = f_c \cdot 1$$
When you stay below that $f_c$ limit, you ensure your signal doesn’t punch through the atmosphere and disappear. Instead, you get a reliable, high-strength signal that blankets your entire region, regardless of hills, buildings, or trees that might block a standard line-of-sight signal.
The Low-Hanging Wire: Your NVIS Antenna
The most common mistake new hams make with NVIS is trying to get their antenna too high. We are taught that height is king, but in the NVIS world, the ground is actually your friend. To push your signal straight up, you want a horizontal dipole antenna mounted very low—usually only 10 to 15 feet off the ground. When the antenna is this low, the radio waves that hit the ground reflect back up and join with the waves going toward the sky. This creates a massive “lobe” of energy pointing at the zenith. If you put that same antenna 50 feet in the air, the energy starts to focus toward the horizon, which is great for talking to Japan, but terrible for talking to the next town over.
When you build a low antenna, the “impedance” of the wire changes. Impedance, represented by the letter $Z$, is basically how much the antenna resists the flow of electricity from your radio. A standard dipole in free space is about 72 ohms, but when you bring it close to the dirt, that number drops. You might see your SWR (Standing Wave Ratio) jump around because the ground is “soaking up” some of that energy or reflecting it back into the wire. The formula for this total resistance looks like this:
$$Z = R_{rad} + R_{loss}$$
Your goal is to keep $R_{rad}$ (the energy actually leaving the antenna) high and $R_{loss}$ (the energy turning into heat in the dirt) low. You can help this by laying a “reflector wire” on the ground directly underneath your antenna. This acts like a mirror on the floor, bouncing even more energy up toward the sky and away from the dirt. It is a simple, cheap way to make a basic wire antenna perform like a professional military setup. It is about working smarter with the space you have, using the foundation of the earth to amplify your reach.
Operating with Discipline and Purpose
NVIS isn’t just about the gear; it’s about the man behind the mic. Because you are using lower frequencies like 40 and 80 meters, you are going to encounter a lot of noise. These bands are where lightning crashes and electronic interference from house appliances live. To be successful, you have to develop a “radio ear.” You learn to listen through the static for your brothers. You also have to be ready to change bands. If you’re talking on 40 meters and the signals start to fade as the sun sets, don’t just keep cranking the power. That is a waste of electricity and hard on your gear. Instead, understand that the ionosphere is changing. Be the leader who says, “The sun is going down, the critical frequency is dropping—let’s move the net to 80 meters.”
This kind of communication is a responsibility. In an emergency, NVIS is often the only thing that works when the cell towers are down and the repeaters have no power. As a new ham, mastering this technique means you are becoming a valuable asset to your family and your community. You aren’t just playing with a hobby; you are learning the physics of the atmosphere so you can provide a lifeline when it matters most. It takes patience to learn the cycles of the sun and the quirks of your local soil, but that discipline is what separates a true operator from someone who just bought a radio.
Take pride in the “bench time.” Build your own dipoles, experiment with different heights, and don’t be afraid to fail. Every time you tune an antenna or successfully make a contact two towns over during a storm, you are gaining technical mastery. You are learning to provide for those around you by using your mind and your hands. Keep your station clean, keep your character grounded, and remember that the strength of the airwaves comes from the discipline of the men who use them. Whether you are a Technician just starting out or a General looking to expand your skills, NVIS is the gateway to a whole new level of radio capability.
Looking Ahead: The Power of Local Links
The future of radio isn’t just in satellites or high-speed digital networks; it’s in the resilient, local links that we build ourselves. As you grow in this craft, you’ll find that NVIS is a bridge. It connects people across distances that are too far to see but too close for standard skip. It is a testament to the order of the world—that even the very air above us is designed in a way that allows us to reach out to one another. By mastering the “Cloud-Burner” technique, you are stepping into a long tradition of operators who value self-reliance and technical skill.
Continue to study the $SFI$ (Solar Flux Index) and watch how the bands open and close. Treat your fellow hams with respect and kindness, and always be willing to help the next new guy who is trying to figure out why his signal isn’t getting out. We are a community built on shared knowledge and a commitment to the craft. Stand tall, keep your wires taught, and we will see you on the air.
Call to Action
If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.
SUPPORTSUBSCRIBECONTACT MED. Bryan King
Sources
Disclaimer:
The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.
#ZRJX #160MeterBand #40MeterBand #80MeterBand #amateurExtra #AmateurRadio #antennaEngineering #antennaHeight #antennaTuning #AS2259 #BenchCraft #Counterpoise #CriticalFrequency #CW #DLayerAbsorption #digitalModes #ElectromagneticRadiation #EMCOMM #emergencyCommunications #F2Layer #GeneralClass #GroundLoss #groundPlane #hamRadio #HorizontalDipole #impedanceMatching #ionosphere #MUF #NearVerticalIncidenceSkywave #NVIS #PlasmaFrequency #RadiationResistance #radioDiscipline #RadioNet #radioPropagation #Refraction #RegionalRadio #RFPhysics #SecantLaw #selfReliance #signalFading #signalToNoiseRatio #SkipZone #SolarFluxIndex #SSB #SWR #TacticalComms #TechnicalSovereignty #technicianClass #wireAntenna #ZenithRadiation
The Power of the Whisper: How WSPR and WSJT-X are Redefining Long-Distance Radio
1,250 words, 7 minutes read time.
Amateur radio operators and technology enthusiasts are currently utilizing the Weak Signal Propagation Reporter, commonly known as WSPR, and the WSJT-X software suite to achieve global communication using minimal power. Developed by Nobel laureate Joe Taylor, K1JT, this digital protocol allows stations to send and receive signals that are often completely buried in background noise, making it possible to map atmospheric conditions and radio propagation in real-time. This technology serves as a critical entry point for men looking to understand the mechanics of the ionosphere and the efficiency of modern digital signal processing. By leveraging advanced mathematical algorithms, WSPR proves that high-power amplifiers and massive antenna towers are no longer the only way to reach across the ocean, offering a technical challenge that rewards precision and patience over brute force.
The core of this system lies in the software known as WSJT-X. This program implements several digital protocols designed specifically for making reliable communication under extreme conditions where traditional voice or Morse code signals would fail. While WSPR is not a conversational mode, it acts as a global beacon system. A station transmits a brief packet containing its callsign, location grid square, and power level. Thousands of other stations around the world, running the same software, listen for these signals and automatically report any successful decodes to a central internet database called WSPRnet. This creates a living, breathing map of how radio waves are traveling across the planet at any given second, providing invaluable data for anyone interested in the science of communication.
Understanding the physics behind this process is what separates a casual observer from a true radio technician. The Earth’s ionosphere, a layer of the atmosphere ionized by solar radiation, acts as a mirror for certain radio frequencies. Depending on the time of day, solar flare activity, and the season, these signals can skip off the sky and land thousands of miles away. In the past, confirming these paths required luck and high-power transmissions. Joe Taylor once noted that the goal of these modes is to utilize the information-theoretic limits of the channel. This means squeezing every bit of data through the smallest amount of bandwidth possible, allowing a station running only one watt of power to be heard in Antarctica from a backyard in Michigan.
For the man standing on the threshold of earning his amateur radio license, WSPR is the ultimate proof of concept. It removes the intimidation factor of “talking” to strangers and replaces it with a pure engineering objective: How far can my signal go with the least amount of effort? Setting up a WSPR station requires a computer, a transceiver, and a simple wire antenna. The software handles the heavy lifting of Forward Error Correction and narrow-band filtering. This process teaches the fundamentals of station grounding, signal-to-noise ratios, and frequency stability—skills that are mandatory for passing the licensing exam and, more importantly, for operating a professional-grade station.
The hardware requirements are surprisingly modest, which appeals to the practical, DIY-oriented mind. Many enthusiasts use a Raspberry Pi or an older laptop dedicated to the task. The interface between the radio and the computer is the critical link, ensuring that the audio generated by the software is cleanly injected into the radio’s transmitter. If the audio levels are too high, the signal becomes distorted, “splattering” across the band and becoming unreadable. This level of technical discipline is exactly what is required in high-stakes fields like aviation or telecommunications. Mastering the “clean” signal is a badge of honor in the ham radio community, signifying a man who knows his equipment inside and out.
As we look at the data generated by WSPR, we see more than just dots on a map; we see the pulse of the sun. Because radio propagation is tied directly to solar activity, WSPR users are often the first to notice a solar storm or a sudden ionospheric disturbance. When the sun emits a massive burst of energy, the higher frequency bands might “open up,” allowing for incredible distances to be covered on low power. Conversely, a solar blackout can shut down communication entirely. Being able to read these signs and adjust one’s strategy accordingly is a core component of the hobby. It turns a simple radio into a scientific instrument used for environmental monitoring.
The community surrounding WSJT-X is one of rigorous peer review and constant improvement. The software is open-source, meaning the code is available for anyone to inspect and refine. This transparency has led to a rapid evolution of the protocols. While WSPR is for propagation reporting, other modes within the suite like FT8 or FST4 are used for rapid-fire contacts. However, WSPR remains the gold standard for testing antennas. If a man builds a new wire antenna in his yard, he doesn’t have to wait for someone to answer his call to know if it works. He can run WSPR for an hour, check the online map, and see exactly where his signal landed. It provides immediate, objective feedback that is essential for any technical project.
The future of this technology points toward even more robust communication in the face of increasing electronic noise. As our cities become more crowded with Wi-Fi, power lines, and electronics, the “noise floor” of the radio spectrum is rising. Traditional modes are struggling to compete. Digital modes like those found in WSJT-X are the solution, using digital signal processing to “dig” signals out of the static. This represents the next frontier of amateur radio—the transition from analog heritage to digital mastery. For those looking to get involved, the barrier to entry has never been lower, and the potential for discovery has never been higher.
In the broader context of emergency preparedness and global infrastructure, the lessons learned from WSPR are invaluable. In a scenario where satellites or internet backbones fail, the ability to bounce low-power signals off the atmosphere remains one of the only viable long-distance communication methods. A man who understands how to deploy a WSPR-capable station is a man who can provide data and connectivity when everything else goes dark. This sense of utility and self-reliance is a driving force for many who pursue their license. It is not just about a hobby; it is about mastering a fundamental force of nature to ensure that the lines of communication stay open, no matter the circumstances.
Call to Action
If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.
D. Bryan King
Sources
Disclaimer:
The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.
#amateurRadioCommunity #amateurRadioForBeginners #amateurRadioLicense #antennaTesting #AtmosphericScience #AtomicClock #Balun #bandwidth #CATControl #dataModes #Decibel #digitalModes #digitalSignalProcessing #dipoleAntenna #DIYRadio #DXing #ElectronicEngineering #Elmers #EmergencyCommunication #ExtraClass #forwardErrorCorrection #frequencyHopping #FrequencyStability #FT8 #GeneralClass #GlobalRadioMap #GPSTime #GridDownRadio #GridSquares #Grounding #hamRadio #hamRadioExamPrep #hamRadioGear #HamRadioMentoring #hamRadioProjects #hamRadioSkills #hamRadioSoftware #hfAntenna #HFRadio #HighFrequency #impedanceMatching #ionosphere #JoeTaylorK1JT #LongDistanceRadio #LowPowerRadio #MagneticLoopAntenna #MaidenheadLocator #NarrowbandCommunication #NetworkTimeProtocol #NoiseFloor #OpenSourceRadio #PCToRadioInterface #QRP #RadioAstronomy #RadioBenchmarking #radioCommunication #radioFrequency #RadioInterfacing #RadioNetworking #radioPropagation #RadioScience #radioSignals #radioSpectrum #radioTechnician #radioTroubleshooting #RadioWavePhysics #RaspberryPiRadio #RealTimeTracking #RFInterference #RigControl #SDR #shortwaveRadio #SignalDecoding #SignalReporting #SignalToNoiseRatio #softwareDefinedRadio #solarActivity #solarCycle #SolarFlareImpacts #SoundcardPacket #SpaceWeather #StandingWaveRatio #SurvivalCommunication #SWR #TechHobbiesForMen #TechnicalSelfReliance #technicianClass #telecommunications #timeSync #TransceiverSetup #Unun #verticalAntenna #VOXControl #WeakSignalPropagationReporter #wireAntenna #wirelessTechnology #wsjtX #wsjtXTutorial #WSPR #WSPRTutorial #WSPRnet

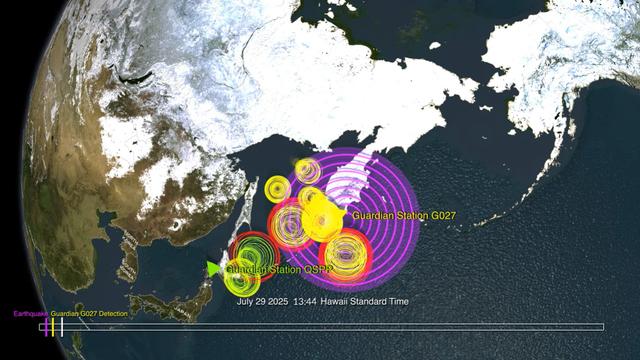

See NASA’s GUARDIAN Catch a Tsunami
