The Slot Antenna: Flipping the Script on Amateur Radio Theory

1,771 words, 9 minutes read time.

Most people in the radio world are playing with toys. They’re obsessed with flimsy wires and “whip” antennas that snap in the wind or create massive drag. If you want to dominate the spectrum, you need to stop looking at the wire and start looking at the void. The slot antenna isn’t just an alternative; it’s a masterclass in electromagnetic duality. We’re talking about carving a hole in a slab of steel and turning that “nothingness” into a high-gain radiation machine.

The Physics of the Void

The uninitiated think a hole in metal is just a leak. They’re wrong. In a standard dipole, current flows along a wire to create an electric field. In a slot antenna, we flip the physics on its head. When you hit the edges of that slot with RF, the surrounding metal carries the current, and the gap itself becomes the source of the field.

This is Babinet’s Principle in action. It’s not a “trick”—it’s a fundamental law of the universe. Because the antenna is flush with the surface, it’s the ultimate choice for high-speed aircraft and tactical vehicles. A traditional antenna gets sheared off by the elements. A slot antenna is part of the armor. It doesn’t just survive the environment; it owns it.

Engineering the Perfect Cut

Resonance is non-negotiable. Typically, you’re cutting a slot half a wavelength long. But the width is where you prove you know your stuff. The width dictates your impedance and your bandwidth. A wider slot moves massive data at high speeds.

Here is the part where most amateurs fail: Polarization. A vertical wire produces vertical polarization. A vertical slot cut into a metal sheet produces horizontal polarization. If you don’t account for that flip, you’re wasting power and shouting into a vacuum. Match the polarization, or stay home.

Command and Control

Feeding the beast is where the skill is. You don’t just “hook up” a wire. You bridge the gap with a coaxial cable—center conductor to one side, shield to the other—or you go elite with a waveguide.

When you cut a series of slots into a metal pipe (a waveguide), you create a Slotted Waveguide Array. As the signal hammers down that pipe, energy “leaks” out of each slot. If your machining is precise, those waves reinforce each other, creating a directional beam of energy so tight it can track a jet at Mach 2. This is the secret behind airport radar and warships. It’s precision physics meeting raw power.

Tactical Survival: The Ground Plane

In the real world, you don’t have “ideal conditions.” You have the hull of a ship, the side of a building, or a heavy-duty equipment rack. The metal structure itself becomes the antenna’s ground plane. High-level proficiency is knowing how to turn a structural slab of metal into a massive radiator.

This tech was forged in the fire of WWII because we needed radar that was stealthy and aerodynamic. The ability to hide an antenna inside the skin of a plane changed warfare forever. It’s about being invisible while remaining lethal.

The Future of Mastery

This isn’t “old-school” tech; it’s the backbone of 5G and satellite hardware. As we push into millimeter-wave bands, a fraction of a millimeter in your cut determines success or failure. Mastering the slot antenna means mastering the dual nature of the universe—the push and pull of electric and magnetic forces.

Move Toward the Build

If you’re serious about this craft, stop reading and start cutting. The study of slot antennas is a rite of passage. It demands spatial reasoning and a grip on 3D energy flow. Grab some copper foil or aluminum sheets and build a slot antenna for the 2.4 GHz band. Measure the SWR. Feel the polarization shift.

Hands-on experience is the only thing that separates a casual observer from a true expert. Build it. Repair it. Optimize it. Master the void.

TAKE ACTION

Don’t just lurk. If you’ve got the guts to show off your own builds, drop a comment below.

• SUBSCRIBE: Get the technical deep dives that actually matter.
• CONTACT ME: Reach out for professional RF consults or technical questions.
• SUPPORT THE SIGNAL: If this saved you hours of troubleshooting, Buy Me a Coffee and keep the research moving.

D. Bryan King

Sources

• ARRL – The American Radio Relay League: http://www.arrl.org/slot-antenna
• Antenna-Theory.com – Slot Antenna Basics: http://www.antenna-theory.com/antennas/aperture/slot.php
• Microwaves101 – Slot Antennas: https://www.microwaves101.com/encyclopedias/slot-antennas
• IEEE Xplore – Analysis of Slotted Waveguide Antennas: https://ieeexplore.ieee.org/document/1138242
• Electronics Notes – Slot Antenna: https://www.electronics-notes.com/articles/antennas-propagation/slot-antenna/basics.php
• NIST – Antenna Characterization Metrology: https://www.nist.gov/pml/electromagnetics/antenna-metrology
• RSGB – Radio Society of Great Britain: https://rsgb.org/main/technical/antennas/
• NASA – High Gain Slot Antenna Systems: https://ntrs.nasa.gov/citations/19710013564
• CERN Document Server – RF Engineering: https://cds.cern.ch/record/1041045
• The Radio Amateur’s Handbook (Classic Archives): https://archive.org/details/TheRadioAmateursHandbook1945
• W6SAI Antenna Handbook – Bill Orr: https://www.cq-amateur-radio.com/index.html
• QST Magazine Archives: http://www.arrl.org/qst
• Sandia National Laboratories – RF Research: https://www.sandia.gov/research/

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

Spiral antennas are funny devices. They are known for their extremely wide bandwidth, the ones shown here, are specified to operate from 2-18GHz.

They’re not meant as transmitting antennas, these critters are receive-only, used by (largely non-civilian) pilots who have those needs ☺️

Their low frequency boundary is determined by its physical size, in this case, the circumference of the small plate where you can see the fine spiral traces.

Once you cross below that boundary, the structure basically collapses electrically, seen here as a steep SWR ‘wall’ to the left side of the sweep.
At this point it’s not an antenna anymore, but something else (whatever that is 🤷🏼‍♂️😂)

#rfengineering #rfengineer #testandmeasurement #hamradio #hamr #antennaengineering #emso

Always wanted a portable directional to spot emitters at higher frequencies - decided to try this one.

My test ceiling is 4GHz, but at least that far, it seems OK ✅🙂 I doubt it’ll go all the way to 10GHz as advertised because of the (FR4?) PCB Material.

It always amuses me, how violently antennas like this collapse at the lower frequencies - suddenly the size no longer accommodates the input wavelength and they simply stop being an antenna 🤷🏼‍♂️😂

For some reason, these logperiodic (LPDA) antennas always come with a SMA connector at the tip - that’s completely wrong: you need to solder a semirigid coax all the way down the centerline and feed it from there. The PCB was even prepared for it - go figure 🤷🏼‍♂️🤔

Anyway, now fixed, tested, and ready to go signal hunting 😎

#rfengineering #rfengineer #hamr #hamradio #testandmeasurement #antennaengineering #electronics #summervibes

Likely of most interest to hamradio operators, but maybe also for others sharing tower real-estate with powerful emitters 🙂

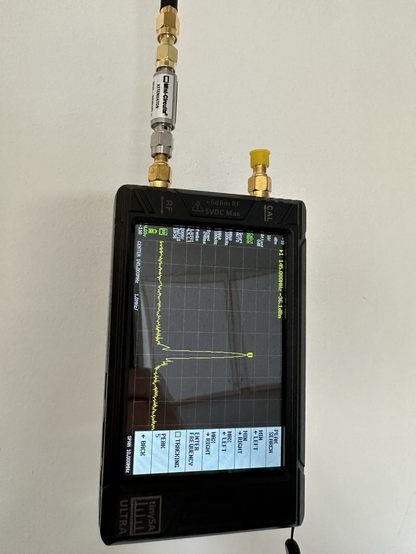

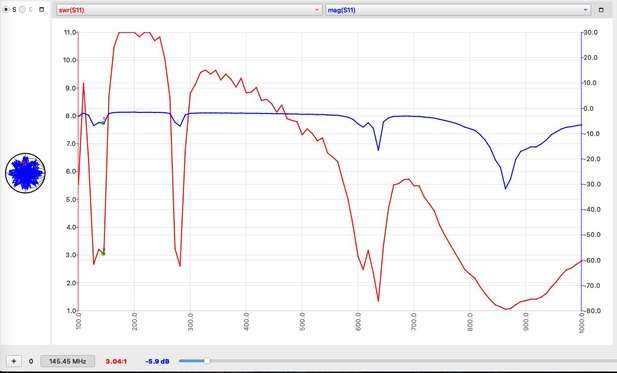

Upon installing a 868MHz antenna, I found it to also have a response at the (hamradio) 145MHz band 🤷🏼‍♂️😳

I decided to test how much power it would pick up from my nearby (6m separation) VHF/UHF antenna when operating the transmitter at different output power levels.

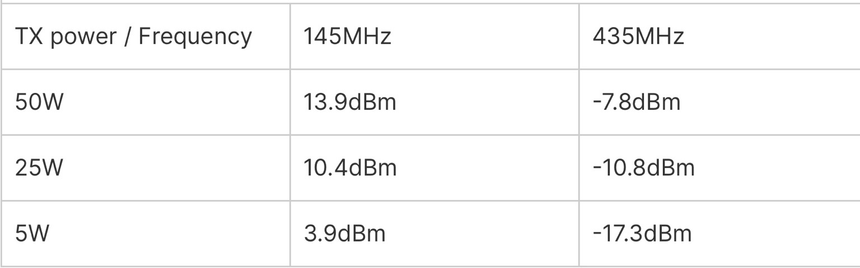

I found, that at 145MHz, the full 50W power of my FM transmitter would produce short of 14dBm at the antenna connector of the LoRa module which is above the maximum ratings of the widely used SX1262 transceiver chip.

So be careful if you’re close to powerful VHF/UHF emitters, the SX1262 is wide open from 150-960MHz and since the onboard filtering is likely rudimentary to cut cost, you may need an external filter to protect your module.

Have a nice, EMI Safe, weekend out there 🙂

#hamradio #meshtastic #lora #lorawan #rfengineer #testandmeasurement #antennaengineering #hamr

It’s #testgeartuesday and here’s a fun and easy all-time classic antenna experiment: measuring the near field strength across a half-wave dipole 👍🏼😎

Cut a dipole for a suitable frequency, say, 145MHz. If you have a small VNA, use it to verify the center frequency.

Now, feed the dipole at the center frequency with an external generator, here a vintage classic: the #marconi 2022 🥹 Output power was set to 10dBm, that’s 10mW, more than enough. Don’t worry about walls and reflections, it’s the near field we’re interested in.

Carefully moving the field strength meter across the dipole, from one end to the other, will show the voltage curve: maximum at the ends, zero at the feed point.

Such a simple experiment - demonstrating such a fundamental antenna behavior 😃😃

#hamradio #hamr #antennaengineering #rfengineer #electronics #testandmeasurement

It’s #sensorsunday 🤩

A field strength meter can be really handy when testing antennas and they’re simple to build: a couple germanium diodes, a capacitor, a good old analog uA meter and a potentiometer to adjust the sensitivity.

This unit was just $20 and it seems they repurposed a PCB originally intended for some other application 🤷🏼‍♂️ 🙂

To use it, start by adjusting the sensitivity to its minimum setting, key the transmitter at its lowest power (1W will certainly do) and walk along the antenna and measure the field strength along the wire or structure.

I’ll do a future post demonstrating it on a trap dipole , W3DZZ style 🙂

#hamradio #hamr #antennas #antennaengineering #rfengineer #testandmeasurement

Log periodic antennas are wide-band directional devices, suitable for signal hunting or simply wide-band communication. Their gain isn’t impressive, this one is rated to about 6dBi, that’s the price you pay for bandwidth.

The commercially made are really expensive, literally an order of magnitude above this eBay unit which was about 60$. But I suspect they have a similar PCB inside anyway 😂🤷🏼‍♂️

So how well does this unit perform? My #nanovna_v2 cuts off at 4GHz but starting at about 700MHz, it surely delivers a reasonable match below SWR 1:2 (620MHz for SWR 1:3)

I’ll have to bring it to the lab at work to test the upper frequency limit 🙂 For now, let’s go signal hunting! 😎

#rfengineering #rfengineer #antennaengineering #testandmeasurement #hamradio #hamr #osinttools #osint #sigint #esm #elint #comint
