Baluns & Ununs: The Unsung Heroes of Antenna Building and Signal Matching
758 words, 4 minutes read time.
When diving into the world of antenna systems, whether you’re a hobbyist or a professional, you might often hear about Baluns and Ununs. These are specialized transformers that play pivotal roles in signal transmission. Their primary function is to match impedances between components in your system to ensure the highest efficiency and performance. But what exactly are they, and how do they contribute to antenna building?
What Is a Balun?
A Balun, short for BALanced to UNbalanced, is an electrical transformer that allows the connection of a balanced load (like a dipole antenna) to an unbalanced feed line (such as coaxial cable). It’s a key component in matching the impedance between these two differing systems, ensuring that signals are transferred without significant loss. Baluns are widely used in radio frequency (RF) systems to ensure minimal signal reflection, noise, and interference.
Baluns come in various configurations, depending on the specific needs of the system. They can handle impedance transformations with ratios like 1:1, 1:4, or 1:9. The type of balun you choose depends on the specific characteristics of your antenna and feed line. For example, a 1:1 balun keeps impedance consistent, while a 1:4 balun is typically used to match a 75-ohm coax to a 300-ohm antenna.

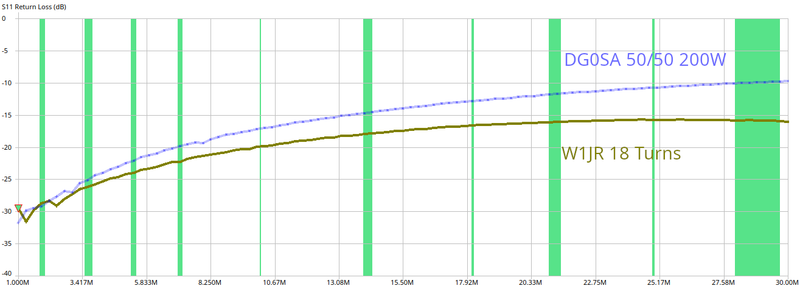

Additionally, there are different types of Baluns, such as current baluns and voltage baluns. A current balun is used to block common mode currents, while a voltage balun balances the voltages on the antenna.
What Is an Unun?
An Unun, which stands for UNbalanced to UNbalanced, is another crucial transformer, but it serves a slightly different purpose. While a balun connects a balanced antenna to an unbalanced feed line, an unun matches impedance between unbalanced components. It’s commonly used with antennas like end-fed half-wave (EFHW) antennas, which are often unbalanced in nature. The unun’s job is to ensure that the impedance of the antenna matches that of the transmission line, reducing signal reflections and losses.
Ununs are typically used in situations where both the antenna and transmission line are unbalanced but have different impedance values. For example, a 1:1 unun might be used to match a high-impedance antenna, like an EFHW, to a coaxial cable. The most common configurations for ununs are 1:1 or 4:1, but just like baluns, the specific ratio needed depends on the application.
The Key Differences Between Baluns and Ununs
While both baluns and ununs serve to match impedance, the key difference lies in what they connect. A balun bridges the gap between a balanced antenna and an unbalanced feed line, whereas an unun is used for matching different impedances between unbalanced components. The choice between a balun and an unun largely depends on the antenna system you’re working with. For example, for dipoles or Yagi antennas (which are balanced), a balun is typically required. For end-fed antennas, an unun is more appropriate.
Why Are Baluns and Ununs Important for Antenna Performance?
Impedance matching is vital in any antenna system, and both baluns and ununs make this process possible. Without proper impedance matching, your antenna system could suffer from inefficiencies such as signal loss, poor radiation patterns, and mismatched power transfer. By using the correct balun or unun, you ensure that the antenna system operates at peak efficiency, minimizing reflections and maximizing power transfer.
Furthermore, these components also help in reducing common-mode currents that could otherwise introduce noise and distortions. Whether you’re dealing with high-frequency signals in amateur radio or broader RF applications, a well-matched antenna system ensures cleaner, stronger signals.
Practical Applications and Tips
When building or designing an antenna system, consider the following practical tips:
- Choose the right impedance transformation ratio: Whether you’re using a balun or an unun, selecting the right ratio (e.g., 1:1, 1:4, or 1:9) will significantly impact the performance of your antenna system.
- Select the right materials: Baluns and ununs can be made from various core materials like ferrite, powdered iron, or even air. The choice of core material can affect the device’s efficiency, especially at higher frequencies.
- Use for noise reduction: For systems prone to interference or common-mode noise, a balun (particularly a current balun) can help to suppress these unwanted signals.
Conclusion
Baluns and ununs might seem like small components in the grand scheme of antenna building, but they play an essential role in ensuring your antenna system performs optimally. Whether you’re setting up a dipole antenna, a Yagi, or an end-fed wire, understanding the role of these transformers will help you make the right decisions for better signal transmission, reduced interference, and overall improved antenna performance.
D. Bryan King
