Understanding LoRa Modulation: How Chirps Enable Long Range Wireless Communication

1,523 words, 8 minutes read time.

Long Range (LoRa) modulation is one of the most innovative digital radio techniques available today, widely used in IoT networks and by hobbyists exploring the potential of long-distance low-power communication. At its core is Chirp Spread Spectrum (CSS) — a method that spreads information across a frequency sweep, rather than encoding it solely on amplitude or phase. This allows signals to travel far, penetrate obstacles, and resist noise better than many traditional modulation schemes.

LoRa emerged in the 2010s as engineers sought low-power solutions for sensors, meters, and devices that needed to communicate over kilometers without draining batteries. While it’s most commonly associated with the Internet of Things, the principles behind LoRa have direct relevance to amateur radio enthusiasts, particularly those interested in long-distance digital modes. Understanding the physics of chirps, spreading factors, and symbol encoding is not just theory; it forms a foundation for grasping modern RF communications.

This document explains LoRa’s modulation in detail, highlighting why CSS is effective, how chirps encode data, and why receivers can detect signals far below the noise floor. By mastering these concepts, aspiring operators build a deep understanding of frequency manipulation, signal correlation, and processing gain — skills applicable well beyond LoRa itself.

What is Chirp Spread Spectrum (CSS)?

Chirp Spread Spectrum is a type of wideband modulation where the frequency of a signal linearly increases or decreases over time. These sweeping frequencies, called chirps, encode data based on their timing and phase relative to other chirps. This technique originates from radar and sonar, where chirps help detect weak echoes over noisy backgrounds. LoRa adapts this concept for digital data transmission, using chirps to represent symbols rather than simple binary states.

Unlike traditional amplitude or frequency shift keying, which toggles between discrete values, CSS spreads information over the entire bandwidth. This not only improves robustness against interference but also provides processing gain, allowing the receiver to extract weak signals buried in noise. The result is a system capable of communicating over distances and under conditions where conventional narrowband radios would fail.

LoRa’s implementation of CSS further optimizes the technique by introducing cyclic shifts of chirps. Each unique shift represents a distinct symbol. By adjusting the starting point of a chirp within its sweep, LoRa encodes multiple bits per symbol. This design creates a high-efficiency, M-ary modulation system that balances range, sensitivity, and data rate.

Finally, the spreading factor (SF) determines how many symbols are available per chirp. Lower SFs mean shorter chirps, higher data rates, and shorter range, while higher SFs produce longer chirps, lower data rates, but vastly improved sensitivity. This flexibility allows LoRa to scale performance based on specific application needs, from dense urban deployments to remote rural sensors.

How LoRa Encodes Data with Chirps

Each LoRa symbol represents multiple bits, encoded by cyclically shifting a chirp within the channel bandwidth. For example, a spreading factor of SF = 7 allows for 128 possible shifts per symbol, while SF = 12 offers 4096 options. Each shift is precisely timed and frequency-controlled, effectively turning a frequency sweep into a rich constellation of data points.

The receiver decodes these chirps using correlation detection. By comparing received signals with reference chirps, the system identifies the correct cyclic shift and extracts the underlying symbol. This approach allows the receiver to recognize signals far below the noise floor, a capability uncommon in most conventional digital modes.

The combination of cyclic shifts, spreading factors, and correlation detection allows LoRa to operate in environments that would challenge standard FM or digital radio systems. Devices can coexist on the same frequency channel with different SFs due to the orthogonality of the chirps. This means that a gateway can simultaneously detect multiple transmissions, improving network capacity and reliability.

Finally, the choice of bandwidth directly influences symbol rate and sensitivity. Narrower bandwidth increases the time per chirp, enhancing sensitivity and range but reducing throughput. Wider bandwidth allows faster communication at the cost of reduced link margin. LoRa’s careful balance of these parameters makes it highly adaptable for a wide variety of low-power, long-range applications.

Why LoRa Works Below the Noise Floor

One of LoRa’s most remarkable traits is its ability to decode signals significantly below the noise floor. Traditional radios fail when the signal drops just a few decibels below noise. LoRa achieves this due to the processing gain inherent in CSS and the correlation properties of chirps.

When a chirp is received, the system performs a correlation with a reference chirp, effectively summing energy across the entire symbol period. This accumulation allows the receiver to detect weak patterns that would otherwise be lost. Because random noise rarely mimics the predictable linear frequency sweep of a chirp, most interference is rejected naturally.

This property is why LoRa devices can communicate over kilometers while consuming only a few tens of milliwatts of power. A signal that would be undetectable with narrowband FM can be recovered reliably using a CSS receiver, enabling ultra-long-range, low-power networks.

Finally, this capability is invaluable to amateur radio operators exploring low-power, long-distance communication. By studying LoRa, operators learn how spread-spectrum techniques, correlation detection, and careful frequency planning can dramatically extend range without increasing power or bandwidth.

Spreading Factors and Network Design

The spreading factor (SF) in LoRa defines the number of possible chirp offsets and directly impacts performance. A lower SF enables faster data rates and shorter chirps, ideal for local communication or high-throughput applications. A higher SF produces longer chirps and more possible offsets, dramatically improving sensitivity and long-range performance.

Bandwidth, symbol duration, and spreading factor together determine time-on-air, affecting latency, throughput, and energy consumption. Network designers must balance these parameters to meet specific requirements, whether for a dense urban network or a remote sensing deployment.

Additionally, the orthogonality of chirps with different SFs allows multiple devices to transmit simultaneously on the same frequency. This property increases network capacity and reduces interference, a practical consideration for IoT networks, but also a valuable insight for amateur radio enthusiasts exploring multi-user digital modes.

Understanding these relationships is key for anyone interested in RF design or digital communication. By experimenting with different SFs and bandwidths, learners gain intuition about trade-offs in real-world wireless networks.

Practical Applications for Amateur Radio Enthusiasts

While LoRa is not a standard Amateur Radio mode, studying its modulation provides invaluable insights into RF engineering, digital signal processing, and wireless network design. Knowledge of CSS principles applies broadly, from HF digital modes to satellite communications and experimental high-frequency systems.

For the aspiring Amateur Radio operator, experimenting with LoRa modules or building custom receivers can teach critical skills: correlating signals, understanding link budgets, and designing for long-range communication in noisy environments. These lessons are directly transferable to more traditional ham radio projects.

Moreover, LoRa’s low-power, high-range performance inspires innovative approaches to emergency communication, remote monitoring, and experimental digital networks. Amateur operators who understand these concepts are well-positioned to contribute to novel applications, from sensor arrays to hybrid radio networks.

Finally, mastering LoRa principles strengthens the operator’s intuition about spectrum, modulation, and signal detection. It’s a practical, hands-on way to deepen RF literacy while staying on the cutting edge of low-power wireless technology.

Future Developments in Long-Range Wireless Communication

Chirp Spread Spectrum and LoRa modulation continue to influence research in low-power, resilient communication. Advanced networks, hybrid IoT-amateur setups, and urban sensor deployments all benefit from the core principles pioneered by LoRa.

Future enhancements may include adaptive spreading factors, multi-channel correlation, and improved interference mitigation, further extending range and reliability. As spectrum becomes more crowded, these techniques will be increasingly valuable for both commercial and hobbyist radio users.

For Amateur Radio operators, understanding LoRa’s underlying physics equips them for the next generation of digital radio experimentation. From long-distance sensors to robust low-power networks, the skills developed studying LoRa modulation have lasting relevance across the radio spectrum.

In summary, LoRa modulation demonstrates how clever manipulation of frequency, timing, and correlation allows information to travel far, efficiently, and reliably. By grasping chirp-based communication, aspiring operators gain expertise that strengthens both theoretical understanding and practical radio skills.

Call to Action

If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.

D. Bryan King

Sources

• LoRa Alliance – LoRa & LoRaWAN Technical Book (PDF)
• LocalMesh – LoRa Technology Explained
• Raveon Technologies – LoRa Protocol Overview
• nolilab.com – Simple Guide to LoRa & LoRaWAN
• HamRadio.my – LoRa and CSS Modulation Explained
• All About Circuits – Demystifying LoRa Networks
• DN.org – Chirp Spread Spectrum Fundamentals
• Wikipedia – LoRa (Overview & PHY Layer)
• Medium – What Is LoRa: The Fundamentals
• The Things Network – Spreading Factors Explanation
• Gyulab – LoRa/CSS Overview, Demodulation & Decoding
• Wikipedia – Chirp Spread Spectrum (CSS)
• MOKOSmart – Technology Behind LoRa Frequency
• ADS/ArXiv – A Tutorial on Chirp Spread Spectrum Modulation
• arXiv – Design of LoRa Communication Systems Research

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

Understanding Antennas: A Beginner’s Guide

1,790 words, 9 minutes read time.

If you’ve ever tuned a receiver or held a handheld transceiver, you know the thrill of connecting with someone miles away over invisible waves. Yet, no matter how impressive your radio or its features, the antenna remains the real workhorse of your station. Think of it as the engine of a sports car: you can have the finest chassis and interior, but without a capable engine, performance suffers. The same principle applies to ham radio. A well-designed antenna can make even modest equipment sing, while a high-powered rig can struggle when paired with a poorly chosen or installed antenna.

This guide isn’t about licensing or exam questions. Instead, it’s about helping you master the science and art of antennas so that when the time comes to pursue your license, you already understand what makes an antenna work—and why it matters more than most novices realize. By the end, you’ll have the insight to make informed decisions about design, installation, tuning, and optimization, and you’ll understand why the antenna is the heart of every station.

The Big Picture: What an Antenna Really Does

An antenna is, at its simplest, a bridge between your radio and the world. It converts electrical energy from your transmitter into electromagnetic waves that propagate through the air. On receive, it captures those waves and converts them back into electrical signals for your radio to decode. While radios can be complex, antennas are governed by elegant, consistent physical principles.

Key characteristics define performance: frequency, wavelength, radiation pattern, feed-point location, and impedance. Frequency determines physical size; lower frequencies need longer elements, while higher frequencies allow smaller antennas. Wavelength defines the resonant length of the antenna, determining how efficiently it radiates or receives energy. Impedance is crucial for matching the antenna to your radio and minimizing power loss. A mismatch can result in reflected energy, poor performance, or even equipment stress.

The antenna’s shape, orientation, and height relative to the ground all shape its radiation pattern—the “footprint” over which your signal travels. A simple horizontal dipole a few feet off the ground will behave very differently from the same dipole mounted 30 feet high. Understanding these nuances early will save frustration later, especially when space, trees, and rooftops impose real-world constraints.

Antenna Theory for Beginners

When learning about antennas, it helps to think in terms of waves. Radio waves have both a wavelength and frequency. A quarter-wave or half-wave element resonates when its physical length is proportional to the wavelength of your frequency of interest. This resonance ensures maximum energy transfer and minimal loss.

Impedance is another cornerstone concept. Most amateur radios expect a 50-ohm load. An antenna presenting a significantly different impedance causes reflections back to the transmitter, measurable as Standing Wave Ratio (SWR). Understanding SWR is crucial: a high SWR indicates energy is bouncing back toward your radio, while a low SWR shows efficient transfer. Modern antenna analyzers make this process easier, but grasping the principle early ensures you interpret readings correctly.

Height, feedline quality, and nearby obstacles all interact with theory. A well-placed antenna can outperform a technically superior antenna that’s poorly installed. Even the choice of coax or ladder line matters; losses in feedlines reduce overall effectiveness. Understanding these elements before you even cut your first wire sets a foundation that will carry you through your first contacts and beyond.

Exploring Common Antenna Types

Choosing the right antenna often comes down to balancing your goals, available space, and budget. The horizontal dipole is a classic starting point: easy to construct, effective, and versatile. Variations like the inverted-V conserve space while maintaining reasonable efficiency. The G5RV multiband wire is another beginner favorite, providing access to multiple bands with a single installation.

Vertical antennas, including ground-plane designs, offer a smaller footprint and omnidirectional coverage, making them suitable for limited space. However, verticals often require a decent ground system for efficiency. Portable hams often start with rubber-duck handheld antennas or lightweight whips. While these are limited in range and performance, they provide essential practice in tuning, orientation, and handling.

Directional antennas, such as beams or Yagis, allow you to focus power in a particular direction, improving signal strength and reception. While these require more planning, supports, and often rotators, they demonstrate the profound impact antenna geometry has on performance. Even simple directional configurations like a corner reflector or quad can dramatically improve reception without increasing transmitter power.

Installation Considerations

An antenna’s effectiveness hinges on proper installation. Begin with a site survey. Note available supports, nearby obstacles, and ground conditions. Trees, metal structures, and other antennas can influence radiation patterns and SWR. Height is your ally: higher antennas generally produce lower take-off angles, enhancing long-distance performance.

Feedline choice is critical. Coaxial cable is convenient, widely available, and easy to handle, but every foot adds loss, especially at higher frequencies. Ladder line or open-wire feedlines minimize loss but require careful routing and insulation. Matching devices like baluns and tuners correct impedance mismatches and maximize power transfer, but they cannot compensate for poor placement or inadequate height.

Grounding isn’t just about lightning protection—it also improves safety and can reduce RF interference in your station. A properly grounded antenna system protects both your equipment and your home while ensuring more consistent performance.

Tuning and Optimizing

Once your antenna is up, tuning is the next step. Measure SWR across your desired frequency range. Small adjustments—trimming or lengthening elements, adjusting angle or height—can significantly improve resonance. Even a minor shift in a tree branch or support can alter SWR readings.

Baluns and matching networks help achieve impedance compatibility, but efficiency always begins with the antenna itself. Understand feedline losses versus antenna gain. In many cases, a slightly less “ideal” antenna installed correctly outperforms a theoretically perfect antenna with installation issues.

Routine monitoring ensures sustained performance. Seasonal changes, weather, or vegetation growth can subtly affect your antenna. Keeping a notebook with element lengths, feedline types, and SWR readings creates a reference that saves countless hours troubleshooting later.

Understanding the Math Behind Antennas

Even if licensing isn’t your immediate goal, some math from the Technician and General exams is invaluable for designing and tuning antennas. Let’s break it down.

Wavelength and Antenna Lengths

Radio waves travel at the speed of light, roughly 300,000,000 meters per second. The wavelength (λ\lambdaλ) is calculated as:

Where ccc is the speed of light in meters per second and fff is frequency in hertz. For example, a 14 MHz signal:

Using wavelength, antenna lengths are derived. A half-wave dipole, the most common, is approximately:

A quarter-wave vertical would be:

These formulas allow you to calculate almost any basic wire antenna length accurately.

Impedance and SWR

Understanding SWR requires a bit of algebra, but the principle is simple. SWR is the ratio of the maximum to minimum voltage on the line:

An SWR of 1:1 indicates perfect impedance matching. If your antenna presents 75 ohms to a 50-ohm transmitter, SWR rises to 1.5:1. Knowing this math helps interpret readings and adjust antenna lengths to minimize reflected power.

Power Loss in Feedlines

Feedline loss depends on frequency, cable type, and length. The basic relationship is:

Where III is current and RRR is the resistance of the line. While hams rarely calculate exact wattage losses, understanding that longer coax and higher frequency result in more loss helps you make smart installation choices. For example, 50 feet of RG-58 at 14 MHz may lose several tenths of a dB, while the same length at 144 MHz loses significantly more.

Resonance Adjustment

Small adjustments in element length directly influence resonance. For a half-wave dipole, a change of 1% in length shifts resonance by roughly 1% of the operating frequency. Understanding the proportionate effect of element trimming helps you fine-tune SWR without guesswork.

Growth Path: Beyond the Beginner Antenna

Your first antenna is not the end of your journey—it’s the foundation. Once you understand resonance, SWR, feedlines, and radiation patterns, upgrading to more complex systems becomes far less intimidating. Transitioning from a simple dipole to a directional beam, or from a single-band wire to a multiband installation, is much smoother when grounded in fundamental knowledge.

Experimentation is encouraged. Try different heights, orientations, or portable setups. Document every change. Over time, this builds not just skill but confidence. A well-documented antenna journey also creates a valuable reference for troubleshooting or mentoring newcomers in your local club.

Practical Tips and Takeaways

Start simple and test early. A straightforward dipole or vertical, installed thoughtfully, offers a playground for learning without the frustration of complex setups. Prioritize site and installation over chasing high-gain claims; a well-placed, modest antenna frequently outperforms flashy designs.

Keep detailed records. Note heights, element lengths, SWR readings, and observations. Engage with local clubs or online communities to exchange insights. Remember, there’s no “perfect” antenna; each design involves trade-offs. Your goal is functional, efficient, and maintainable—something that gets you on the air while teaching you valuable lessons along the way.

Conclusion

Understanding antennas is the cornerstone of being a competent ham operator. By mastering fundamental theory, experimenting with design and installation, learning to optimize performance, and applying some of the math behind resonant lengths and SWR, you lay a solid foundation for the future. The knowledge you gain now makes licensing less about memorization and more about applying what you already know.

The antenna is more than a piece of hardware; it’s a bridge between your curiosity and the world. Build it thoughtfully, learn from each adjustment, and your first transmissions will carry far further than just radio waves—they’ll carry experience, understanding, and confidence.

Your journey is just beginning, and the airwaves are waiting.

Call to Action

If this blog caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.

D. Bryan King

Sources

• “Your First Antenna” — ARRL
• “The Different Types of Ham Radio Antennas” — Ham Radio Prep
• “Beginners’ Corner” — Practical Antennas
• “Ham Radio Antennas: Types, Differences, and Pros & Cons” — Stryker Radios Blog
• “How Antennas Work” — ARRL
• “Building Simple Antennas” — ARRL
• “A Beginner’s Guide to SWR” — Practical Antennas
• “Impedance” — Practical Antennas
• “Feeding the Antenna” — Practical Antennas
• “Antenna Modeling for Beginners” — ARRL
• “Top 5 HF Ham Radio Antennas for Beginners” — World Radio League
• “Hexbeam” — Wikipedia (directional antenna type overview)
• “Quad Antenna” — Wikipedia (another antenna type overview)
• “Ch 4 – Propagation, Antennas & Feedlines” — ARRL
• “Corner Reflector Antenna” — Wikipedia (directional antenna concept)

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

Related Posts

Rate this:

#advancedAntennas #amateurRadioLearning #amateurRadioTips #antennaAnalyzer #antennaBlog #antennaCalculators #antennaConstruction #antennaCoverage #antennaDesign #antennaEfficiency #antennaEfficiencyTips #antennaExperiments #antennaFeedline #antennaForBeginners #antennaFormulas #antennaGain #antennaGrounding #antennaGuide #antennaHeight #antennaImpedance #antennaInstallation #antennaMatching #antennaMaterials #antennaMath #antennaModeling #antennaOrientation #antennaPerformance #antennaPolarization #antennaReferenceGuide #antennaSoftware #antennaTesting #antennaTheory #antennaTipsAndTricks #antennaTroubleshooting #antennaTuning #baseStationAntennas #beamAntenna #coaxialCable #dipoleAntenna #directionalAntennas #diyAntennas #fccExam #generalLicense #groundPlaneAntenna #hamRadioAntennas #hamRadioClubs #hamRadioCommunity #hamRadioMath #hamRadioProjects #hamRadioResources #hamRadioSetup #hamRadioSignals #hfAntennas #hfBandAntennas #hfPropagation #ionosphereEffects #mobileAntennas #omnidirectionalAntennas #portableAntennas #practicalAntennaGuide #propagationTips #radiationPattern #radioCommunication #radioEquipment #radioFrequency #radioHobby #radioLicensing #radioPerformance #radioPropagation #radioScience #radioSignalStrength #radioWavePropagation #resonantFrequency #rfDesign #solarActivity #swrCalculation #technicianLicense #uhfAntennas #uhfBandAntennas #uhfPropagation #verticalAntenna #vhfAntennas #vhfBandAntennas #vhfPropagation #yagiAntenna

📡 What is Radio Frequency Engineering?

👉 Click here: https://www.engineersheaven.org/forum/topic/60
to visit our website and read the full article.

#RadioFrequencyEngineering #WirelessTech #SignalProcessing #RFDesign #TelecomEngineering #SmartCommunication #SatelliteTech #EngineersHeaven #ElectronicsEngineering #STEMeducation

🚀 When a DIY RF PCB kit goes wrong…

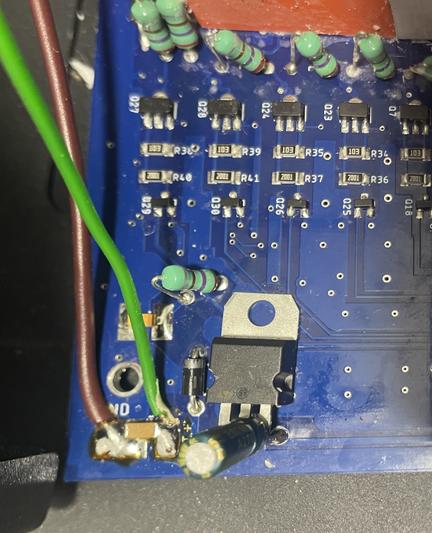

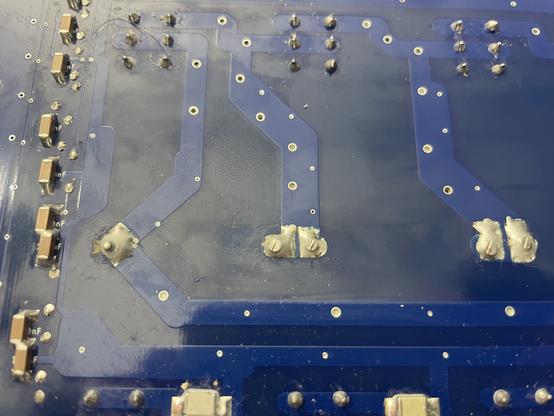

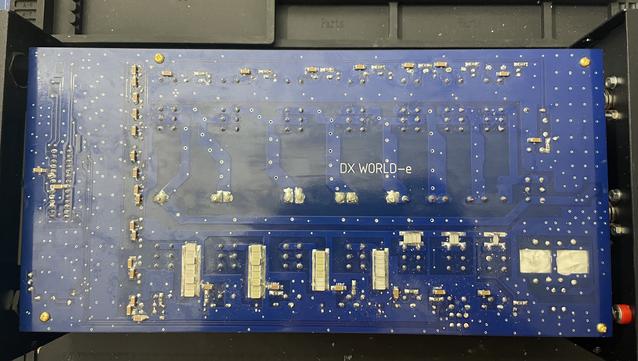

A Friend’s Antenna Tuner Project
