Lessons Learned

Printing a Parametric Box:

• The output needs to be split and then arranged manually.
• Rotate the latch to the correct 90° orientation.
• External X = Internal X + 10 mm
• External Y = Internal Y + 22 mm
• External Z = Internal Z + 9 mm
• Print the connecting rods with Y and Z scaled to 95%.
• Print the feet in TPU.

All of this measuring and fine-tuning serves one purpose for me: to eventually print boxes that make optimal use of the available space, and, where necessary, the printer's build plate.

The nice thing about this design is that it can be distributed across multiple print plates. The box itself feels rock solid.

Its biggest drawback is that it uses more parts than strictly necessary. The hinges and latch could be built without the connecting rods, using snap-fit pegs instead, similar to how this box does it.

That would make it the perfect parametric box.

Things I Still Want to Learn

• Adding labels, logos, and text to prints.

#3dprinting #parametric

Dune3d: A parametric 3D CAD application

https://github.com/dune3d/dune3d

#HackerNews #Dune3D #CAD #application #3D #modeling #parametric #design #open #source

Yamaha

Japan Technology

Many of you only know Yamaha from a few of their skillsets.

Yes I said skillsets not products.

Yamaha has specialists in many fields

They create wonderful things in the fields of

• Music
• instruments
• woodwinds
• brass
• trumpet
• tuba
• saxophone
• bass
• alto
• tenor
• sopraan
• sopranino
• strings
• Bass Guitars
• acoustic
• electric
• Guitars
• violins
• ContraBass
• cello
• recorders
• Audio
• tape decks (Pro Open Reel)
• turntables
• cassette decks
• radios
• receivers
• transceivers
• Pro Audio
• Mixing console
• multiple channel
• from 8 to 32 analog
• FOH mixing console
• stage mixing console
• compressor
• limiter
• equalizer
• microphones
• dynamic
• condenser
• PA speakers
• passive
• active
• floor monitors
• FOH speaker systems (full sets)
• passive
• active
• subwoofer
• studio monitor
• amplifiers
• class B
• class D
• Bass guitar enclosures
• Bass amp heads
• guitar enclosures
• guitar amp heads
• Display systems
• [data]
• Mechanics
• engines
• motorcycles
• RD 400 2 stroke Daytona
• mopeds

With the subjects I just mentioned I only covered the surface of what Yamaha specialists can produce with their skillsets

If you purchase a Yamaha Grand Piano, Yamaha goes so far that when you've chosen it (in person!) they deliver install, secure and tune your grand piano, so your experience is similar to what their musicians and technical building experts have (had) when building and playing the Grand.

Yamaha has perfectionists who live and work by the principle of Kysen. They will tune and tweak their sublime work so it becomes even more sublime. Yamaha specialists gurus and experts do this in all fields that Yamaha is in.

Images & photographs

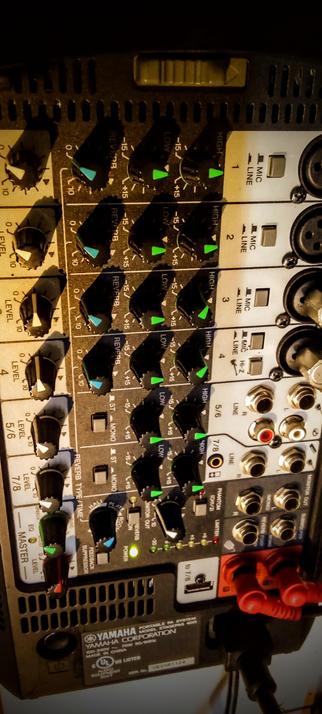

As you see I've included photographs of an 8 channel Yamaha portable mixing system, designed for micro live performance, with a build in two channel class D amplifier, and a set of dual driver speakers / monitors, which I use when I need balanced physical PA speaker output, that my sets of headphones cannot produce, in the studio, simply because the physics in combination with the acoustics prohibits such output.
