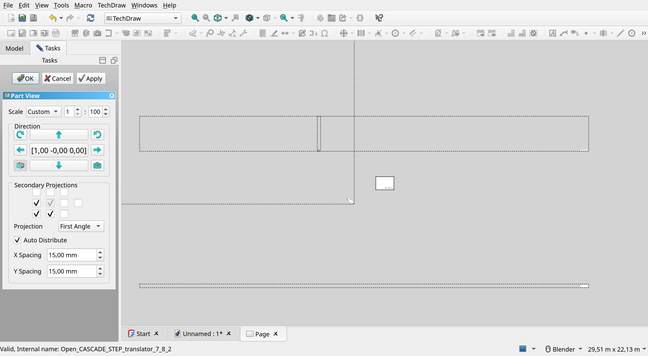

What I don’t get about #FreeCAD is why, every single time you try to put a drawing on a sheet, the orthogonal views preview box never adjusts to the scale properly and always shows the view outside the workspace. It’s super annoying. But this happen only to me? #CAD #TechDraw
IABIAMSep 6, 2025
TechDRW - Binary code
Tech - Papillon Coding 01010202 - Mythical architecture - Râ, God of Egypt.
Manual DRW - Tablet
-
#art #artdgital #techdraw #programmation #binary #architecture #technology #egypt #france #systemd #coding #artist #informatique #technique #wacom #krita #deviantart
IABIAMAug 27, 2025

Live 2 Twitch - Tech DRW YU - Architecture Paysage mythologique - Taîn Amnd Oum Atmân

Vidéo complète :
https://youtu.be/VSW3VvxVb1E
-
#art #artiste #crypto #artdgital #mythology #technology #informatique #techdraw #drawing
#waiao #france

9Lukas5 🚂 🐧Jan 3, 2025

Ok, maybe I'm too blind to see thw right button 🧐

I have four TechDraw pages in a group.
When I use the printAll feature, I'll want them to be exported in that visible order to a single PDF. 👀

But they get exported in the order they appear in the internal element tree instead, aka the order they got created. 😑

Is this actually not possible, to change the print order of TechDraw Pages, or do I just not find the solution??

#FreeCAD #TechDraw #PDF

HazeltonJul 20, 2023
the mounting base for a flexible arm machine light had cracked, so why not draw up a replacement to 3d print? this one is only a low infill PLA print, which fits well enough. trial mode for now, then print with abs or nylon.
#freeCAD #prusaslicer #TechDraw
Mustafa HalilJun 11, 2023

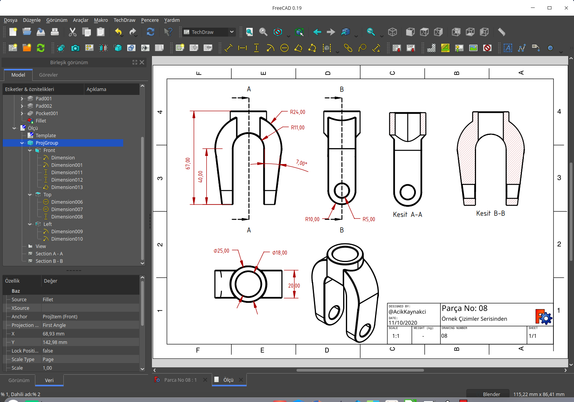

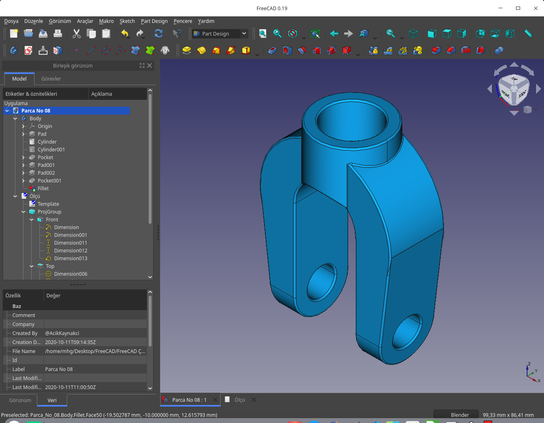

Parça No: 08

@FreeCAD @Blender

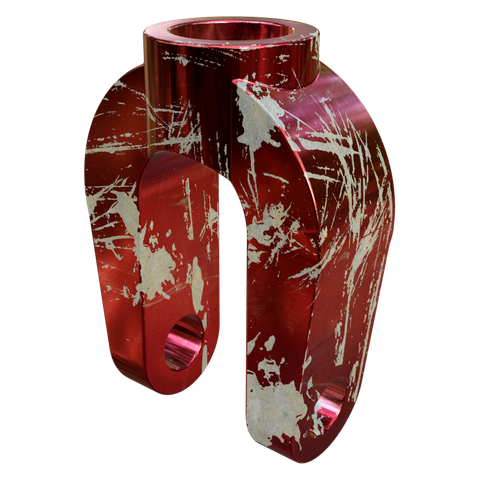

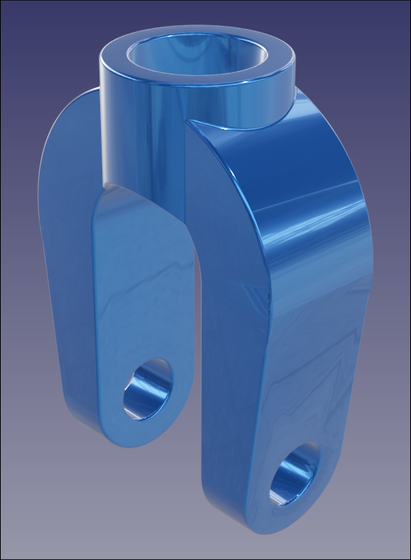

#FreeCAD #Blender #Part #Material #Render #TechDraw

 OpenSoul Apr 1, 2023

I'd like to do that on #techdraw, in #FreeCAD 😉 🤠 🤡

@FreeCAD

Show threadM4xNov 17, 2022

@smellsofbikes @hazelton It's even better. Have a look at complex cross sections: https://blog.freecad.org/2022/11/09/coming-soon-techdraw-complexsection/

#freecad #fc3d #TechDraw

Coming Soon: TechDraw ComplexSection

An aligned section view created with the Complex Section tool. After many person-hours of effort, last week a new type of section view, Complex Section, was added to the TechDraw workbench. This ne…

FreeCAD News
HazeltonNov 15, 2022

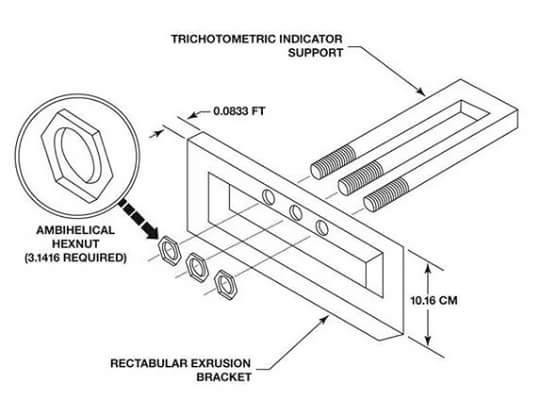

TechDraw workbench is a time saver, sent this off for review and got instant feedback: the gleep glop was missing and we don't need the floopdie doos...
#FreeCAD #TechDraw
HazeltonNov 8, 2022
using #FreeCAD #TechDraw workbench to create an overview page for the flexure sensor project. yes this is a fairly useless project, compared to commercially available MEMS devices, but at least I look busy at work.
