Hey psychos, it’s not easy, but bit by bit I’m learning to do manual alignments with G2 continuity, using that specific node for the checks. I gotta say, it’s not simple to figure out how to do it, it’s a real challenge, but at least I don’t have to fight with the deformations you get from the automatic ones, which can sometimes be more of a headache than a help.
Two separate surfaces, but decent quality even if they’re done by hand. #b3d #SurfacePsycho #CAD #nurbs #Blender3d #Blender

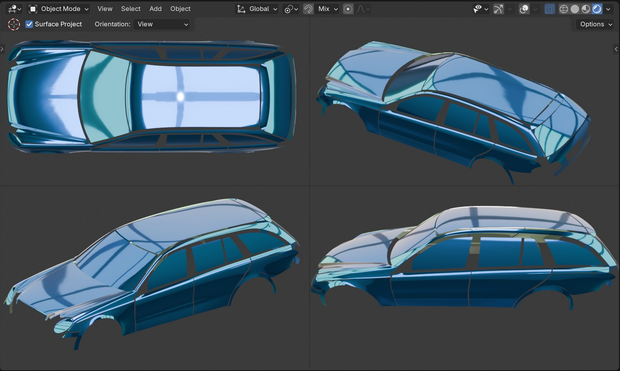

Small progress, but with considerable effort. some parts I have to redo.
but some of them I have already done several times..😅 #SurfacePsycho #b3d #blender3d #Blender #CAD #nurbs

I tried again. No way! Surface Psycho is much better.. here again with dedicated command of xNurbs "square with g2 on target surface.. And with SP I can have also continuity up to G4, is another universe.😅 #SurfacePsycho #nurbs #plasticity3d
on the left Plastcity3D, and on the right Surface Psycho..

Maybe I'm not great with Plasticity and Class A modeling, but at the bottom left the continuity error from Surface Psycho is acceptable (marked in green), while the one from xNurbs on the same NURBS patch, where I used the "Square" command (xNurbs' dedicated command for Class A patches), has a bigger error, highlighted in yellow, and it's really obvious. Surface Psycho 1, Plasticity 0.
#CAD #b3d #plasticity3d #surfacepsycho #nurbs #blender3d #blender
