Mastodawn

This time, I added battery power and charging to the PCB, as well as switching to a separate antenna, and I added mounting for the scroll ball from an Apple Mighty Mouse.

#oshw #mouse #opensource #hardware #input #nrf52 #cadquery #kicad

Show thread

Lynx Dec 23

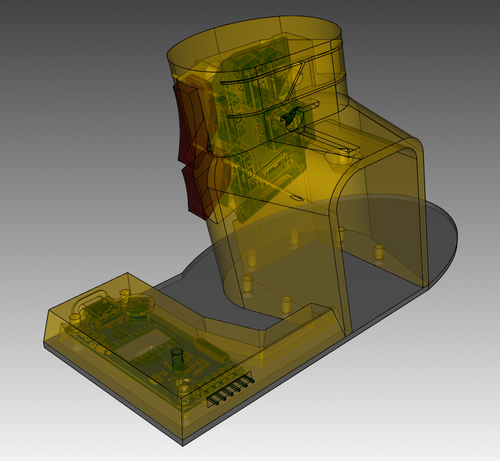

Getting closer! Now there's triggers and back/forward buttons as well. Now reworking the main PCB to use an external antenna, and to actually support a battery. (difficult to have a wireless device without a battery...)

#oshw #mouse #opensource #hardware #input #nrf52 #cadquery #kicad

Distractions Dec 23

When you build an Arduino application with the Bluefruit library - say, for a SuperMicro/Nice!Nano/Feather - and you can't create more than 9 characteristics on your BLE service:

There is a limit of 10 for the UUID128 numbers. You can increase it like this:

// set max number of UUID128
Bluefruit.configUuid128Count(20);

// start Bluefruit
Bluefruit.begin(); // 1 peripheral, 1 central

I sunk four hours into this - thank me later :)

#arduino #adafruit #bluetooth #ble #nrf52

Show thread

Lynx Dec 22

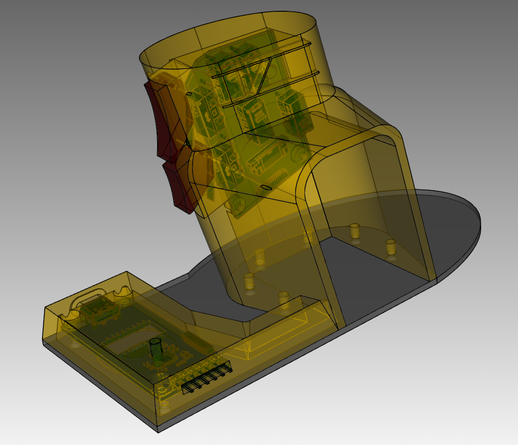

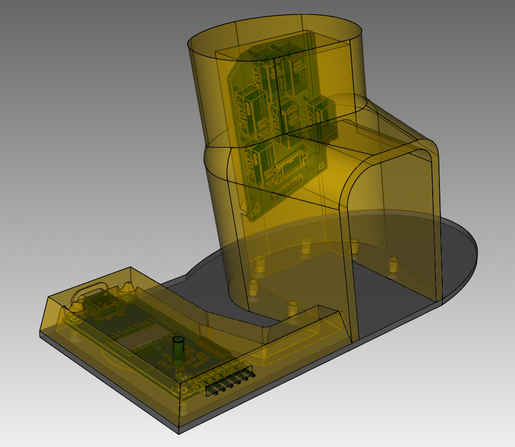

Added the PCBs to the hardware design preview, and put in standoffs and mounting holes.

#oshw #opensource #hardware #input #cadquery #kicad #nrf52

rawe Nov 22

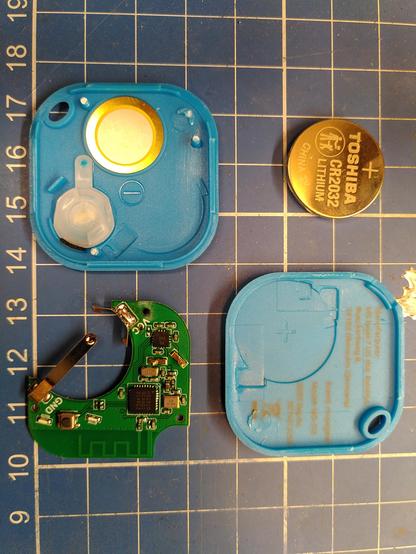

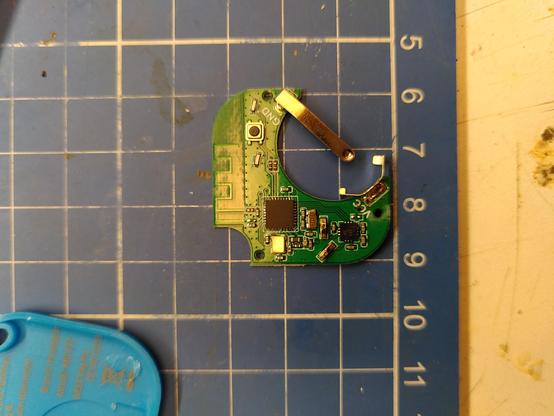

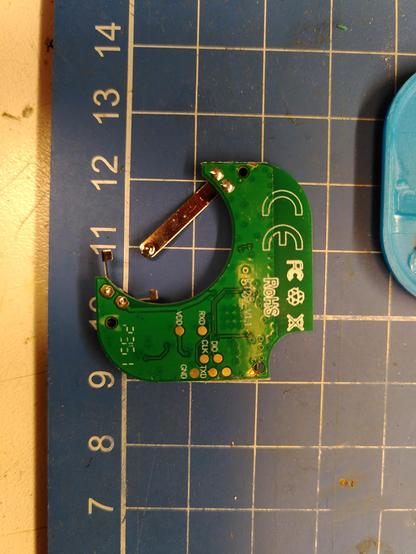

Bought a musegear BLE keyfinder. Turns out I get a lot of false alarms with their app... In fact its a KKM K21 flashed with iTrack Firmware running on nRF52. It even still got the accelerometer on there.

With the KKM itrackeasy APP I got a lot less wrong alarms. And my wallet can play music now... like a Samsung washing machine.

But there are still a lot of false alarms.

As this thing features an #nrf52 anyone got nice Firmware to flash on there?

If I would be the manufacturer I would add some optional delay to alarms so the thing does not care about a 5sec connection interruption...

#electronics #firmware #hacking

AstraKernel 💫Jul 11, 2025

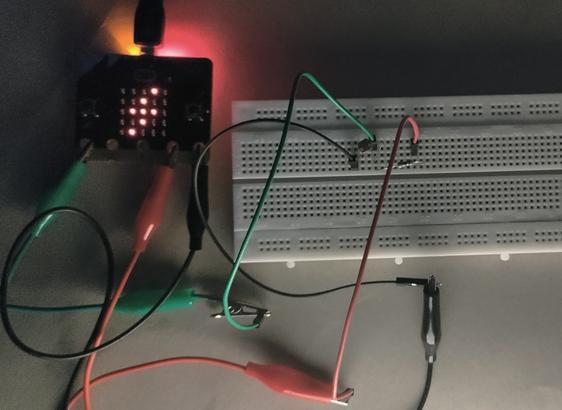

✨ Smart LED - Turn on LED when it becomes dark with Microbit and Rust - LDR and Microbit v2 - Using Embassy and microbit-bsp mb2.implrust.com/ldr/index.html #rustlang #microbit #nrf52 #embassy

Harvey Sandstrom May 5, 2025

Not a big fan of Wurth, but their application notes regarding FCC and bluetooth certification are pretty informative even if you don't use their module: https://www.we-online.com/en/components/products/OPHELIA-III #nrf52 #nrf52840
