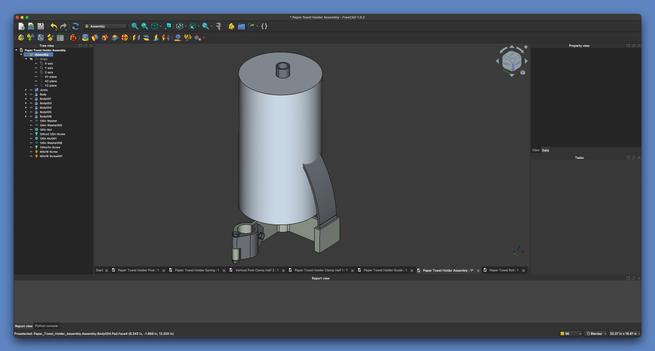

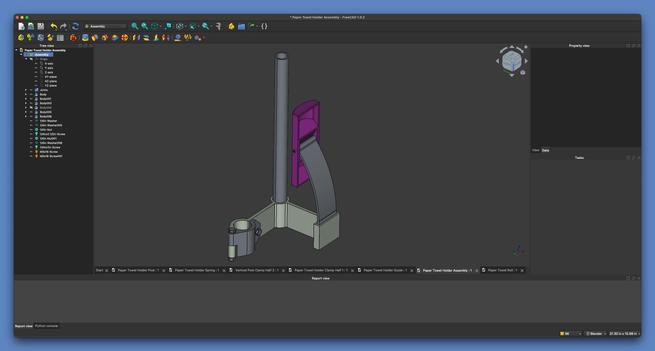

On this #freecadfriday, I finally got around to designing a paper towel roll holder for the stand I use in front of my bike that’s attached to the stationary trainer. For probably a year, I’ve wanted this so that I could blow my nose or mop up sweat off the bike, etc…

I took inspiration from a few other designs I saw around the internet. The hardest part was getting the thickness of the curved beam spring to provide the right amount of tension against the roll. It took me 3 iterations to get it just right. I effectively decreased the stiffness by 50% with each iteration, but I had no idea what would “feel” right to begin with.

A little #3dprinting, a little hardware, and a piece of PVC pipe I had around to make the spindle. We’re in business.

#MadeWithFreeCAD

Show thread

Tinx Nov 14

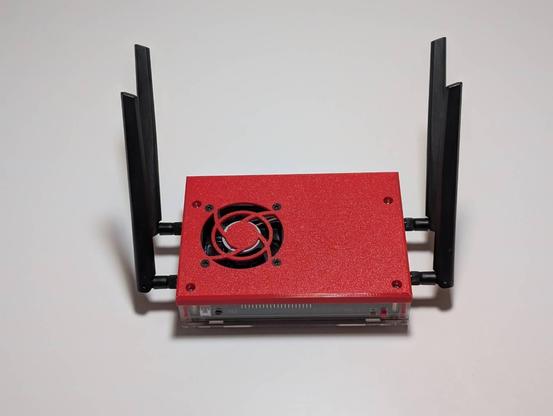

@FreeCAD last week I started with a simple case mod for the Banana Pi R2.

Sadly, it turned out that the device has a very poor thermal design. Even with a passive heatsink and CPU governor set to ondemand instead of performance, it builds up heat until it performs an emergency shutdown.

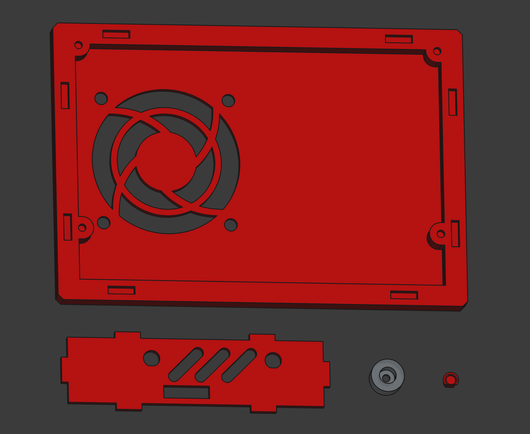

So now, one week later, I end up with a more extensive case mod with active cooling:

#FreeCADFriday #MadeWithFreeCAD #OpenWrt

Show thread

Tinx Nov 7

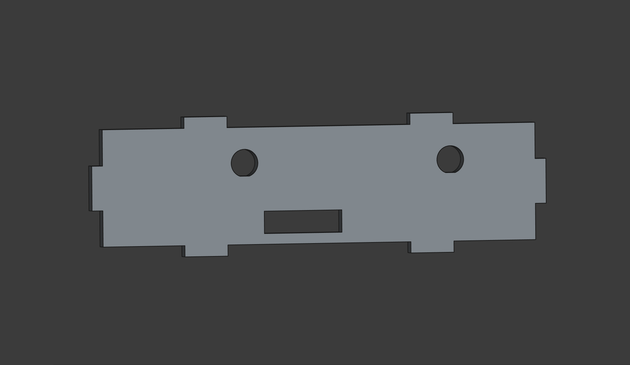

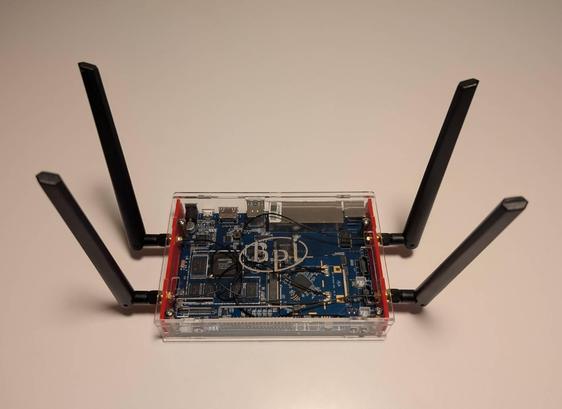

@FreeCAD I made something simple today: custom sides for the Banana Pi R2 case.

More antennas more good, right?

#FreeCADFriday #MadeWithFreeCAD #DIY #OpenWrt

Cookie Oct 17

@FreeCAD #madewithfreecad #freecadfriday

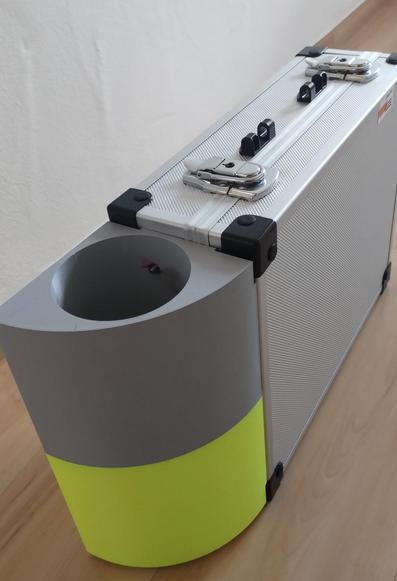

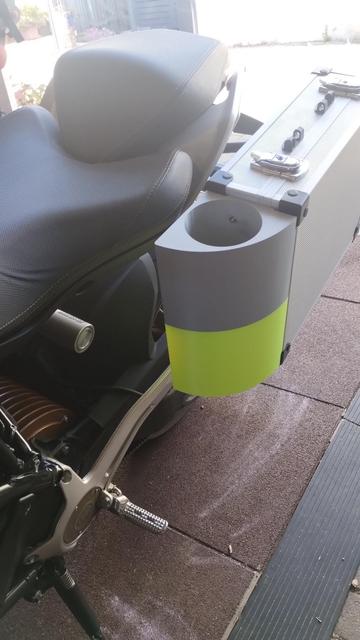

3d printed wind deflector for my suitcase so the case can be attached to a motorcycle. Lid is currently being printed

FreeCAD Oct 17

Well gosh, it's #FreeCADFriday once again! What are you working on with #FreeCAD? #CAD #CAM #MadeWithFreeCAD

FreeCAD Oct 10

Hey! It's #FreeCADFriday! What are you working on in #FreeCAD? Hope everyone has had a good week. #CAD #MadeWithFreeCAD

Show thread

Tinx Oct 3

Hey @FreeCAD!

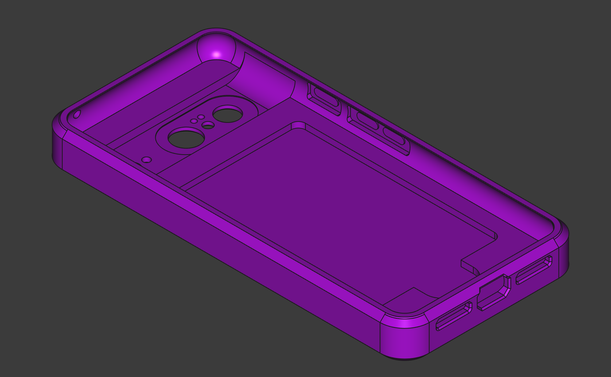

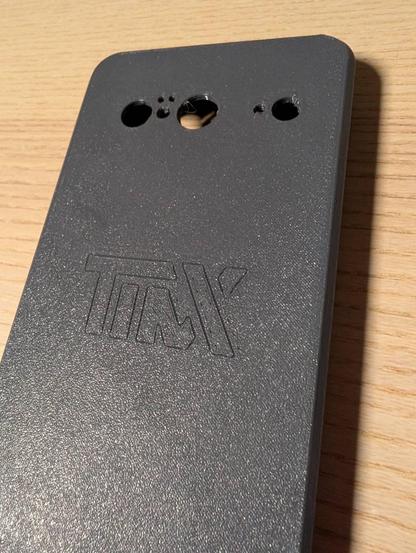

I made a case for my phone. It has a compartment for a stash of emergency money or a couple of cards the size of a credit card.

The best feature for me, though, is the high-quality TPU material I used for printing, which is flexible, skin-friendly, and just feels nice in the hand!

#FreeCAD #FreeCADFriday #MadeWithFreeCAD #DIY

Show thread

Tinx Sep 24

I made another batch of stylus tips:
This time only the top is printed in conductive PLA, while the rest, including the thread, is in PLA+.

This is a more stable solution and I got the feedback that it works much better. I cannot test it myself but it seems to be a viable solution.

#FreeCAD #MadeWithFreeCAD #CAD #3DPrint #DIY

Show thread

Tinx Sep 23

Is there anyone out there with a #Framework12 and easy access to a 3D printer who would be willing to test the model before I release it publicly?

You would require a flexible filament (Shore hardness A98). Additionally, the bracket can either be made from sheet metal or printed from PETG or similar.

@FreeCAD @frameworkcomputer

#FreeCAD #FreeCADFriday #MadeWithFreeCAD #FrameworkLaptop #AskFedi #DIY
