Ohi, @FreeCAD! 👋

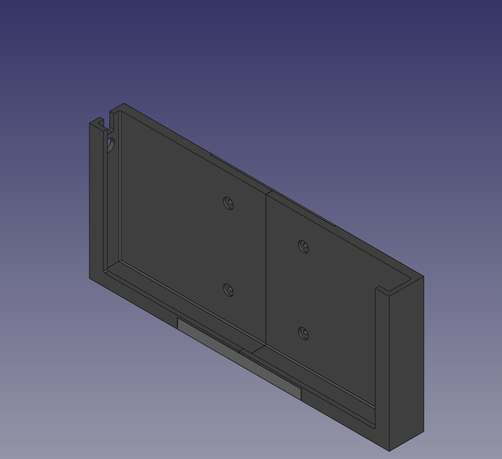

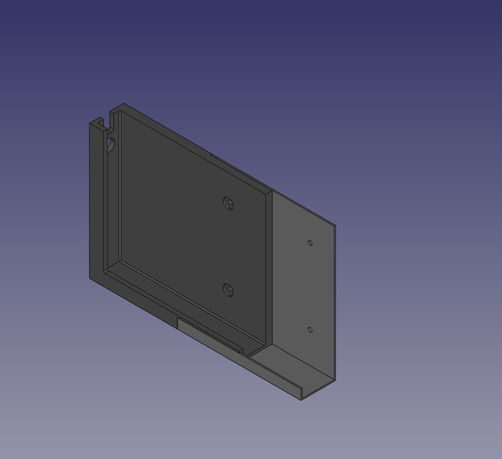

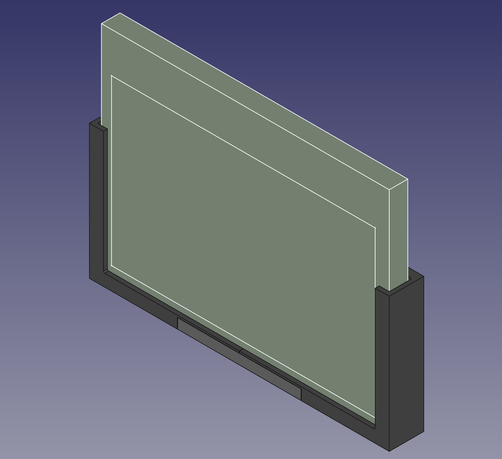

I have prepared a VESA mount for the upcoming @frameworkcomputer 12 convertible notebook computer. Still waiting for the exact measurements, though.
Two halves will probably be printed from medium or hard TPU to provide a mixture of stability and flexibility. A metal bracket added for extra security.
In this video I demonstrate how to create a threaded bolt and the matching core starting from the previous video. A custom offset allows you to adapt for your printer's precision.
3/3
Let me show you how to custom-fit threads in @FreeCAD!
Forget the methods described in the FreeCAD Wiki unless you need a very specific non-standard profile. Custom diameters are much easier than you might think!
I have recorded a little screencast to illustrate how easy it is using Part Design > Hole and custom offsets. Basically, choose your thread profile, e.g., M16, and calculate a custom clearance.
1/3
Terrybot
"Real stupidity beats artificial intelligence every time."
Bursar 1 - Hex 0
Terry Pratchett, Hogfather
Picard management tip: Improve your vocabulary by reading books. Words can be your most powerful tools.
Hi @FreeCAD 👋

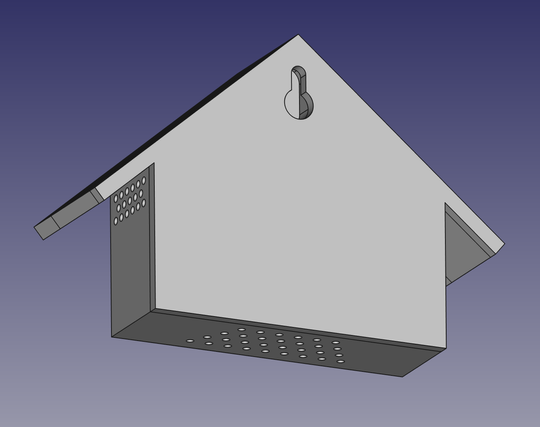

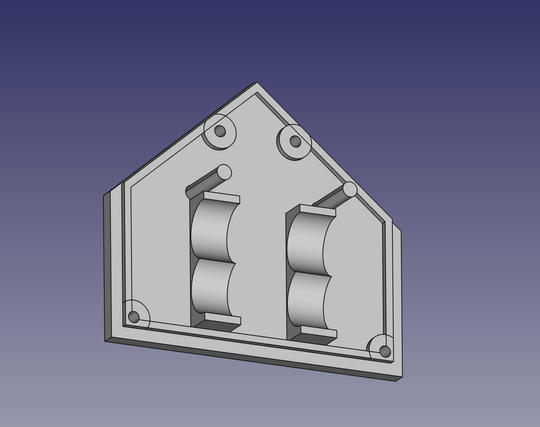

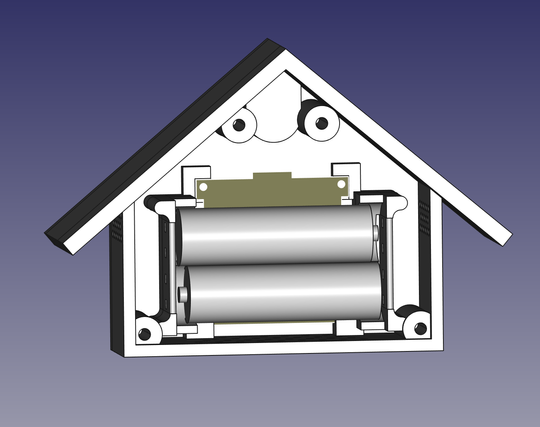

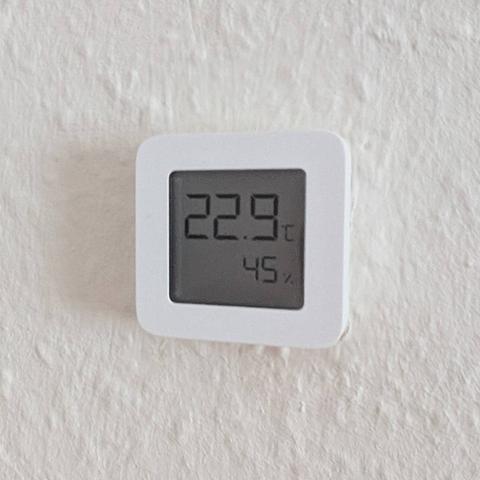

I am working on an outdoor enclosure for a common Bluetooth thermometer.
This is a work in progress. I am waiting for the delivery of the battery contacts to make the final tweaks.
Will be printed in PETG and receive a coating of UV-resistant acrylic paint. White, to reduce the influence of thermal radiation.

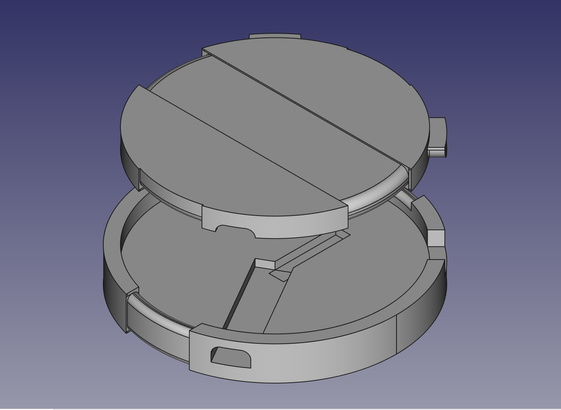

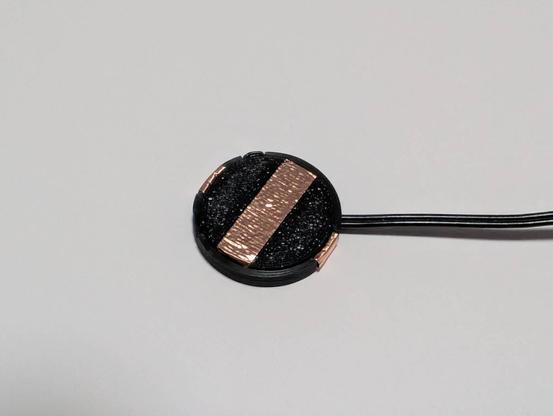

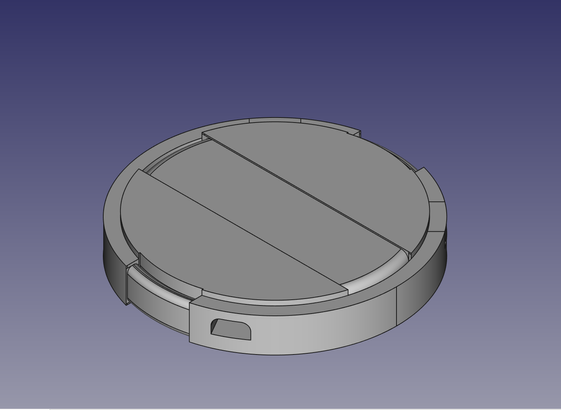

@FreeCAD, I made a tethered coin cell replacement.
I thought: "hey, why has nobody made one yet!?"
Turns out: the coin cell clamps are usually so unreliable, they often have trouble connecting with the genuine full-metal coin cells. So while it is possible to use such a replacement, it is not as reliable as I would have thought. In practice, it is much easier just to solder on the cables to the PCB.
