sconientMar 9
Paul

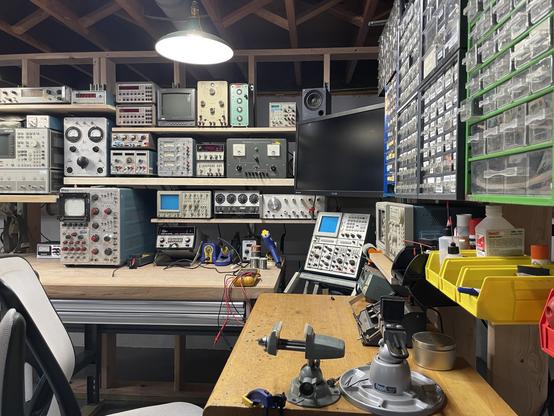

Holyshityouguys, this turned out like the drawing.
#electronics #retroTech #workbench #workshop
Mar 9 at 4:11pmWeb
Show threadDavide BucciMar 9
@forty2 amazing place!
Show threadAlexander DyasMar 9
@forty2 That is a sweet setup.
Show threadRob NorrisMar 9

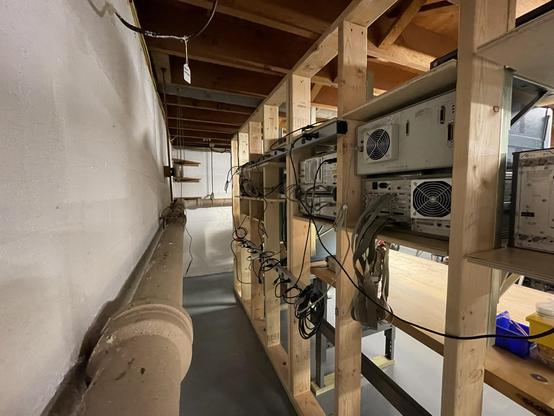

@forty2 All that space to walk around behind the shelves is absolute genius. I am very very impressed. Congratulations!
Show threadRoss of OttawaMar 9

@forty2 Nicely done indeed.

What do you do for electrical - one 15A circuit for the whole space, or a few? Are your power strips on separate circuits?

Love the rear-access to all the gear. So user-friendly.

Show threadPaulMar 9
@ottaross I ran 2x 120V 20A circuits each on their own home run, on opposing legs. There are 3 quads in the ceiling, one at the corner, and one at each end, each with both circuits, so I can plug in power strips in to either circuit & leg. Right now it’s all on one circuit, and I may run the whole thing through a 20A variac just to knock the line voltage down from 125V to a more geriatric gear friendly 115V or so.
Show threadRoss of OttawaMar 9
@forty2 nice. Good flexibility.
Show threadAntonioMar 9

@forty2 @ottaross

To get a reduced mains voltage without the need for a big variac, you can use a 125V mains-powered transformer (e.g., filament transformer) with secondary/secondaries in series with mains to take away some voltage. This scheme entails kVA proportional to the voltage dropped (e.g., 12.6V) instead of the voltage supplied (e.g., 125), thus 10x less iron. It does not result in isolation, but isolation wasn't the stated goal.

Show threadPaulMar 9
@antonio @ottaross oh woah, neat trick, thanks! I actually have a pair of 20A variacs that I’ve been lugging around the planet for 30+ years, but I’m gonna play with your idea ‘cause it’s such a neat hack :)
Show threadLászlóMar 9
@forty2 Love all the rear space for cabling and for the fans to breathe. <3
Show threadTobias KlausmannMar 9
@forty2 Very nice! I wish I had that kind of space!
Show threadpaulrickardsMar 9
@forty2 Wow, that's super impressive So much organization. And the space behind, just wow.
Show threadpoleguy looking for lost toolsMar 9

@forty2 That's beautiful!

Send follow up pictures once it develops a lived-in look... or a plea for help if it ever starts to look like mine! :-)

#ratemysetup

https://mastodon.social/@poleguy/114551866658113320

Show threadPaula MaddoxMar 9
@forty2 that’s a great looking workspace, well done.
Show threadRue MohrMar 9
@forty2 ok, now you need to use it!
Show threadftgMar 9
@forty2
Oh very nice.
Also, HP 4195A?
Show threadPaulMar 9
@ftg yep! Was for sale just down the road, too cheap to pass up. Seems to work OK, though I’m not super versed in the dark arts of RF.
Show threadftgMar 9
@forty2
It's very low lower edge of 10Hz means it's also excellent for analyzing regulator control loops.
My unit still has sticker on it declaring in Finnish that it's from the power supply division of some unnamed company.
Show threadAMSMar 10
@forty2 @ftg I've used those for loop gain measurements all over the place.
Show threadFurryBetaMar 9
@forty2 What a wonderful workspace!
Show threadAdam BrandonMar 9
@forty2 😍
Show threadarclightMar 10
@forty2 Wow!
Show threadJesse AtkinsonMar 10
@forty2 @tpolecat this is incredible. Oh my god.
