5/ I use brass polish to clean a lot of faceplates, mostly because I once lived in an apartment with all brass door hardware, still have the polish, and one day decided to give it a go.
I’m sure there’s a better thing to use, and someone may tell me why using it is a terrible terrible thing, but it’s doing a heck of a job getting decades of cigarette smoke off the face of this thing, even on translucent plastic.
#tektronix #electronics #vintageTech #retroTech

Show thread

Paul 2d ago

4/ The prototype unit didn’t work when I first tried it. No real troubleshooting was done
The newer unit had a resistor near the back of the unit that was hanging on by only one lead. This was R563, a 10k 8W, 1% precision resistor off the anode of a tube in the output section.
Funny enough, it wasn’t until I put the units side by side that I realized this resistor was also missing from my prototype unit. It’s kind of a flat, wide, rubberized package that’s near the plug-in connector and is prone to damage.
So that’s a smoking gun as to why my prototype unit doesn’t work.
Now to find a suitable replacement.

Show thread

Paul 2d ago

3/ the prototype unit also has factory modifications that seem to correlate to a later rev of the board on the production unit.

Paul 2d ago

2/ One of the curiosities on the prototype of this #tektronix plug-in is the elapsed time meter on the bottom. It is not present on the production unit. There is a note that I cannot decipher with a date or February 16 1966.
This type of indicator is a Mercury Coulometer, and shows time elapsed using a chemical reaction which moves a drop of mercury in a capillary tube slowly and linearly as chemical reaction is caused by the passage of a small, fixed current.
This unit has a large number of reed relays, which have a finite lifespan, and I wonder if this meter was there to measure usage during testing.

Paul 2d ago

1/ the #tektronix #tek3B5 auto-sensing horizontal plug-in: this plug-in for 560 series scopes was arguably one of the first to implement auto-ranging, which would select the correct timebase for a reasonable display of a recurring signal at a given frequency.
I own 2; the one on the left I believe is a factory prototype (thanks Kurt!), and the one on the right was a recent purchase, and clearly smoked a pack a day for the last 40 years. It’s not sticky or smelly, but I don’t know if I’ll ever get it really clean.

Paul 2d ago

Finally used my vinyl cutter for its intended purpose!
#inkscape HPGL is still buggy in Mac, but seems to work… I’ll say less terribly in Linux.

Paul 3d ago

Ooof, #inkscape seems to have a dxf import bug: Mirrored blocks aren't getting picked up correctly (top top is Inkscape import of bottom rhino export).
bug report filed.

Paul 3d ago

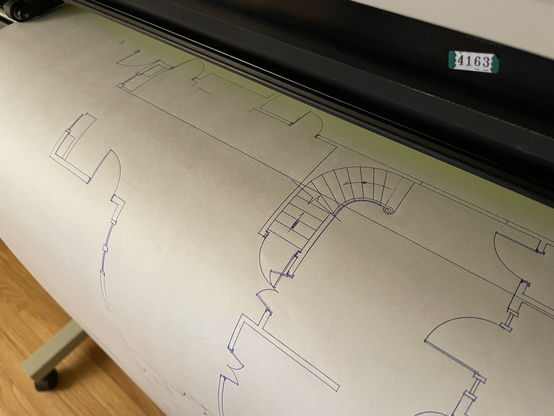

I think the moral of the story is vinyl cutters make mediocre pen plotters and Inkscape isn’t a great tool for HPGL.
At some point in the process one of them shits the bed and and draws a line right through the drawing.
Dashed lines also don’t work; I _think_ HPGL has a line type description feature, so maybe it’s the plotter just not accepting it.
On the plus side, I (sort of) finally got HPGL out of OSX Inkscape by rolling back to v1.3.

I wish I could buy a legit copy of AutoCAD R14 or 2000. That’s all I’d really need for this.
#penPlotting #CAD

Paul 3d ago
