Mastodawn

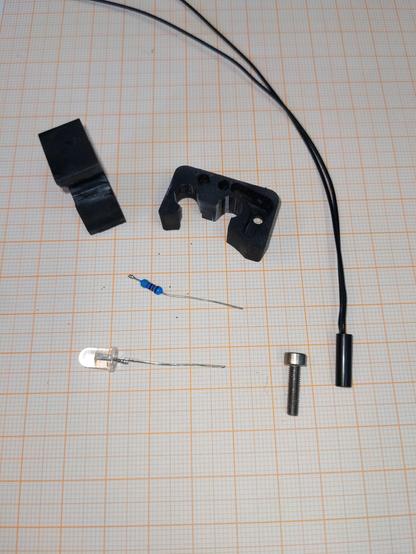

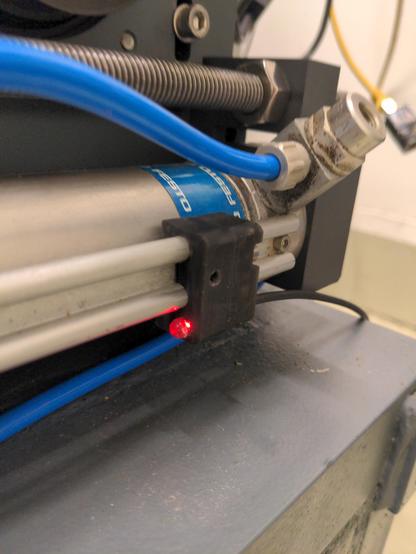

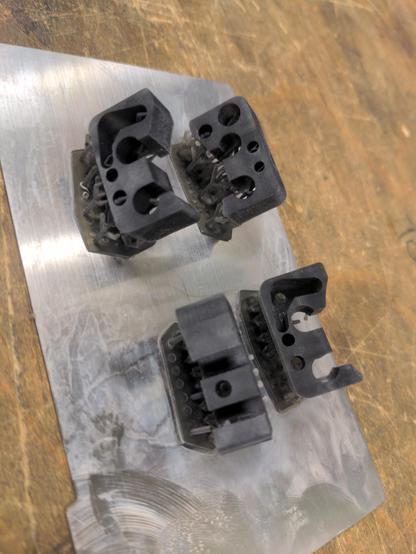

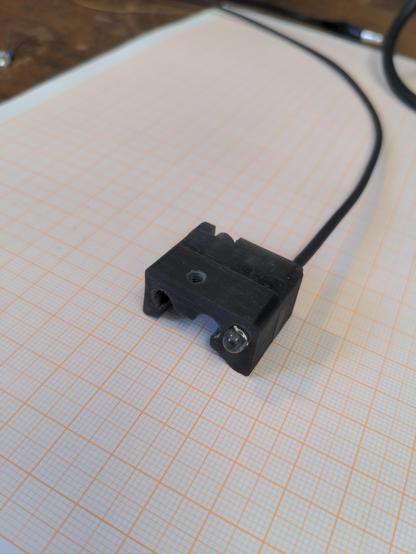

Jetzt hab ich schnell einen Endschalter für diesen Pneumatikzylinder gebraucht ... Also ab ans CAD und dann mal eben ausdrucken ...
Eine Led für den status darf natürlich auch nicht fehlen ...
#3dprintedparts #freecad #diy

lps 15h ago

Hi All, I could use some advice. #askfedi #3d #freecad #3dscanning

I'm looking for a free or inexpensive solution to do some scanning or photogrammetry to be able to build one of a kind parts for a car.

Any suggestions?

Thanks in advance, and please boost for reach.

*edit, I should have mentioned, I prefer an android app, or even desktop that uses DLSR photos ... but iphone is always something I can look into.

concretedog 18h ago

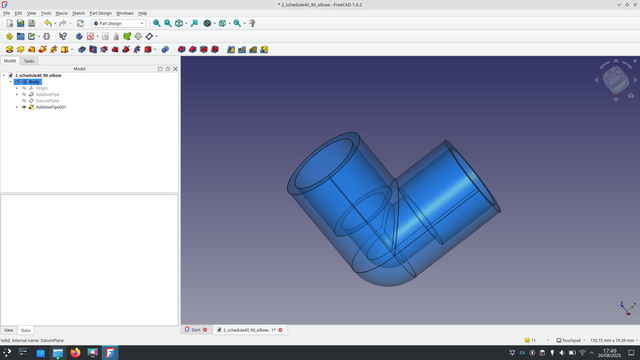

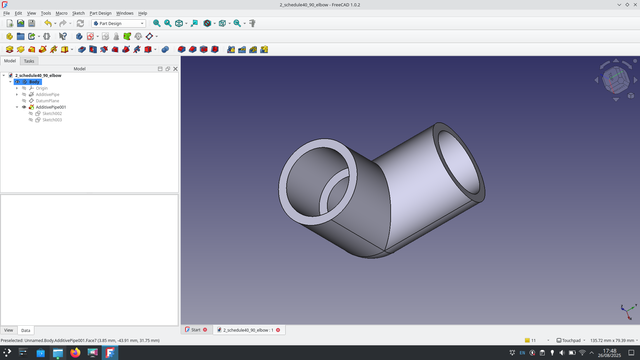

Rounding out quite a busy day with an oddly complex little @FreeCAD job. I was going to use the McMaster Carr step file for these 1/2" schedule 40 90 degree elbows but then read their prohibitive license so just redrawn them after a little head scratching about how to do it (It's 2 additive pipes with the inner ones section drawn on a datum plane). #FreeCAD #CAD

Bongmaster 1d ago

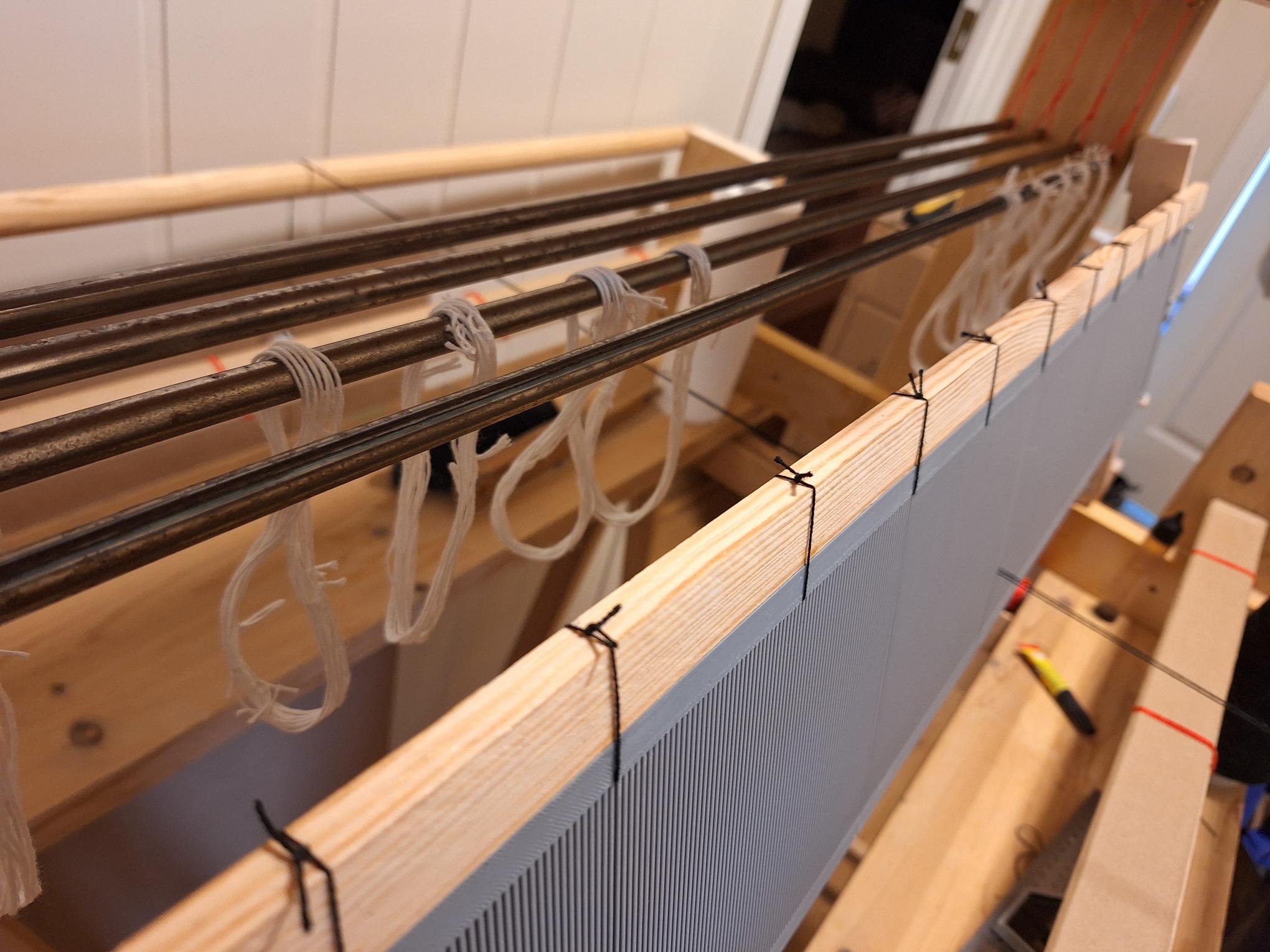

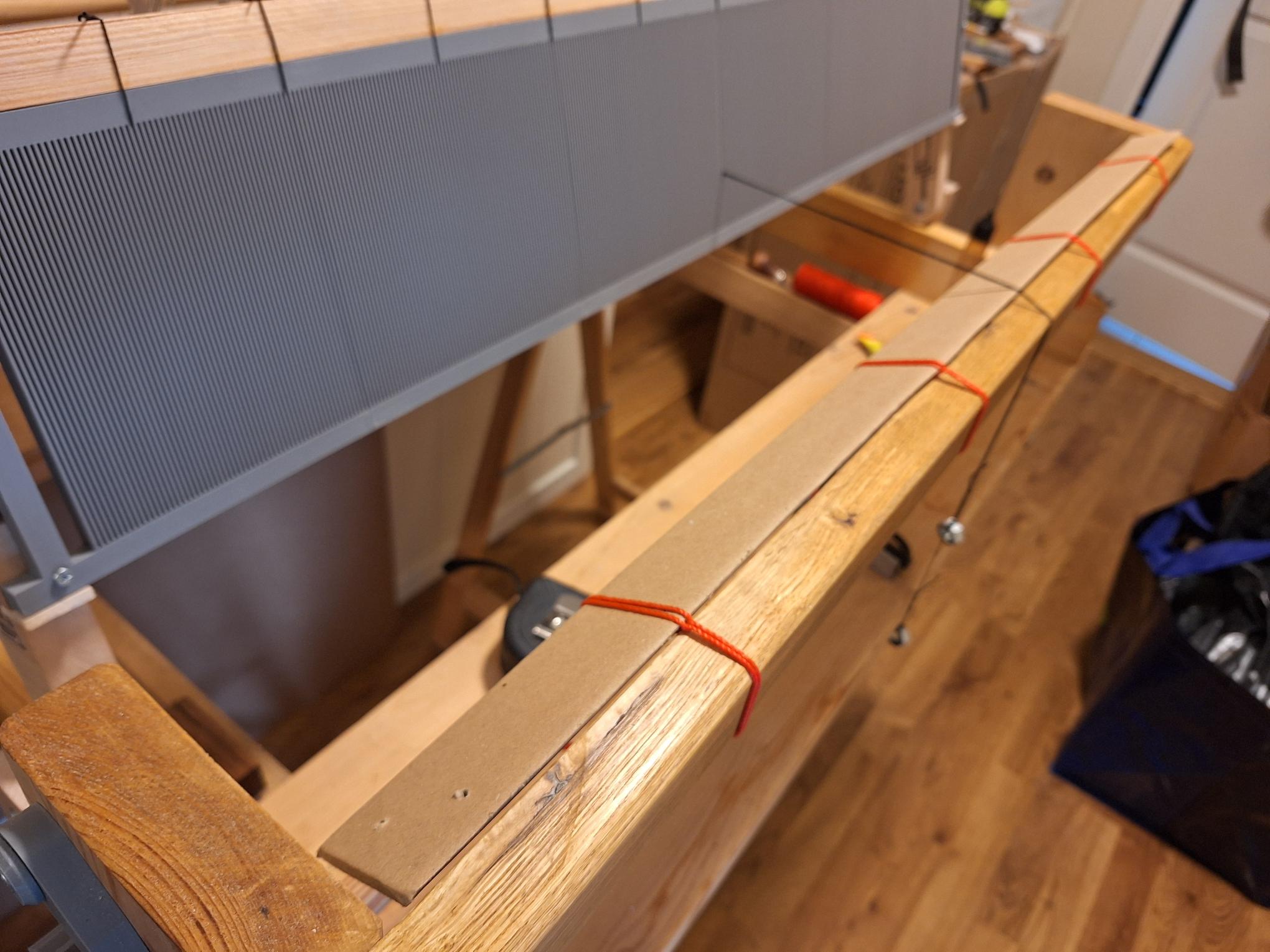

I think she's ready to go :0
Shafts fitted and aligned, 100 string hedge loops tied for a simple test scarf, Reed has a pitch of 5 threads per cm, the whole Reed is 420 threads (not planned), and had these thick card packing support angle beams perfect for the roller thingys. :) 3D printed parts designed in @FreeCAD

#weaving #freecad

StarkRG 1d ago

That is a beautiful sight.

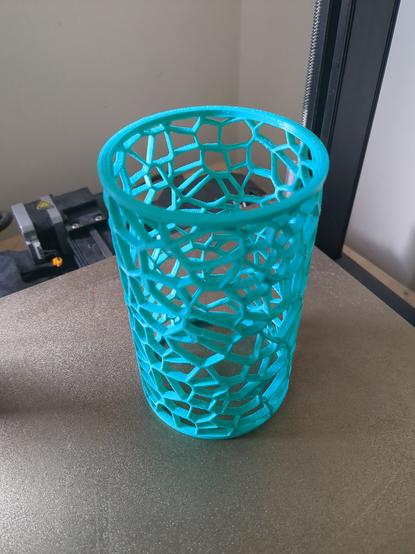

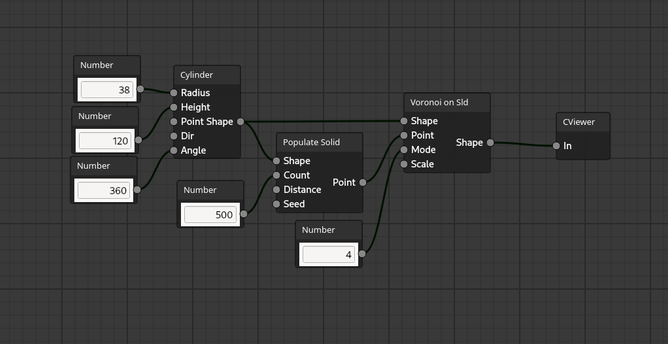

#FreeCAD #3DPrinting

Grant Stephens 1d ago

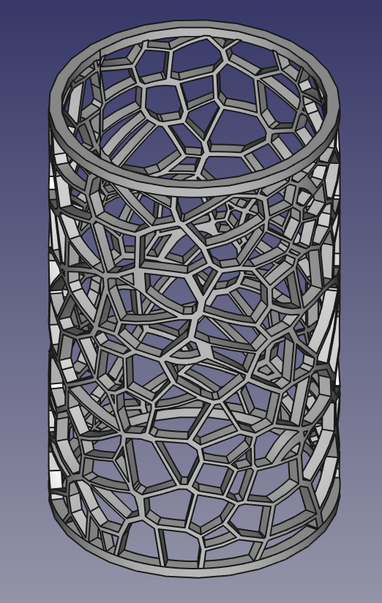

Been a while since I've used FreeCAD, but every time I'm blown away by how much better it is! This is probably one of the most geometrically complicated shapes I've made and took a few tries at different things, but got there in the end. Only problem is that it has to be printed in metal- not quite as cheap as I thought it was going to be.
#3dprinting #freecad

MisterMaker 1d ago

My pr to change the Preference Icon of part/part design got merged. It's absolutely nothing important but satisfying having this fixed #Freecad

Kurt Kremitzki 1d ago

The upcoming #Trisquel 12 is based on #Ubuntu 24.04, which didn't get a #FreeCAD package as it had fallen out of #Debian Testing at the time. I've fixed this issue for the Trisquel release, pulling in the FreeCAD package from Ubuntu 24.10, unfortunately still the 0.21 version of FreeCAD, but at least it'll be available!

FreeCAD 1d ago

Forged In FreeCAD: Juze Crailsheim Summer RC Boat Workshops
A couple of weeks ago on the #FreeCADFriday hashtag over on Fosstodon, Hanser posted a lovely bit of FreeCAD design work for a RC boat hull. It was a great looking design, but even more wonderful was the story that unfolded in the thread that followed.

https://blog.freecad.org/2025/08/25/forged-in-freecad-juze-crailsheim-summer-rc-boat-workshops/
#UserStory #FreeCAD #CAD #Opensource

Forged In FreeCAD: Juze Crailsheim Summer RC Boat Workshops

A couple of weeks ago on the #FreeCADFriday hashtag over on Fosstodon, Hanser posted a lovely bit of FreeCAD design work for a RC boat hull. It was a great looking design, but even more wonderful w…
