XIAO ESP32-C3 MIDI Synthesizer – Part 3

So, now that the basics are out of the way I’m going to dive into the specifics of the Dream SAM2695 chip itself.

• Part 1 – Getting started and getting code running.
• Part 2 – Swapping the ESP32-C3 for a SAMD21 to get USB MIDI.
• Part 3 – Taking a deeper look at the SAM2695 itself.
• Part 4 – A USB MIDI Synth Module using the SAMD21 again as a USB MIDI Host.
• Part 5 – A Serial MIDI Synth Module using the original ESP32-C3.
• Part 6 – Pairs the Synth with a XIAO Expansion board to add display and potentiometers.

Warning! I strongly recommend using old or second hand equipment for your experiments.  I am not responsible for any damage to expensive instruments!

These are the key tutorials for the main concepts used in this project:

• Getting Started with the XIAO MIDI Synthesizer
• XIAO SAMD21, Arduino and MIDI
• CircuitPython USB to Serial MIDI Router
• XIAO USB Device to Serial MIDI Converter

If you are new to microcontrollers, see the Getting Started pages.

The Dream SAM2695

I first encountered this device on a breakout board several years ago, called a “GM Mini Module”. Various tutorials at the time showed how to hook this up to an Arduino. For example, my specific module had the following suggested application:

The breakout was essentially just the SAM2695 with an additional MIDI IN circuit and DIN socket.

At the time it was a component of the “fluxamasynth” – an Arduino shield containing the chip. Whilst the shield is now discontinued, a number of resources still remain online about it: https://github.com/fluxly/Fluxamasynth

Since then there have been a number of modules released that use this neat synth chip, probably the most recognisable of which is perhaps the M5 MDI Synth: https://shop.m5stack.com/products/midi-synthesizer-unit-sam2695

There is also a M5 module with built-in MIDI DIN socket too.

This latest XIAO device follows in the footsteps of all these other variations but adds the microcontroller, and ESP32-C3, to make a complete “system”.

I happen to have three of these devices – the original Dream “GM mini module”, M5 synth and the XIAO, so I’ll do a post about them together at some point, but the all work in essentially the same way.

This series of posts is mostly taking a detailed look at the XIAO MIDI Synthesizer, but the following post shows how to use a XIAO SAMD21 to talk to the M5 Stack Synth: XIAO USB Device to Serial MIDI Converter.

The datasheet for the SAM2695 describes its capabilities:

• MIDI control processor, serial and parallel interface
• Synthesis, General MIDI wavetable implementation
• General MIDI compatible effects: reverb + chorus
• Spatial Effect
• 4-band stereo equalizer
• Stereo DAC. DR: 86dB typ, THD+N: -75dB typ
• Mike input. DR: 86dB typ, THD+N: -75dB typ
• Mike echo
• 64-voice polyphony (without effects)
• 38-voice polyphony + effects
• On-chip CleanWave™ wavetable data, firmware, RAM delay lines
• Audio stereo line output

Interestingly it supports a parallel or serial MIDI access. But using serial is by far the easiest as it can link up directly to another microcontroller’s UART or an opto-isolator of a standard MIDI IN circuit.

The GM Sound Engine

The SAM2695 has two complete instrument banks and a drum set. The banks are as follows:

• CH1-9,11-16: BANKSEL 0: Full General MIDI Sound set
• CH1-9,11-16: BANKSEL 127: MT-32 Compatible Sound set
• CH10: General MIDI Drum Sound set:
  • Program 1: Normal kit, notes 35-81
  • Program 17: “Power Set”, Normal set + note 38 only
  • Program 41: “Brush”, Normal set + notes 35-40 changed
  • Program 49: “Orchestra”, Normal set + notes 27-30, 38-53, 88 changed
  • Program 128: “CM 64/32 Partial”, range of effects and things – MT-32 like

The device also supports effects and an equaliser. All additional controls are configured using either MIDI NRPN or SysEx message. And there are a lot of messages defined in the datasheet!

There are also a number of control messages which apparently have to be sent over the parallel data interface.

But what I am most interested in is the MIDI implementation for the common range of MIDI messages, the most useful of which (to me) are listed below.

MIDI Control Change Messages

To be honest, I’m not sure I quite understand those last two, but that seems to be what it is saying in the datasheet…

There are a /lot/ of parameters accessible over NRPN or SysEx relating to the routing of signals in the device, the effects and the equaliser. At this point I’m just experimenting with the basics above.

Any of the MIDI interfaces allows me to test it out, but using a XIAO SAMD21 in USB MIDI device mode is the easiest as I can just plug it into a computer and fire up MIDIOx and start messing around with some of the above.

Closing Thoughts

There is a lot to the SAM2695, so I can see why it has captured interest once again after a few years seeming almost forgotten.

It would be nice to build some kind of knob-based interface that supports many of the parameters in the synth, but I guess the major application is meant to be for when some kind of “compatible” sound card is required “off the shelf”. For that, it would appear that the SAM2695 can be a General MIDI Synth, a Roland “General Sound” (GS) Synth or even a Roland MT-32.

Not bad for a small, relatively easily integrated component!

Kevin

#generalMidi #midi #mt32 #rolandGs #SAM2695

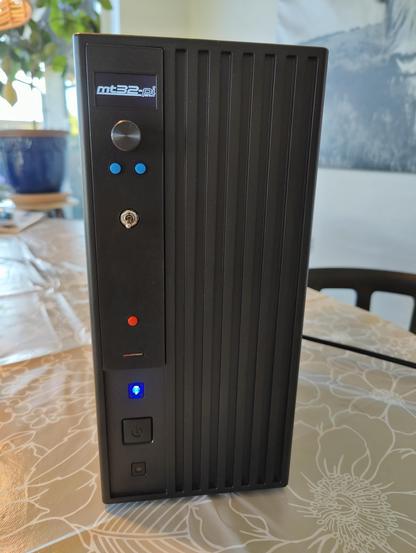

Finished my #ITXLlama builds today. Built around the #Chieftec BT-02 case, it features the ITX Llama motherboard, a #Radeon 9250 and a #3dprinted front control panel I designed with #OLED display, rotary encoder and buttons for the #MT32Pi. Also a much needed reset button, a switch to select either the MT32-pi or GS WaveTable audio and an SD slot. The software needs a bit of tweaking, but this could be an awesome and brand new box for playing #90s era #MSDOS and #Windows98 games. So far it plays #DukeNukem3D flawlessly with #GeneralMIDI sound.

#retrocomputing #pc

MT32-Pi on my EuroRack MiniDexed PCB

This is great. I was asked by Michel (mragutlich) if I knew how to build MT32-Pi to configure it for my MiniDexed EuroRack PCB but I don’t and there isn’t a lot of information apparently on how to build it from source.

So I offered my Rebuilding my Ability to Build MiniDexed post which talks about getting to the point of being able to build MiniDexed and as both synths run on circle, figured that would be a pretty good starting point.

And then Michel came back to me with a complete set of instructions for Ubuntu and I’ve just run through them – and they work great.

So massive thanks to Michel, this is how you could get MT32-Pi running on my MiniDexed EuroRack PCB.

https://makertube.net/w/2xzd8b4RPDPX1YJL3CpA57

Warning! I strongly recommend using old or second hand equipment for your experiments.  I am not responsible for any damage to expensive instruments!

Previous posts on MT32-Pi:

• Raspberry Pi, Clumsy MIDI and MT32-Pi.

If you are new to microcontrollers and single board computers, see the Getting Started pages.

Parts list

• Raspberry Pi Zero 2.
• Micro SD card.
• MiniDexed EuroRack PCB and panel.
• Power, leads, additional connectors and so on.

Building MT32-Pi on Ubuntu

Here are Michel’s instructions that worked for me.

There were a couple of tweaks I needed. First of, the mt32_inistaller.sh script has to be run as root. This will go through and ask you to choose the SD card to format and install and so on.

At some point you will need some MT32 ROMs. There are details of how to do that on the original MT32-Pi project here: https://github.com/dwhinham/mt32-pi?tab=readme-ov-file#-quick-start-guide

In addition to the aforementioned “encoder_reversed” setting in the mt32-pi.cfg file there are a couple of other options I find used (many of these were already set up by the installer):

I think those were the major changes.

I installed a single “new” ROM and a PCM ROM. The default soundfont is already installed. And that was essentially that.

The first time I tried it, I’d forgotten to copy over the kernel8.img file, so that took a moment to figure out! But apart from that it was all pretty straight forward for me. Many of the packages to install at the start were already there and up to date, so that didn’t take too long and the build itself was again fairly straight forward.

Closing Thoughts

A big thanks to Michel for asking the question, then figuring out the answer, and most importantly sending me the instructions and permission to post them here.

This is a great additional option for my PCB 🙂

The video shows the MT32-Pi in Soundfont mode playing a MIDI file of Khachaturian’s Masquerade Waltz.

It is great to have a full General MIDI Soundfont device in EuroRack format.

Kevin

#EuroRack #generalMidi #midi #minidexed #mt32Pi #soundfont
