Radio_Azureus 3d ago

Yamaha Stagepas 400i

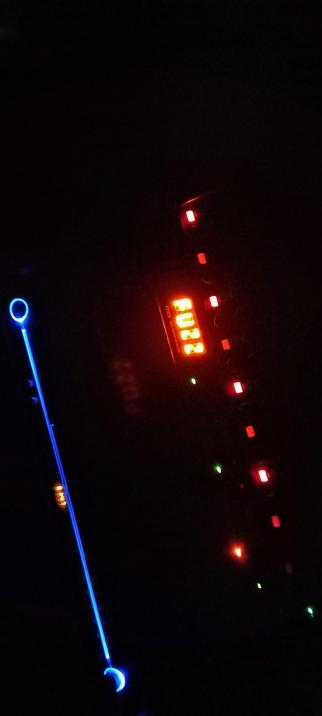

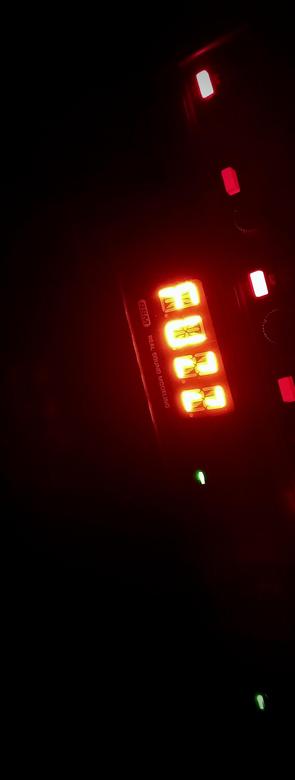

Playing with the system in the afternoon of yesterday

4 mono mic/line + 4 mono / 2 stereo line + USB Audio IN: iPod/iPhone exclusive
2-band (HIGH Shelving: 8kHz, LOW Shelving: 100Hz)
SPX digital reverb (4 program, parameter control), Feedback suppressor, 1-Knob Master EQ™
400W (200W + 200W)
speakers
55Hz - 20kHz
8” (20cm) cone
1” (2.54cm) voice coil compression driver
125dB SPL / speaker
100V - 240V 50Hz/60Hz
30W (Idle), 70W (1/8 Power) [in reality 25W measured here]
17.8kg / 39.2lbs (2 x Speaker 7.5kg + Mixer 2.8kg)
over panel, Power cord (2m), 2xSpeaker cables (6m), 12xNon-skid pads

Don't buy it new since Yamaha discontinued production

Yamaha StagePas 600BT is the current system

Powered mixer with 2 passive speakers
10 channels
Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
Feedback suppressor, 1-Knob Master EQ™
4 mono mic / line + 6 mono / 3 stereo line
+30V (CH1, 2) (Phantom)
SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
Reverb foot switch
CH4 [Hi-Z]
HIGH Shelving: 8 kHz
LOW Shelving: 100 Hz
MID peaking: 2.5 kHz
SPX digital reverb (4 program, parameter control)
680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)
Two-way bass-relfex speakers
55 Hz - 20 kHz
90° H
60° V
50° [floor monitor angle]
10" (25 cm) cone
1.4" (3.56 cm) voice coil compression driver
129 dB SPL / speaker
100 V - 240 V 50 Hz/60 Hz
35 W (Idle), 100 W (1/8 Power)
34.8-35.2 mm pole socket with StageLok™
Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
Handle: 1 x Top
Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm [dimensions w x h x d]
25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)

features

680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

680W (340W + 340W) power output
High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)
Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
Bluetooth audio streaming
1-Knob Master EQ™ with virtual bass boost
High resolution SPX digital reverbs (4 types, parameter control)
Onboard feedback suppressor
Great-sounding 3-band channel EQ
Switchable stereo/ mono inputs
Hi-Z (high impedance) inputs
Phantom power
Monitor and Subwoofer outputs
Optional reverb footswitch

sources

https://usa.yamaha.com/products/proaudio/pa_systems/stagepas_400i_600i/index.html

https://usa.yamaha.com/products/proaudio/pa_systems/stagepas_400i_600i/specs.html#product-tabs

https://usa.yamaha.com/products/proaudio/pa_systems/stagepas_400bt_600bt/specs.html#product-tabs

https://usa.yamaha.com/products/proaudio/pa_systems/stagepas_400bt_600bt/index.html

https://www.sweetwater.com/store/detail/StagePas600BT--yamaha-stagepas-600bt-portable-pa-with-bluetooth

for reference dont buy

https://www.amazon.com/yamaha-stagepas-400i-portable-system/dp/B00B78SZJ2

#nowplaying #audio #music #PA #yamaha #stagepas #technology #live #400i #livesound #soundengineering

Sounding Future Jan 16

New article on Sounding Future:
ECHO Project: A New Chapter in Immersive Orchestral Recording
by Katia Sochaczewska · Hyunkook Lee · Nick Wollage.

https://www.soundingfuture.com/en/article/echo-project-new-chapter-immersive-orchestral-recording

#immersiveaudio #orchestralrecording #spatialaudio #ambisonics #musicresearch #soundengineering #3daudio

Hacker News Jan 12

How problematic is resampling audio from 44.1 to 48 kHz?

https://kevinboone.me/sample48.html

#HackerNews #resampling #audio #audioquality #44100 #48000 #technews #soundengineering

Kevin Boone: How problematic is resampling audio from 44.1 to 48 kHz?

Audio CDs were recorded using a 44.1 kHz sample rate that is found almost nowhere else. If we have to resample this audio to suit more modern equipment, how much loss of audio quality will there be?

Dendrobatus Azureus Dec 30

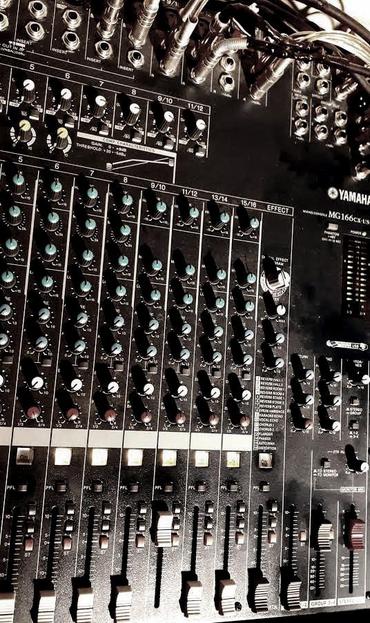

One of my favorite small mixing consoles

#ProAudio #PA #SoundEngineering #Analog #Yamaha #Audio

Alex@rtnVFRmedia Suffolk UK Dec 22

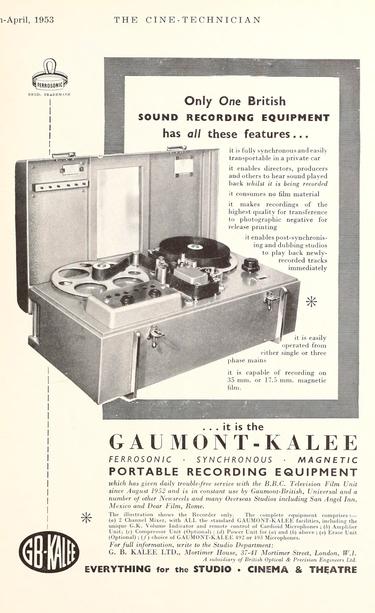

"Portable" #recording equipment used in #Britain for #film making in 1953 - it could use either 35mm or 17,5mm magnetic film (better #sound quality than optical recording), could be synchronised to the film camera, and easily transportable in a private car (presumably by two fairly strong people, as the recording unit alone would weigh north of 40 kg, there was a mixer and amplifier to go with it) - and it would fill the boot and probably the back seats too of most cars available in those times

Power was a choice of 230V single phase or 400V three phase mains (so a location shoot would require a genset as well)

#SoundEngineering

Rote Asche Dec 13

Unser Maximilian Diehl war bei unserem Auftritt im Journal in Kehl (organisiert von Elsass Alest) natürlich mit seinem ALLEN & HEATH Mischpult dabei, hat wieder für den perfekten Sound gesorgt und erneut bewiesen, dass er für uns ein unverzichtbares Bandmitglied ist! 🤘❤️‍🔥

#music #symphonicmetal #gothicmetal #soundguy #soundengineering #bandlife #allenandheath

Dendrobatus Azureus Dec 13

Contrary to what you may believe however, Mackie doesn't deliver its microphones in a beautiful 'flight case' that I've showcased the EM89D in.

Instead you get a plane Jane cardboard box that I've just photographed, in which the microphone normally resides.

Even TASCAM delivers its fantastic amazing microphones in plane Jane cardboard boxes.

Shure tops the charts with ugly cardboard boxes for its magnífico microphones. The boxes in which I got my SM58s are so ugly I'm not even going to photograph them.

Credit goes to Behringer who delivers it's microphones like the XM8500 in a flightcase. The XM8500 microphone has good use cases here. It's also a fraction of the cost of the EM89D, and a sliver of the cost of the Legendary Shure SM58.

Never let the low/high price of a microphone fool you. Buy it, if it captures your sound Source nice, and you will find good to fantastic use cases for many microphones which are categorized as cheap.

Sets of fantastic microphones for example are AKG matched pair condenser mics. They are fantastic for me because I have great use cases for them; they're not fantastic because they have a substantial high price.

Thank you Behringer for packaging your microphones nicely and sturdy.

https://mastodon.bsd.cafe/@Dendrobatus_Azureus/115710655170993173

#Audio #PA #SoundEngineering #Dynamic #Analog #cápsula #Mackie #Behringer #microphone #magnífico #XLR #stable
