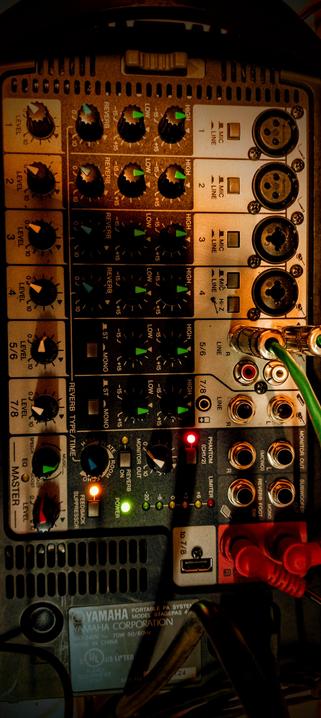

Radio_AzureusYamaha Stagepas 400i
Playing with the system in the afternoon of yesterday
- 4 mono mic/line + 4 mono / 2 stereo line + USB Audio IN: iPod/iPhone exclusive
- 2-band (HIGH Shelving: 8kHz, LOW Shelving: 100Hz)
- SPX digital reverb (4 program, parameter control), Feedback suppressor, 1-Knob Master EQ™
- 400W (200W + 200W)
- speakers
- 55Hz - 20kHz
- 8” (20cm) cone
- 1” (2.54cm) voice coil compression driver
- 125dB SPL / speaker
- 100V - 240V 50Hz/60Hz
- 30W (Idle), 70W (1/8 Power) [in reality 25W measured here]
- 17.8kg / 39.2lbs (2 x Speaker 7.5kg + Mixer 2.8kg)
- over panel, Power cord (2m), 2xSpeaker cables (6m), 12xNon-skid pads
Don't buy it new since Yamaha discontinued production
Yamaha StagePas 600BT is the current system
- Powered mixer with 2 passive speakers
- 10 channels
- Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
- Feedback suppressor, 1-Knob Master EQ™
- 4 mono mic / line + 6 mono / 3 stereo line
- +30V (CH1, 2) (Phantom)
- SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
- Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
- Reverb foot switch
- CH4 [Hi-Z]
- HIGH Shelving: 8 kHz
- LOW Shelving: 100 Hz
- MID peaking: 2.5 kHz
- SPX digital reverb (4 program, parameter control)
- 680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)
- Two-way bass-relfex speakers
- 55 Hz - 20 kHz
- 90° H
- 60° V
- 50° [floor monitor angle]
- 10" (25 cm) cone
- 1.4" (3.56 cm) voice coil compression driver
- 129 dB SPL / speaker
- 100 V - 240 V 50 Hz/60 Hz
- 35 W (Idle), 100 W (1/8 Power)
- 34.8-35.2 mm pole socket with StageLok™
- Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
- Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
- Handle: 1 x Top
- Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm [dimensions w x h x d]
- 25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)
features
680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
680W (340W + 340W) power output
High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)
Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
Bluetooth audio streaming
1-Knob Master EQ™ with virtual bass boost
High resolution SPX digital reverbs (4 types, parameter control)
Onboard feedback suppressor
Great-sounding 3-band channel EQ
Switchable stereo/ mono inputs
Hi-Z (high impedance) inputs
Phantom power
Monitor and Subwoofer outputs
Optional reverb footswitch
sources
https://usa.yamaha.com/products/proaudio/pa_systems/stagepas_400i_600i/index.html
https://usa.yamaha.com/products/proaudio/pa_systems/stagepas_400i_600i/specs.html#product-tabs
https://usa.yamaha.com/products/proaudio/pa_systems/stagepas_400bt_600bt/specs.html#product-tabs
https://usa.yamaha.com/products/proaudio/pa_systems/stagepas_400bt_600bt/index.html
for reference dont buy
https://www.amazon.com/yamaha-stagepas-400i-portable-system/dp/B00B78SZJ2
