2nd hacked sound book is ready! Since last post I lost all files, deleted by mistake 😭
I was very close to definitly stop the project, but changed my mind because it's been years I was dreaming about such hacked book. So back to CAD design and arduino code to start again from scratch!

I'll spend a few more days on the tutorial and online repo, then I'll probably have a break with this time consuming project 😅

7/🧵

#hacked #arduino #3dprinting #soundbook #3dprint #wago

🥳 yeah, it works great!

Next steps: the lid, a video, a tutorial, and to finish all files and codes available on a repo online!

6/🧵

#Hacking #soundbook #3dprinting #electronics #FreeCAD #OpenSCAD

And the circuit prototype is now working perfectly to play sounds/music when the buttons on the book are pressed.

Using Wago connectors is great for this kind of project!

Here are the main parts:
- Xiao ESP32C3
- MP3 mini dfplayer
- Wago connectors
- Speaker (added later)
- LiPo battery (added later)

5/🧵

#Hacking #soundbook #wago #electronics #prototypes #esp32 #xiao

💡 Here's a trick I use for my electronic prototypes, and especially with my **hacked sound book** project : I use Wago connectors.

And it works with almost everything:
- jumper wires
- components with legs (like LED and resistors)
- even with flexible printed circuits (see next post)

4/🧵

#hack #prototypes #electronics #microcontrollers #arduino #wago #soundbook #Tips #prototype

Look at these cute little 3d printed holders for electronic modules (xiao ESP32C3, MP3 mini dfplayer, LiPo battery and speaker)! Made with @FreeCAD

✅ The CAD part of the **hacked sound book** project is now done.

3/🧵

#hack #soundbook #DIY #FreeCAD #electronics #3dprint

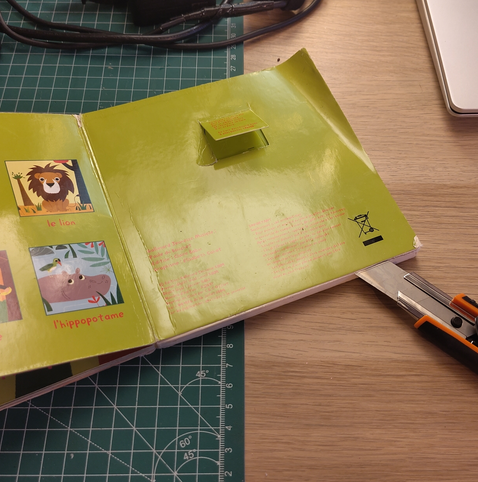

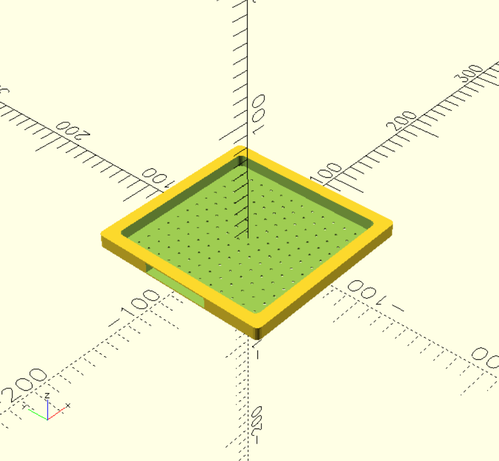

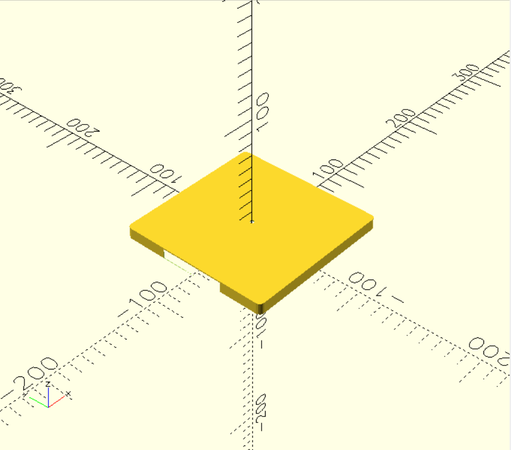

After measuring the thickness of the last page of the book, I created a computer-aided design (box + lid) with OpenSCAD to replace it. Now it is parametric, easy to open, easy to use with electronics modules, and ready to be 3D printed !

2/🧵

#hack #soundbook #OpenSCAD #DIY #CAD
