Plan for the #ModernIonicCapital

If the design in https://pixelfed.social/p/Splines/807569519962747338 looks daunting, let me assure you it is far simpler than the work that went into the reconstruction of just the #scroll for the #classicIonicCapital. Be sure to check out #MileStone4 at https://pixelfed.social/p/Splines/795361973789834465.

With the modern #IonicCapital, the designers went back to the basics of using just straight lines and circular arcs to define the geometry of the essential elements of the capital. No #braids, #keystones, or #modillions, and no #helix curves or #sinusoids.

We start the floorplan for the modern ionic capital with a circle of radius 5/6 of µ (120 when µ = 144) which marks the neck of the #columnShaft.

Tangent to this circle is a large circle of radius 296 units centered on the X axis exactly 416 units from the column axis. This is the circle that marks the curve of the #abacus, which is always tangential to the column shaft at the neck. This circle also marks the curved faces of the interior portion of the #volute wedge. Without the raised volute spirals, the interior wedge appears flush with the abacus as they follow the same circular arc.

Concentric to this large circle is another circle with a radius of 280 units to mark the extent of the raised volute spirals which are 16 units thick. Another concentric circle of radius 266 units marks the outer edge of the top of the capital.

The gap between the outermost large circle and the innermost concentric circle is 30 units, and that is reflected in another pair of circles centered on the column axis with radius of 250 units and 220 units to define the four corners.

The capital footprint fits in a square 396 units wide — or 24.75 parts horizontally from axis, per #Scarlata in https://babel.hathitrust.org/cgi/pt?id=mdp.39015031201190&view=1up&seq=45.

Use this with the sketch in https://babel.hathitrust.org/cgi/pt?id=mdp.39015031201190&view=1up&seq=142
Splines (@[email protected])

#ModernIonicCapital sketch The modern #IonicCapital with curved faces and radial symmetry is a drop-in replacement for the classic Ionic capital with flat faces. Unlike the classic variant, which has a rectangular footprint, the modern variant has a footprint that fits in a square. In the classic variant, the volutes and scrolls project out so that they are visible from the top. In the modern variant, there are no scrolls, the volutes have a curved face, and they are completely nestled under the top. The sketch omits the #fillet at the bottom because we added that to the column #shaft in https://pixelfed.social/p/Splines/791794072490907090. So, we start at the bottom with an #astragal which is exactly the same size as in the classic variant. Next up from the bottom is the #ovolo which is shorter than in the classic variant. It still has a #tectonicSurface on which #decorativeElements rest, and a #virtualSurface that envelops the decorative elements. In this case, I chose a minimalist design with no #eggsAndDarts. Instead, I use another plain ovolo as a substitute that is offset from the tectonic surface by 1 part (or 8 units, when µ = 144). Above the ovolo is the #channel, which in this case is a round slab whose surface matches the neck of the column with a radius equal to 5/6 of µ (120 units). Above the channel is the #abacus which has a curved face that is repeated on all four sides. There is an abacus with flat sides in the classic variant as well, but it is not visible from the front because it is hidden behind the #volute slab. In fact, the vertical #braidsAssembly in the classic variant is attached to the abacus. Above the abacus is a #reed, and above that, another small Ovolo that tops the modern capital. The curved volutes follow the blue circular arcs at the bottom of the sketch. The volutes are shaped like a wedge, as can be seen more clearly in the corner facing the front. The portion of the wedge between the outer rims has a concave surface.

Pixelfed
#Arch with #Ionic #Entablature and #Keystone Detail

The #dentils arrangement we saw in https://pixelfed.social/p/Splines/791013152244518907 goes well with the classic entablature #profile we saw in https://pixelfed.social/p/Splines/790888454384861893, and they both go well with #simpleIntercolumniation, also known as #architravato.

However, with arches, the entablature profile has to be adjusted a bit so that the dentils arrangement is as shown here. The shape, size, and gap between individual dentils remains the same, but a crucial difference is that the dentils at the #outer corners touch each other.

As I mentioned in https://pixelfed.social/p/Splines/803615973439041638, in #arcadeIntercolumniation, the entablature is repeated on the wall behind the half-column. It doesn't end at the columns and has two "outside" corners and one "inside" corner. While the dentils at the outer corners touch each other, there is a single dentil in the inside corner that is shared by both walls.

A bedrock principle of dentils (like that with #flutes and with eggs in the #EggsAndDarts motif) is that when viewed directly from the front or the sides, a dentil must be centered on the column axis. It is this principle that forces us to adjust the profile of the entablature in arcade intercolumniation giving us the arrangement shown here.

The image also shows the detail of the decoration in front of the #keystone. The most easily recognizable component of that is the large #volute, which is the exact same size as the ones on the #capital. The smaller volute is exactly half the size of the larger one. It is mirrored, rotated and put within a bounding rectangle whose height is exactly 2µ (288 units). The channels of both volutes are bridged with #sinusoids derived from half turn of #helix curves that have been flattened.

This motif in the keystone, where volutes of different sizes are combined with sinusoids is very common. It will be seen in the #modillions of the #modernEntablature.
Splines (@[email protected])

This sketch shows the arrangement of #dentils in the classic variation of the #IonicEntablature. It shows the full layout, but most of the top is obscured by the top portion of the #cornice. Only the outside square shapes are actually visible. Each #dentil has a square "footprint" that is 4 parts by 4 parts (32*32 units) and is 6 parts (48 units) tall. The spacing between each dentil is 2 parts (16 units). Dentils project 4 parts (or 32 units) from the face of the #fascia on which they rest. Each face of the fascia has 7 dentils with the middle dentil laterally centered and directly in front of the column axis. The 2 side dentils are on side faces, and that is apparent in the darker shading in the sketch at https://pixelfed.social/i/web/post/790782316675150160. Take the time to reconcile this with the numbers listed in #Scarlata's #PracticalArchitecture. The 3D reconstruction from the #primaryProfileCurves is very similar to that of the #IonicPedestal, with #extrusion, #mitering, #joining, and #capping planar holes as described in https://pixelfed.social/i/web/post/790645054230337543 — just set the dentils aside, for now. Once you have capped the #planarHoles to get a solid, analyze the edges of the solid in the #CAD program for #nakedEdges and #nonManifoldEdges. Then, extrude the dentils outline (in the top view) to a height of 48 units (in the front view). Now perform a #booleanUnion of the two solid shapes to get the complete #entablature. Finally, check the edges of the solid in the #CAD program AGAIN for #nakedEdges and #nonManifoldEdges. With this, we have finished two of the three main components of the #IonicOrder. There's a modern version of the Ionic entablature with #modillions, which I will describe later. Next, we move on to the biggest, most conspicuous part of the order — the #IonicColumn.

Pixelfed
#Braids #3StrandBraids

We are finally ready to convert the two #sinusoids from https://pixelfed.social/p/Splines/797893262102038801 into a single 3D curve that captures the essential geometry of a #braid strand.

First extrude the blue sinusoid into a surface that extends past the magenta sinusoid on both sides. Then draw a bounding box around the blue extrusion and trim the magenta sinusoid that falls outside the bounding box.

Discard the bounding box, and extrude the trimmed magenta sinusoid into a surface that extends past the blue extrusion on both sides.

Then split either surface with the other. It doesn't matter which surface is split and which is used as a cutting surface. The braid strand lies literally at the intersection of both surfaces.

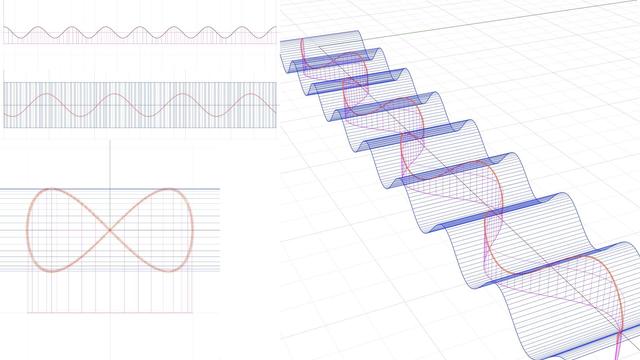

I trimmed the magenta surface with the blue one and deleted the top portion to reveal the curve at the intersection — shown here in orange. In perspective view this curve continuously swerves from left to right and simultaneously from top to bottom as it progresses along the X axis.

This single curve has the characteristics of both sinusoids as seen in front and top views. In the side view, this looks like the #infinity symbol. So we have progressed from zero (with #helix), to plus (with #sinusoid), to infinity (with intersection of two #sinusoidal surfaces).

Once we have this curve, we can sweep a circle around it to make a round strand. We can change the radius of the circle to make thinner or thicker strands. We can slant the circles to give a "calligraphic" look to the strands. We can use ovals, rectangles, squares, stars, or any closed shape to give different surface properties to the strands — the possibilities are endless.

Once you have a closed #airtight strand with capped #planarHoles, make 2 more copies of the same strand. Shift the first copy by 1/3 the wavelength of the magenta sinusoid (48/3 = 16 units) and shift the second copy by 2/3 (48*2/3 = 32 units) while leaving the original one in its place.
Splines (@[email protected])

#Braids #3StrandBraids After creating the two #helix curves as described in https://pixelfed.social/p/Splines/797732962403957263, switch to the front view and #project the smaller blue helix on the vertical "wall" of the XZ plane. Hide the original helix. Then switch to the top view and project the larger magenta helix on the "ground" or XY plane and hide the original helix. Now compare the figure in this post with that in the previous post. Both curves have now been #flattened from 3D helix to 2D #sinusoid. When viewed from the front (top-left portion of the diagram), the blue curve is still visible as a #sinusoidal waveform but the magenta appears as a straight line flattened on the ground. When viewed from the top, the magenta curve is still visible as a sinusoid but the blue appears as a straight line clinging to the vertical wall. In the view from side (bottom-left portion of diagram), neither waveform is apparent, and both curves appear as perpendicular straight lines. Only in the perspective view you can see both waveforms, but even here it is clear that they are both flat 2D curves oriented perpendicular to each other in 3D space. Our goal is to convert these two flat sinusoids back into a single composite 3D curve that shows the smaller waveform in the front view and larger one in the top view. In acoustics, a sinusoid represents a pure tone with a single frequency. The tone varies with frequency and its perceptibility varies with amplitude. Musicians and people familiar with acoustic physics will immediately recognize that the blue curve has twice the frequency (or pitch) of the magenta curve, while the magenta curve has twice the amplitude (loudness) of the blue curve. We can divide the period or wavelength into phases. For the blue one, we divide the wavelength into 4 phases of 6 units each and shift the magenta curve left by that amount. Later, we will divide the magenta one into 3 phases — one for each strand, and shift each rightward by that.

Pixelfed
Made this for a banner thing I was working on last night that I didn't end up using. A rare 4:3 for ur Saturday. #hexagons #sinusoids
