Re: making the switch on effect pedals as quiet as possible

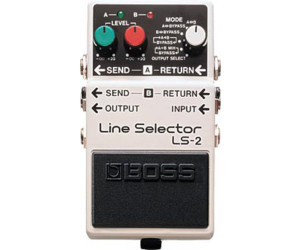

In my experience Boss JFET-based bypass system is the quietest. So when the relay-based switcher I built did not fit the customer, I recommended Boss LS-2 instead.
They've ordered it, we tried it the other day, and.. it pops!! I was so surprised!
Thankfully they ordered other pedals to try as well: JHS Mute switch and a Dunlop Volume X Mini.

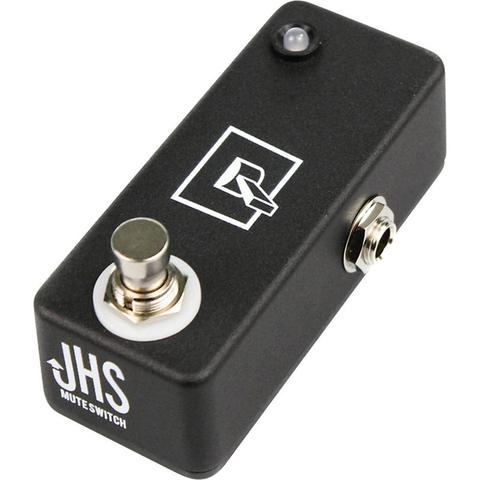

JHS Mute uses a mechanical 3pdt, but it is much more quiet than both my relay-based solution and LS-2. Crazy! I guess it's a special kind of footswitch.
The Volume Pedal would do the trick as well of course, but it's a different workflow & price.

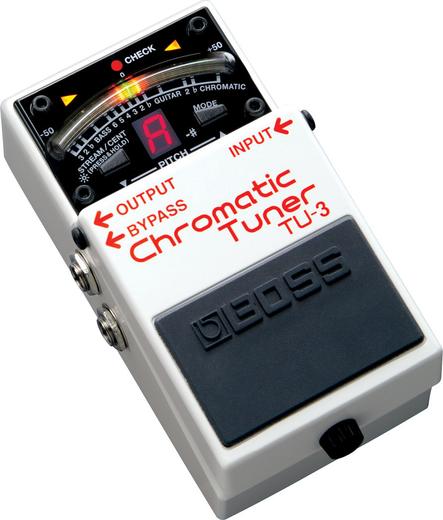

And the quietest mute switch pedal? Boss TU-3 I had lying around. Yeah, the tuner!
So many head-scratchers with what should have been solved at least 50 years ago! A freaking mute switch!!
#pedalsAndEffects #theWorkshop #diyelectronics #synthdiy #audioelectronics
6. Embedded patch bays
To simplify routing, just run a cable snek under the board 🐍
7. Underside mounts using magnets
Instead of screwing things into the wood, route circular pockets and put magnets in them on a grid. Use magnetic adapters to mount things (PSUs, pedals, reverb tanks) on the underside of the board.
New article! Wrote up a recent improvised build of a stereo-switcher controlled using a remote.

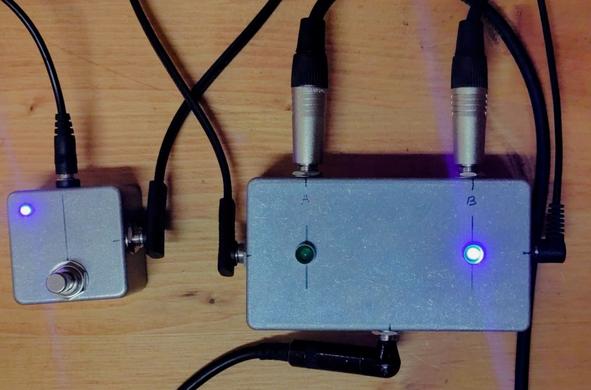

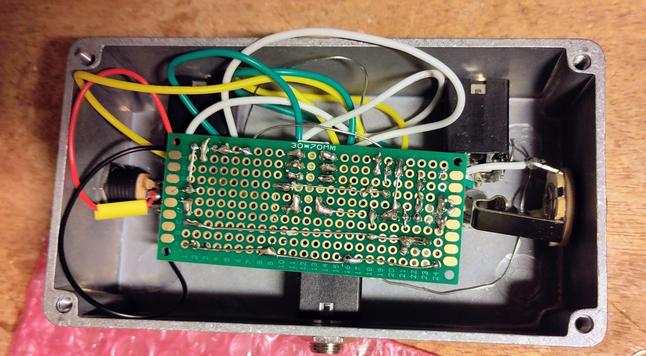

Finishing an AB-switching system for a friend. All the signal routing happens in the larger box using a relay. That one is supposed to live on the underside of a pedalboard.

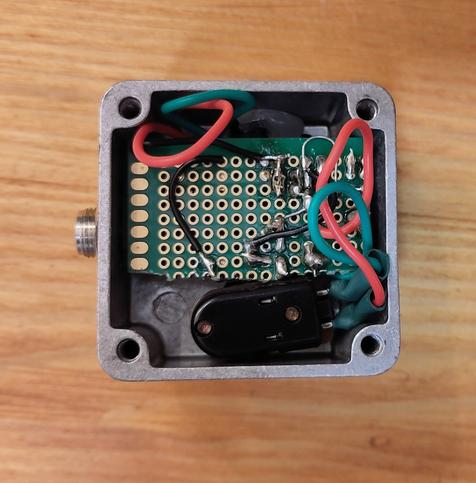

The control signal for it is a gate. In this case it comes from a flip-flop in a smaller box that would live on the player-facing side of the board.
Both circuits are built with veroboards and an awful spaghetti of wires. It's cool not to have to plan every detail before soldering, but also terrible to look at 😅
Kind of last minute I realized that the relay has two switches, so I've made it work in stereo too.
Demo: https://drive.google.com/file/d/10-nHZocduWHa9c5392b4j3BbiZnq4l--/view?usp=drivesdk
#pedalsandeffects #theWorkshop #pedalboard #diyelectronics #ne555
One spot left for the Elements workshop this weekend in Berlin NK. Learn to design and prototype audio circuits from scratch!
Amplifiers, mixers, filters, distortion circuits and more!
All the parts and a prototyping setup included.
https://pedalmarkt.com/products/elements-gain-tone-effect-design-workshop
#electronics #diyelectronics #music #synthdiy #audio #effectpedals #pedalsandeffects #diyaudio
Quick write-up of a very common mixer circuit. It's used in RDRPT as well:
https://gnd.buzz/blog/rdrpt-mixer
#electronics #diy #mixer #theWorkshop #synthdiy #effectpedals #pedalsandeffects
dots.sounds made a fantastic demo of RDRPT, my feedback looper fx pedal https://www.youtube.com/watch?v=P5DKBjT_EpM
