FreeCADIt's #FreeCADFriday! Hope you all have had a great week. Show us what you are working on in #FreeCAD. #CAD #CAM #fc3d
j4n3zO týden a několik iterací později.

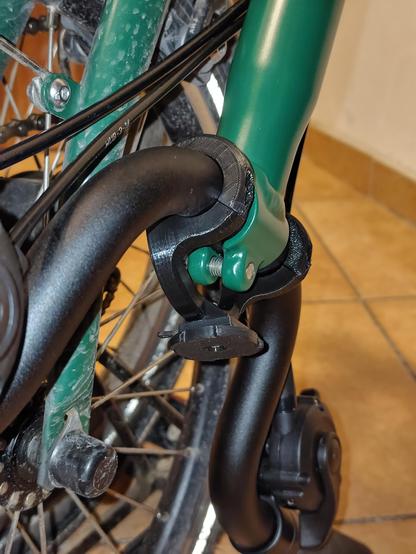

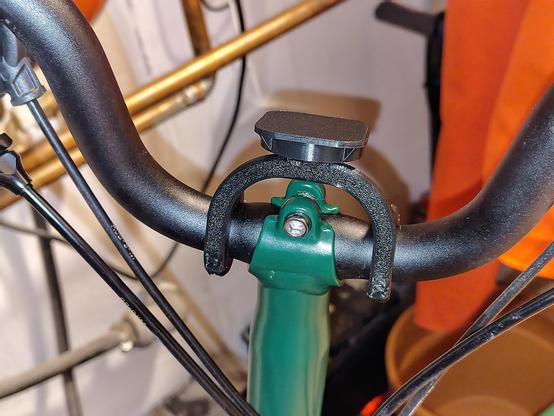

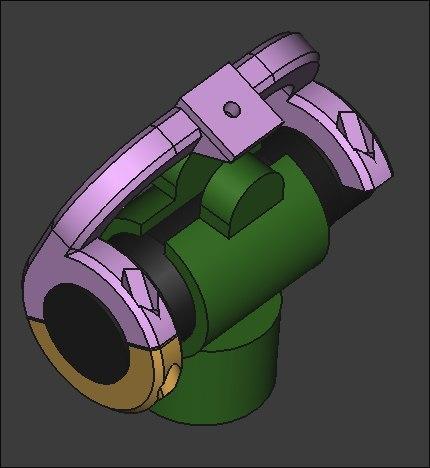

Bajonet na mobil v prvních testech dopadl dobře, takže jsem se pustil do lepšího uchycení na řidítka a zaměřil se na snazší 3D tisk - růžový díl jde vytisknout na plocho s minimem převisů.
Geometrie objímek na řidítka není perfektní, ale je to s dostatečnou tolerancí, aby bylo možné PET-G tisk dotáhnout, aniž by popraskal.
Once again it's #FreeCADFriday! Show us what you are working on with #FreeCAD you wonderful people. #CAD #fc3d
Well indeed, it's #FreeCADFriday once again! What are you fabulous people working on with #FreeCAD ? #CAD #fc3d
It's #FreeCADFriday! Happy weekend everyone for when we get there! What are you all working on with #FreeCAD? #CAD #fc3d
𝘋𝘪𝘳𝘬@FreeCAD Is it FreeCAD Friday already? 👍
I have an unused corner I wanted to do something useful with, so I decided to install a clothes hanging rail. I had two wall mount flanges leftover from something else, so I just bought a wooden stick that fits. Because they’re ugly I decided to create a piece to cover them up.
I had one test print that was too small and which I created completely different (solid shape and then hollowing it out). This one is the one I ended up using.
I first created a maximum outer dimensions part resembling the flanges, and then modeled the cover around it. I was going for a simple cone shape with a straight line from the wall to the wood.
Overall, it worked out exactly as I expected. Leaving out the print time (one hour and 25 minutes on my Ender-5 Pro for one cover) this project was done in 30 minutes, including me amateurish installing everything in that corner.
… now I just need more coat hangers 🙃
It's #FreeCADFriday! What are you wonderful people working on with #FreeCAD at the moment? #CAD #fc3d
