River Wang11h ago
Need to use your laptop #keyboard on your phone? This #CircuitPython project forwards laptop keystrokes via a #microcontroller over BLE HID, turning your computer into a wireless keyboard. Check it out: https://github.com/urfdvw/keyboard-forward

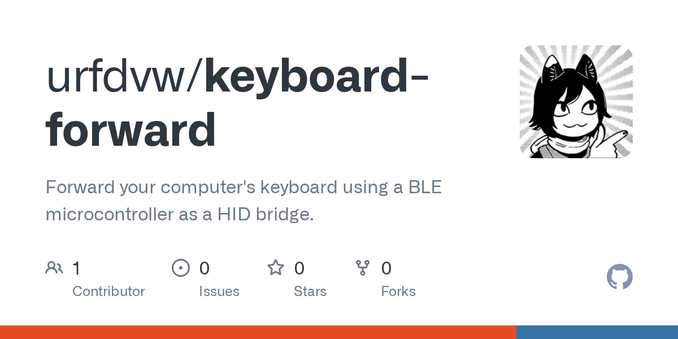

GitHub - urfdvw/keyboard-forward: Forward your computer's keyboard using a BLE microcontroller as a HID bridge.

Forward your computer's keyboard using a BLE microcontroller as a HID bridge. - urfdvw/keyboard-forward

GitHub
CircuitPython4d ago
#CircuitPython 10.3.0-alpha.1 released! https://blog.adafruit.com/2026/04/30/circuitpython-10-3-0-alpha-1-released/
Highlights of this release:
- Improve SD card USB presentation on macOS.
- Prefer 'foo.py' over 'foo/' package when importing, like CPython.
- Pin fixes.
- Enable gifio and storage in Zephyr port.
Akkana Peck4d ago

How to Re-initialize a Stuck #ESP32 (in #CircuitPython) -- something I needed when working on my particulate air quality #sensor but I'm sure I'll need it for many other projects:

https://shallowsky.com/blog/hardware/esp32-reconnect.html

#hardware #maker

How to Re-initialize a Stuck ESP32 (in CircuitPython) (Shallow Thoughts)

Whatisgoingon5d ago

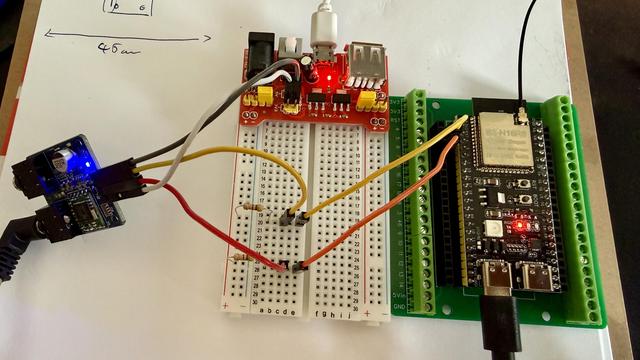

I am trying to get this TEA 5767 to work. This ESP32S3 does not have a onboard I2C so I read that I have to use 4.7kOhm resistors to create a pull-up.

The device is connected to 3.3v and the pins SCL,SDA are connected to 3.3V and the pins 4 and 5 on the board.

I use busio.I2C and can get a connection and lock on the I2C.

i2c.scan() does not find the 0x60 address but sometimes I get "'0x8', '0x9', '0xa', '0xb'"

[SOLVED]
#askfedi #esp32 #circuitpython

gallaugher6d ago

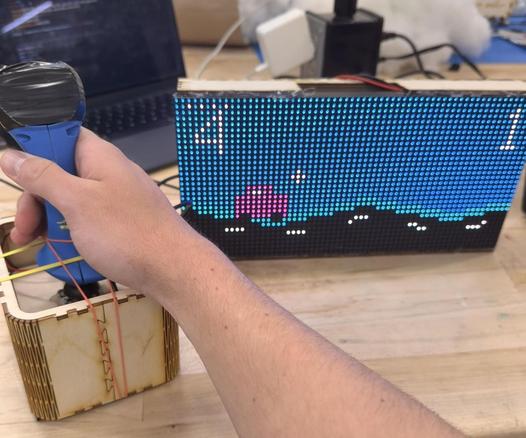

The top feature project on Autodesk Instructables today is by my Physical Computing students Noah Priest & Vinith Ayapilla! An accessible driving game they created for children with disabilities in the Campus School at Boston College. Built in #CircuitPython. Students present their accessible tech work today. Congrats Nick & Vin!
https://www.instructables.com/Accessible-Driving-Game-With-Haptic-Feedback-Sound
Accessible Driving Game With Haptic Feedback + Sounds

Accessible Driving Game With Haptic Feedback + Sounds: This project is a wireless joystick-controlled LED matrix driving game designed for use with the Boston College Campus School. The Campus School at Boston College serves students ages 3 to 22 with extensive support needs, including complex medical n…

Instructables
Tod Kurt (todbot)6d ago
SerialPlotster! I miss the #Arduino serial plotter when doing #CircuitPython / #MicroPython, but it's too greedy with the serial port. I wanted a tiny stand-alone data plotter app, so I built one (w/claude's help). It's pretty flexible on data input and fast to launch https://github.com/todbot/SerialPlotster
GitHub - todbot/SerialPlotster: Serial data plotter for use with devices like Arduino & CircuitPython

Serial data plotter for use with devices like Arduino & CircuitPython - todbot/SerialPlotster

GitHub
MrKlingonApr 27

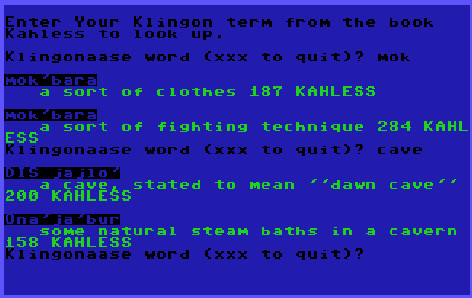

Klingon fun on the FruitJam! Rebuilding an ancient C64 program!

https://adafruit-playground.com/u/mrklingon/pages/klingon-fun-for-the-fruit-jam

#adafruit #fruitjam #circuitpython #pybasic #klingon #startrek #conlang

Klingon Fun for the Fruit Jam

Adafruit Playground
WhatisgoingonApr 27

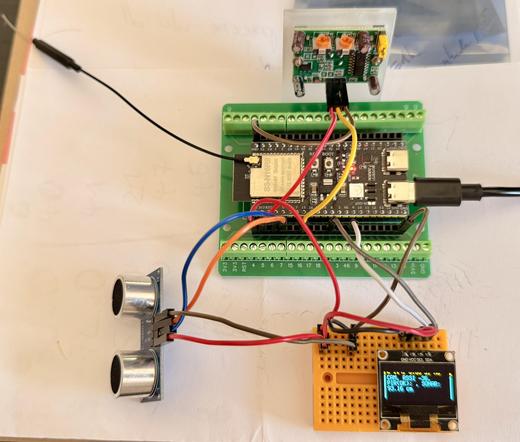

Had a bit more fun with #esp32 and #circuitpython - I really love how quick you can iterate and protoype with circuitpython!

Added a PIR motion sensor and a SR04 sonar sensor to the setup.

The sonar sensor was really easy, the PIR sensor needed a bit of tinkering to understand what dial does what.

Both works well.

Now to set an alarm when either of them goes off to wake the device up from light sleep. Let's see which one works best for that scenario.

But this is so much fun!

Show threadWhatisgoingonApr 26

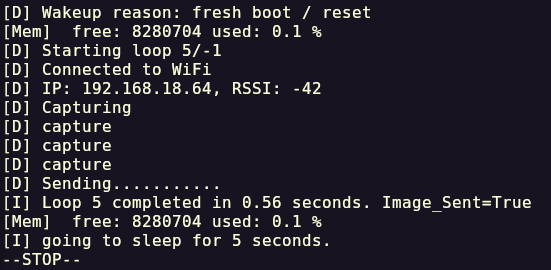

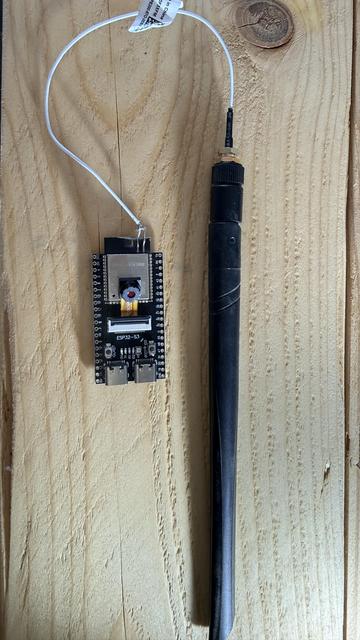

@tobozo I tried it. What a difference!

Now the RSSI is at around -40 to -42 and there are no send errors, send retries or send timeouts since I added the antenna.

Very cool 😎 as I can keep using these modules after all.

I also figured out how to get them fully running on CircuitPython.

This was my first time soldering after probably more than 20 years ...

#esp32 #esp32s3 #soldering #diy #circuitpython

gallaugherApr 25
Sat 4/25. Come to BC ArtsFest. 1-3pm is the Student Tech Showcase with #SwiftUI and #CircuitPython projects. Plus LOTS of family friendly performances & works. https://drive.google.com/file/d/1VHx5nA1RWhNJ1E2w3zW1vW8dY9T36XaD/view
2026 Arts Fest Schedule.pdf

Google Docs
×
joey castilloMar 5

EDIT: Solved! Thanks to @projectgus and @mnl for pointing me in the right direction. https://mastodon.social/@joeycastillo/116178688050493057

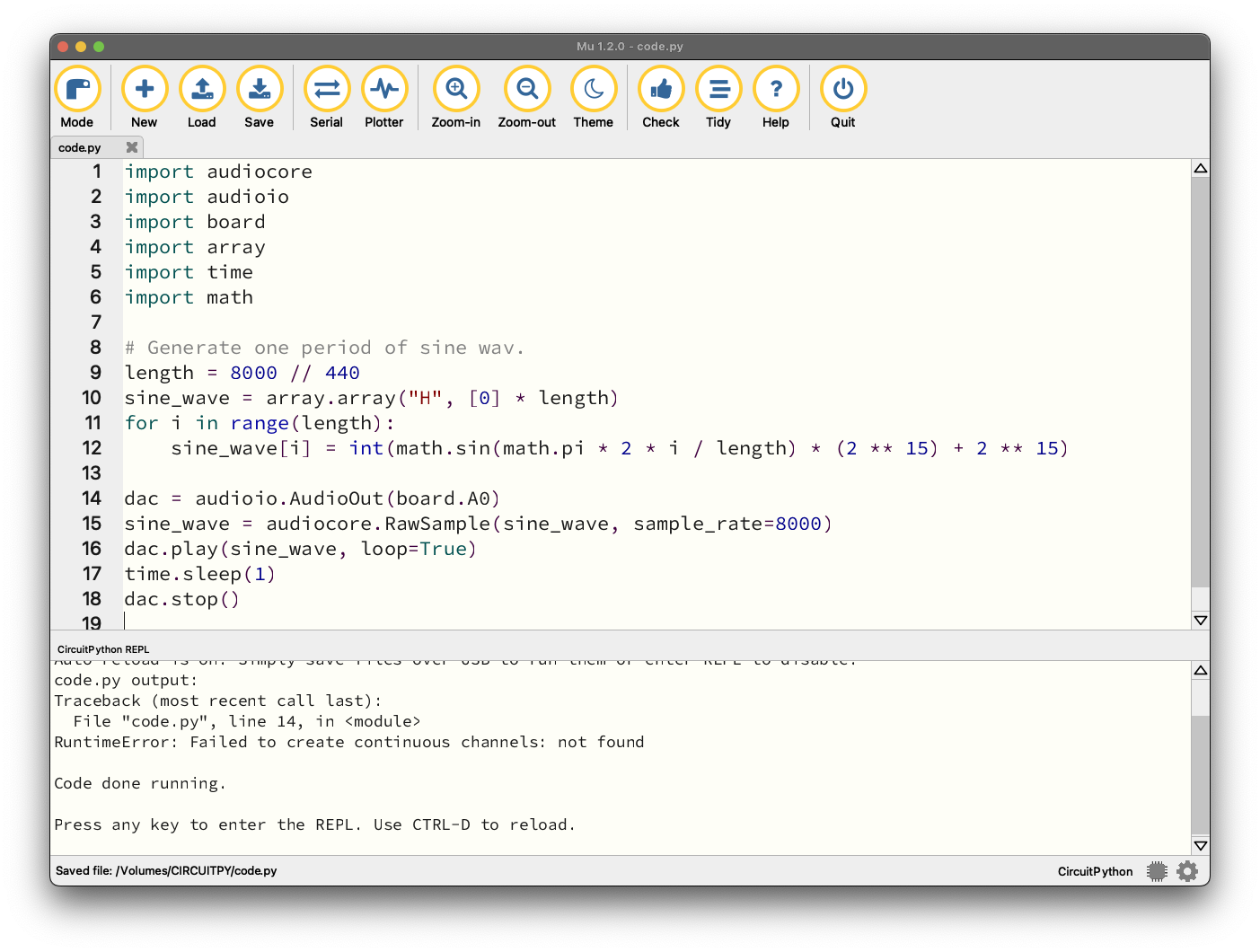

PREVIOUSLY: desperate plea for help from any #circuitpython oriented folks: I've purchased a bunch of ESP32-S2 Reverse TFT Feather boards (S2, not S3) for my students' assignment 3, but any attempt to initialize audioio.AudioOut, even for the most basic example, is met with an error:

RuntimeError: Failed to create continuous channels: not found

Show threadGusMar 5

@joeycastillo I don't know CircuitPython very well, but ESP32-S2 only has two DAC pins, IO17 and IO18 - does pin "board.A0" map to one of those?

https://docs.espressif.com/projects/esp-idf/en/stable/esp32s2/api-reference/peripherals/dac.html

Digital To Analog Converter (DAC) - ESP32-S2 - — ESP-IDF Programming Guide v5.5.3 documentation

Show threadGusMar 5
@joeycastillo ah nvm, I checked https://learn.adafruit.com/esp32-s2-reverse-tft-feather/pinouts and it does indeed! Sorry for the noise.
Adafruit ESP32-S2 Reverse TFT Feather

The Reverse TFT Feather comes with the 240x135 color TFT display on the back-side not the front-side. That makes it great for panel-mounted projects, especially with the included buttons. It's like an all-in-one display interface development board, powered by the fantastic ESP32-S2 WiFi module.

Adafruit Learning System
Show threadjoey castilloMar 5
@projectgus no worries, good to check these things! A look at the board definition confirms it, A0 is GPIO18, and looking further at the internals, this message seems to come from dac_continuous_new_channels returning ESP_ERR_NOT_FOUND, so I'm chasing into Espressif internals next. https://github.com/adafruit/circuitpython/blob/77c17696e5be01d40b78d5cbe157539d733af73a/ports/espressif/common-hal/audioio/AudioOut.c#L480
Show threadGusMar 5

@joeycastillo yeah I just had a peek too (the power of procrastination), and saw the same.

Out of interest, do you get the same error if you specify both a left and right channel (i.e. board.A0 & board.A1)?

EDIT: Nvm, I saw @mnl's reply which gets to the heart of it!

Show threadmnl mnl mnl mnl mnlMar 5

@projectgus @joeycastillo I think you are actually getting closer to it, I was just grepping around. A hunch is that (I don't know esp32-s2 at all) apparently it has one DMA channel, and I could imagine it being hard allocated to the display.

I also have to do other things now, but apparently joey still has a week! easy! 😭

Show threadjoey castilloMar 5
@mnl @projectgus Thanks for y'alls help, this pointed me 100% in the right direction. Flashing the non-TFT version, I am able to use the DAC, which points to something about the display and DMA. But also the errata note suggests that I can salvage the assignment with pwmio and more beepy output while I look into the DMA issues. THANK YOU BOTH!!!
Show threadmnl mnl mnl mnl mnlMar 5
@joeycastillo @projectgus 🥳 so glad! love your work, i hope your students have fun.
Show threadTod Kurt (todbot)Mar 5
@joeycastillo @mnl @projectgus Yes, you can use “pwmio” for simple tones. Use the “simpleio” library to give you an easy function for that: https://docs.circuitpython.org/projects/simpleio/en/latest/api.html#simpleio.tone
Unfortunately, the only way I’ve had good luck with CircuitPython ESP32 audio is with an outboard I2S DAC module and the built-in “audiobusio” library (even when you can get the built-in DAC to work, it’s pretty low-quality 8-bit)
API Reference — Adafruit CircuitPython SimpleIO Library 1.0 documentation

Show threadjoey castilloMar 5
@todbot @mnl @projectgus Thanks so much for y'alls help, I've confirmed pwmio beeps and bloops work great, and if I use the non-TFT version of the firmware, I can actually use the DAC (which as you point out isn't the best quality at 8 bits, but does give the students options for which direction they want to go). Assignment saved!
Show threadTod Kurt (todbot)Mar 5
@joeycastillo @mnl @projectgus Awesome! And as I’m sure you know, you can set up the display by hand on the non-display firmware, sorta like this: https://gist.github.com/todbot/a23c8cb28e5925dfa79e6dba5c9d0962
show how to use LILYGO T display RP2040 board in CircuitPython w/o explicit board support

show how to use LILYGO T display RP2040 board in CircuitPython w/o explicit board support - lilygo_t_display_rp2040_demo.py

Gist
Show threadjoey castilloMar 6
@todbot Thanks! Yea unfortunately it seems like an either/or on the TFT Feathers, at least for the S2. Setting up the TFT first, the DAC fails as above; setting up the DAC first, I get "RuntimeError: SPI configuration failed." I'm guessing this probably hasn't come up yet, since the DAC wasn't available at all on the S2 until recently. Either way the good news: on the standard firmware build, doing a `displayio.release_displays()` before setting up AudioOut is a one-line fix, so it's all good :)
Show threadmnl mnl mnl mnl mnlMar 5

@joeycastillo @projectgus that means I think that all DMA channels were allocated, indeed the esp-idf version used by circuitpython now supports continuous mode. Maybe the board setup already allocates them already (for the display?)

Anyway, before I go too deep from my armchair peanut gallery, let me know if you want to hash this out maybe with gus too (the more the merrier)

Show threadGusMar 5
@mnl @joeycastillo I do love a rabbit hole (a little too much), but I have to go do other things. Sorry, best of luck!
Show threadÖlbaumMar 9

@projectgus Reminds me of the time I couldn’t get a pin to work as a digital input with pullup on my Arduino Nano, and it turned out A6 and A7 are analog only, and the official Arduino documentation is wrong (it says all analog pins also work as digital GPIO.)

Then I spent time making a comprehensive PR listing all affected models, and they never looked at it.

Then they got bought by assholes and I redacted the PR to oblivion.
@joeycastillo

Show threadGusMar 10
@oscherler @joeycastillo Ah, a tale as old as time!
Show threadmnl mnl mnl mnl mnlMar 5

@joeycastillo dang I don't have S2s and they seem to be in very limited supply on amazon.

I think maybe this is the issue: https://learn.adafruit.com/esp32-s2-reverse-tft-feather/esp32-s2-bugs-and-limitations ?

"No DAC-based audio output

Current versions of the ESP-IDF SDK do not have the required APIs for DAC-based audio output. Once a future version of ESP-IDF that adds it, it will be possible to implement DAC-based AudioOut in CircuitPython."

I've been doing a lot with esp-idf lately and this aligns with my skillset, it seems that newer ESP-IDF does support continuous mode for S2. Maybe DM me to see if I can still help and potentially provide a patch?

Adafruit ESP32-S2 Reverse TFT Feather

The Reverse TFT Feather comes with the 240x135 color TFT display on the back-side not the front-side. That makes it great for panel-mounted projects, especially with the included buttons. It's like an all-in-one display interface development board, powered by the fantastic ESP32-S2 WiFi module.

Adafruit Learning System
Show threadPaul CutlerMar 5
@joeycastillo I asked todbot and he pointed me at this Bugs & Limitations page that says No DAC-based audio output: https://learn.adafruit.com/esp32-s2-reverse-tft-feather/esp32-s2-bugs-and-limitations
Adafruit ESP32-S2 Reverse TFT Feather

The Reverse TFT Feather comes with the 240x135 color TFT display on the back-side not the front-side. That makes it great for panel-mounted projects, especially with the included buttons. It's like an all-in-one display interface development board, powered by the fantastic ESP32-S2 WiFi module.

Adafruit Learning System
