Show threadRommudohMay 11, 2024
Good and bad news... the replacement #PSU works, and the repaired PCB seems to work, too.
But the bottom read head is now confirmed dead. I measured the coils directly at the head. Like before, only the erase coil is intact.
#Commodore #C1571 #floppydrive #repair #retrocomputer
Show threadRommudohMay 9, 2024
Here a comparison of the old #powersupply and the replacement.
I already cleaned the old board, removed two rusted diodes, and unsoldered the ICs, but there might be more defective components, that's why I decided to replace it with something completely different.
Still unsure if I'll leave the cable binders for keeping it in place.
#commodore #c1571 #retrocomputer #restoration #meanwell #psu
RommudohMay 6, 2024

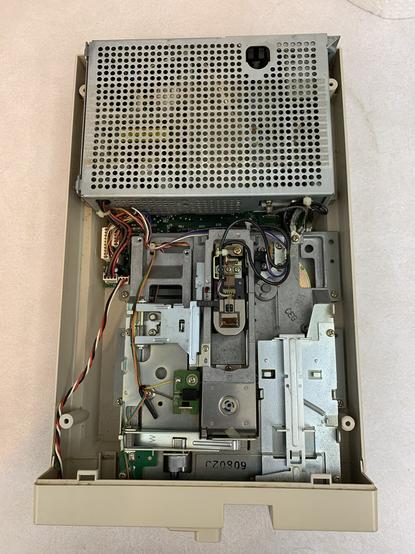

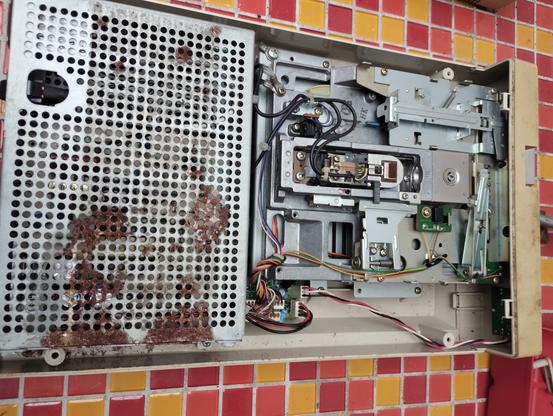

After getting the #Commodore #C64 and #C128 running again, the next device to repair is the #C1571.
It had #corrosion and #rust on the main board and the power supply is beyond repairworthiness. I'd replace the latter with a #meanwell RD-35 with 5 and 12 volt output.
One #diode was rusty, a few traces needed #cleaning and five #resistor looked bad. Hope the black hybrid chip is still okay.
Sadly, the lower read head seems to be broken, my work might've been in vain.
#floppydrive #retrocomputer
Show threadRommudohApr 3, 2024

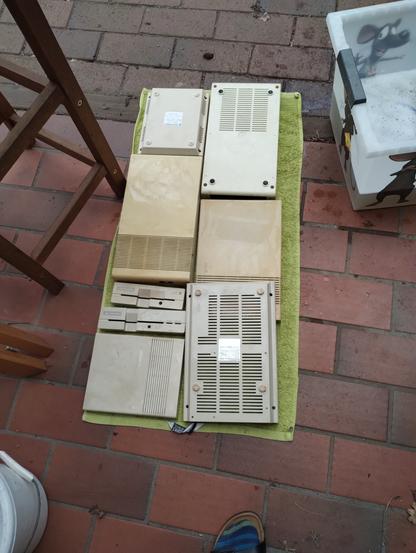

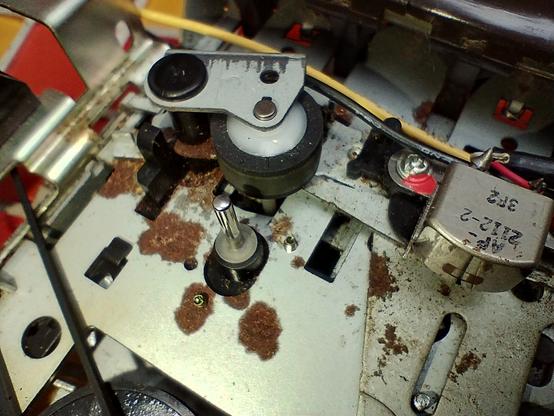

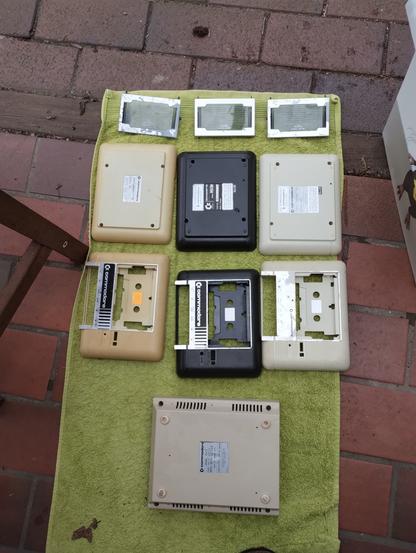

More cleaning done today. This time the #C1541 and #C1571 floppy drives, as well as the #C1531 cassette drives. They have quite some #rust inside, hope to get at least one running.
If anybody has tips for getting rid of the rust, feel free to tell.
#commodore #cleaning #repair #restoration
Gen X-WingDec 11, 2022

So, time for some light #retrocomputing with a #C1571 for a #C128.

Just cleaning up some obvious yuck. Wondering if I dare connect it (are the PSUs here as evil as the #C64 ones?) to mains at some point.

RetroGralniaSep 23, 2015


Jak wgrywać gry i programy na Commodore 64 z pomocą emulatora SD2IEC.

Kilka słów o SD2IEC, następcy MMC2IEC, pamięci podłączanej do interfejsu IEC – uproszczonemu (niepełnemu) emulataorow stacji dyskietek do Commodore 64 i innych komputerów tej firmy.

Przydatne komendy SD2IEC:

Listowanie katalogów:
LOAD”$”,8
LIST

Przechodzenie do katalogu – ścieżka względna:
OPEN15,8,15,”CD/KATALOG/”:CLOSE15

Przechodzenie do katalogu – ścieżka bezwzględna:
OPEN15,8,15,”CD//KATALOG/KATALOG2/”:CLOSE15

Przechodzenie do katalogu wyżej/z dyskietki
OPEN15,8,15,”CD:←”:CLOSE15

Montowanie dyskietki:
OPEN15,8,15,”CD:NAZWA.D64″:CLOSE15

W komendach tych występują:
/ – ścieżka względna:
// – początek ścieżki bezwgędnej
: – oddziela ścieżkę od pliku

Dlatego np. można załadować bezwzględnie dysk:
OPEN15,8,15,”CD//KATALOG/KATALOG2/:NAZWA.D64″:CLOSE15

Więcej na:
http://RetroGralnia.pl
http://fb.com/RetroGralnia

https://retrogralnia.pl/jak-wgrac-gre-na-commodore-64-z-pomoca-sd2iec-podstawy-uzywania-komendy-rg103/

#64 #C1541 #c1571 #C64 #c64Sd2iec #c64WgrywaniePlikow #comadore64JakWgracGre #Commodore #commodore128 #Commodore64 #commodore64Gry #commodoreGry #czytnikSd #floppy #gryCommodore64 #iec #jakWgraćGręNaComodre #mmc2iec #retrocomputing #RetroGaming #sdReader #SD2IEC #sd2iecRetrogralnia #stareGry #stareKomputery #stareKonsole #ustawienieGłowocyC64 #vic20

Jak wgrać grę na Commodore 64 z pomocą SD2IEC – podstawy używania – komendy – RG#103
