The Cutest Weather Forecast on E-Ink and ESP32

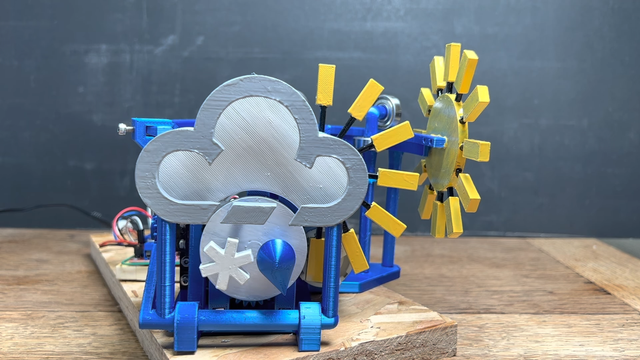

3D Printed Mechanical Contraption Shows Live Weather Forecast
"What's the weather going to be like today?" is a question that's near-permanently on the mind of those living in places like Britain, where brilliant sunshine can follow thick clouds, only to turn into drizzle an hour later. Nowadays you simply need to glance at your phone to know whether you need to pack an umbrella, but where's the fun in that? Why not have a huge mechanical display to show you a summary of today's weather?
As a fan of automatons and other contraptions filled with gears and pulleys, [Mike] decided to build just such a machine for his latest Mikey Makes video. It uses brightly coloured indicators inspired by the BBC's famous "fluffy cloud" symbols that can show various combinations of sunshine, clouds, rain and snow. These symbols are moved around by dozens of gears, levers, swinging arms and other moving parts which were all 3D printed. We especially like the system that folds out rays of sunshine from behind the cloud; you can see it working in the video embedded below.
Live weather data is fetched through an open weather API by an Arduino MKR WiFi 1010. This then drives the mechanical system through a pair of motor driver ICs. The heavy work is performed by stepper motors and servos, while micro-switches and optical detectors determine the end point of each movement.
If you're into weather displays, you're in luck: we've featured many different styles over the years, including e-paper screens, analog gauges, split-flap displays and even a miniature recreation of the local weather.
M5Paper Gets Open Source Weather Display Firmware
We know you like soldering irons, we're quite fond of them ourselves. But the reality is, modular components and highly capable development boards allow the modern hardware hacker to get things done with far less solder smoke then ever before. In fact, sometimes all you need to finish your project is the right code.
Case in point, check out the slick electronic paper weather display that [Danko Bertović] shows off in the video below. While it certainly fits the description of a DIY project, he didn't have to put any of the hardware together himself. The M5Paper is an ESP32 development kit designed around a crisp 4.7″, 960 x 540 e-paper panel that includes everything from environmental sensors to an internal 1150 mAh battery. To make your handheld e-paper dreams come true, the only thing you need to provide is the software.
The weather display code provided by [Danko] should certainly get you going in the right direction. Now don't get us wrong, there's certainly no shame in just flashing his code to the device and plunking it on your desk. It's a gorgeous looking interface, and we all know that a sprinkling of open source code is often all it takes to make a standard consumer device extraordinary. But by using the code he's provided as a launching point, you can take this turn-key device and really make it your own.
#microcontrollers #softwarehacks #esp32 #firmware #m5paper #opensource #weatherdisplay
