As someone who has always been working with #SmoothedParticleHydrodynamics, I have a diminished capacity for amazement at the level of detail an #SPH simulation can achieve. I still can't deny that the simulations look good though, and I can understand why people less familiar with the method find even the simplest ones quite impressive.

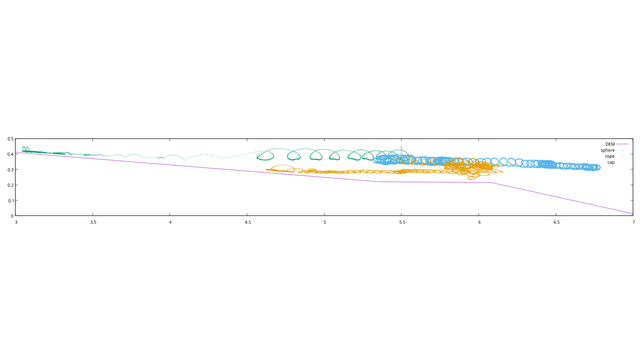

(Attached: some visual data from the beaching experiments conducted by our PhD student Roberta Cristofaro for the #PLATONE project that focuses on plastic transport due to waves and currents on emerged and submerged beaches).

Having Just Realized™ that I can use Sphere Glyphs to render my particles in #ParaView, I am now Very Happy™ because my low-resolution #SPH simulations can be made to appear so much nicer.

#SmoothedParticleHydrodynamics #CFD #ComputationalFluidDynamics #rendering #visualization

Our most recent paper on #SPH / #FEM coupling for offshore structures modeling with #GPUSPH has been published:

https://authors.elsevier.com/c/1m3VB_hNWk2tT

These kinds of works, with validation against experimental results, is always a challenging task, even for the simpler problems. Lab experiments and numerical simulations have each their own set of problems that need to be addressed, and the people working on the two sides of the fence often have a very different perspective on what should be considered trivial and not worth measuring, and what is instead crucial to the success of the experiment.

Getting these two sides to talk to each other successfully is no walk in the park, and I wish to extend my deepest gratitude to Vito Zago, who has gone to incredible lengths both during the “science making” to make things work out, and during the manuscript submission and review process, a nearly Sisyphean task in itself.

#SmoothedParticleHydrodynamics #FiniteElements #FiniteElementMethods

Talking about dependencies: one thing we did *not* reimplement in #GPUSPH is rigid body motion. GPUSPH is intended to be code for #CFD, and while I do dream about making it a general-purpose code for #ContinuumMechanics, at the moment anything pertaining solids is “delegated”.

When a (solid) object is added to a test case in GPUSPH, it can be classified as either a “moving” or a “floating” object. The main difference is that a “moving” object is assumed to have a prescribed motion, which effectively means the user has to also define how the object moves, while a “floating” object is assumed to move according to the standard equations of motion, with the forces and torques exerted on the body by the fluid provided by GPUSPH.

For floating objects, we delegate the rigid body motion computation to the well-established simulation engine #ProjectChrono
https://projectchrono.org/

Chrono is a “soft dependency” of GPUSPH: you do not need it to build a generic test case, but you do need it if you want floating objects without having to write the entire rigid body solver yourself.

1/n

#SmoothedParticleHydrodynamics #SPH #ComputationalFluidDynamics

Hello all! This will be the official #GPUSPH account on the Fediverse going forward. What is GPUSPH, you ask? It's a software for #ComputationalFluidDynamics using the #SmoothedParticleHydrodynamics method, accelerated by running entirely* on GPU. In fact, it was the first to do so, leveraging the new GPGPU capabilities offered by NVIDIA CUDA.

(These days we have wider hardware support, but for a long time CUDA was all we supported.)

#introduction #newHere #CFD #HPC

*conditions apply

Apparenty we weren't having enough issues of context collapse for #SPH as an acronym of #SmoothedParticleHydrodynamics, since I'm now seeing #STI as an acronym for #SymplecticTimeIntegrator. And of course these article are more often than not written with #LaTeX.

(No, Mastodon, I really do not want you to normalize the case of *that* tag.)

One of these I'm going to create a quiz game: #kink #fetish or #numericalAnalysis?

When this post https://mastodon.social/@coreyspowell/113807316007617909 by @coreyspowell popped up in my feed just now my first thought was: «wait, I'm pretty sure I saw something similar at a recent #SPHERIC conference» so of course I checked the linked paper (<https://www.nature.com/articles/s41561-024-01612-0.epdf?sharing_token=9Q4L9YJs0dXIOXIb7dJ9F9RgN0jAjWel9jnR3ZoTv0NvCuY-CCmAUDS-e_nTUnvNU1gexpN1yz5LgFWb6OYeZtFJos0bQQeDtkY5TswjWh9TsZvZ6a44fcxf1Kw-c1KkueYZqv6G1Lx7wrnS7EBY4v1kIZ-srQuT1Md7nJKtojM%3D>) and lo and behold, they do use #SPH #SmoothedParticleHydrodynamics

However, I had a feeling it wasn't exactly the same, and by digging deeper in my memory, I realized that indeed what I had seen wasn't (a preview of) this work, but a #SPHERIC2019 contribution about simulating impacts on planetary giants with #SWIFT (a well-known SPH code for #astrophysics, the field SPH was originally designed for, available from <https://www.swiftsim.com>) with Uranus as a test case. You can read the full article here:
https://doi.org/10.1093/mnras/stz1606
and see a high-resolution animation of the Uranus impact, as well as other simulations, at https://icc.dur.ac.uk/giant_impacts/

A heads-up for anyone interested in #SPH #SmoothedParticleHydrodynamics: the #SPHERIC2025 abstract submission deadline has been moved to January 20.

https://spheric2025.upc.edu/

#CFD
