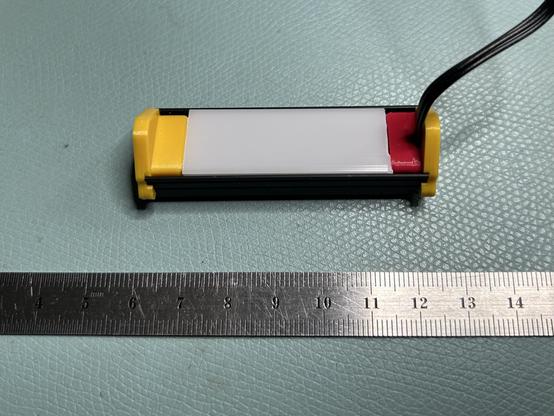

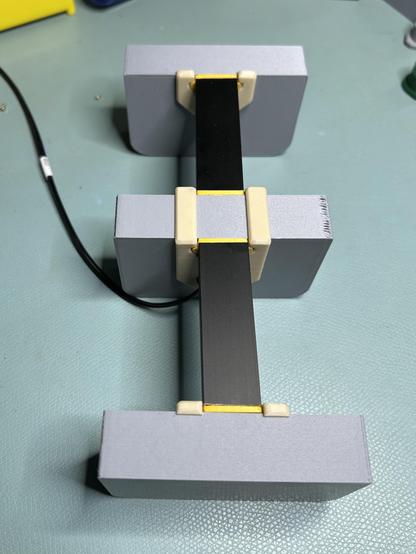

🧵 58/N The other end of the channels will also have brackets, but no wiring. The front edge of everything is flush so I can put a line of weatherstrip there.

I'll print these in black. The bright colors are just to make the photos easier to see. I'll tape the wires to the underside of the center shelf.

The BILLY flexes enough that I can bend the shelves apart to insert the channels.

#FilaBillyHumidor #LED #3DPrinted

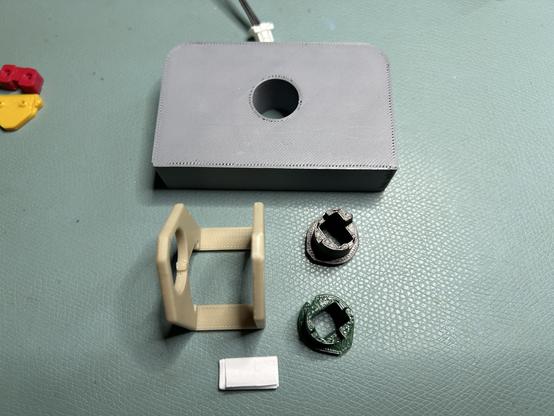

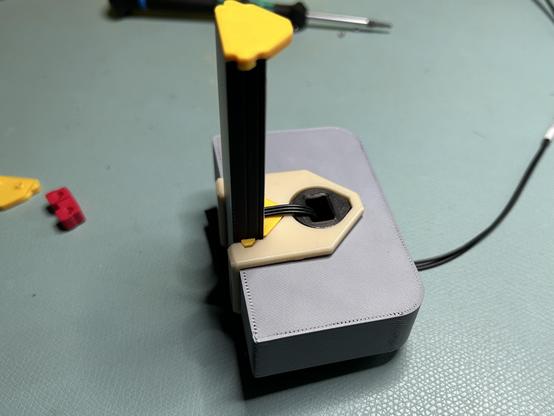

🧵 57/N This assembly will attach the wired ends of the channels to the BILLY's shelf. (The gray plastic piece represents the shelf with a hole drilled through it.) The two cylindrical pieces make a sleeve just big enough to pass a Molex 3 position CLIK-Mate plug through. The U-shaped bracket holds both ends of the sleeve in place and positions the channels both above and below. The wadded paper is to snug the sleeve into the drilled hole.

#FilaBillyHumidor #LED #3DPrinted

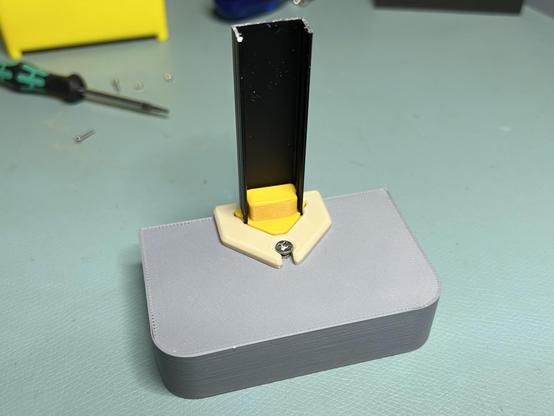

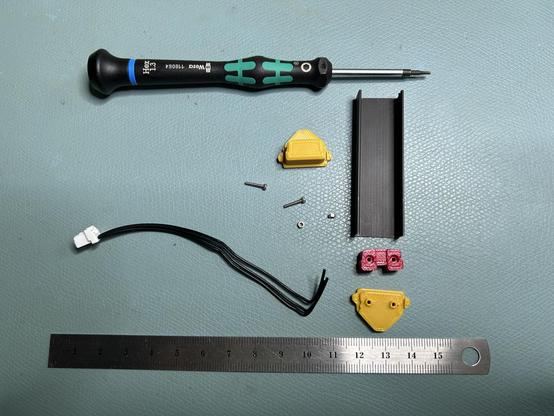

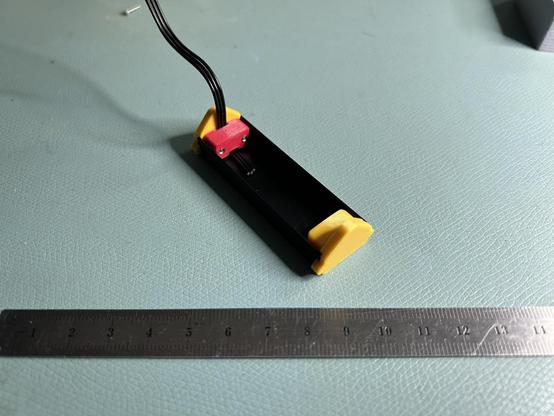

This is my solution for holding wires securely to the FilaBilly Humidor's center LED channel, demonstrated with short offcuts of the channel and wiring. Those screws are tiny, M1.4 x 8. They compress the wires in place, and I'll solder them down after it's assembled. The other end is just a plug, no wires.

🧵 56/N

#FilaBillyHumidor #LED #3DPrinted

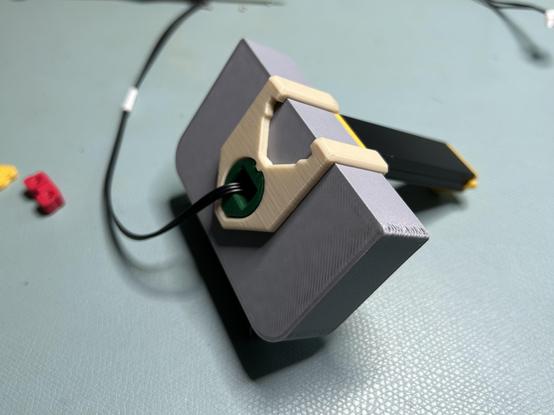

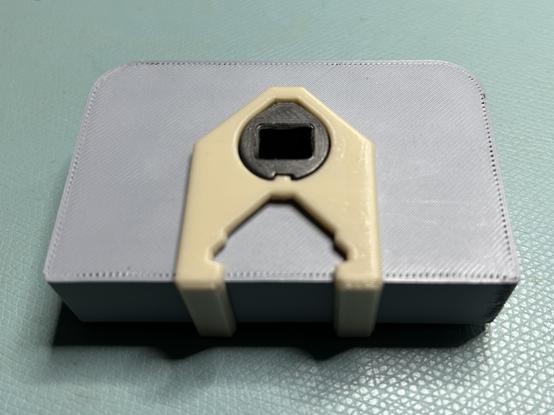

@pixelpusher Here's the "final"* iteration of the support block design. It has spring-loaded wings that clamp it in place against the part it supports. Before the wings, the blocks slid around and the hole perimeters misaligned.

The space between the wings is 0.4mm too small. I have to bend it pretty hard to clip it on, but nothing's come off the bed yet.

* final in that I've used them to print 6 of the 12 pieces I need.

🧵 9/N

#IkeaGrid #Gridfinity #IkeaHacks #IkeaHack
