the phosFeb 3
New video, this took like 6h so ​​

Lab update 2: RIGOL DHO924S, G-EDM pulseboard testing, transimpedance amplifier and more!
https://makertube.net/w/dJ3JEsMF9erXHSd5bzbUL9

#rigol #oscilloscope #electronics #engineering
Lab update 2: RIGOL DHO924S, G-EDM pulseboard testing, transimpedance amplifier and more!

PeerTube
Anna-Lena MarxJan 1

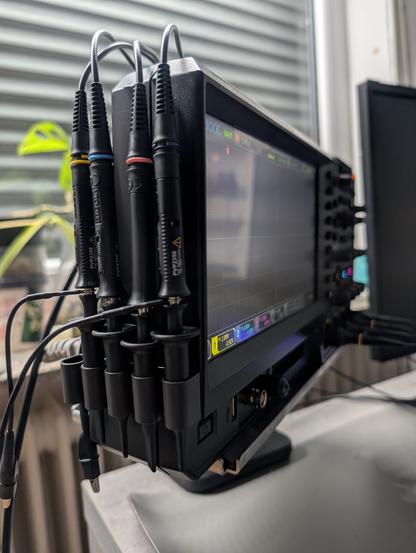

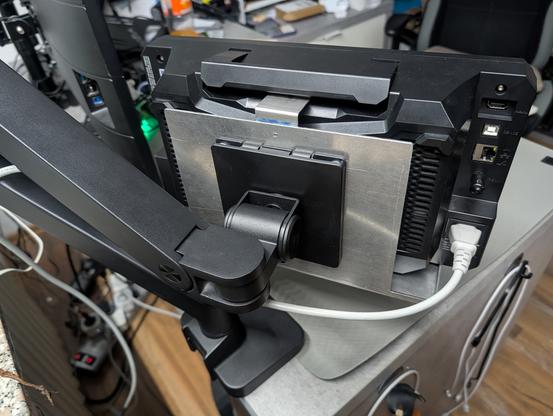

My dad made me a Vesa compatible holder for my oscilloscope and it turned out great! Just as imagined. Of course, it is a massive steel construction, we both would not trust a 3D printed construction with my dear Rigol.

#electronics #oscilloscope #rigol

Filip M. NowakNov 4
#rigol pulled off something incredible: ~$1300 1ghz bandwidth #oscilloscope! they were sold out in no-time, and supposedly it was a limited edition thingy. (if i need one, is a different matter) #electronics #diy
amen zwa, esq.Jun 29, 2025

The #Rigol DHO814 (100 MHz, 12-bit, 4-channel) digital #oscilloscope is hard to beat for the home #electronics laboratory market.

https://youtu.be/S8jrpCoZyx8?si=gu569MRLCRedeYqU

EEVblog 1566 - Rigol DHO800 12 Bit Oscilloscope FULL REVIEW

YouTube
Matt Knight (KN6HTM)Jun 5, 2025

Proud of myself this evening. Used my new Rigol scope for the first time and managed to understand the electrical signals our new Panasonic WhisperValue bathroom fan uses. Told me what I need to replace the onboard switch with an ESP32 to control the fan speed and monitor the RPM. All part of my plan for a unified ventilation system using ESPHome and Home Assistant.

#homeassistant #esphome #panasonic #ventilation #hvac #electronics #rigol #esp32

Branch Predictor Mar 25, 2025
Not sure who needs this (apart from me, of course), but just pushed my rof2csv tool:
https://github.com/branch-predictor/rof2csv
Use it to convert Rigol's ROF files (produced by Rigol DP800 series programmable power supplies) into CSV files that can be fed into Excel or LibreOffice Calc.
#programming #SoftwareDevelopment #rigol #rof #csv
GitHub - branch-predictor/rof2csv: rof2csv - command-line tool to convert Rigol ROF files to CSV

rof2csv - command-line tool to convert Rigol ROF files to CSV - branch-predictor/rof2csv

GitHub
Stefan Wolfrum Mar 16, 2025
Lorenz Attractor on my „THAT“ #AnalogComputer. 🤩🤓 #LorenzAttractor #Oscilloscope #Rigol #electronics #AnalogComputing #anabrid #TheAnalogThing
Tobias KlausmannFeb 14, 2025
Bought an #oscilloscope ( #rigol MSO5074) and it allows you to upload images to use as "screensavers". So naturally I had to do this:
James M. WoodwardOct 10, 2024

Finally got a tool I've been wanting, and at a great price. #Rigol #DHO804 you are mine, consider yourself hacked.

A logic analyzer would have been nice but for the cost difference when I can hack the 804 up to 250mhz & 50M, I will deal without it.

#oscilloscope #hobbies

root42Aug 19, 2024
Question to my #oscilloscope bubble: I am using DSremote with my #Rigol DS1202Z via Ethernet (also tried USB once). The Framerate I get is abysmal, like 1-2FPS. Is this a limitation of the scope, or can I achieve better with some setting?
