yesterday i collaborated with @saltphoenix 's teen to get the solar working in his cabin after it had been on the fritz for a long time.
the solar in their main house is working (which is good - i'm all about redundant systems), but the power on the cabin was messed up.

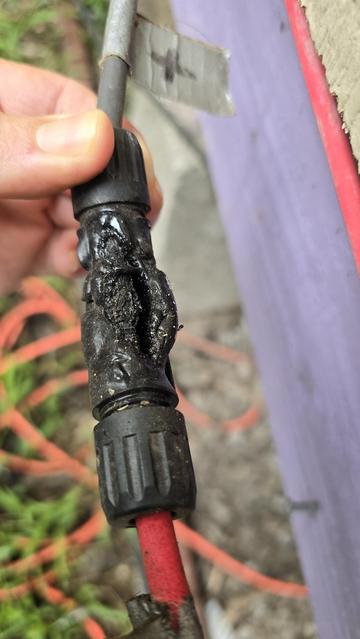

the problem was in the connectors. they had not been set up properly. one of the connectors blew a few days prior and the system stopped working entirely. (see image 2 below)
i had a bag of solar connectors in my shed (see image 4 below), but not the crimper and tightener tool (i have now ordered this kit: https://www.amazon.com/dp/B0CKTFRSZ4 ). for the job yesterday, i borrowed the tools from my bf, who also generously showed me how to create connectors using the tools, and was available over the phone to help us troubleshoot.
so the teen and i replaced the blown connector (which was located by @saltphoenix ), but we were still getting nothing off the panels.
so then i went up on the roof and discovered that 1 connector was straight up disconnected because it was trying to connect 2 different types - one side had the kind that snap together (like image 1 below), and the other side was a twist kind. so it just came apart. 🫠 (see image 3 below)
i also noticed that several of the other connectors were mixed and matched like that, and some of them had been incorrectly made (they weren't screwed down fully)...plus the wacky connectors were hot, which is a bad sign. so i replaced all the ones that were mismatched and hot and incorrectly made, and made sure everything was tight and snug. but we still got nothing coming off the panels. i was very sad then.
then we kept testing various connections by putting the multimeter inside the connectors. it turns out i had made 2 of them incorrectly, so they weren't working. so after re-making THOSE, we plugged everything back in, and holy moly, we had power.
anyway, i know that for folks who understand more about solar and who have worked with these systems, this might not seem like a big victory, but there was no one else who was coming to the jungle to help get this kid's power back online, and i'm happy that we were able to combine a lot of teamwork to make it happen. today is a sunny day, so i'll check later to see if the batteries get charged. fingers crossed.
2 noobs - one young and one middle-aged - worked together with borrowed tools, fueled by the delicious farm food made by @saltphoenix (some of which will go to the person who lent the tools but who couldn't be there in person to do the fix). ducks were splashing and quacking around us, mosquitoes were in our faces, the cables got covered in mud, i had to scramble up a ladder while the teen spotted me, we had to consult the internet a couple times, the multimeter played a key role, and we ultimately got a system working again - a system that none of us had set up.
so there's my solarpunk story, and i thank the sun for letting us use some of its power for our lights and computers and other stuff 🌞 ⚡ ❤️
