💡 New project! An USB powered LED desk lamp made of wood, ceramic, and aluminum. It will be called "Portuaria", which in Spanish means "related to the port", because its shape reminds me of the cranes and sailboats at the port.
🧵 #PortuariaLamp #lamp #prototype #LED #USB #lampdesign #woodenlamp #woodworking #electronics

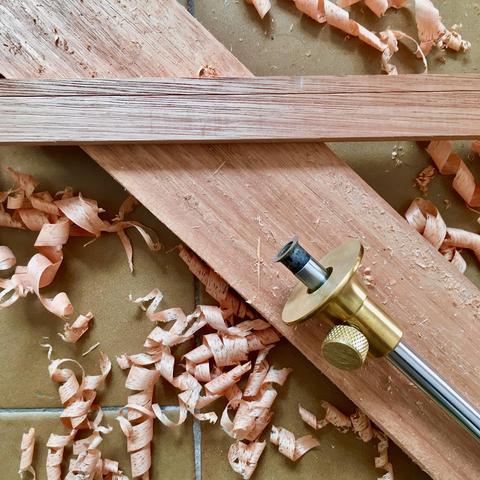

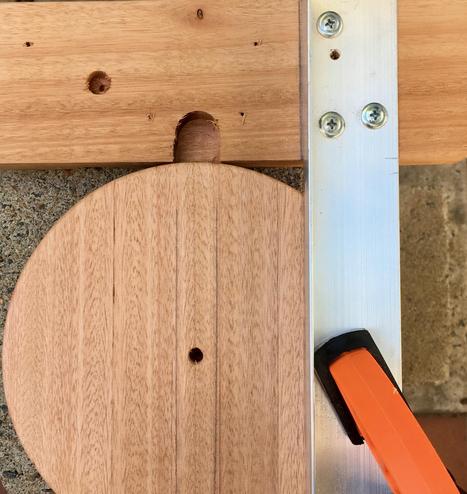

I wanted the base of the lamp to be a 16 x 2 cm disc, but I only had 7 x 2 cm boards around here, so I ended up glueing a few cuts.
Then I cut a circle with the hand router using the guide as a compass, and sanded it with the orbital sander and sanding sponge.
Recycling ceramics to build a lampshade. I found that these mini bowls I made to test ceramic glazes roughly fit what I need for the lampshade of the prototype, so I drilled one to accommodate the LED and two screws.
The screws pass between the heatsink fins and will attach both the lampshade and heatsink to the wooden rod.

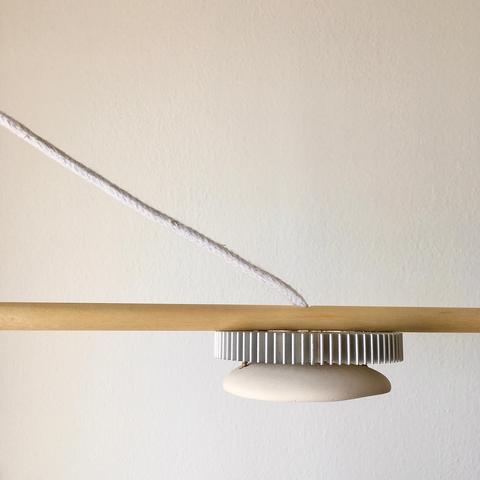

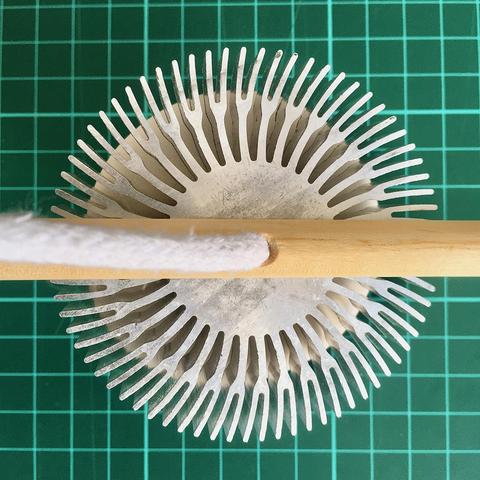

First attempt to mount the lamp head on the rod 🤔. What seemed easy in the drawing turned out not to be so easy when transferring it to materials.
The difficult thing was making the 3 mm slot in the 10 mm rod, and getting it to align with tolerances of less than 1 mm.
Next time I'm going to try with a router and templates, we'll see how it goes with that.

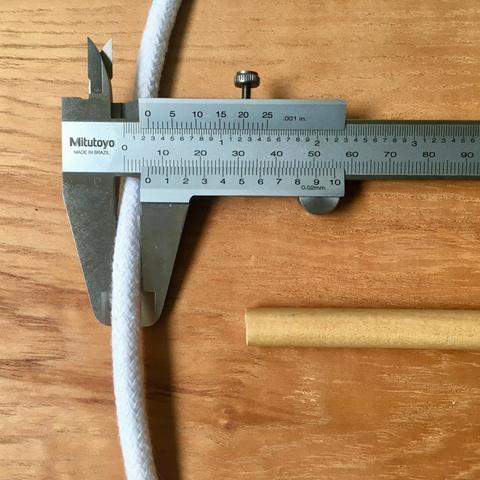

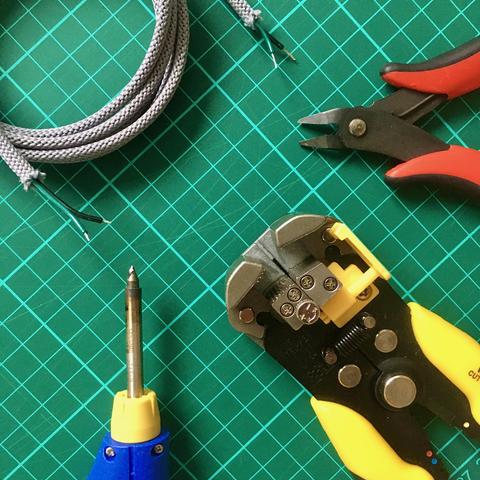

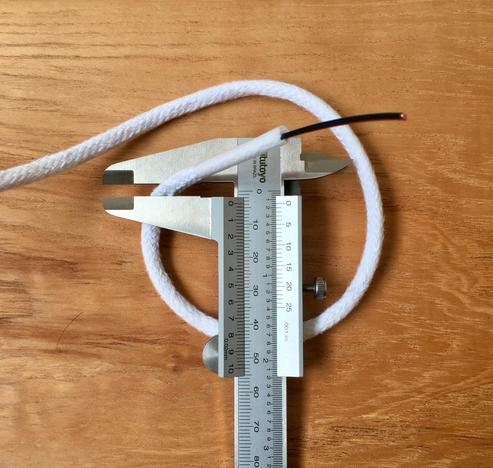

Stripping a cable to dress another 🤦♂️. The cable with a cotton textile sheath that I got is very thick compared to the diameter of the rods. The rods are 10 mm in diameter and the cable is 6.5 mm, so when drilling holes in the rods to pass the cable through there would only be 1.75 mm of wood left on each side.

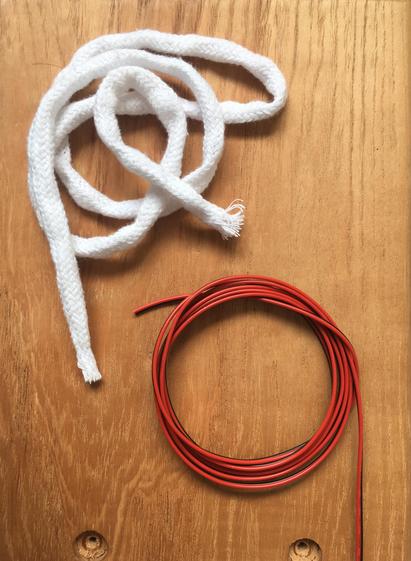

So, I made a customized cable using the sheath of the original cable and an AWG 24 cable. The new one is 2.5 x 4 mm and fits perfectly in 4 mm holes 👍.

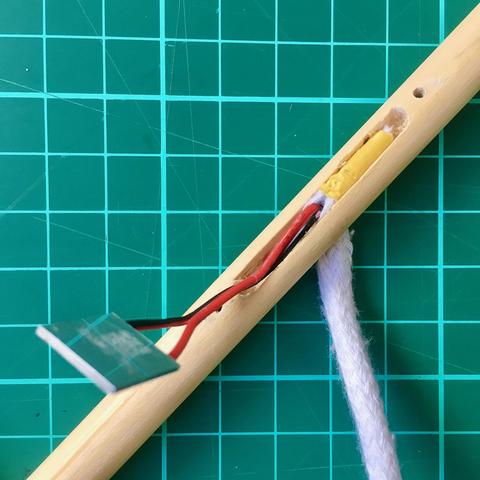

Assembling the head of the lamp. Despite the chamfered slot, it turned out pretty well. The yellow thing at the tip of the cotton sheath is a heat-shrink with glue, which is then inserted under pressure into the slot. It's the first thing that occurred to me to fix the sheath to the rod so that it can withstand the tension. Perhaps in the next iteration I will replace that with a screw, although the limited space is a challenge.

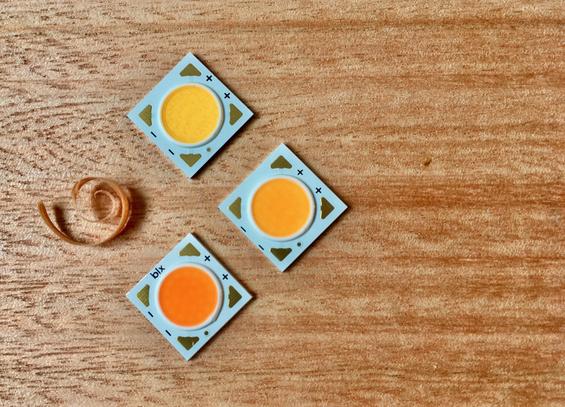

The LED I am using for the prototype lamps is one from the Bridgelux's Thrive series, which has a CRI of 98. The CRI is a color rendering index, which says how similar is the color rendering with the light from a LED compared to the rendering with natural light (which has a CRI of 100).
After using CRI 98 LEDs for a while, the CRI 90 ones look depressing, it's a one-way street 😁.

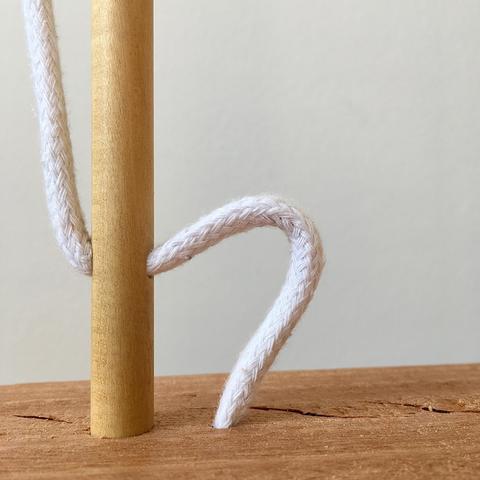

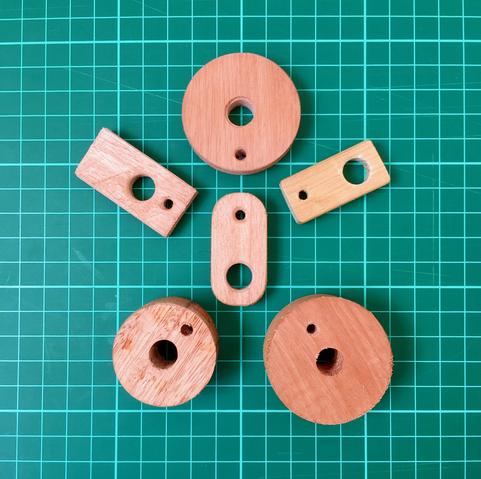

After a lot of experimenting with various models of the height-adjusting disc that holds the cable near the base, I decided that it would be better to make the height fixed instead of adjustable 🤷♂️
The main problem is that it is very difficult to make the adjustment fluid enough to adjust the height without the lamp jumping, which does not look good as a user experience.

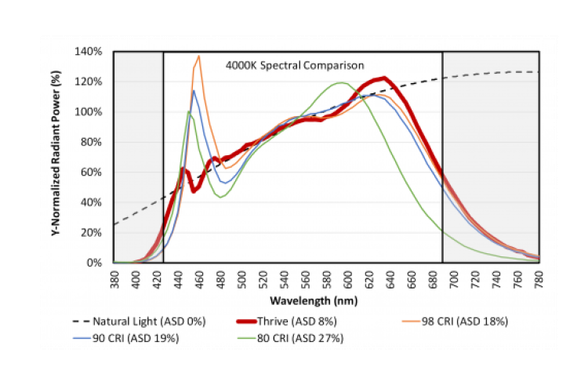

This is the light spectrum emitted by the Bridgelux Thrive LED series compared to other ones that have a lower CRI.
You can see that the one from Bridgelux does not have the blue peak at about 450 nm that is present in the other LEDs in the chart.
That is why I chose it for this lamp prototype. If you were seeing a greenish tint in your "high" CRI 90 LEDs, now you know why 💡👀.
🧵 #PortuariaLamp #lamp #prototype #LED #CRI #lighting #spectrum #electronics

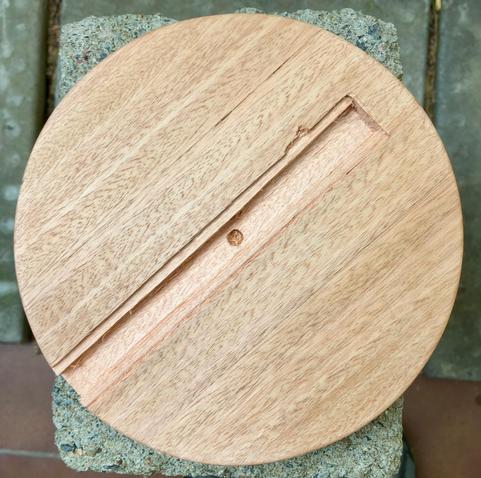

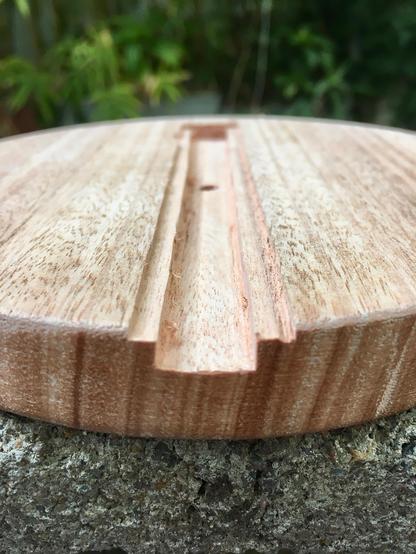

Carving the lamp base with a router to mount the USB voltage booster, resistors and switch.
The router is not quite tamed yet, doing this I learned that turning it off and on again in the middle of a slot is not a good idea 😬. I finished it with a chisel, slow but more predictable 🤷♂️.

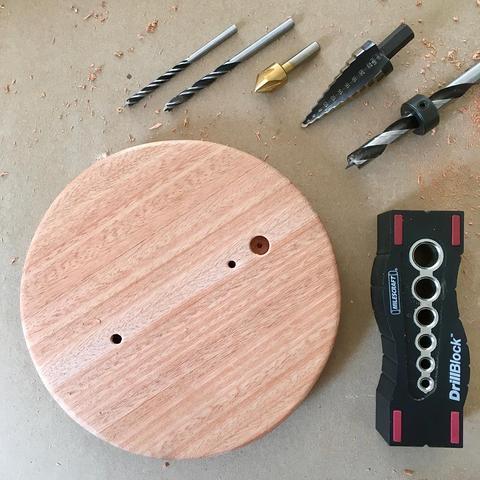

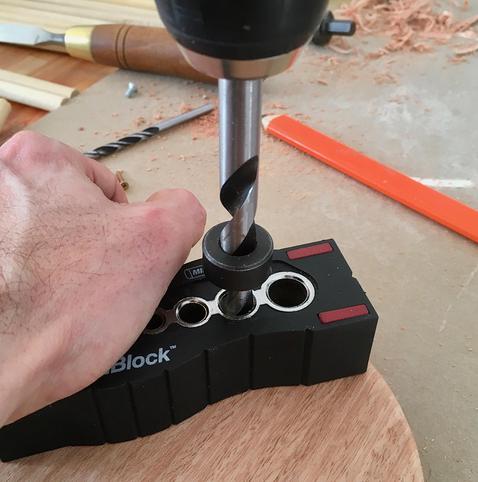

The holes are for the switch, the cable, and the vertical rod. The one for the rod ended a bit loose; drilling it with a 10 mm bit to fit a 10 mm rod was too optimistic. Next time, I'm going to use a 3/8" drill bit and sand the end of the rod until it fits just right.

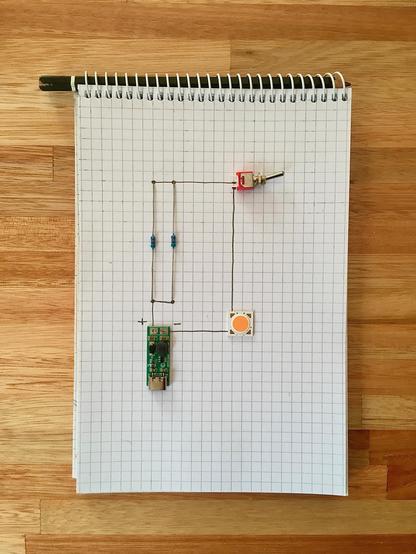

This is the circuit diagram for the lamp, which will be powered from a USB charger.
The LED is a Bridgelux BXRE-30S0801-D-7X with a CRI of 98 and 3000 K. It is a 6 watt LED, but I'm going to use it at 4.85 watt to extend its lifetime.
The power on the USB port is 5 volts, which is not enough to turn on this LED that needs 17.15 volts. That's why I use a voltage booster (the green board), which converts 5 volts to 18 volts.
🧵 #PortuariaLamp #lamp #prototype #LED #USB #electronics #DIY
And the 4.85 watts that the LED will be working at come from this calculation:
led_voltage * current = led_power
17.15 volts * 0.283 amps = 4.85 watts
This way of connecting an LED is fairly simple, but it is not used much because the excess voltage from the supply to the LED is wasted as heat in the resistors. The trick to minimizing this loss of efficiency is to not have the supply voltage be much higher than the voltage to the LED, as in this circuit.
The energy wasted as heat in this circuit would be:
(supply_voltage - led_voltage) * current = power_in_the_resistor
(18 volts - 17.15 volts) * 0.283 amps = 0.24 watts
That is, between LED and resistor we have a total of:
4.85 watts + 0.24 watts = 5.09 watts
And of which the energy wasted in the resistor is 0.24 watts / 5.09 watts * 100 = 4.7%, more than acceptable for such a "primitive" circuit 🤷♂️.
One issue with this shameless display of the heatsink is that it should at least be left more or less presentable for that. Normally the heatsinks are hidden inside the luminaire because they are considered ugly and not very aesthetic, but that is an idea I do not share, as you can see in my other prototypes 😁.
This is how the heatsink comes from the manufacturer, and sometimes they come worse than that with steps from the sawing.
f it is going to be hidden, it is enough to level only the part where the LED will make contact so that it has good thermal transfer. But here it is part of the visual of the product, so I proposed to leave it as mirrored as possible.
The steps were 220 grit sandpaper, fine sanding sponge, superfine sanding sponge, and rubber abrasive block (I have no idea what grit these last three are).
Putting the heatsink so exposed also has a technical reason; doing that maximizes the air flow through the heatsink, which reduces the working temperature of the LED and extends its useful life.
It would need one more step with some finer grit, because the scratching is still a bit visible, but it turned out pretty mirror-like compared to how it was initially 💪.
Shellac is my favorite finish for wood. Some reasons for this are:
- It is of biological origin, since it is obtained from the secretion of an insect from Southeast Asia.
- It can be diluted in ethyl alcohol, a relatively safe solvent also of biological origin.
- It is not toxic, it is even an authorized food additive under code E904.
- Easy to apply and repair locally if it gets scratched.
- Biodegradable in reasonable times.
Shellac is sold in flakes to dissolve or in a ready-made solution with alcohol. In both cases it has a limited storage time of one to two years. In the case of flakes, what happens is that it polymerizes and then no longer dissolves in alcohol.
It already happened to me with a batch of flakes that were left unused for two years. With the next batch I bought, I set out to prevent the same thing from happening to me again.
I read that you can extend the shelf life by lowering the temperature and humidity the flakes are exposed to, so the plan was to seal portions with silica gel in vacuum-sealed packs, store the packets in an airtight glass jar, and store the jar in the refrigerator.
Two years have passed and the flakes from that batch still completely dissolve in alcohol in just two hours, as if they were freshly harvested 🥳.
The time has come to assemble the base. The idea is to have a printed circuit board with the voltage booster, resistors, and connectors for the LED and the switch, and at the same time to act as a cover for all the wiring.
Sending the printed circuit board to be manufactured in China as usual implies a delay of at least a month in the mail, so I decided to improvise something with a blank board. It didn't turn out so bad 😁.
First working prototype of the Portuaria Lamp! 💪
Although it is a desk lamp, I will be using it as a bedside lamp to test the mechanical stability against being hit in the dark.
There are still several things to improve:
- The cotton-covered cable gets very linty and stains very easily.
- The ceramic screen also needs modifications. I can see the screws 😱.
- Making the vertical axis of the lamp perfectly square is hard 🤯.
🧵 #PortuariaLamp #lamp #woodenlamp #woodworking #LED #productdesign

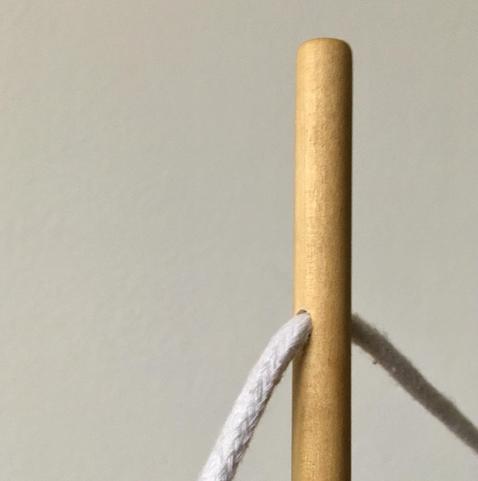

Trying other cable colors. I got some colored polyester cords (plastic 😱) to cover the lamp cable. The idea is to solve two problems that the white cotton cord has: it gets very linty and stains very easily.
Of the four, I chose the orange one because I thought it was the one that best matched the wood of the base. I took the whole lamp apart, reassembled the LED cable with the orange cord, put the orange cable in the lamp... and I didn't like how it turned out 🤪🤦♂️.
What I didn't like is how the contrast between the orange cable and the wood of the rods looks. I had only compared it with the wood of the base before putting it on and it looked good, but the wood of the rods being lighter and with less grain is totally overshadowed by the striking orange cable.
So I took it all apart again and put the grey cord on, which doesn't conflict with the wood of the rods... but now the lamp is very sober and boring! 😂.
Keep trying 🤷♂️.
I'm working on a new screen for the prototype. This time custom made instead of recycling what was lying around from previous projects.
The things this new screen design aims to improve are:
- Ease of assembly. Placing the LED in place while tightening the screws was no fun at all 🤯.
- Mounting the LED with connectors instead of soldering it, to make it easier to repair 🛠.
- Avoiding the cable and screws being visible through the gap between the heatsink and the screen.
- Improving the airflow through the heatsink by creating a chimney effect.
🧵 #PortuariaLamp #lamp #prototype #productdesign #ceramics #lampdesign
This task is kind of delayed because the clay is sabotaging the perfect circularity of my pieces 😂.
Because of the unorthodox shape for a ceramic piece, the circle dries unevenly and ends up becoming an ellipse 🤨.
Slow drying over several days didn't work either. So I turned to the wisdom of r/Ceramics on Reddit to see how I could fix it and they threw out a few ideas that I need to try.
To be continued...
🧵 #PortuariaLamp #lamp #prototype #ceramics #lampdesign #productdesign

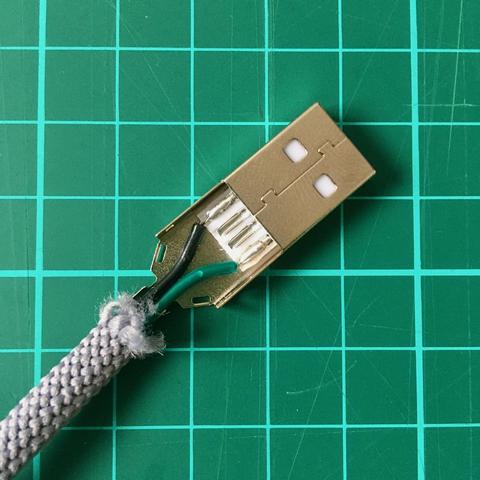

I made a USB cable that matches the cable I put in the lamp 😎.
It only has two conductors because it will be used to send power and does not need the data pins, if someone wants to use it to transfer data they will be in for a disappointment 😁 (probably the me of the future 🤦♂️).

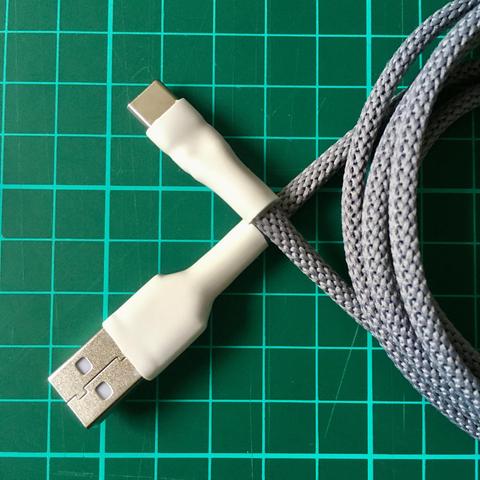

The white tubes are heat shrinkable tubes that come coated with glue inside. I have not grey heat-shrink in stock, so I used a white one that was around here 🤷♂️.

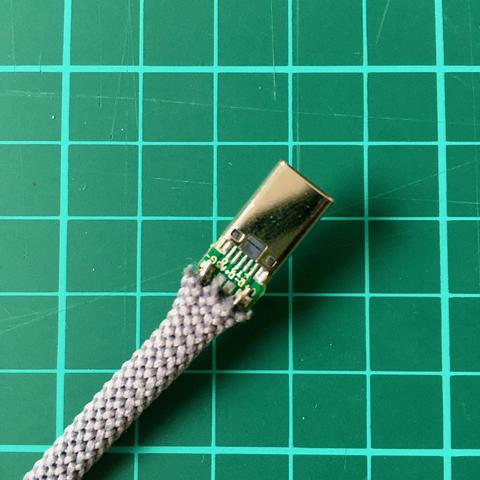

The heat shrink on the USB-A side turned out pretty good because the metal USB plug gives it shape, but on the USB-C side it turned out kind of a mess because there is nothing uniform underneath. I am still quite happy with the results of this improvised technique to assemble USB plugs.

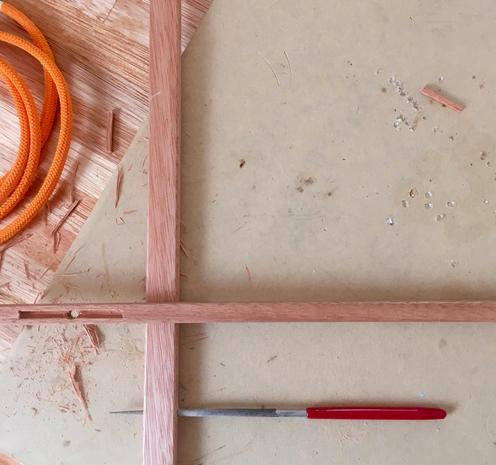

Working on the second prototype, now with more angles for greater pleasure 😂.

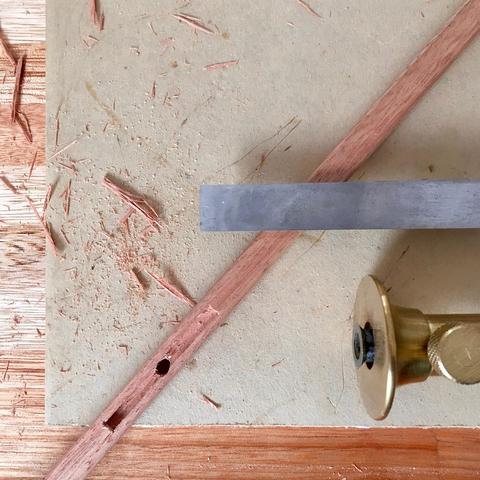

In the previous prototype, making the cutouts in the round rods and aligning the holes turned out to be quite complicated. And the result didn't convince me much either, because it had a more crafty style than a designer lamp one 🤨.

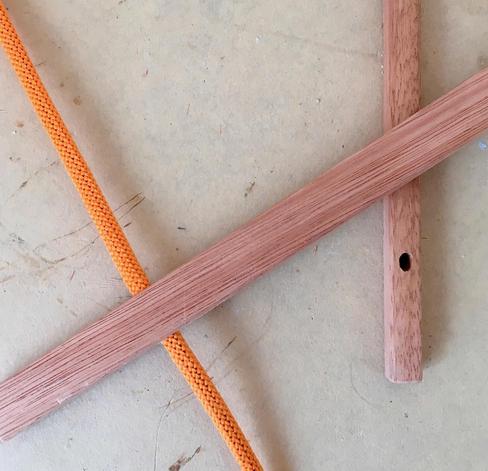

So to change the look and simplify the manufacturing, I tried using square and rectangular rods.
I made them different on purpose, to add contrast between the rods. Making the vertical rod rectangular also helps prevent the wood from bending due to the weight of the lamp head.

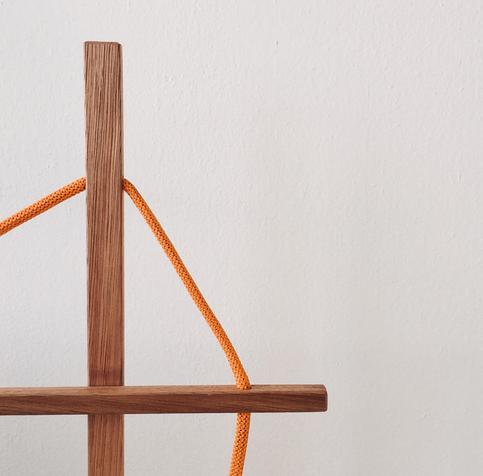

And look who's back, the orange cable! Because I like how it matches the eucalyptus wood rods.
Another reason to use eucalyptus wood instead of "palo blanco" wood for the rods is that, as with all other native woods in Argentina, everyone cuts them down and no one replants them 👀.

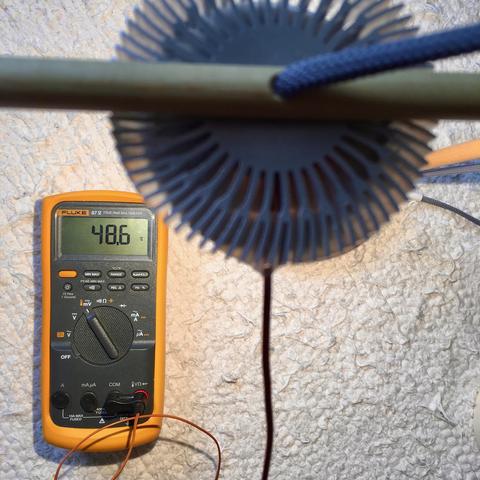

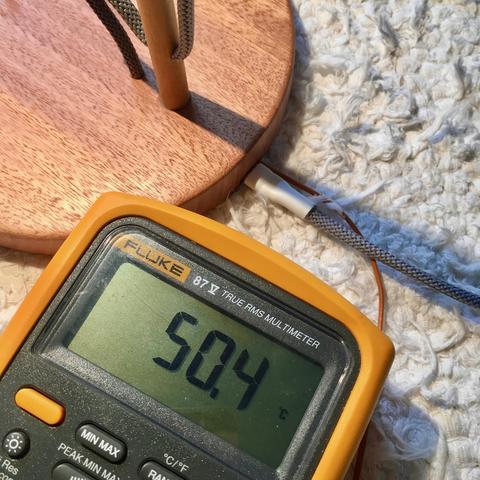

The LED is running at 48.6 C. Pretty good considering the maximum operating temperature is 105 C 🥳.
What's not so good is the voltage regulator temperature, which is at 50 C. We're in winter now and the room was at 19 C, so it's running at 31 C above ambient. In the summer heatwaves it could reach 35 C + 31 C = 66 C.
While the recommended maximum is 85 C, those 66 C won't help achieve the goal of a lifespan that is counted in decades 🤔.
One way to reduce the regulator temperature is to use a more efficient one.

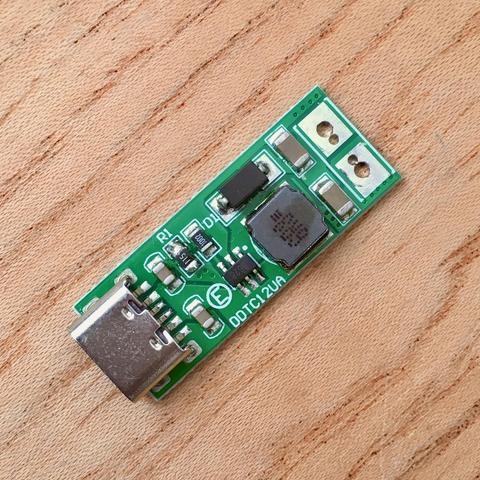

The regulator PCB I'm using is based on Aerosemi's MT3608. Measuring the incoming and outgoing current and voltage gives an efficiency of 86%, which is a very decent number for a switching regulator boosting from 5V to 18V.
Maybe by using some of the latest ICs the efficiency can be increased to ~92%, but I don't think this will be enough to solve the temperature problem 🤔.
New ceramic lampshade design. Apart from the fact that the piece deformed when drying and that I sawed and sanded it after firing, it turned out "acceptable".
I like the fit between the wooden rod and the ceramic. The thermal design got a little worse; it now works at 1 or 2 degrees warmer than before.
And what I liked least is that now the lamp head is very large in relation to the base 🤨. So I have to think about how to fix this 🤔.
There are days when you wake up feeling a bit like Jony Ive, except for the tolerances 😂🙈.
This is the base of the second prototype of the Portuaria I'm working on now. The change in shape is to give more visual weight to the base with respect to the ceramic screen, because in the previous prototype I didn't like how that relationship turned out.
Another change is that instead of the printed circuit board it has an aluminum plate to better dissipate the heat from the regulator. The goal is to create a product that lasts several decades in regular use, and the rule of thumb is that for every additional 10 C the useful life is reduced by half.
It's probably not the final shape of the base, I'm already thinking of a third prototype that needs less sanding! 🤧.
@poleguy I have no idea 😬. I chose a regulator board without electrolytic capacitors, knowing the bad reputation they have, but I don't know enough about electronics to know if an IC will fail before a Schottky diode or a ceramic capacitor 🤷♂️. So I'm betting at making all them run cooler and hoping that will magically work.
The LEDs have a 5 year warranty from the manufacturer, but I can't guess what will happen after that. Same strategy here, make them run cooler and hope for the best 💪.
@francc Long term behavior of electronics is a deep rabbit hole. :-) I love the longevity goal of your work though.
