FLFJan 24, 2025

Je viens de faire une carte électronique d'adaptation de niveaux de tension pour le #GateMate (#gatemateA1_evb d'#olimex) avec #Kicad8 : 4.04€ les 5 PCB port et emballage compris chez #jlcpcb !

❤️ Kicad ❤️

https://github.com/Martoni/Martoni_Pcb_collection/tree/main/glm5va

#kicad #pcb_design #pcb #gatemate #colognechip #olimex

Martoni_Pcb_collection/glm5va at main · Martoni/Martoni_Pcb_collection

Contribute to Martoni/Martoni_Pcb_collection development by creating an account on GitHub.

GitHub
🇳𝗮ꜟ𝖼𝘩Dec 22, 2024

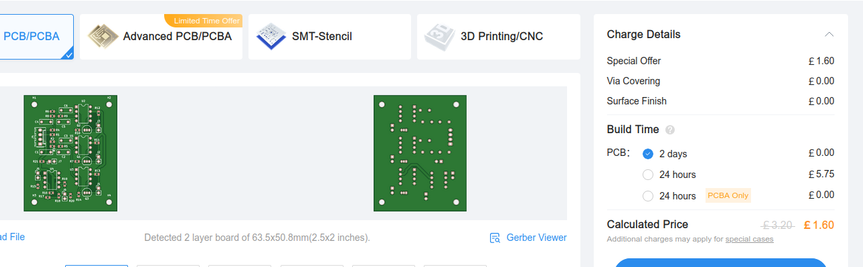

This is nuts. I can buy 5 double sided PTH PCBs with solder mask and silk screen, for £1.60. With postage and custom fees, it comes to a total of £3.18. Economies of scale and automation gone mad. It almost makes me feel guilty to get them this cheap.
#Maker #Electronics #kicad8
Helge WurstOct 21, 2024
Meh, so is there a way to undo #KiCad8 "Fillet Tracks"?
https://forum.kicad.info/t/kicad-8-0-1-fillet-track-and-tear-drop/50533
Kicad 8.0.1 Fillet Track and Tear Drop

Hi Guys. I had a couple of questions. Is there a way to revert a filleted track? It seems like a one way operation and if you need to make any adjustments after its a rip it up, route it again and then curve it which is pretty frustrating for fine tuning. The second question relates to filleted tracks and tear dropping. You have here the normal 45 degree traces into pins with tear drops. When I then fillet the trace it appears like below Then when I go to edit tear drop to get it to ...

KiCad.info Forums
dc8wan MarcoApr 8, 2024

Ich habe ein Problem mit #kicad 8. ich will ein Drecksignal in der #Simulation erzeugen. Aber der negative Teil wird einfach nicht erzeugt. Habe ich ein Fehler in der Signal Beschreibung.

#KiCad8 #spice #ngspice #boost

Helge WurstMar 20, 2024

#Kicad8

The struggle is real.

Helge WurstMar 18, 2024

As I'm wrapping up my first project with #kicad8 , the overall impression is positive. There are still a couple of idiotic things in there to be encountered, but overall (and as of v8 in particular), it has managed to completely nullify my need for Eagle.

I'm not saying this lightly. I've been waiting for this moment since v4.

Congratulations, KiCad Team.

Helge WurstMar 17, 2024

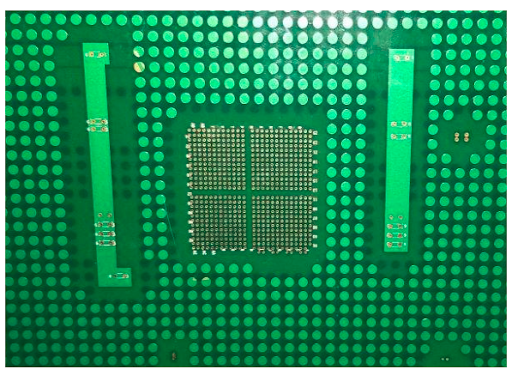

What's currently the best way (if any) to realize copper thieving in #kicad8 ?

https://github.com/mrussell42/copper_thief fell victim to KiCad's update-break compatibility cycle.

GitHub - mrussell42/copper_thief: Kicad Copper Thief Pattern Generator

Kicad Copper Thief Pattern Generator. Contribute to mrussell42/copper_thief development by creating an account on GitHub.

GitHub
Helge WurstMar 17, 2024

#kicad8 hotkeys be like:

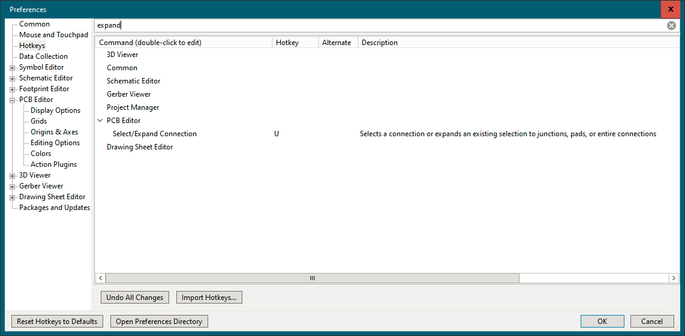

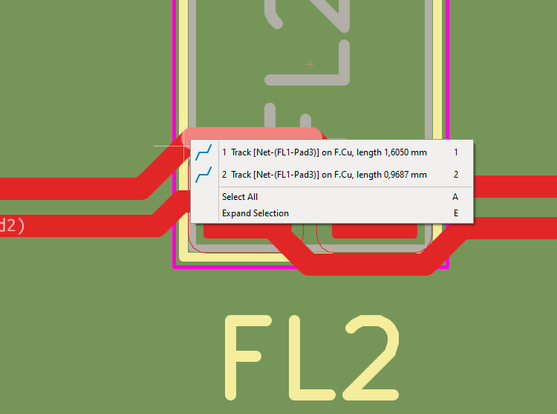

Expand selection E, but also U

and E is mapped to Edit Properties...

TimjanMar 13, 2024
When does #kicad8 reach #fedora39's repos?
Show threadJohn Carlsen 🇺🇸🇳🇱🇪🇺Mar 5, 2024

I also tried to have #OSHpark bid my #PCB fabrication.

Their website claims to support #KiCAD files directly, but it choked because I'm now on #KiCAD8 , which was released about a week ago.

They also wanted more for 3 pieces (with soldermask only available in their trademark purple) than I paid for 8 pieces (in my choice of color) through one of my old favorites, Colorado's #AdvancedCircuits ( 4pcb.com ).
