Custom Patch Bay with DC Thru.

#dpFX #dpFXpedals #handmadeeffects #handpaintedpedals #patch #patchbay #patchmodule #jackpatchmodule #boutiqueeffects #boutiquepedals #greekpedals #custompedals #customeffects #guitarpedals #basspedals #pedalsandeffects #pedaleffects

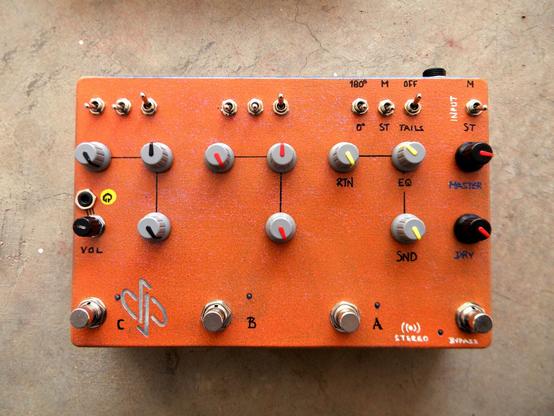

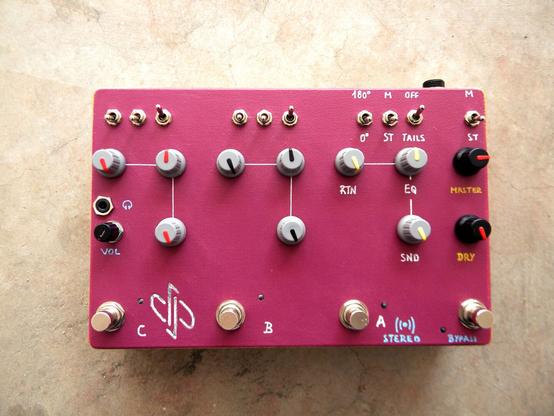

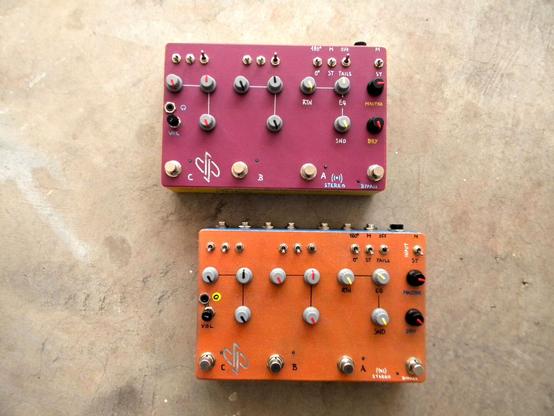

Triple Loop Parallel Stereo Blender [V3.0]
This is an all analog Stereo Blender that offers three independent parallel loops with tails capability, stereo/mono selection, dry blend,
master volume control and an indepedent Headphones-out with volume control.
Every loop has its own dedicated footswitch, Send/Return volume knobs, EQ, and phase reverse switch.

The device is able to handle signals varying from instrument level (guitar, bass, etc) up to higher line level (~24Vpp max). All jacks are TRS. It is compatible with mono signals as well. Mono FX-Loops can be combined wth Stereo FX-Loops.

--- Technical specifications:
▹ True Bypass (via analog IC switches, requires power)
▹ Supply Voltage required: 9V DC (center negative).
▹ Current draw: 280mA
▹ An internal circuit module provides the necessary Dual Rail voltage,
for maximum headroom and stability.
▹ Input signal level: up to ~24Vpp
▹ Input & Return impedance: 2MΩ
▹ Output & Send impedance: 100Ω
▹ Flat response on the whole span of the audio frequency spectrum.
▹ Master Gain: +6dB(V)
▹ Weight: 1.1kg (aprox.)
▹ Enclosure dimensions: 242 X 127 X 52mm (9.50 x 5.0 x 2.04 in.)

#dpFXpedals #dpfx #stereopedals #stereoeffects #handmadeEffects #handmadepedals #stereoblender #triparallel #parallelblender #boutiquepedals #greekpedals #pedalbuilder #pedalseffects #pedalsandeffects #dpeffects #loopblender #handpaintedpedals #エフェクター

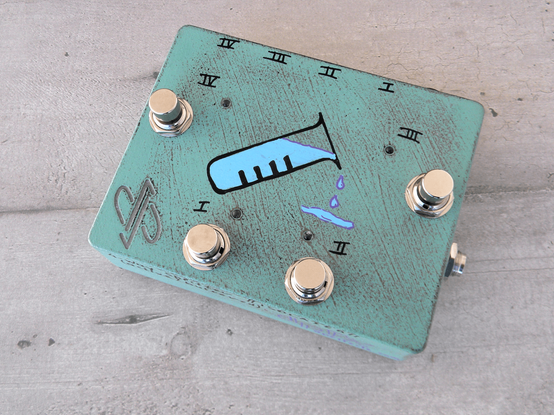

4-way splitter/switcher with ALL Outputs ISOLATED.
Active, buffered, suitable both for bass & guitar or any other instrument with similar pickups.
It features high input impedance and very low output impedance in order to preserve your tone and to not degrade your signal.

Every output is equal to the input (zero volume drop) and is isolated each with a dedicated audio transformer. Each output has a dedicated foot-switch (+ LED) so that you can turn them ON/OFF on the fly.

The splitter can be powered with a variety of voltages ranging from 9V up to 24V max. Larger voltages offer you more headroom so that you can
also use it with higher line level signals.

All output jacks, including the DC-jack are placed at the top-side of the enclosure and the input jack on the right side.

▹ Input impedance: ~3.3MΩ
▹ Output impedance: ~330Ω
▹ Voltage required: 9-24V DC
▹ Polarity: Center negative
▹ Current consumption: 10mA @ 9V
▹ Enclosure dimensions: 120 x 95 x 35mm (4.72 x 3.74 x 1.37in)
▹ Weight: 440gr

#dpFX #dpFXpedals #splitterpedal #boutiquepedals #handmadepedals
#handmadeeffects #basssplitter #guitarsplitter #handpaintedpedals #isolatedsplitter #splitterswitcher #switcherpedal #4waysplitter
#pedalseffects #pedalsandeffects #guitarpedals #basspedals

4-way splitter/switcher with ALL Outputs ISOLATED. Active, buffered, suitable both for bass & guitar or any other instrument with similar pickups. (detailed specs in the first comment)
#dpFX #dpFXpedals #splitterpedal #boutiquepedals #handmadepedals #handmadeeffects #basssplitter #guitarsplitter #handpaintedpedals #isolatedsplitter #splitterswitcher #switcherpedal #4waysplitter #pedalseffects #pedalsandeffects #guitarpedals #basspedals

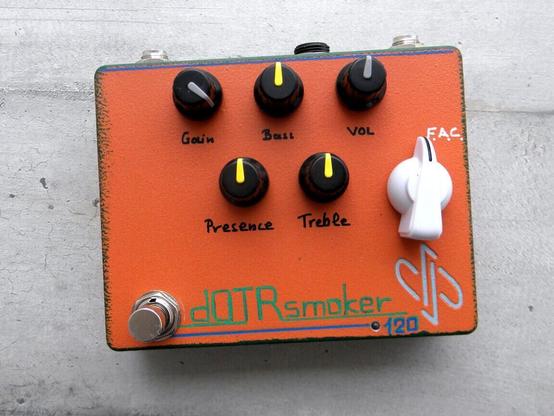

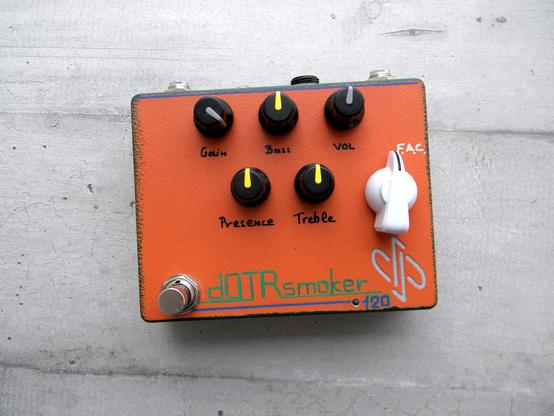

dOTRsmoker, a FET pre-amp inspired by the Orange OTR-120 circuit.

The idea originally was given to me by a friend guitarist that was experimenting with various pre-amps. As a fan of the OTR-120 he suggested that it would be a nice option to have a transistor based reproduction of the OTR's pre-amp in a pedal footprint. And... here it is!

While many builders tend to call it "tube emulation" I am not a fan of this term despite the fact that many people out there use it.
The goal was to build a FET-based circuit with similar topology, same controls, with a frequency response close to the original pre-amp and
with a relatively high-gain capabilities.

The parametric EQ (Bass/Treble) is exactly the same as in the original circuit and the Presence control was implemented in a similar way, originally in the triode's cathode, here on the FET's source. The F.A.C. (Frequency Attenuation Control) behaves in the exact same way while minor changes have been made to the capacitor selection in order to maintain its flexibility similar to the original.

A voltage doubler has been added in order to provide the FETs and the circuit with the necessary headroom and gain range.

The circuit has been tuned for gain-oriented use and even with the gain knob at minimum position the sound doesn't clean up completely but it has a slight grit and goes up to high gain levels when turned to maximum.

dOTRsmoker is actually an all-around drive/distortion pedal with great range and flexibility. We designated it as "pre-amp" because its design
was based on a pre-amp and of course it can be used as one since it provides more than enough output volume especially in high gain settings
and can take other boost/drive pedals in front of it if you want to push it.

- True bypass
- Voltage Required: DC 9 Volt (voltage doubler inside)
- Polarity: Negative tip
- Current consumption: 8mA
- Enclosure dimensions: 120 x 95 x 35mm (4.72 x 3.74 x 1.37in)
- Weight: ~360gr

#dpFXpedals #dpFX #boutiquepedals #guitarpedals #preamppedal #preamp #distortionpedal #overdrivepedal #handmadeeffects #handpaintedpedals #pedalseffects #pedalsandeffects #otr120 #orangeotr120 #fetpreamp #guitareffects #guitarpreamp

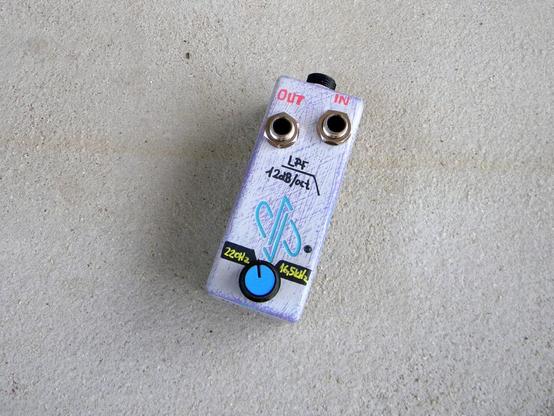

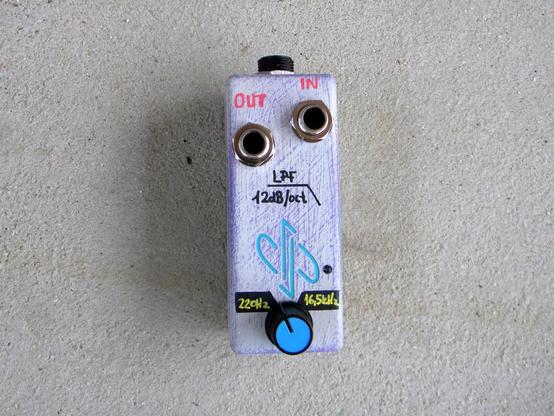

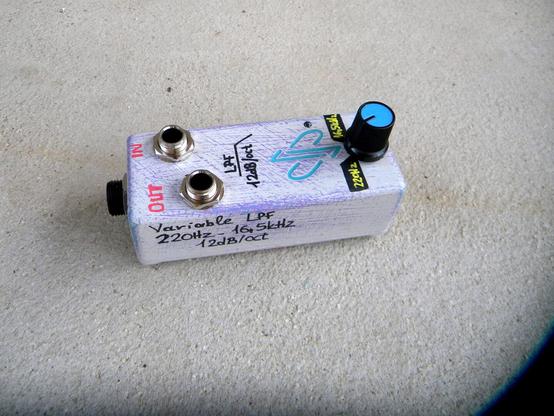

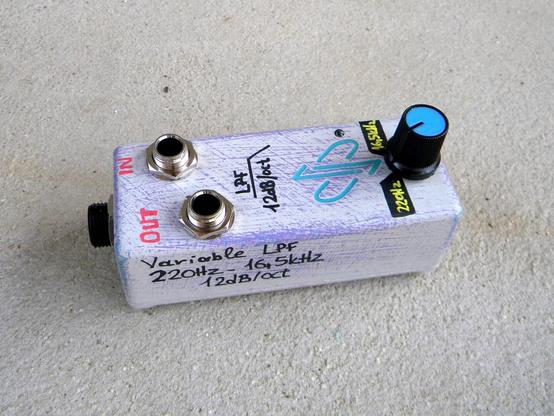

Active variable Low Pass Filter (LPF) that offers you the ability to select a cut-off frequency anywhere inside the range 220Hz-16.5kHz through its single knob. The filter’s curve is quite steep offering a 12dB octave attenuation.

It’s the ideal device if you are looking to "clean-up” the harsh high end of your audio signal such as fret buzz, string noise, and higher harmonics or noise produced from other effects in your chain such as distortion pedals.
Alternatively you can use it to simulate the high frequency roll-off of speaker cabinets in case you’re experimenting with audio recording or your live setups.

Use it either with a guitar or a bass or even with synths and line level signals. If you need extra headroom you can always power the pedal with a voltage larger than the typical 9V.
With the max supply voltage being 24V the device can offer a max headroom of about 22Vpp.

--- Specifications ---
- Cut-off frequency range: 220Hz-16.5kHz (12dB/octave)
- Input impedance: 5Mohm
- Output impedance: 100ohm
- Voltage required: 9V (max 24V)
- Polarity: Center Negative
- Approximate headroom vs supply voltage: 7Vpp@9V || 10Vpp@12V || 22Vpp@24V
- Current consumption: 5mA
- Weight: ~125gr
- Enclosure dimensions: 93x38x32mm (3.66x1.49x1.26in)

#LPF #lowpassfilter #lowpass #guitarfilter #basspedals #guitarpedals #audiofilter #dpfx #dpFXpedals #boutiquepedals #handmadeeffects #handpaintedpedals #handmadepedals #pedalseffects #pedalsandeffects #variablefilter #variableLPF #filterpedal #filter #greekpedals #pedalbuilder #lpfpedal #lowpassfilterpedal #エフェクター

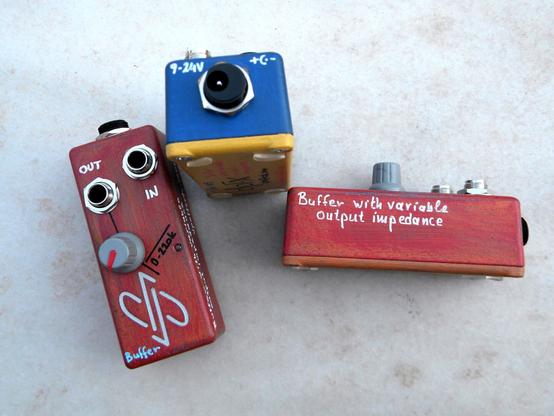

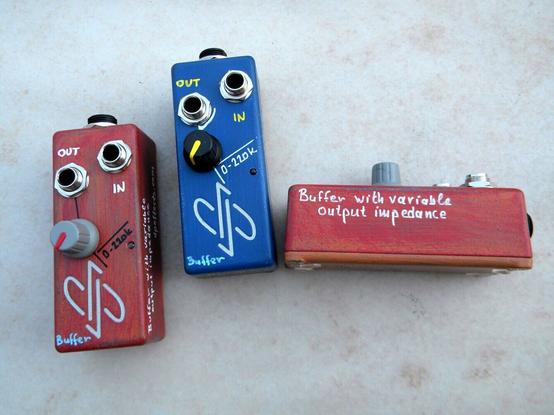

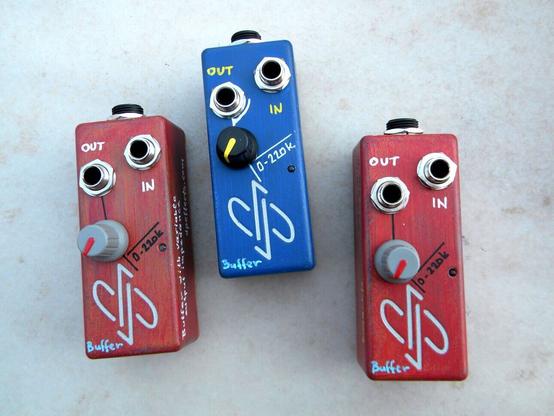

This is the mini Buffer with variable output Impedance and it's suitable for use with a guitar, bass and any other instrument with similar pickups.
A buffer is a circuit where the output is the same as the input. The "secret" is that this particular buffer circuit has a very high input impedance (10Mohm) and variable output impedance (0~220kohm).

Without getting into many details this eventually means that it improves the high frequency response of your overall pedal chain so that you don't lose your tone as your highs aren't getting sucked up.

Additionally, through its single knob you can adjust its output impedance to match the output impedance of your guitar pickups so that any pedal (e.g. a vintage fuzz, or any low input impedance pedal) that comes after the buffer behaves in the same manner as when you connect the guitar directly to it.

A buffer can also help you run long cords without risking losing tone or making your sound bassy and muffled

- Input impedance: 10Mohm (constant)
- Output Impedance: variable 0~220kohm
- Voltage Required: DC 9-24 Volt (Use 12-24V for more headroom)
- Max Current draw: 4mA @ 9 volts
- Aluminum Enclosure, dimensions: 93 x 38 x 32mm (3.66 x 1.49 x 1.26in)

#buffer #dpFX #dpFXpedals #dpeffects #boutiquepedals #boutiqueeffects #handmadeeffects #handpaintedpedals #handpainted #guitarpedals #basspedals #pedalseffects #pedaldandeffects #custompedals #variablebuffer #variableimpedance #bufferpedal #bassbuffer #guitarbuffer #basseffects #エフェクター

LGM-1 is an analog dub siren with a transistor based circuit.
It offers the most classic siren sounds that were widely used in reggae sounds back in the 70s and are still on use in countless cases. (More specs in first comment)

#dpFX #dpFXpedals #boutiquepedals #dubsiren #dubsirens #pedalseffects #reggaeeffects #reggaesiren #handmadeeffects #handpaintedpedals #reggaecolors #jamaicacolors #reggaefx #sireneffect #sirenpedals #lgm1

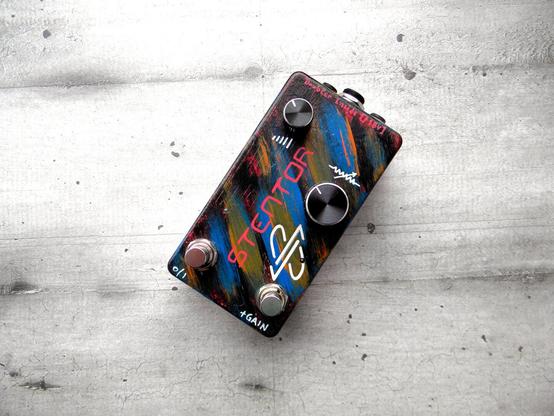

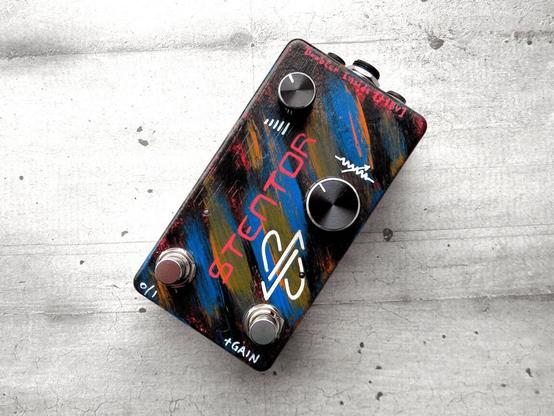

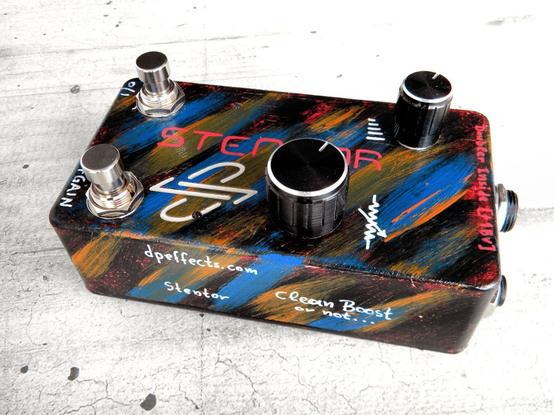

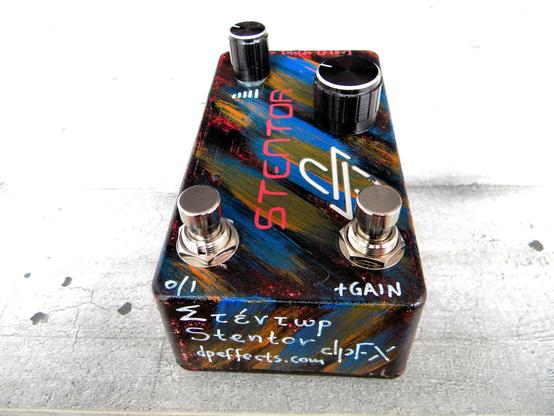

STENTOR Clean Boost, equipped a with Gain foot-switch and internal Voltage Doubler. (read more specs in the first comment)

#boutiquepedals #dpFX #dpFXpedals #boostpedal #cleanbooster #cleanboost #fetboost #guitaroverdrive #gainboost #handmadepedals #handpaintedpedals #handmadeeffects #guitarpedals #pedalseffects #pedalsandeffects #voltagedoubler #tubelike #guitarboost #preamp #dpeffects #greekpedals #pedalbuilder #handmade #handpainted #guitarboost

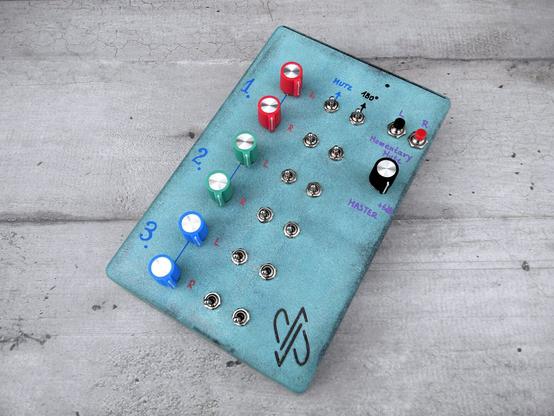

3x Stereo Mixer with separate L/R controls, that can handle line level and Eurorack signals. (suitable for the Blackbox). Of course the mixer is also suitable for typical instrument level signals and can be interconnected with pedals and preamps. More details in first comment.

#dpFXpedals #dpFX #stereosummingbox #stereodevices #stereopedals #eurorack #1010musicblackbox #stereomixer #boutiquepedals #pedalseffects #mixerpedal #summingbox #handpaintedpedals #handmadeeffects #handmadepedals #handpainted #pedalsandeffects #greekpedals #pedalbuilder
