Triple Loop Parallel Stereo Blender [V3.0]
This is an all analog Stereo Blender that offers three independent parallel loops with tails capability, stereo/mono selection, dry blend,
master volume control and an indepedent Headphones-out with volume control.
Every loop has its own dedicated footswitch, Send/Return volume knobs, EQ, and phase reverse switch.

The device is able to handle signals varying from instrument level (guitar, bass, etc) up to higher line level (~24Vpp max). All jacks are TRS. It is compatible with mono signals as well. Mono FX-Loops can be combined wth Stereo FX-Loops.

--- Technical specifications:
▹ True Bypass (via analog IC switches, requires power)
▹ Supply Voltage required: 9V DC (center negative).
▹ Current draw: 280mA
▹ An internal circuit module provides the necessary Dual Rail voltage,
for maximum headroom and stability.
▹ Input signal level: up to ~24Vpp
▹ Input & Return impedance: 2MΩ
▹ Output & Send impedance: 100Ω
▹ Flat response on the whole span of the audio frequency spectrum.
▹ Master Gain: +6dB(V)
▹ Weight: 1.1kg (aprox.)
▹ Enclosure dimensions: 242 X 127 X 52mm (9.50 x 5.0 x 2.04 in.)

#dpFXpedals #dpfx #stereopedals #stereoeffects #handmadeEffects #handmadepedals #stereoblender #triparallel #parallelblender #boutiquepedals #greekpedals #pedalbuilder #pedalseffects #pedalsandeffects #dpeffects #loopblender #handpaintedpedals #エフェクター

4 input Stereo Mixer for stereo pedals, compatible with line level signals, can be used for synths as well. Also equipped with AUX mono-sum output. Details in the first comment.
#dpFXpedals #dpFX #stereosummingbox #stereopedals #stereomixer
#stereoeffects #parallelmixer #summingbox #boutiquepedals #pedalbuilder
#handpaintedpedals #handmadepedals #stereopedalboard #pedalseffects
#stereodevices #custompedals #greekpedals

Analog Stereo Parallel Blender, dual loop. It offers two independent loops, Dry blend & is able to handle signals varying from instrument level up to higher line level (~24Vpp max). All jacks are TRS.
(detailed specs in the first comment)

#dpFXpedals #dpFX #stereoblender #blenderpedal #pedalseffects #stereopedals #stereoeffects #boutiquepedals #parallelblender
#loopblender #handmadepedals #handpaintedpedals #pedalbuilder #pedaleffects #stereodevices #greekpedals

Custom stereo mixer with TS ¼’’ (6.35mm) inputs/outputs. It can be used as a summing box for instrument or line level signals and can take up to 4 stereo input signals. (More specs in first comment)

#dpFXpedals #dpFX #stereosummingbox #stereopedals #stereomixer #stereoeffects #parallelmixer #summingbox #boutiquepedals #pedalbuilder #handpaintedpedals #handmadepedals #stereopedalboard #pedalseffects #stereodevices #custompedals #greekpedals

Dual Loop Stereo Parallel Blender. This is an all analog, full Stereo Parallel Blender that offers two independent loops and a Dry blend and is able to handle signals varying from instrument level up to higher line level (~24Vpp max). More specs in the first comment.

#dpFXpedals #dpFX #stereoblender #blenderpedal #pedalseffects
#stereopedals #stereoeffects #boutiquepedals #parallelblender
#loopblender #handmadepedals #handpaintedpedals #pedalbuilder #pedaleffects #stereodevices #greekpedals

4 input Stereo Mixer with additional mono AUX-out. Suitable for stereo pedals, compatible with line level signals, can also be used for synths. (detailed specs in the first comment)

#dpFXpedals #dpFX #stereosummingbox #stereopedals #stereomixer
#stereoeffects #parallelmixer #summingbox #boutiquepedals #pedalbuilder
#handpaintedpedals #handmadepedals #stereopedalboard #pedalseffects
#stereodevices #custompedals #greekpedals

4-way STEREO Splitter (active)
#stereosplitter #splitterpedal #boutiquepedals #dpFX #dpFXpedals #stereopedals #stereoeffects #guitarpedals #basspedals #pedalsandeffects

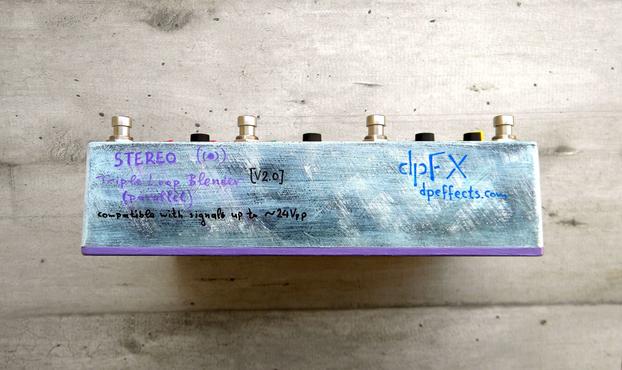

Tri-Parallel Stereo Blender [V2.0]
This is an all analog Stereo Parallel Blender that offers three independent parallel loops with tails capability, stereo/mono selection, dry blend and master volume control.
Every loop has its own Send/Return volume knob, EQ, phase reverse, and a dedicated footswitch.

The device is able to handle signals varying from instrument level up to
higher line level (~24Vpp max).
All jacks are TRS. The device is compatible with mono signals as well. Mono FX-Loops can be combined wth Stereo FX-Loops.

#triparallelmixer #triparallelstereo #dpFXpedals #dpFX #stereodevices #stereopedals #stereoblender #stereoeffects #pedalblender #blenderpedal #paralleleffects #paralleleffectsloop #stereoloop #boutiquepedals #pedalbuilder #triparallel #handpaintedpedals #handmadepedals #greekpedals #custompedals #parallelblender #greekpedals

NEW! 4 input Stereo Mixer designed for stereo pedals & pedalboards also compatible with line level signals and can also be used for synths.
The NEW feature of this mixer compared to our 3ch Stereo Mixer is the addition of a Mono (TS) AUX output which offers both channels L+R of the stereo output mixed down to mono.
It can be used as a summing box that can take up to 4 stereo signals and combine them into a single TRS or TS output.

▹ 4 TRS inputs
▹ 1 TRS output & 1 TS output
▹ Input impedance: ~470kΩ
▹ Output impedance: 470Ω
▹ Voltage required: DC 9-24 V
▹ Current draw: 28mA @ 9V
▹ The mixer is always ON when power is connected
▹ Enlosure dimensions: 152x82x52 mm
▹ Weight: 400gr

#dpFXpedals #dpFX #stereosummingbox #stereopedals #stereomixer
#stereoeffects #parallelmixer #summingbox #boutiquepedals #pedalbuilder #handpaintedpedals #handmadepedals #stereopedalboard #pedalseffects #stereodevices #custompedals #greekpedals
