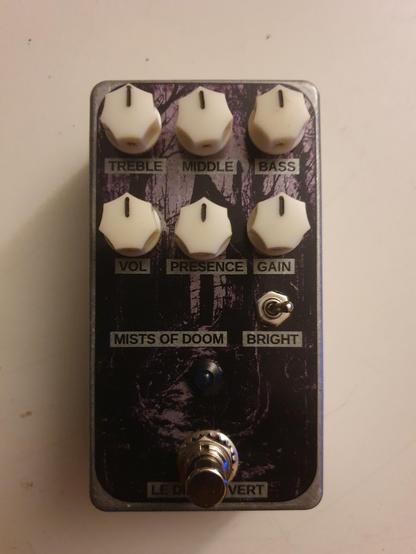

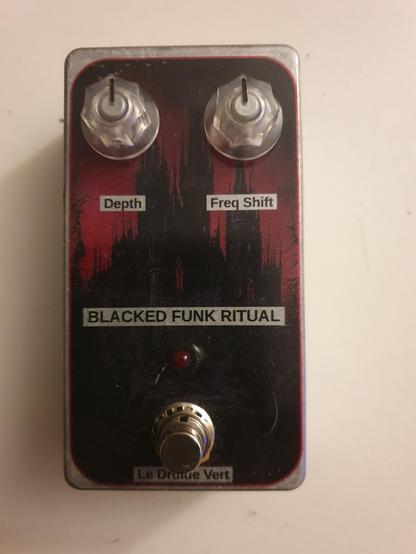

Deux nouvelles pédales sorties de l'atelier
#pedalboard #pedalbuilder #stonerrock #doom

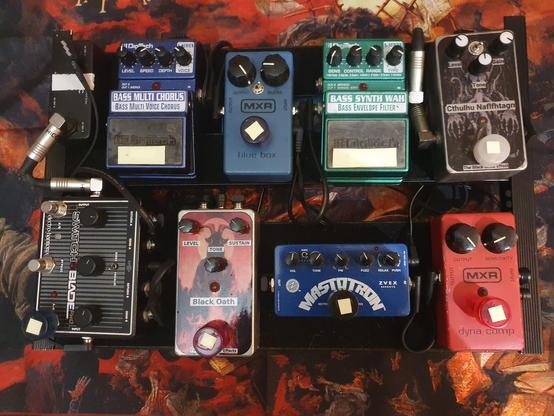

Mon pedalboard....
2 boucles activées par un Switch Blade Pro de chez EH (A+B en parallèle).
La première: DinaComp (MXR), Mastotron (ZVex), Black Oath (Genre Hizumitas modifiée par mes soins, pour basse).
La deuxième: Cthulhu Naflfhtagn (Genre Plume modifiée par mes soins, pour basse), Bass Synth (Digitech), BlueBox C11 mod (MXR), Bass Multi Chorus (Digitech)
Bon courage à notre guitariste...
#pedalboard
#the_black_druid_effects
#stonermetal #stoner #doommetal #stonerrock #doom #pedalbuilder

Headphones amp for pedalboards & rehearsal (with mp3 AUX in).

This is a full stereo mixer with a headphones out. The standard input can be used to connect the signal from your pedalboard (stereo or mono) and the AUX-In can be used to connect a phone/mp3 player/sound card line out or other similar device.
Both inputs are mixed and routed to the headphones out to assist you on a “silent” rehearsal.

The device is also equipped with a TRS THRU output, this way whatever signal is routed to the input can also be picked up by any other device you’ll connect to the THRU output (like an amp, or another pedal) and it will remain unaffected because of the very high input impedance of the device’s buffer.

Internally a separate mixer circuit converts the Stereo Input signal to mono and routes it to the balanced XLR output.
The input volume control does not affect the level of the XLR out. The AUX-in signal does not output to the XLR.

- ST/M Toggle switch: allows you to select the type of signal (Stereo or Mono) that is being routed to the input. If you are working with a mono signal this toggle switch ensures that you will be hearing the same mono signal in both L+R channels of your headphones.

3 knobs:
- Input Volume knob
- AUX-IN volume knob
- Headphones-out volume knob

If any of the Input signals is too hot and causes distortion to your headphones just attenuate it from its respective volume knob.

**** Check photo section for a detailed signal flow chart ****

Technical specifications:
▹ Input impedance: 10Mohm
▹ THRU output impedance: equal to output impedance of the device you’ve connected to the input.
▹ XLR output impedance: 100ohm
▹ Circuit equipped with filters to avoid RF interference.
▹ Voltage Required: DC 9-12 Volt (12V will offer more headroom).
▹ Polarity: Negative tip
▹ Typical current draw: 40~200mA (depends on volume setting, and type of headphones)

#dpFXpedals #dpFX #dpeffects #headphonesamp #headphoneamp #headphonesampforpedalboards #boutiquepedals #pedalseffects #handmadepedals #pedalsandeffects #stereopedals #greekpedals #pedalbuilder #rehearsalgear #silentrehearsal

Triple Loop Parallel Stereo Blender [V3.0]
This is an all analog Stereo Blender that offers three independent parallel loops with tails capability, stereo/mono selection, dry blend,
master volume control and an indepedent Headphones-out with volume control.
Every loop has its own dedicated footswitch, Send/Return volume knobs, EQ, and phase reverse switch.

The device is able to handle signals varying from instrument level (guitar, bass, etc) up to higher line level (~24Vpp max). All jacks are TRS. It is compatible with mono signals as well. Mono FX-Loops can be combined wth Stereo FX-Loops.

--- Technical specifications:
▹ True Bypass (via analog IC switches, requires power)
▹ Supply Voltage required: 9V DC (center negative).
▹ Current draw: 280mA
▹ An internal circuit module provides the necessary Dual Rail voltage,
for maximum headroom and stability.
▹ Input signal level: up to ~24Vpp
▹ Input & Return impedance: 2MΩ
▹ Output & Send impedance: 100Ω
▹ Flat response on the whole span of the audio frequency spectrum.
▹ Master Gain: +6dB(V)
▹ Weight: 1.1kg (aprox.)
▹ Enclosure dimensions: 242 X 127 X 52mm (9.50 x 5.0 x 2.04 in.)

#dpFXpedals #dpfx #stereopedals #stereoeffects #handmadeEffects #handmadepedals #stereoblender #triparallel #parallelblender #boutiquepedals #greekpedals #pedalbuilder #pedalseffects #pedalsandeffects #dpeffects #loopblender #handpaintedpedals #エフェクター

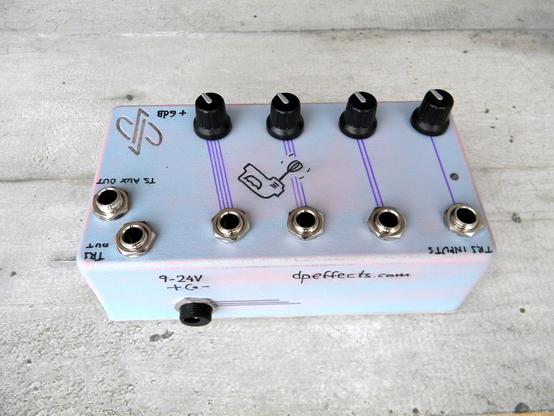

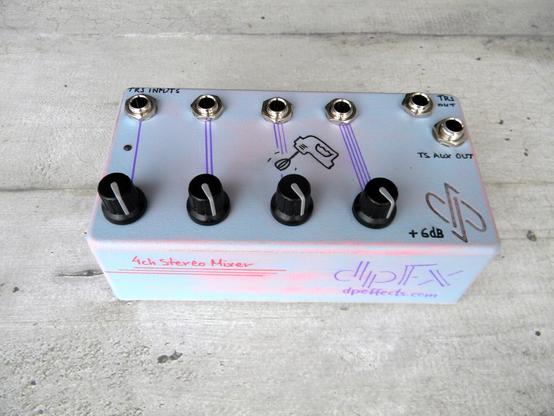

4 input Stereo Mixer for stereo pedals, compatible with line level signals, can be used for synths as well. Also equipped with AUX mono-sum output. Details in the first comment.
#dpFXpedals #dpFX #stereosummingbox #stereopedals #stereomixer
#stereoeffects #parallelmixer #summingbox #boutiquepedals #pedalbuilder
#handpaintedpedals #handmadepedals #stereopedalboard #pedalseffects
#stereodevices #custompedals #greekpedals

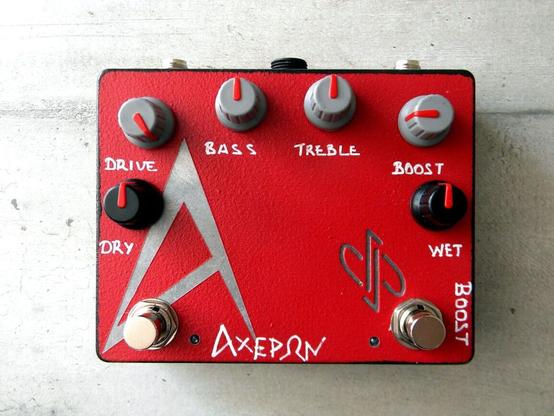

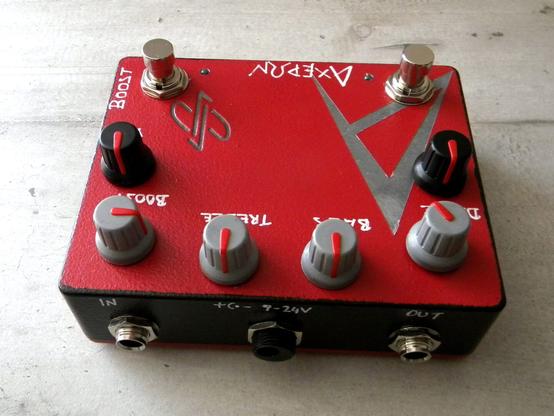

Black series is SOLD OUT. Here comes the RED series of ACHERON Bass Preamp/Overdrive.
#boutiquepedals #dpFXpedals #dpFX #dpeffects #pedalbuilder #basseffects #basspreamp #bassoverdrive #acheron #handpaintedpedals #handmadepedals #baxandall #b15 #ampegb15 #basspedals #effectspedals #greekpedals #pedalsandeffects #pedaleffects #basspedal #bassdriver

Analog Stereo Parallel Blender, dual loop. It offers two independent loops, Dry blend & is able to handle signals varying from instrument level up to higher line level (~24Vpp max). All jacks are TRS.
(detailed specs in the first comment)

#dpFXpedals #dpFX #stereoblender #blenderpedal #pedalseffects #stereopedals #stereoeffects #boutiquepedals #parallelblender
#loopblender #handmadepedals #handpaintedpedals #pedalbuilder #pedaleffects #stereodevices #greekpedals

"Sadhus, The Smoking Community" are preparing for a tour and this is Thomas' (their guitarist) pedalboard. You can see our own NTOYM dual fuzz/distortion at the center.

#doom #ntoym #dpFX #dpFXpedals #handpaintedpedals #handmadepedals #boutiquepedals #stonerock #stonerrock #doomdrone #guitarpedals #effectspedals #pedalseffects #pedalsandeffects #bigmuff #ratpedal #ratdistortion #greenrussian #ratmuff #muffrat #stackingpedals #guitarfuzz #guitardistortion #doompedals #doesitdoom #dpeffects #pedalbuilder #doomfuzz #doomdistortion #ntoum

Active variable Low Pass Filter (LPF) that offers you the ability to select a cut-off frequency anywhere inside the range 220Hz-16.5kHz through its single knob. The filter’s curve is quite steep offering a 12dB octave attenuation.

It’s the ideal device if you are looking to "clean-up” the harsh high end of your audio signal such as fret buzz, string noise, and higher harmonics or noise produced from other effects in your chain such as distortion pedals.
Alternatively you can use it to simulate the high frequency roll-off of speaker cabinets in case you’re experimenting with audio recording or your live setups.

Use it either with a guitar or a bass or even with synths and line level signals. If you need extra headroom you can always power the pedal with a voltage larger than the typical 9V.
With the max supply voltage being 24V the device can offer a max headroom of about 22Vpp.

--- Specifications ---
- Cut-off frequency range: 220Hz-16.5kHz (12dB/octave)
- Input impedance: 5Mohm
- Output impedance: 100ohm
- Voltage required: 9V (max 24V)
- Polarity: Center Negative
- Approximate headroom vs supply voltage: 7Vpp@9V || 10Vpp@12V || 22Vpp@24V
- Current consumption: 5mA
- Weight: ~125gr
- Enclosure dimensions: 93x38x32mm (3.66x1.49x1.26in)

#LPF #lowpassfilter #lowpass #guitarfilter #basspedals #guitarpedals #audiofilter #dpfx #dpFXpedals #boutiquepedals #handmadeeffects #handpaintedpedals #handmadepedals #pedalseffects #pedalsandeffects #variablefilter #variableLPF #filterpedal #filter #greekpedals #pedalbuilder #lpfpedal #lowpassfilterpedal #エフェクター
