The 2023 #OpenVSP Workshop, Day 3: https://openvsp.org/wiki/doku.php?id=workshop2023#wednesday_august_9
Half of today's slides uploaded, uncluding slides describing assembly making with linking parts (¡wrong PDF linked!), setting user variables, automation with Python API VSPSCRIP.
Also, some tomorrow's slides are uploaded too.
💡 #2d #3d #cad #diy #airplane #airplanes3d #aircraft #uav #drone #rocket #cfd #engineering

The 2023 #OpenVSP Workshop, Day 2: https://openvsp.org/wiki/doku.php?id=workshop2023#tuesday_august_8
Among just published slides, there are slides describing how to «Export to CAD and CFD» solid model from OpenVSP as Trimmed Surfaces, Un-Trimmed Surfaces & Structures in IGES, STEP and other file formats (suitable for import into #FreeCAD, etc.).
💡 #2d #3d #cad #diy #airplane #airplanes3d #aircraft #uav #drone #rocket #cfd #engineering

The 2023 #OpenVSP Workshop, Day 1: https://openvsp.org/wiki/doku.php?id=workshop2023#monday_august_7
👨‍🏫 #Modeling #Tutorial 1 (by Rob McDonald): «AGM-129 ACM»
🚀 #AGM129 VSP-file: https://openvsp.org/wiki/lib/exe/fetch.php?media=workshop23:agm129.vsp3
💡 #2d #3d #cad #diy #airplane #airplanes3d #aircraft #uav #drone #rocket #cfd #engineering

🔴 The 2023 #OpenVSP Workshop is #live at the Wright Brothers Institute (WBI) in Dayton Ohio, near the Wright Patterson AFB, the home of Air Force Research Laboratory (AFRL).
🗓️ The workshop will be four (Aug 7-10) days long.
🗃️ Workshop program, slides & other files: https://openvsp.org/wiki/doku.php?id=workshop2023
N.B. 🛩️🚁 #NASA Urban Air Mobility (UAM) Reference Vehicles designed with OpenVSP app at LARC: https://sacd.larc.nasa.gov/uam-refs
💡 #2d #3d #cad #diy #airplane #airplanes3d #aircraft #uav #drone #rocket #cfd #engineering

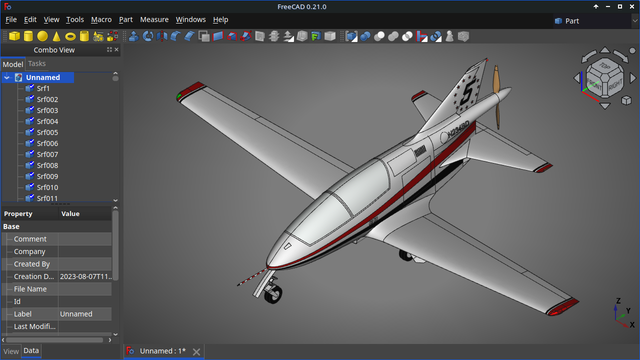

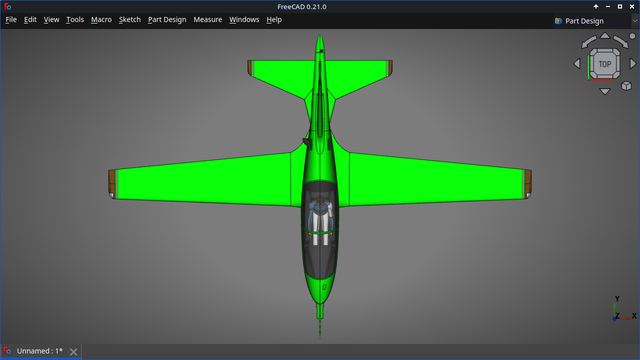

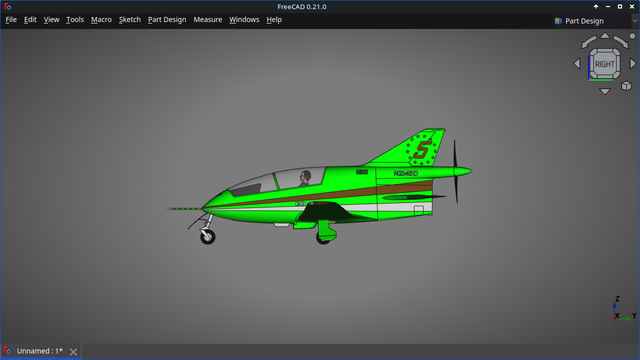

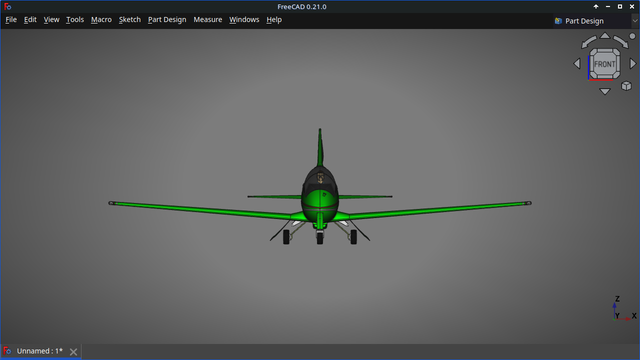

🛩️ Bede BD-5B (#N234BD) #airplane modified #3dmodel made by Race Reed, imported to  #FreeCAD 0.21
🆓 IGES file: https://grabcad.com/library/bede-bd-5-1
📝 If open any IGES file via "File > Open... > IGES (*.igs, *.iges)" it would be represented as solids with all color missed.
To not miss colors:
1) Create new file;
2) Switch to Part Workbench;
3) Use menu "Part > Import CAD... > IGES with colors (*.igs, *.iges)".
💡 #2d #3d #airplanes3d #bim #cad #cae #cam #cfd #cnc #fea #fem #fc3d #diy #engineering
