I like my 3D printers like I like my marshmallows: Not burning!

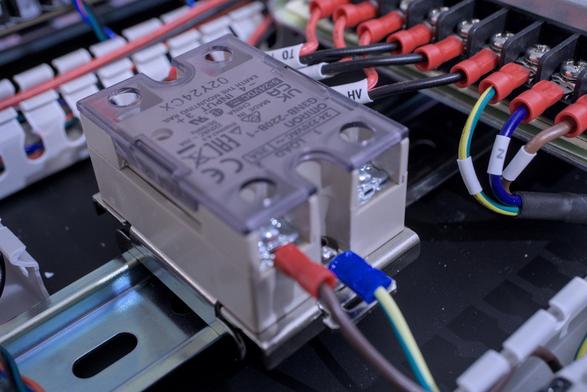

This solid state relay specifically says to "earth the mounting rail". However, in this Voron build, the DIN mounting rails are held by well insulating, 3D printed brackets, and the LDO kit does not include a PE connection.

So I crimped my own!

#voron #LDO #3dprinting #electronics

Suddenly, a wild LDO Nitehawk USB adapter appears in the LDO wiring guide. However, the preparation of this part doesn't seem to be documented.

Here are the parts I used for assembly:

- 3 x M3x12 SHCS
- 2 x M2x10 self tapping screw
- https://github.com/MotorDynamicsLab/Nitehawk-SB/blob/master/STLs/usb_adapter_mount.stl
- https://github.com/VoronDesign/Voron-Trident/blob/main/STLs/ElectronicsBay/pcb_din_clip_x3.stl

As always, don't overtighten!

#voron #trident #LDO #nitehawk

I just learned, that LDO included mounting bars for the linear rails, which seem to be much better than the default roll-in nuts.

However, in contrast to the roll-in nuts, the mounting bars have to be installed _before_ mounting the extrusions. Unfortunately, this is not documented in the LDO notes for the kit.

Well, since "practice" means doing something over and over again...

#voron #ldo #linearrail
