Learning how to glue metal to metal. 🤷‍♀️

I've not done any welding before and sparks are scary, but there's nothing in the world that can't be learned. 😎

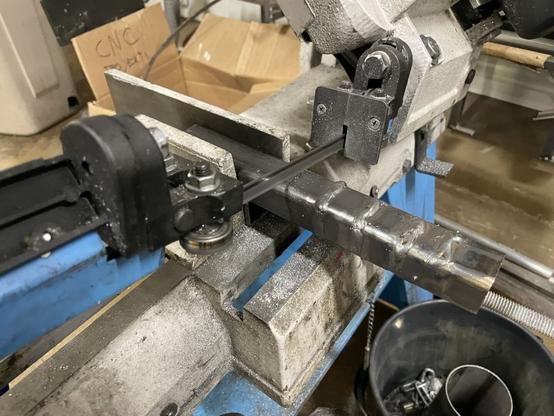

Grind - Tack - Weld - Cut.
Rinse and repeat.

(Posting this as a test post here and at @[email protected] - Pixelfed really is unhappy currently for me.)

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion
#Campervan #OnlyVans

Back at it! (Oh and Pixelfed lost my previous pics, ah well, we'll continue as if nothing happened :3)

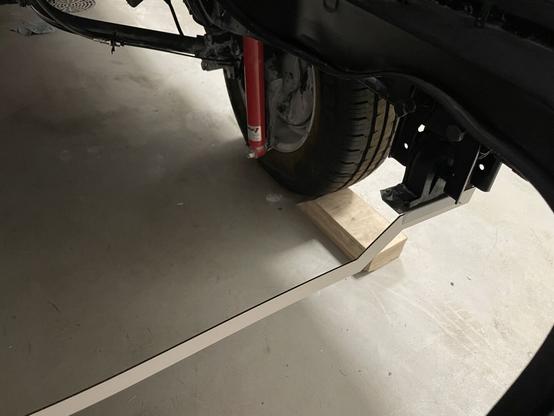

Lasercut a cardboard template to check my 3D-scan files are indeed correct for the motor mount fabrication. They are. 😊

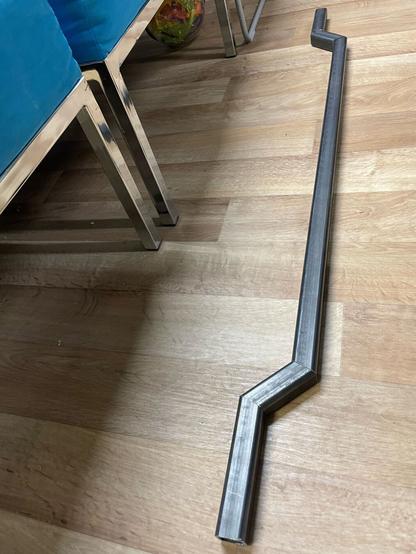

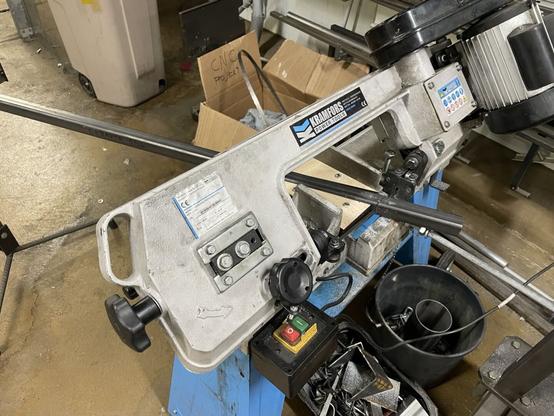

Next up pulled the steel stock I've had laying around for some months and chopped it to pieces to form the rear motor mount. Metalworking is something I've procrastinated about for too long now, so it's time to finally learn.

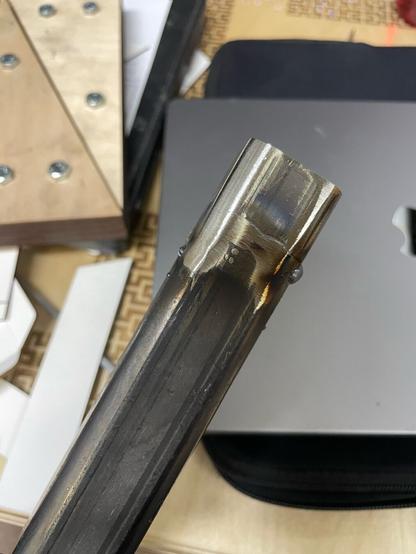

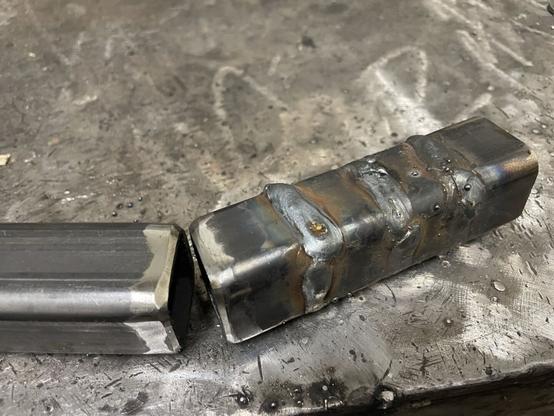

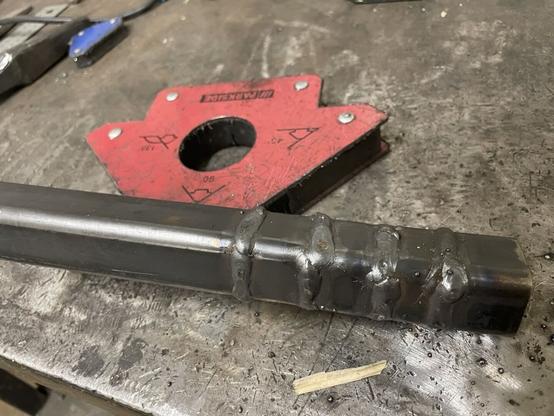

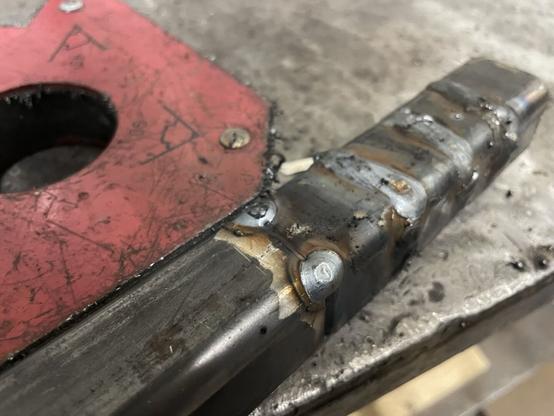

Cut some extra pieces from the same stock and tried welding them together. This is uhh... 2nd time in my life I'm holding a MIG torch in my hand now? I wouldn't exactly trust this to hold the motor yet, but it's a starting point!

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #Voltswagen #BayWindow #OnlyVans #Motorhome

More aircon in preparation for the future heatwaves. 😊 Sliding window, that seal was by far the worst to install! Took three tries to get it.

Also check out another vehicle project in local #hackerspace #makerspace recently back on the road again! https://www.youtube.com/watch?v=AZ1qq7INEWA

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans

Needed something easier to do while procrastinating with the metalwork and motor mounts...

This van won't be having a gear stick anymore, but I need something to switch between P-R-N-D so I found a simple 4-pos rotary switch and 3D modeled and printed a switch knob for that in original style. 😊

Files if you need: https://www.thingiverse.com/thing:6622206

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #VanlifeDreams #Volkswagen #BayWindow #ClassicCars #ClassicRestoration #Campervan #OnlyVans

3D scanned the entire motor room and the Leaf motor. Should make things rather much easier than good old fashion cardboard aided design.

Many thanks to Arno from https://mekanisaatio.fi 😊

Firing up Fusion 360 for motor mounts in 3... 2... 1...

#3Dscanning #engineering #Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans

👀

#3DScanning #Engineering #Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans

With the wiper stalk slightly modified, it was time to put the steering column back together complete with the steering wheel and the horn button.

And it steers!

Still some minor lash to adjust in the steering box and cambers and tierods are probably all askew.

But it steers!

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans

Woo my AC is working. 😊

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans

Taking a brake still. 😊

Plumbing just about done. Steel braided lines back and front for maximum looks. 😎

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans

Making threads on a lathe for the first time. 😬 Not as easy as some YouTube videos make it look like!

Tesla brake booster needed just a few cm's shorter pushrod with a yoke in the end, so instead of destroying the original I picked up some proper hard steel and started learning.

Result: Brake system almost fully functional. 😊

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VanlifeDreams #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #OnlyVans
