Leo BistmansAnalog Devices #cn0417 is indeed about 20dB difference ( the hold grey line to -40 is with that small power amplifier ).
The -60 is without, bare #AdalmPluto
https://www.analog.com/en/resources/reference-designs/circuits-from-the-lab/cn0417.html

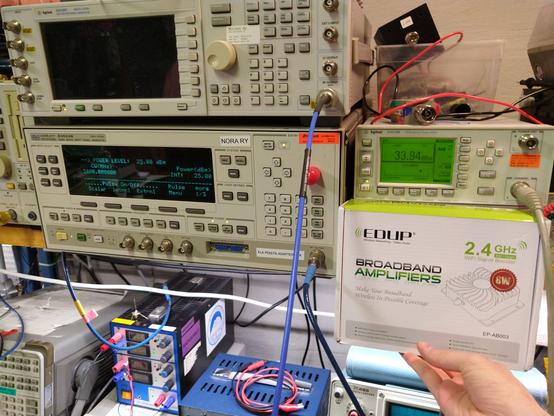

Setup for setting setting up the power meters and the drive amplifier output power.
#hamradio #GHz #ghz_bands #2.4GHz #13cm
I was not expecting 8W, but I was also not expecting 2.5W (+33.94dBm) from it.
And that's the saturated power it seems.
Some glacial progress on the 2.4GHz FM repeater project.
Added some preset trimmers to finally free up some power supplies while using the TX and RX chains.

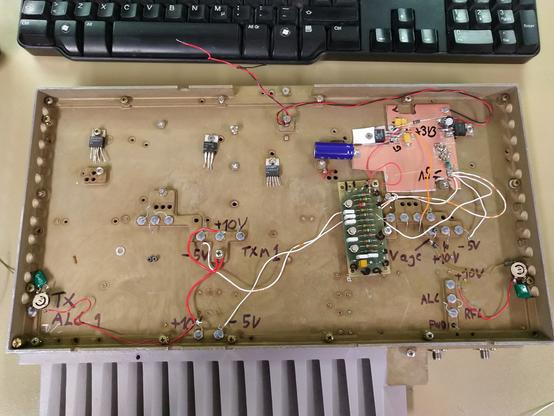

Might also eventually need to properly reverse engineer the PA constant current thinggy, so that I can bias it closer to class-c and pull more power from it.
Tho I should also snowflake it.
But a single NBFM carrier ain't gona need the linarity multimegabaud QPSK did.

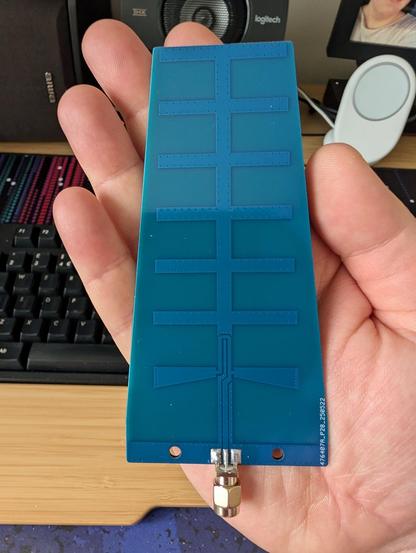

Measured an #antenna that I got from a friend.
He has two full arrays of these.
So finding out that it seems usable across all of the #13cm amateur radio band was nice.
He has two full arrays of these.
So finding out that it seems usable across all of the #13cm amateur radio band was nice.

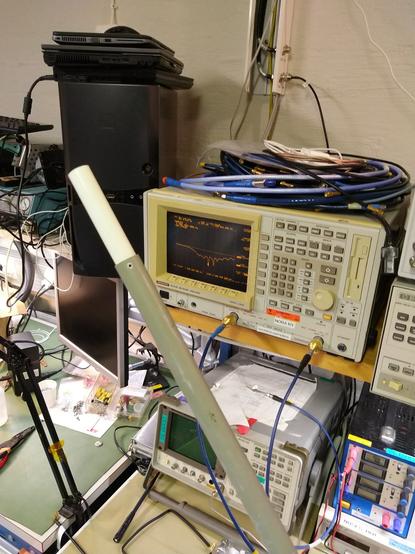

The #UWB #spooktenna matching is -14dB on the lower band edge of 2400MHz.
So that means I'll have to try to make a #13cm FM QSO thru it.
After I repair my #homebrew #geckokapula handheld radio for that band.
