✧✦Catherine✦✧

first impressions of the Lego smart brick, before I do any actual tearing down: wow, I forgot how good they are at working with plastic. the injecton molding remains impeccable, at least for this specific piece (I know about their recent QC issues elsewhere)

it's hard for me to look at the positively microscopic (I am literally using a microscope to look at it) "Li-Ion" lettering and think of anything but "showing off!"

(treehouse doesn't let me attach the full size images, you can grab them here: front, side)

✧✦Catherine✦✧3d ago

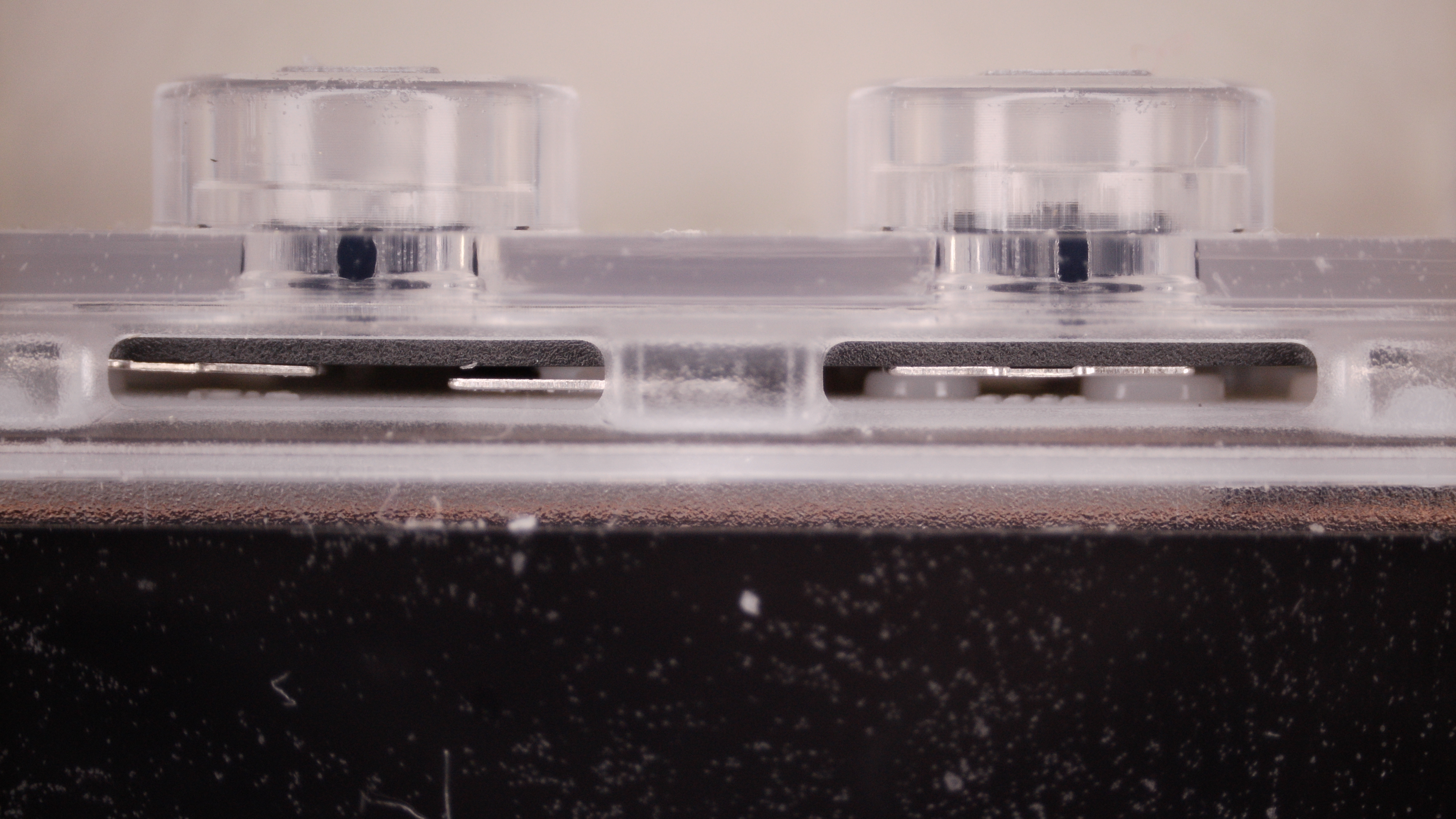

on the side, there are microscopic openings for the speaker to move air through. I would have really liked to be a fly on the wall in a meeting with the mold engineer who had to make this happen

✧✦Catherine✦✧3d ago

I'm not yet sure how I'll open it up. I don't have a hacksaw (somehow... I should fix that), so my options are somewhat limited: it's either cracking or melting plastic. from what others have done I know I there's plastic welding all around the joined region.

✧✦Catherine✦✧3d ago

okay I've decided on an idea: I will heat up the plastic to make it pliable and then cut it with a knife

as a knfe girl, this is my professional obligation.

✧✦Catherine✦✧3d ago

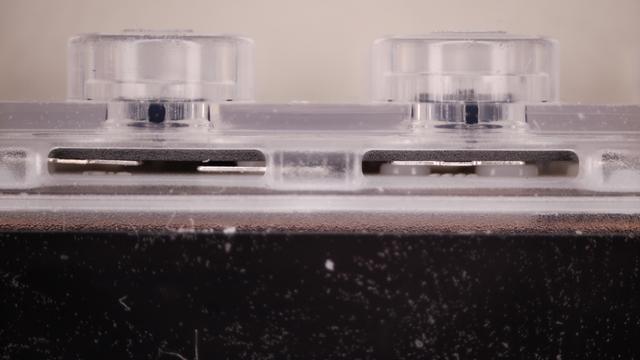

here's a video that shows in more detail the moldwork in the transparent plastic part

✧✦Catherine✦✧3d ago

if you've never heard of anybody opening welded plastic this way, i can now tell you why: because it's a bad idea. until you heat ABS to the point where it flows (which you don't want here, as it'll make later teardown even worse), it acts rubbery. imagine cutting hot rubber. doesn't work

✧✦Catherine✦✧3d ago

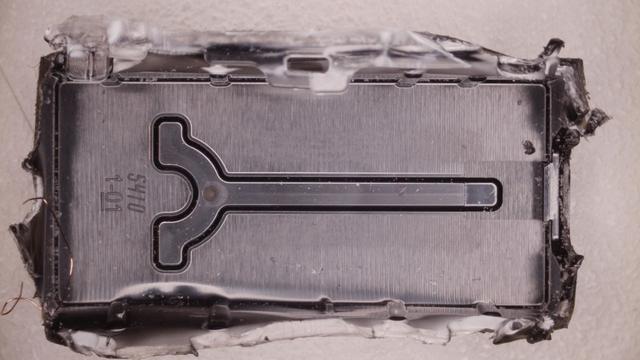

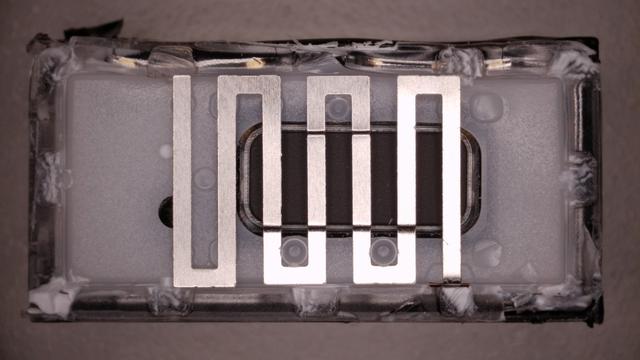

it did however let me lop off the top of it easily

this is I think a 2.4G antenna?

next step is sanding

✧✦Catherine✦✧3d ago

yep that did the thing. probably should've started with sanding at the beginning.

it was somewhat more destructively than i wanted, but that's ok: i was trying to challenge my (incorrect) belief that sanding is always a tedious pan in the arse

✧✦Catherine✦✧3d ago

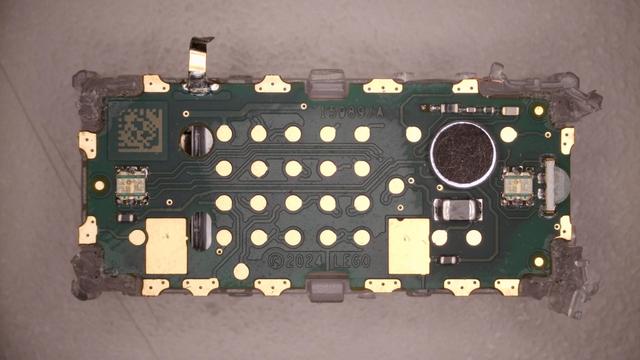

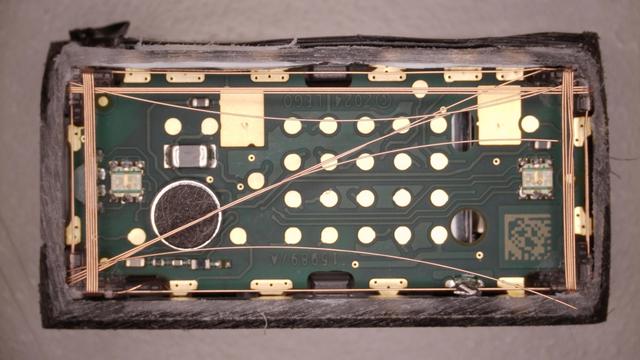

took it apart. there's a sort of a plastic "carrier" that gets manufacured first, then inserted into the final package that's welded shut

✧✦Catherine✦✧3d ago

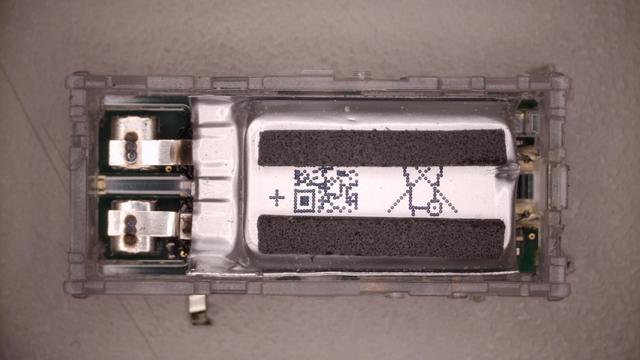

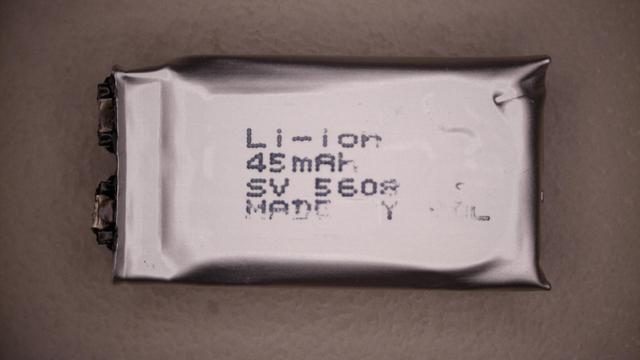

okay, i've extracted the firmware-bearing parts. this is a tiny 45 mAh battery. (part of the lettering was torn off by the glue it was attached with)

✧✦Catherine✦✧3d ago

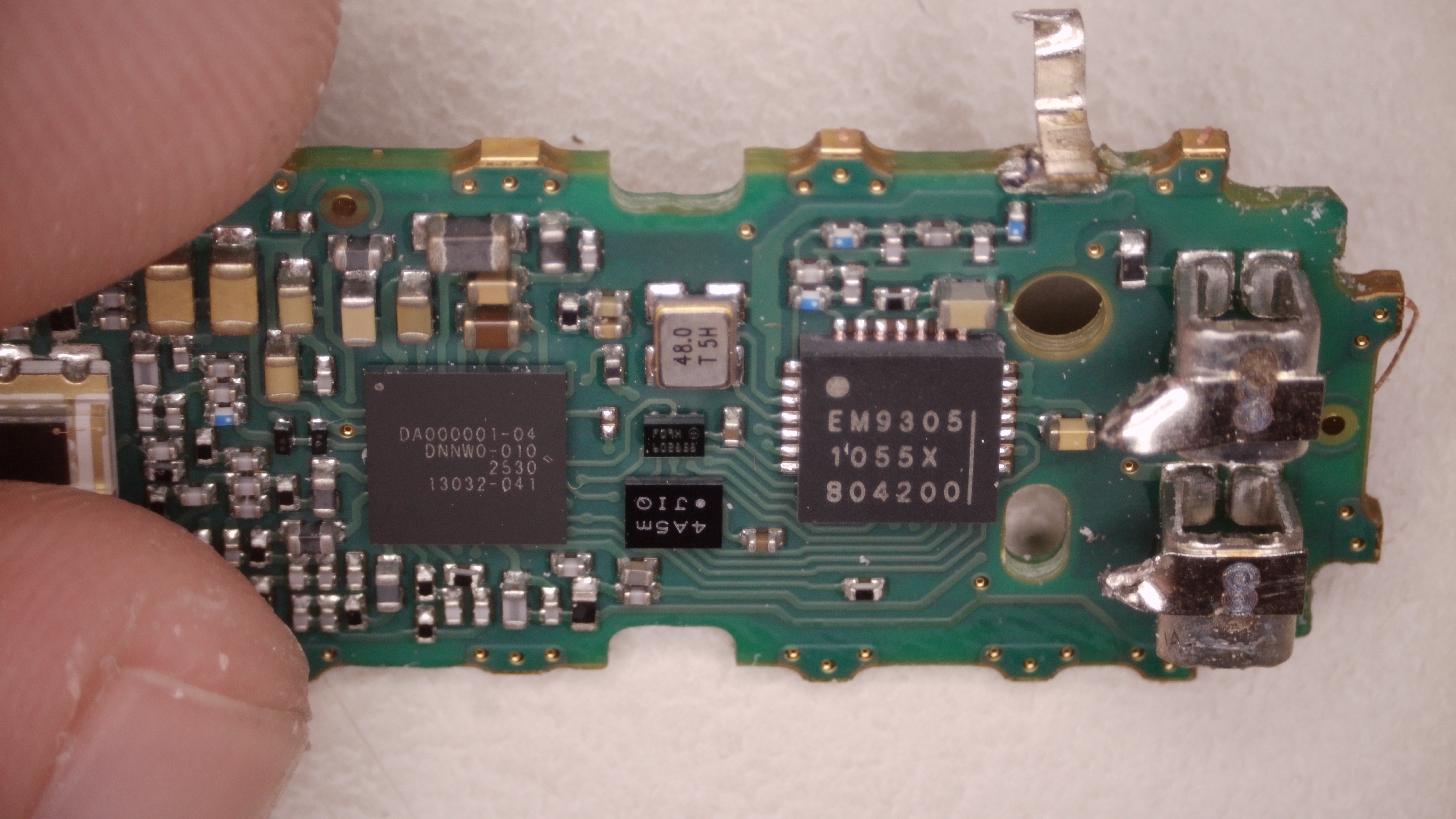

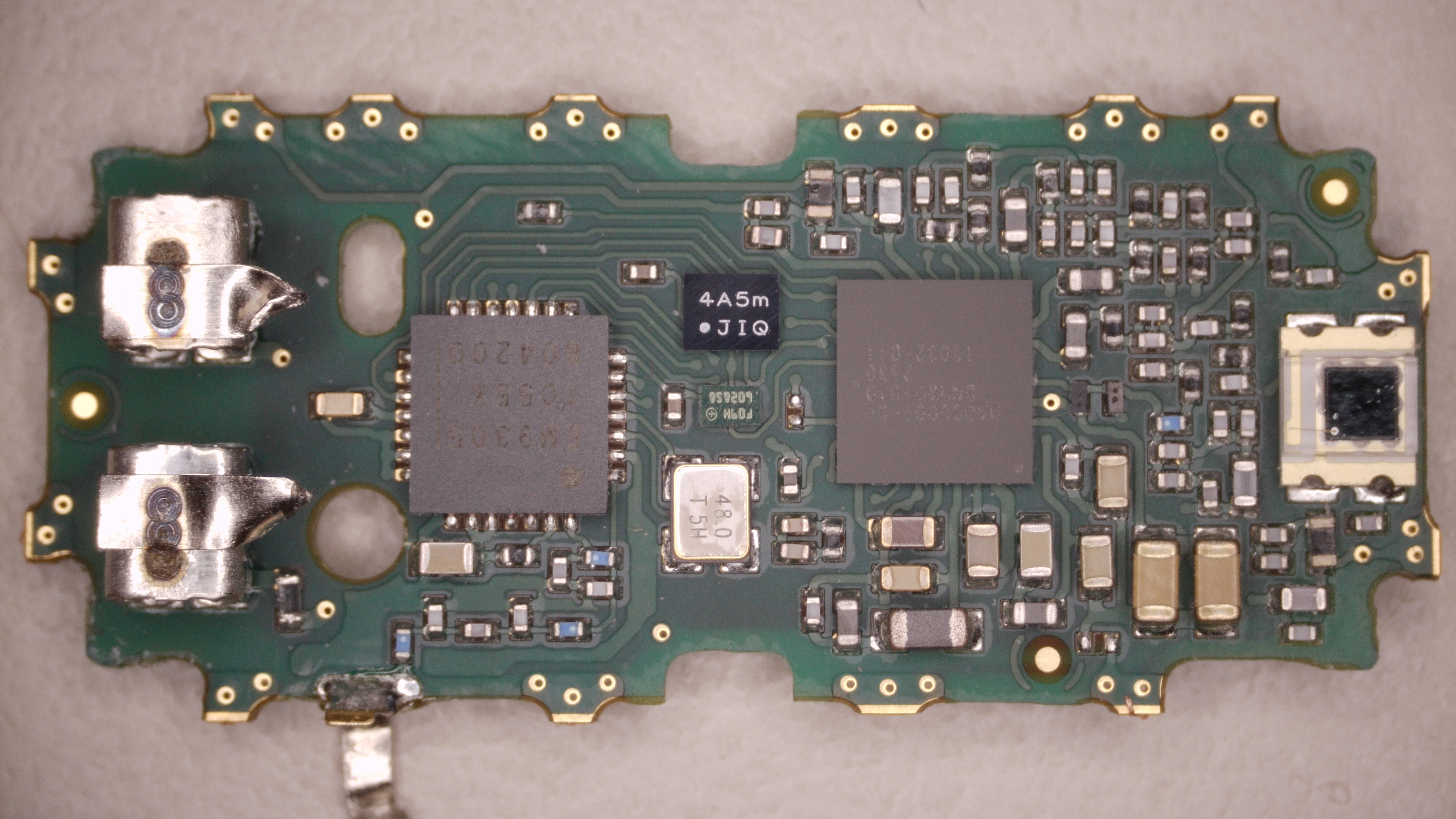

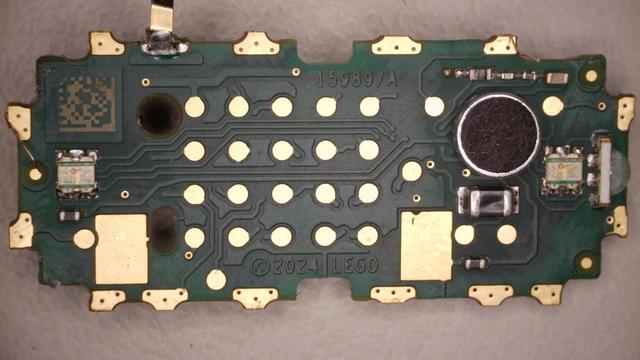

close-ups of the component side (well, the side with more components)

originals: 1 2

✧✦Catherine✦✧3d ago

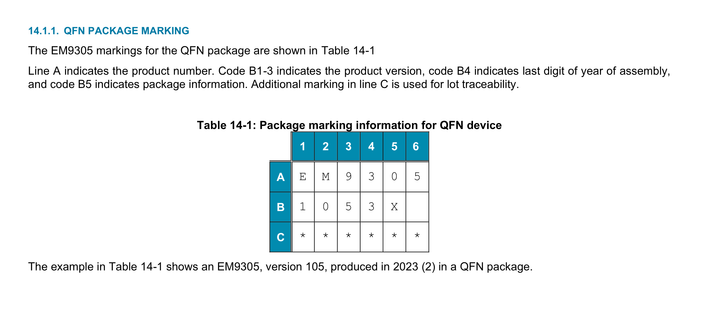

EM9305 is an em|bleu microcontroller in QFN

✧✦Catherine✦✧3d ago

it has over half a megabyte of flash!

✧✦Catherine✦✧3d ago

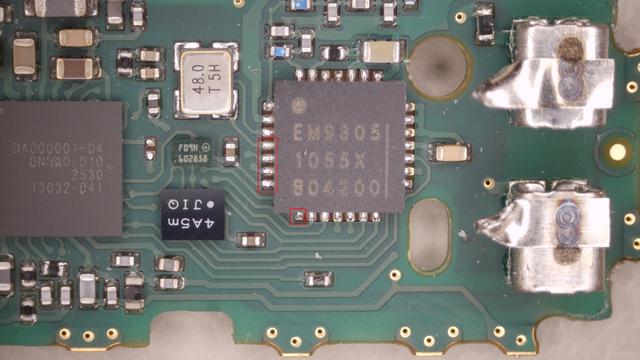

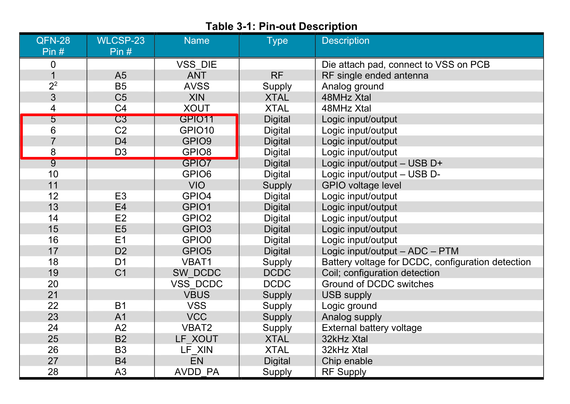

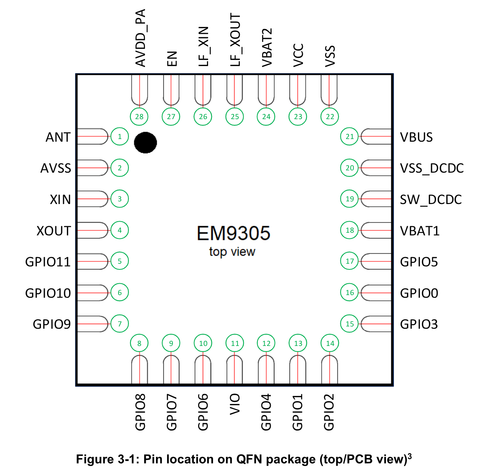

ok so this would be the JTAG pins

✧✦Catherine✦✧3d ago

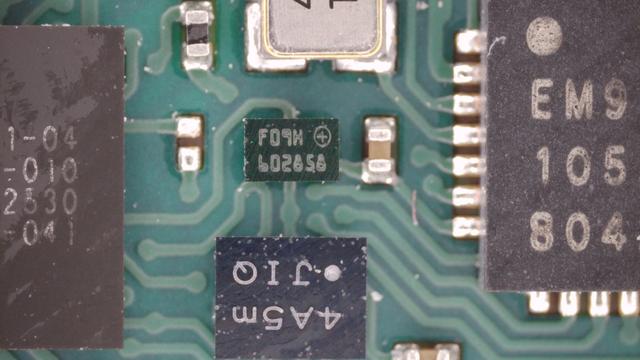

also, here's a close-up of the markings on the tiny WLCSP between the BGA and QFN

✧✦Catherine✦✧3d ago

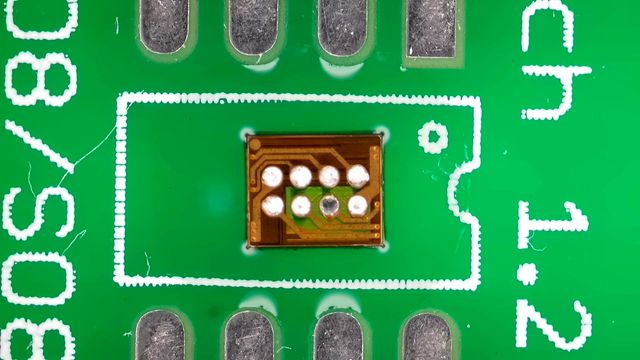

decided the next thing to do would be to dump the presumed Winbond flash WLCSP

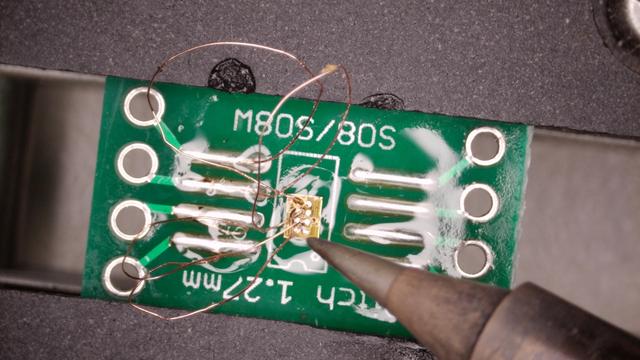

here it is mounted on a SOIC-8 pinout with a tiny bit of UV epoxy, like a particularly exotic dead bug

✧✦Catherine✦✧3d ago

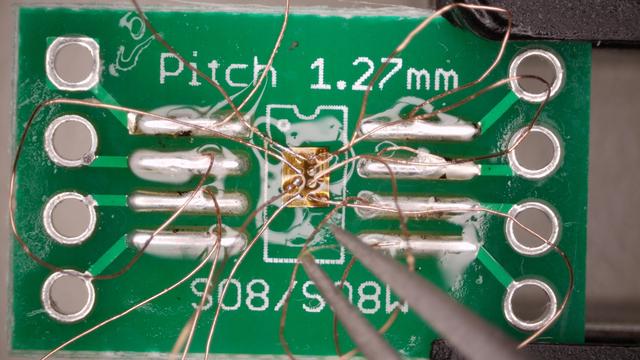

connected half of the pads

this is my first time soldering a 0.3mm pitch WLCSP, so it took me a bit to set up the workspace the way that makes it possible, but it's not too bad

✧✦Catherine✦✧3d ago

finally done. no shorts and (as far as i can tell under mag) no opens

✧✦Catherine✦✧3d ago

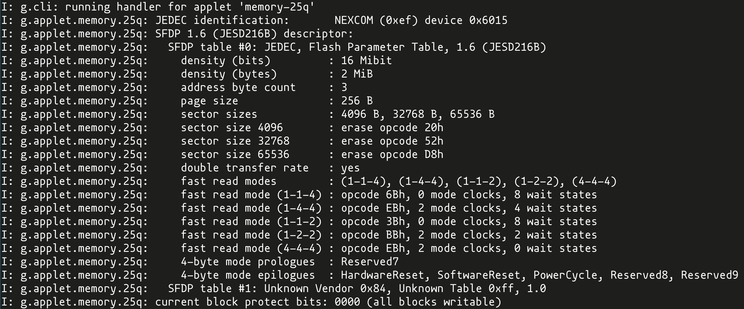

complete success

✧✦Catherine✦✧3d ago

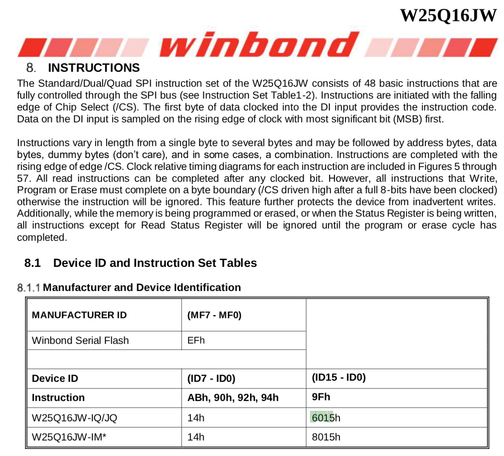

contrary to everything i've seen online, this is a Winbond W25Q16JWBY part (but one person got the closest, they thought it is a W25Q16JVBY. the difference is major: one is 3.3V, the other is 1.8V)

✧✦Catherine✦✧3d ago

NotImplementedError: quad enablement SFDPJEDECQuadEnableRequirements.Reg2Bit1_Read35h_Write05h not implemented yet

ah yes. i remember why i hate SPI flashes now

The Doctor 3d ago

@whitequark What are you using to dump the chips?

✧✦Catherine✦✧3d ago

@drwho https://glasgow-embedded.org/

Glasgow Interface Explorer

A highly capable and extremely flexible open source multitool for digital electronics

Chris Friedt 3d ago

@whitequark xtra smol 🤏🏼

arclight 2d ago

@whitequark This is wonderful :)

@whitequark its...

a brick

with an arm core, wifi and speakers?

✧✦Catherine✦✧3d ago

@Viss bluetooth le, but yes

@whitequark hah, wow

@whitequark someone had identified it as a Winbond SPI flash (to be confirmed, I guess).

✧✦Catherine✦✧3d ago

@maehw lemme dump this flash then

@whitequark yeah, I'd love to see that being done. What's your plan of how to do it? I think you'd need to un-power or desolder the Bluetooth SoC as this one connects the the CS signals and hence should be the bus master. Or desolder the flash? It's so teeny tiny... I can't do it. You could have it from my second PCB.

✧✦Catherine✦✧3d ago

@maehw oh i'll just desolder and mount it manually

@whitequark Great to see that you got yourself a #LEGO #SmartBrick. Curious to know what set you got yourself. And eben more curious if you can get JTAG working... or find the relevant test pins. Yesterday, I started sniffing the SPI bus. Unfortunately, the ASIC Chip Select pin was not identified in the test pad matrix when I last looked up published schematics.

@whitequark You'll probably also try to power it with a DC power supply instead of the battery, right?

✧✦Catherine✦✧3d ago

@maehw do you know what the WLCSPs are?

@whitequark the big one is the custom ASIC and the other one should be the external flash. Do you know about https://github.com/nanash1/smart_brick ? I think they did a great job and this way I didn't have to beep out the PCB myself. Expect for the missing CS line maybe. BTW, when I read the SoC's datasheet, I wondered why they had external flash at all if it already has half a Megabyte internally. Firmware got too big? Guess we'll see soon.

GitHub - nanash1/smart_brick: Lego Smart Brick reverse engineered schematic

Lego Smart Brick reverse engineered schematic. Contribute to nanash1/smart_brick development by creating an account on GitHub.

GitHub

@whitequark
How did you guess these GPIO would be JTAG?

EDIT: explained further down the thread --> https://social.treehouse.systems/@whitequark/116389802932543329

✧✦Catherine✦✧ (@[email protected])

@ldcd the datasheet explicitly says the JTAG pins are GPIO'd

Treehouse Mastodon

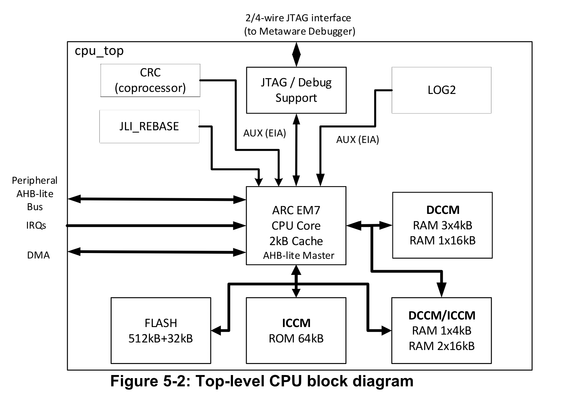

@whitequark And (checking the datasheet) apparently a log2() accelerator? That seems like an oddly-specific thing to accelerate.

Luke Wren 3d ago

@whitequark cpu_top is clearly a Verilog module name lmao

✧✦Catherine✦✧3d ago

@whitequark Calling an ARC CPU industry standard is very funny to me

@ldcd @whitequark
It is quite widespread, even if not visible to end users.
Being in most Intel CPU's and all that.

@ftg @whitequark yeah that's why it's kind of funny, it is simultaneously a very common CPU and a very obscure CPU (ie it's hard to get comprehensive documentation, the devkit is literally an FPGA, etc)

Like they're not lying but they're trying to imply it's a normal CPU to use and be able to program which isn't really true

Graham Sutherland / Polynomial 3d ago

@ldcd @ftg @whitequark I have yet to come across any SoC with an ARC core where the docs weren't partially or fully NDA'd, or at least gated behind a sales call.

Andres Jalinton 3d ago

@whitequark
The nick on the battery 😨
It always gives me goosebumps when opening devices with glued / soldered batteries.

✧✦Catherine✦✧3d ago

@Andres this is a tiny battery, i'd be fine

Andres Jalinton 3d ago

@whitequark
I know, I'd made worst, but still

Claudius 3d ago

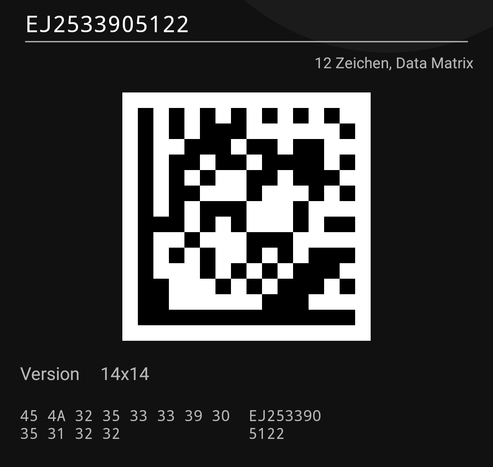

@whitequark content of the data matrix code

Hauke Musicaloris 🥔✨3d ago

@claudius Can you point me to the tool(s) you used to get to this decoded view of the DMC? I could use that for a totally different use case I have where I need to reverse-engineer DMCs

Claudius 3d ago

@Musicaloris this is what "binary eye" QR-Code/Barcode/Datamatrix/... scanner shows you after recognizing a code.

Neat thing: you can throw a static image at it, not just live camera view!

https://f-droid.org/de/packages/de.markusfisch.android.binaryeye/

Binary Eye | F-Droid – Freies und quelloffenes Android-App-Repository

Einfach ein weiterer Barcode-Scanner

Hauke Musicaloris 🥔✨3d ago

@claudius Thanks so much! I even have that app already installed, just never got around to using it apparently 😁

ms_nonbinary_flag

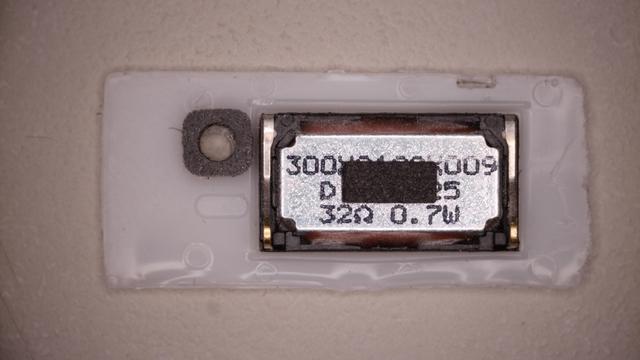

@whitequark 32Ω 0.7W? interesting choice of driver specs, but i guess it is easier to drive a higher impedance one given the power constraints.
probably made at the same plant as many headphone drivers and similar. wonder if it's an off-the-shelf part though?

✧✦Catherine✦✧3d ago

@NULLderef it looks exactly like every smartphone driver ever

ms_nonbinary_flag

@whitequark fair :P

@whitequark do you have a hot wire?

✧✦Catherine✦✧3d ago

@bob i don't have any nichrome at hand and i'm pretty sure i'd give myself burns if i tried

@whitequark @bob

8-year-old me discovered copper works just fine when attached to a sufficiently large transformer.

much older me is banned from hot tools.

@whitequark @bob

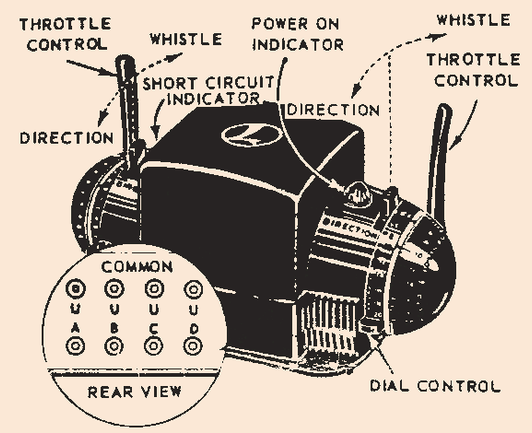

8 year olds should be allowed nowhere near these. https://dfarq.homeip.net/all-about-the-lionel-zw/

doubly so, two of them, with the knowledge you could run them back-to-back to do interesting things.

All about the Lionel ZW

The Lionel ZW transformer is one of Lionel's most iconic products. Lionel ZW instructions can be hard to find online. Here's what you need to know about it.

The Silicon Underground

Dan Lyke 3d ago

@whitequark somewhere I got a little saw blade for my rotary cutter. It isn't a Dremel brand blade, and I've never seen it again, but it is perfect for stuff like this.

✧✦Catherine✦✧3d ago

@danlyke yep. but I don't have any rotary cutter atm, had to get rid of 90% of my tools when moving to the UK

@whitequark That certainly matches my experiences of working with ABS!
