Mitch 3DJan 8, 2024
Gifts for family made with my PrintNC. #cnc #printnc #woodworking #laser
Mitch 3DNov 14, 2023
#printnc #cnc PrintNC update:

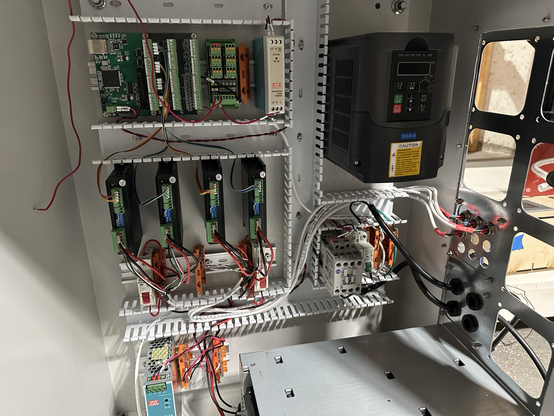

- cleaned up the electronics cabinet and moved computer inside the cabinet to shorten data cables.
- programmed the PLC/HMI with flow and temp sensors for spindle water cooling alarms.

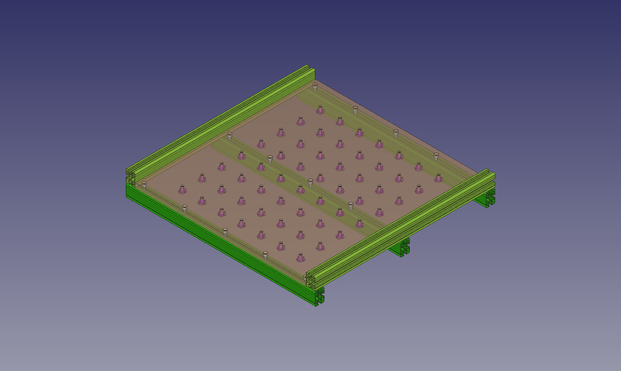

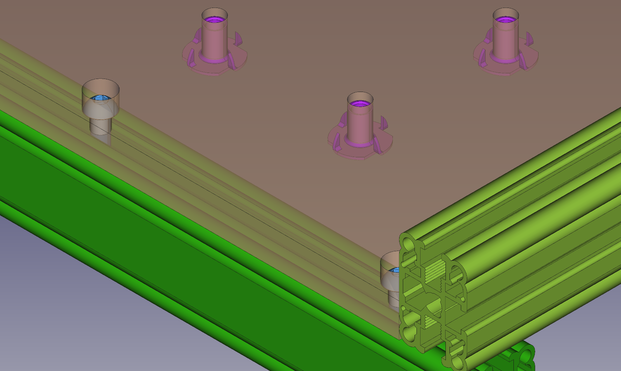

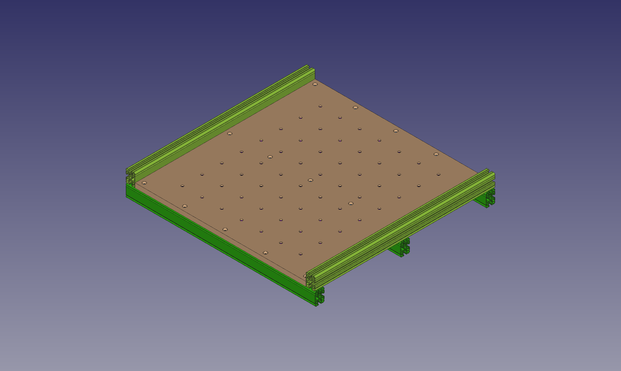

- 108 t-nuts inserted into base plywood and spoil board mounted. M6 bolts for flexible clamping and fixtures.
Mitch 3DOct 23, 2023

#printnc progress continues:

- plywood baseboard cut and ready to mount.
-installed led overhead lights

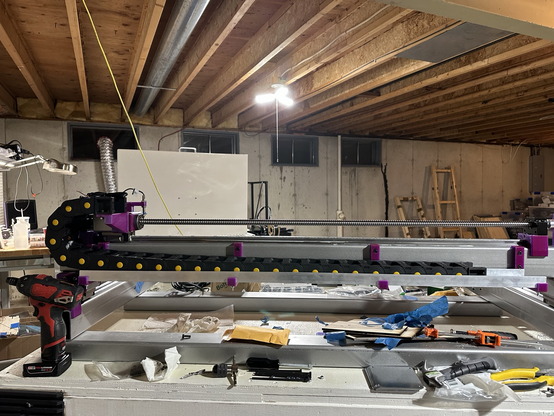

-machine homing smoothly and spindle sort of works. Spent way too long troubleshooting Modbus rs485 comms to vfd.
-resquared frame and drilled and tapped holes in frame to mount the baseboard. MDF spoilboard should be easier to add with threaded inserts.

PistonPinMar 25, 2023

The design of the basic XY-frame is done (for now). It obviously is inspired by the #PrintNC.

#WhootCNC #FreeCAD #3dPrinting #CNC #CNCrouter

Mitch 3DFeb 16, 2023
I have power now running to the power supply with the contactor and my control box wired over cat5 cable so I can remotely turn it off. #printnc #cnc #automation
Mitch 3DFeb 14, 2023

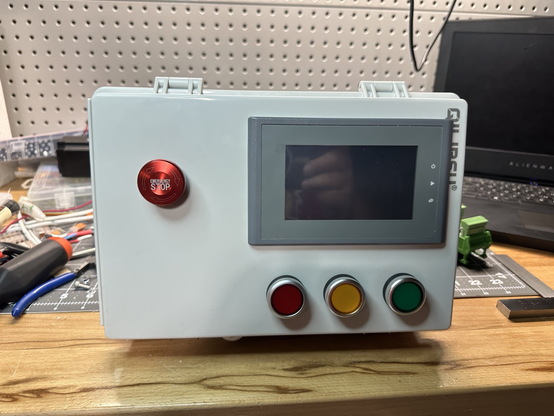

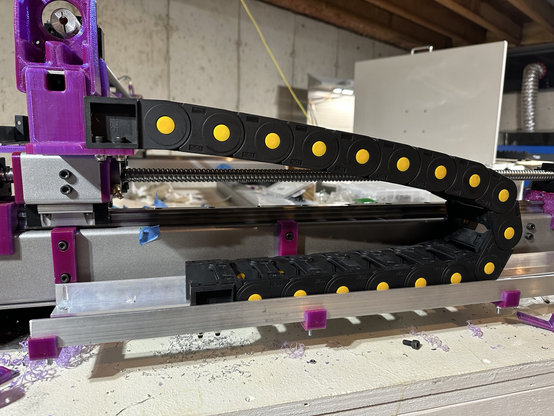

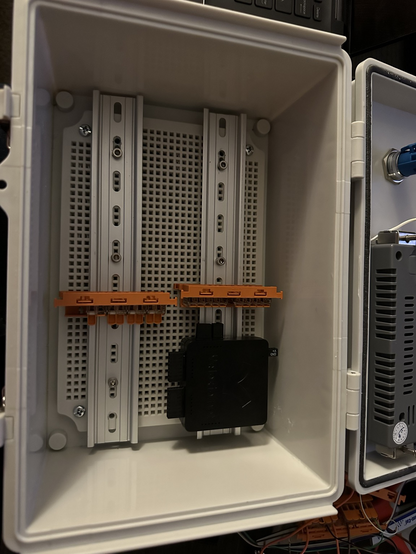

New PLC/HMI control box and mounted cables chains on my #printnc #cnc #plc #automation
Mitch 3DFeb 8, 2023

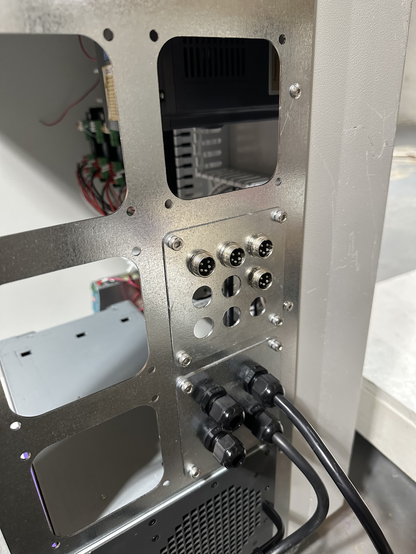

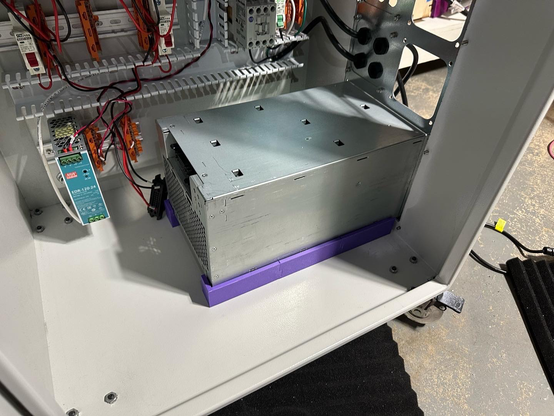

More #printnc #cnc contour panel building. Printed rails for the power supply to slide in with the voron v0.1 polymaker ABS. Sendcutsend custom laser cut modular connector panel. Now to wire up the PLC operator box I built to control it. Then spindle vfd wiring…
