Epomaker HE68 Mag Review: Stylish, Compact & Functional

Disclaimer

Epomaker sent me the HE68 Mag Keyboard with the Pink Magnetic to review for my blog. While I am very grateful for the opportunity, I won’t let it sway my opinions. This will be my honest review. Make sure you check out my reviews for the TH99 or the Cypher 96 if you’re looking to upgrade your style.

What’s in the box?

https://youtube.com/shorts/buM6ASKQOs8

• Epomaker TH68 Mag
• USB-C to USB-A Braided Cable
• 2 Extra Switches
• Key/Switch Puller
• User Manual

Sound Test

https://youtube.com/shorts/ijnC-iD2Ulg

Features

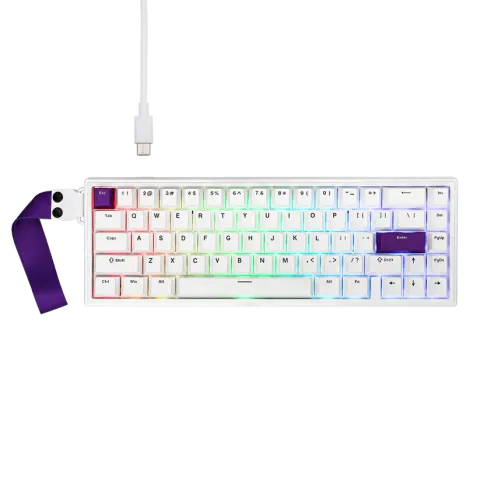

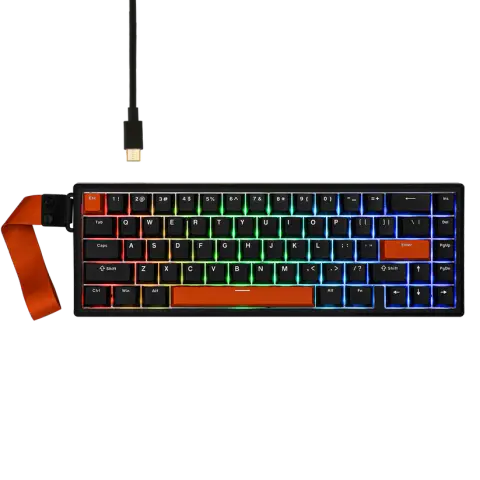

The HE68 Mag is a 65% keyboard which means you get no function bar or number pad, but you do get a compact usable experience if you are trying to minimize your footprint. The keyboard comes in black or white, and both look very stylish.

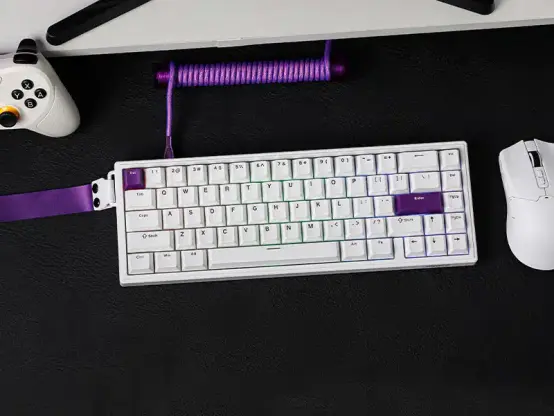

I chose the white version because of the purple keys. It comes with a fun little removable strap for when you’re on the go, but you probably aren’t going far since this is a wired keyboard.

Do not be discouraged by the wire only connection. The included high quality braided cable provides users a an impressive 8k polling rate, and it can be swapped out for a cable that better fits your aesthetic. The HE68 Mag boasts only 0.125ms latency, supports SOCD (Simultaneous Opposite Key Detection), and adjustable actuation hall effects making it a fantastic gaming keyboard.

All this fuctionality is good, but it wouldn’t be a gaming keyboard with out RGB. The HE68 has subtle south facing rgb with a good amount of customization, but it can be switched off if you don’t want all the lights.

Review

The HE68’s size had me a bit apprehensive. I was afraid that using it would kill my hands, and not having function bar was going to affect my gameplay. To my surprise, I can’t see myself using anything different from gaming. I was able to find the ideal typing position after adjusting the height, and the layout never triggered my repetitive stress injury. While I wouldn’t call the HE68 an ergonomic keyboard, it provides a comfortable enough experience for to get the job done.

Aesthetically, the keyboard is very pleasing. I love the simple and compact layout and use of color. I love the shinning base that peaks between the keys for the perfect accent of color. The RGB is very subtle, and I love the amount of customization that comes with it. Everything on this keyboard can be swapped out and customized, but it provides a fantastic aesthetic upgrade at the stock level. The only thing I would change is the strap. It feels like a random gimmick. Since it is a wired keyboard, I doubt it will see enough travel for the strap to be useful. It is removable and not a deal breaker, but I wish it didn’t have it.

Performance wise, this keyboard is fantastic. The keys felt comfortable, and everything is responsive. I don’t play at a competitive level, but I did notice some difference. My hands would be less fatigued after the more intense moments of game play, and I never had to worry about running out of battery. You can easily adjust the actuation to truly minmax your setup, but I felt like the stock settings were perfect for level of play.

If you’re looking for a stylish gaming keyboard that works well and don’t mind the lack of wireless connectivity, the Epomaker HE68 Mag is a fantastic choice that I wholeheartedly recommend. It has easily become my main keyboard, at least until Epomaker comes out with something better.

You can pick up the HE68 Keyboard for only $59.99 directly from the site.

#2025 #blog #blogger #blogging #entertainment #epomaker #gaming #gamingBlog #internet #keyboard #magneticKeyboard #review #Reviews #tech #techReview #technology #watch #wordpress #writing

Epomaker HE75 Mag Keyboard Review: A Gamer’s Delight

Epomaker sent me their HE75 Mag magnetic keyboard for free to review for my blog. While I am very grateful for the opportunity, I won’t let it sway my opinions. This will be my honest review. Make sure you also check out my review for the Epomaker RT65 and P75 if you’re looking for an affordable way to upgrade your aesthetic.

What’s in the box?

https://www.youtube.com/shorts/q9tLpPOtJ6U

• Epomaker HE75 Keyboard
• Braided USB-C to USB-A charging cable
• Keypuller
• User Manuel
• 2 Extra Switches
• Print and Pause Key Caps
• Wireless Dongle

Features

The HE75 Mag is a stylish 75% form factor gaming keyboard designed by gamers, making it the ultimate upgrade to any setup. Its lightweight and sturdy design makes it ideal for travel and those extra sweaty gaming sessions. The keyboard supports Bluetooth 5 devices, but there is a 2.4 Ghz dongle for those who need it. When the 4000mAh finally decides to die, you won’t have to stop gaming because playing with the included wired connection is just as good if not better.

If media controls are important to you, the keyboard comes preprogrammed with everything you need and an interchangeable dial for the volume. The subtle backlighting is ready to elevate the elegance of this finely crafted keyboard, but it can be toggled off with a push of a button.

If you’re looking for comfort, you will be hard-pressed to find anything more comfortable. The HE75 has a 15-degree natural slant but built-in stands to help users find their ideal comfortable position. The interchangeable hall effect switches not only make this keyboard soft to the touch, but incredibly responsive. With only about 1 ms wireless latency, you’ll be ready for any challenge that comes your way. Best of all, the actuation is customizable for maximum performance.

Sound Test

https://youtube.com/shorts/x6vXz3zk8y4

Review

The Epomaker HE75 Mag has easily become my favorite keyboard. Its beautiful ombre purple scheme drew me in, and the soft RGB effect kept my attention, but the performance is what made me fall in love. I get a repetitive stress disorder easily and have become incredibly picky with the keyboards I use. I have never used a more comfortable keyboard than the HE75 Mag. The default angle is nice but the built-in stands make it perfect for my build. While it may not be strictly ergonomic, I see no reason to stop using it.

I appreciate that this keyboard is light enough for travel, but it will remain firm during the most intense gaming sessions. It definitely feels like it can take a tumble or two.

As far as gaming keyboards go, the HE75 Mag is a solid contender. The hall effect switches are incredibly responsive without putting much strain on the user’s hand. I didn’t notice a difference in latency between the wired and wireless connection, which is always appreciated. Best of all, I was getting about 10 hours of battery life with the RGB on, which translates to the perfect amount of uninterrupted gaming.

If you’re looking for your next gaming keyboard, you need to pick up the Epomakero HE75. Not only is this the prettiest keyboard you’ll own, but its performance won’t disappoint. This is the keyboard you buy when you want to upgrade your setup and do well on your raids for a reasonable price. It also makes for a fantastic present.

You can pick up the Epomaker HE75 Mag on the official site for only $99.99. Get yours today!

#2024 #blogger #entertainment #epomaker #gaming #gamingBlog #keyboard #magneticKeyboard #mechanicalKeyboard #media #tech #techReview #technology #videoGame #watch

If you're looking for a new gaming keyboard that won't break the bank, check out the Epomaker HE75!

#epomaker #magnetickeyboard #keyboard #tech #technology #review #blog #gaming #gamingaccesories #pc

https://churapereviews.com/2024/12/11/epomaker-he75-mag-keyboard-review-a-gamers-delight/

3D Printed Maglev Switches Are So Hot Right Now

It doesn't happen all the time, but over the years we've noticed that once we feature a project, a number of very similar builds often find themselves in our tip line before too long. Of course, these aren't copycats; not enough time has passed for some competitive maker to spin up their own version. No, most of the time it's somebody else who was working on a very similar project in isolation, and who now for the first time realizes they aren't alone.

Thanks to this phenomenon we're happy to report that yet another 3D printable magnetic levitation switch has come to light. Developed by [famichu], this take on the concept is markedly different from what we've seen previously, which in a way makes the whole thing even more impressive. It's one thing for multiple hackers to develop similar projects independently of each other, as the end goal often dictates the nature of the design itself. But here we're seeing a project that took the same core concepts and ran in a different direction.

So what makes the MagLev Switch MX different from [riskable]'s recently released void_switch? In a word, convention. It seems that [famichu] wanted to create a magnetic switch that operated in more or less the same way a traditional Cherry MX switch does, while the void_switch represents a re-imagining of how keyboard switches should work entirely. So for example, rather than putting all the Hall effect sensors on the main PCB so there's no need to make an electrical connection to each individual switch, each MagLev Switch MX is pinned and must be wired together to form a matrix.

Internally, [famichu] has come up with a unique arrangement wherein the Allegro A1304 linear Hall effect sensor is actually placed in between two opposing magnets that stand in for the traditional spring. When the key is depressed the sensor will pick up the magnetic flux environment changing around it, but interestingly, the schematic for the keyboard PCB would seem to indicate that the senors are not being read directly by the microcontroller. Instead, their output is being used to trigger MOSFETs on each row of the matrix.

In this design, each switch carries its own Hall sensor.

In terms of getting them printed, the MagLev Switch MX has fewer parts than the void_switch, and [famichu] recommends printing them on an MSLA machine. This greatly accelerates the printing time compared to the FDM-printed void_switch, as there's no time penalty for filling the entire build volume of the printer for each run. As for customization, the Fusion 360 design files have been included in addition to the standard STL/3MF models. But for our money, nothing quite beats using OpenSCAD's customizer capability for a project like this.

The big takeaway here is that there's clearly more than one way to make an open source, 3D printable, magnetic MX-style switch. We're very excited to see both projects develop further, especially since a little birdie tells us that [riskable] has taken a close look at this design and has a few notes to pass on to [famichu] based on his experiences developing the void_switch. With these two magnetic mavens collaborating, the future of bespoke input devices is looking very bright indeed.

Thanks to [Stephanie] for the tip.

#peripheralshacks #3dprintedkeyboard #halleffectsensor #keyboard #magnetickeyboard

3D Printed Magnetic Switches Promise Truly Custom Keyboards

While most people are happy to type away at whatever keyboard their machine came with, for the keyboard enthusiast, there's no stone to be left unturned in the quest for the perfect key switch mechanism. Enter [Riskable], with an innovative design for a 3D printed mechanism that delivers near-infinite adjustment without the use of springs or metallic contacts.

The switching itself is performed by a Hall effect sensor, the specifics of which are detailed in a second repository. The primary project simply represents the printed components and magnets which make up the switch mechanism. Each switch uses three 4 x 2 mm magnets, a static one mounted on the switch housing and two on the switch's moving slider. One is mounted below the static magnet oriented to attract it, while the other is above and repels it.

With this arrangement the lower magnet provides the required tactility, while the upper one's repulsive force replaces the spring used in a traditional mechanism. [Riskable] calls it the magnetic separation contactless key switch, but we think "revolutionary" has a nicer ring to it.

The part which makes this extra-special is that it's a fully parametric OpenSCAD model in which the separation of the magnets is customisable, so the builder has full control of both the tactility and return force of the keys. There's a video review we've posted below that demonstrates this with a test keypad showing a range of tactility settings.

We have a resident keyboard expert here at Hackaday in the shape of our colleague [Kristina Panos], whose Keebin' With Kristina series has introduced us to all that is interesting in the world of textual input. She plans on taking a keyboard made of these clever switches on a test drive, once she's extruded the prerequisite number of little fiddly bits.

Thanks [Daren Schwenke] for the tip.
