29th November 2023: First fire #flames in the new #oven with #flat #vault realized as minor arch. Smoke outlet at the back left of the combustion chamber. Bottom of the oven lined with special #fireclay #baking plates ('Wieselburger Bäckerplatten')

PS: This amount of #burning wood is enough for the first #fire.
Unfortunately, I added far more wood afterwards.

#building #diy #handcraft #craftsmanship #bricklaying #fireart

#New #oven interior with flat #vault built as minor #arch.
Smoke outlet at the back left of the combustion chamber.
Bottom of the oven lined with special #fireclay #baking plates ('Wieselburger Bäckerplatten')
Inside dimensions of the oven 100cm x 60cm.

#building #diy #handcraft #craftsmanship #bricklaying

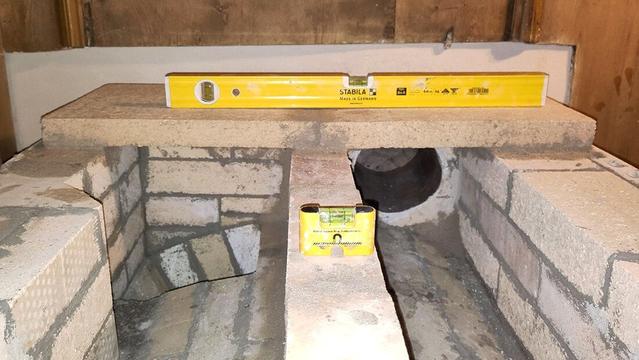

#Oven #heating flues walls dividing wall finished. Started to cover the oven ceiling with two #fireclay plates.

#work #building #diy #handcraft #craftsmanship #bricklaying

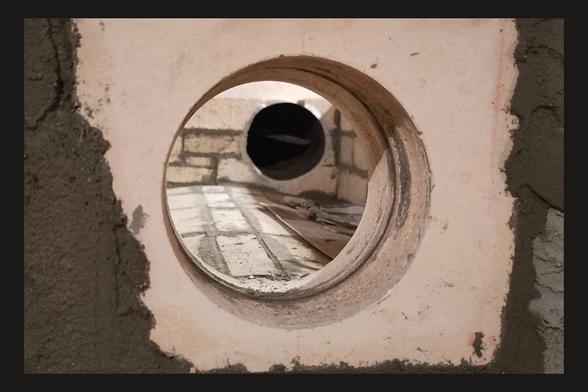

#Oven opening for cleaning and wiping the #heating flues embedded in the #fireclay wall. View from the inner side. Old round frame with brackets of the opening fitted and sealed in the hole.

#photography #artwork #building #diy #handcraft #craftsmanship #bricklaying

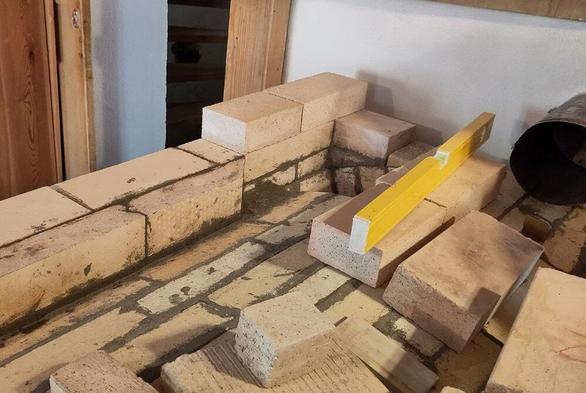

First row of the sidewalls and around the gas outlet of the combustion chamber of the #oven partly bricked with individual cuts of the #fireclay #stones.

#work #building #diy #handcraft #craftsmanship #bricklaying

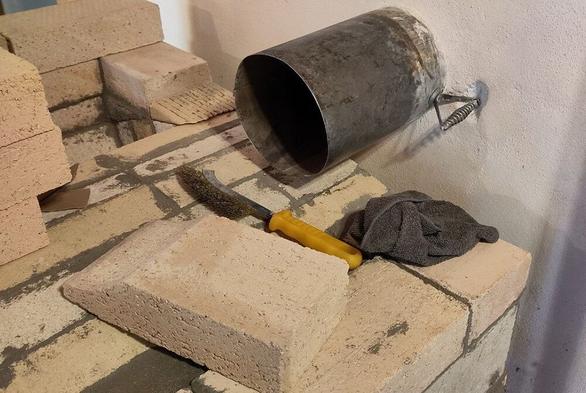

Old #oven flue pipe shortened, cleaned and deburred. #Fireclay #stone with rounded cuts on both sides to fit exactly with ca. 10mm room for morter and sealing.

#work #building #diy #handcraft #craftsmanship #bricklaying

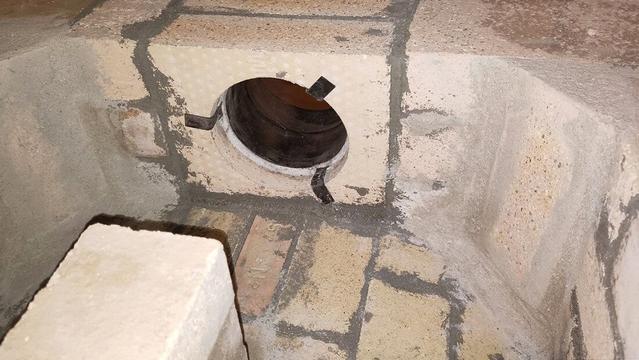

#Oven opening for cleaning and wiping the #heating flues embedded in the wall.
I couldn't get a cleaning opening with the dimensions of the old lid, so i had to drill custom #holes in two thick #fireclay stones. I used a special cutting drill on my angle grinder.

#photography #work #building #diy #handcraft #craftsmanship #bricklaying

Side walls with abutment bricks finished and aligned with #fireclay #bricks. Wooden #framework and support for flat #vault (minor arch) set up and aligned in the center of the oven. #Fine plastered wall in the background with a #oven pipe leading into the wall.

#work #building #diy #handcraft #craftsmanship #bricklaying

#Fine plastered wall in the background with a #oven pipe leading into the wall. Oven floor covered with newspaper. Side walls with abutment bricks finished and aligned with #fireclay #bricks.

#work #building #diy #handcraft #craftsmanship #bricklaying

#Fine plastered wall in the background with a #oven pipe leading into the wall. Oven floor covered with newspaper. First and second row of walls completed with #fireclay #bricks.

I had to carefully chisel out the front again because I made a stupid mistake. The large brick under the oven entrance had a protrusion, which i had to undo in order to align it correctly.

#work #building #diy #handcraft #craftsmanship #bricklaying
