STM32 Tutorial #76 - Jailbreaking ST Vendor lock-in - clion + libopencm3 + cmsis-dap

As a result of ST's somewhat botched release of STM32CubeIDE 2.0.0 and their failure to keep their own promises of providing ST-Link binaries to third parties, in this video we will make an attempt to break out of ST's vendor lockin eco-system and go with alternative tools.

#STM32 #Tutorial #LibOpenCM3 #Streamline #STM32World #CLion #cmsis

https://www.youtube.com/watch?v=zra_bvB9MGs

STM32 Short #10 - HOWTO Install CMSIS Libraries (including DSP)

In STM32World Tutorial #15 we used the Arm CMSIS DSP libraries but in that video there were no mention on how to install it. In this video we will fix that oversight and go through the process.

#STM32 #STM32CubeIDE #STM32CubeMX #CMSIS #ARM #STM32World

https://www.youtube.com/watch?v=QxqnBByUvKE

STM32. CMSIS. Использование UART в качестве таймера для генерации периодических прерываний

В данной статье рассматривается применение UART в качестве «таймера» для генерации прерываний с заданной периодичностью. Будут рассмотрены два способа настройки, один с применением контроллера DMA, второй — без него.

https://habr.com/ru/articles/871564/

#stm32 #cmsis #embedded #embedded_software_development

I've been trying to find tools for generating C header files from #arm #cmsis svd (system view description) . There seems to be a fault with the tools I've found. They either won't compile (and some of them are huge compiles requiring latest build tools) or bail on some nitpick.

I decided to write my own generator in python. So far, it's 38 lines and does most of what I want. 38 lines! Why are the other tools making such hard work of it?

An Interview with Reinhard Keil

Over on the Embedded FM podcast, [Chris] and [Elecia] just released their interview with [Reinhard Keil] of compiler fame. [Reinhard] recounts the story of Keil's growth and how it eventually became absorbed into Arm back in 2005. Along with his brother Günter, the two founded the company as Keil Software in the Americas, and Keil Elektronik in Europe. They initially made hardware products, but as the company grew, they became dissatisfied with the quality and even existence of professional firmware development tools of the day. Their focus gradually shifted to making a CP/M- and a PC-based development environment, and in 1988, they introduced the first C-compiler designed for the 8051 from the ground up.

Love it or hate it, the Arm Keil suite of µVision IDE and the MDK/Cx51 compiler have been around a long time and used by embedded developers in many industries. Although a free and restricted-use version is available, the license fees prevent most folks from getting very enthusiastic about it. Pricing aside, the µVision IDE has its critics: [Jay Carlson], who used every IDE under the sun a few years ago in his review of sub-one-dollar microcontrollers, opined that it was nothing more than a free editor you get with C51 or MDK-ARM. On the other hand, even [Jay] concedes is that every chip he tested was officially supported by Keil and worked out of the box. Another thing that is important to some users is being able to produce consistent binaries from old projects. This isn't important for your one-off MQTT hot tub thermometer. But if you need to recompile firmware for a fifteen-year-old railroad signaling system that has multiple certifications and regulatory approvals, using the original compiler and library versions is a huge help.

[Reinhard] goes on to discuss various tools and systems being developed at Arm by his team, such as improvements and additions to the CMSIS suite, the transition of the online Mbed compiler to the new Keil Studio Cloud, and an Arm hardware virtualization tool for cloud-based CI verification. Lest you think everything at Arm is proprietary and expensive, he points out that Arm is a major contributor to the GCC project and the CMSIS components are open source. Even if you aren't interested in Arm/Keil tools, do check out the interview -- it's quite interesting and touches on several topics of general interest to all firmware developers. Or if you prefer, read the interview when the transcript is completed.

#arm #softwaredevelopment #c51 #cmsis #interview #keil #podcast

Raspberry Pi RP2040: Hands-On Experiences From An STM32 Perspective

Bare-Metal RP2040: Hands-On Experiences From An STM32 Perspective

The release of the Raspberry Pi Foundation's Raspberry Pi Pico board with RP2040 microcontroller has made big waves these past months in the maker community. Many have demonstrated how especially the two Programmable I/O (PIO) state machine peripherals can be used to create DVI video generators and other digital peripherals.

Alongside this excitement, it raises the question of whether any of this will cause any major upheaval for those of us using STM32, SAM and other Cortex-M based MCUs. Would the RP2040 perhaps be a valid option for some of our projects? With the RP2040 being a dual Cortex-M0+ processor MCU, it seems only fair to put it toe to toe with the offerings from one of the current heavyweights in the 32-bit ARM MCU space: ST Microelectronics.

Did the Raspberry Pi Foundation pipsqueak manage to show ST's engineers how it's done, or should the former revisit some of their assumptions? And just how hard is it going to be to port low-level code from STM32 to RP2040?

How Hard Could it Be?

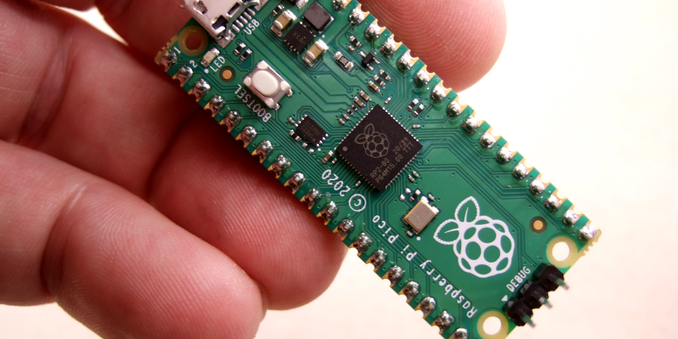

Raspberry Pi Pico RP2040-based board, hooked up to a Raspberry Pi SBC acting as SWD dongle.

Long story short, after the RP2040 caught my eye, I figured it might be interesting to try and port my C++-based STM32 framework to this new MCU. Not so much for the dual Cortex-M0+ cores, though, as I have STM32H7 dual-core (M4 & M7) MCUs lying around which will handily beat the stuffing out of an RP2040 with gobs more I/O to spare. What mostly intrigued me was this state machine peripheral (PIO) in the RP2040 that seemed worthy of a closer look.

Based on my experience with STM32, I figured I could quickly port over some files, create a new 'RP' architecture branch in the project and be off to the races. Cortex-M is Cortex-M, right? The usual procedure with a new ARM-based MCU is to get the datasheets, reference manual and the CMSIS device files. After this one can easily adapt the low-level code to use the new peripheral naming & register layout, while core-level devices (SysTick, NVIC, etc.) stay the same.

Perhaps naively, I had put in an order for a Raspberry Pi Pico board before even checking for CMSIS support, or glancing at the reference manual. To my surprise, I found that CMSIS support or even interoperability with the rest of the Cortex-M ecosystem was not yet on the radar. Still, the SVD file for RP2040 MCU is provided in the 'Pico SDK', which can be used to generate the device header from. Courtesy of Chris Hockuba's efforts on bootstrapping CMSIS with the RP2040 I eventually had a working solution together.

This Could be Easier

RP2040 boot sequence (RP2040 datasheet, Fig. 15).

With an STM32 project, there are a few items required to make a bare-metal project work on a target MCU. These include the start-up code which performs some basic setting up of the environment as well as the vector table for interrupt handlers. There's also the linker script to ensure that all bits end up at the right memory offset. This is all fairly minimal, with the MCU upon boot loading the firmware image from Flash ROM at the default address.

The first hurdle with the RP2040 is to understand its chained bootloader process. Much like with bootable floppy disks of yore, or a HDD/SSD in a PC, the external QSPI Flash ROM is treated essentially as a potential boot device by the MCU. The first stage bootloader is integrated into the MCU in boot ROM, address 0x0000 0000, which upon boot checks the QSPI interface to try and load 256 bytes from it. This will be checked for a valid CRC32 hash match and assumed to be the second stage bootloader if it matches.

There are a lot of things which this second stage bootloader could do and some which are required. Suffice it to say for now that compared to some famous STM32 clones - such as the GigaDevices I-can 't-believe-it's-not-a-genuine-STM32 clones - which also use SPI ROMs, this whole process with the RP2040 is not as intuitive, well-documented or transparent as it could be, with plenty of stumbling blocks.

Good Artists Copy

It took me a fair bit of digging around in the RP2040 datasheet and asking around to figure out how the peripheral clock manager in STM32 maps to the RP2040 system architecture. As it turns out, the RP2040's version is called RESETS and works basically in reverse: you have to unset the reset condition on a block to enable the clock for it. To enable the GPIO clock, you have to toggle bit 8 in RESETS_RESET (PADS_BANK0).

Block diagram of an RP2040 GPIO pad.

That figured out, I looked at the GPIO peripheral section in the documentation (section 2.19). One thing is immediately apparent: this is completely different from the STM32, AVR, SAM and most other GPIO peripherals I have ever seen.

While most chips have one or two registers per function, and you shift bits into them to activate that function for a particular pin, the RP2040 has a register per pin and you shift bits into a place that dictates the function. It's a unique choice, and I had to write some custom code to look up the memory address of the control registers for each pin.

After going through all of this effort, surely it will just work, right?

Boot Shenanigans

As mentioned before, the second stage bootloader has to be located at the beginning of the firmware image. Since I figured this had to be some generic code, I simply took the ready-to-use ASM code that got spat out by the official PicoSDK while building the Blinky example. With this added to the RP2040 Nodate port, the Blinky example built without issues.

Flashing the resulting ELF binary to the RP2040 was the next challenge, as there is no onboard ST-Link-style SWD adapter on the Raspberry Pi Pico board, and as a dual-core Cortex-M MCU, it requires a multi-drop SWD adapter. So far the only multi-drop SWD adapters which I have are integrated on STM32H7 Nucleo boards. Thus I decided to use the custom OpenOCD fork which was created by the Raspberry Pi Foundation, running it on a Raspberry Pi SBC.

With all that in place, I successfully flashed the firmware to the RP2040 and… got absolutely nothing. From a cursory inspection it appeared that the code never got past the initial boot loader and into the actual firmware in the SPI ROM. Whether this is due to an issue related to the second stage bootloader ASM, something in the experimental RP2040 CMSIS files which I had to borrow from someone else's efforts, or due to something else entirely is hard to say at this point.

To Be Continued?

After spending quite a few hours on making bare-metal RP2040 work using cobbled together CMSIS and second stage bootloader files, it felt like the right time to take a few steps back and reevaluate. Since my initial evaluation of the RP2040, the CMSIS feature request in the Pico SDK tracker has joyfully been updated with the suggestion that official CMSIS support may be added with the 1.2.0 release of the Pico SDK.

I think it makes sense for anyone who wants to get intimate with the RP2040 using industry standard tools to wait for this release. Once it drops, I'll likely end up revisiting first the Nodate Blinky example, and then finally check out the PIO peripheral. Having read up on its two state machine architecture, it seems interesting enough. Not as powerful as a CPLD or FPGA, but still extremely useful.

The single RP2040 'datasheet' (more a reference manual & datasheet mashed together) seems to at times forget that it's supposed to be covering the MCU, and will veer off into being a Pico SDK tutorial. While useful for those who wish to use the SDK, it's decidedly less useful to those who are writing their own implementation.

From the convoluted GPIO peripheral, the complicated multi-core boot process, and the added hurdle of having to integrate a second stage bootloader along with a non-transparent external ROM, much of it rather grates. You're going to want to use the official SDK.

It's possible that once one gets used to these design choices, it won't feel as jarring. Or maybe it's just a question of working the RP2040 into the standard toolchain. Every new MCU is a bit of a learning experience, after all.

#arm #hardware #microcontrollers #armcortexm0 #cmsis #raspberrypi #rp2040 #stm32
