C64 Ultimate Audio: Real Sampled Music with Breadamp
#Commodore64 #C64Ultimate #Breadamp #SID #FPGA #RetroComputing #Demoscene #CSDB #8bit #Chiptune
https://theoasisbbs.com/c64-ultimate-audio-real-sampled-music-with-breadamp/?fsp_sid=2048

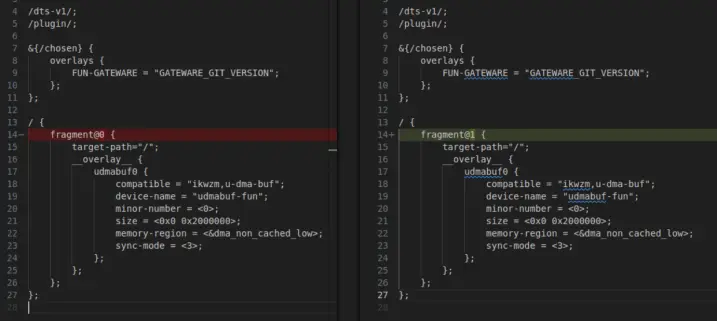

It's so wild to me that this little number changes, where "FUN-GATEWARE" and its corresponding version appears when the overlay is loaded.

With fragment@0 the version can be read from /proc/device-tree/overlays/FUN-GATEWARE (notice that there is no chosen despite the code specifying it).
With fragment@1 the version can be read from /proc/device-tree/chosen/overlays/FUN-GATEWARE as expected.

#Linux #FPGA #device-tree-overlay #it-took-me-so-long-to-find-that-this-caused-my-problem #I-got-desperate-enough-to-ask-AI-and-it-insisted-that-my-DTSO-file-is-correct-xD

@jcm@wafrn.jcm.re asked

library ieee; use ieee.std_logic_1164.all; use ieee.numeric_std.all; entity my_code is generic( WIDTH : integer := 640; HEIGHT : integer := 480; CONSOLE_COLUMNS : integer := WIDTH / 8; CONSOLE_ROWS : integer := HEIGHT / 8 ); port( clk : in std_logic; rst : in std_logic; px : in integer range 0 to WIDTH - 1; py : in integer range 0 to HEIGHT - 1; hsync : in std_logic; vsync : in std_logic; col : in integer range 0 to CONSOLE_COLUMNS - 1; row : in integer range 0 to CONSOLE_ROWS - 1; char : out integer range 0 to 127 := 0; foreground_color : out std_logic_vector(23 downto 0) := (others => '0'); background_color : out std_logic_vector(23 downto 0) := (others => '1') ); end my_code; architecture rtl of my_code is -- STATE MACHINE DEFINITIONS type demo_state_t is (CALM_TUNNEL, DATA_STORM, RETRO_WAVE); signal current_state : demo_state_t := CALM_TUNNEL; -- SIGNALS signal frame_counter : unsigned(31 downto 0) := (others => '0'); signal lfsr : unsigned(15 downto 0) := x"ACE1"; -- Linear Feedback Shift Register (Randomness) -- COLOR OUTPUT BUFFERS signal r_out, g_out, b_out : unsigned(7 downto 0); constant MSG_1 : string := " INITIATING NEURAL LINK... "; constant MSG_2 : string := " WARNING: DATA CORRUPTION DETECTED "; begin ---------------------------------------------------------------------------- -- 1. MASTER TIMING & STATE CONTROL ---------------------------------------------------------------------------- process(clk) variable old_vsync : std_logic := '0'; begin if rising_edge(clk) then if rst = '1' then frame_counter <= (others => '0'); current_state <= CALM_TUNNEL; lfsr <= x"ACE1"; -- Non-zero seed else -- LFSR: Generate pseudo-random noise every clock cycle -- Taps: 16, 14, 13, 11 (Standard 16-bit LFSR polynomial) lfsr <= lfsr(14 downto 0) & (lfsr(15) xor lfsr(13) xor lfsr(12) xor lfsr(10)); if vsync = '0' and old_vsync = '1' then frame_counter <= frame_counter + 1; -- Cycle states every 128 frames (~2 seconds) if frame_counter(6 downto 0) = 127 then case current_state is when CALM_TUNNEL => current_state <= DATA_STORM; when DATA_STORM => current_state <= RETRO_WAVE; when RETRO_WAVE => current_state <= CALM_TUNNEL; end case; end if; end if; old_vsync := vsync; end if; end if; end process; ---------------------------------------------------------------------------- -- 2. TEXT OVERLAY LOGIC ---------------------------------------------------------------------------- process(col, row, current_state) variable str_idx : integer; begin char <= 0; foreground_color <= (others => '0'); -- Center the text row if row = CONSOLE_ROWS / 2 then -- Simple centering logic str_idx := col - (CONSOLE_COLUMNS/2 - 15); if current_state = DATA_STORM then -- In Data Storm mode, show warning if str_idx >= 0 and str_idx < MSG_2'length then char <= character'pos(MSG_2(str_idx + 1)); foreground_color <= x"FF0000"; -- Red Alert end if; else -- Otherwise show status if str_idx >= 0 and str_idx < MSG_1'length then char <= character'pos(MSG_1(str_idx + 1)); foreground_color <= x"00FFFF"; -- Cyan end if; end if; end if; end process; ---------------------------------------------------------------------------- -- 3. PIXEL SHADER ARCHITECTURE (Latch-Free) ---------------------------------------------------------------------------- process(px, py, frame_counter, lfsr, current_state) -- Variables for coordinate math variable dx, dy : integer; variable dist_man : unsigned(9 downto 0); -- Manhattan Distance variable time_val : unsigned(7 downto 0); variable noise_pixel: std_logic; variable scan_line : integer; begin -- 3a. DEFAULT ASSIGNMENTS (Crucial to prevent latches) r_out <= (others => '0'); g_out <= (others => '0'); b_out <= (others => '0'); -- 3b. MATH PRE-CALCULATION -- Calculate distance from center (WIDTH/2 = 320, HEIGHT/2 = 240) if px > 320 then dx := px - 320; else dx := 320 - px; end if; if py > 240 then dy := py - 240; else dy := 240 - py; end if; -- Manhattan distance (Diamond shape) |x| + |y| -- We clamp it to 10 bits to prevent overflow issues dist_man := to_unsigned(dx + dy, 10); time_val := resize(frame_counter(7 downto 0), 8); -- 3c. VISUAL GENERATION case current_state is when CALM_TUNNEL => -- Effect: A smooth purple/blue diamond tunnel zooming inward -- Logic: (Distance - Time) creates inward movement r_out <= dist_man(7 downto 0) - time_val; g_out <= (others => '0'); b_out <= dist_man(7 downto 0) + time_val; when DATA_STORM => -- Effect: The tunnel turns green/matrix and gets noisy -- We use the LSFR bit 0 to randomly turn pixels bright white if lfsr(0) = '1' and lfsr(4) = '1' then r_out <= x"FF"; g_out <= x"FF"; b_out <= x"FF"; -- Sparkle else r_out <= (others => '0'); g_out <= dist_man(7 downto 0) xor time_val; -- Matrix Green XOR pattern b_out <= (others => '0'); end if; when RETRO_WAVE => -- Effect: Synthwave style horizontal scanlines -- We use modulo on Y + Time to create scrolling bars scan_line := (py + to_integer(time_val)*2) mod 32; if scan_line < 4 then -- Bright Grid Line r_out <= x"FF"; g_out <= x"00"; b_out <= x"80"; -- Hot Pink else -- Background Gradient r_out <= to_unsigned(py / 2, 8); -- Vertical Red Gradient g_out <= (others => '0'); b_out <= to_unsigned(px / 3, 8); -- Horizontal Blue Gradient end if; end case; end process; -- MAP OUTPUTS background_color <= std_logic_vector(r_out) & std_logic_vector(g_out) & std_logic_vector(b_out); end architecture;

Sucess!

UtilizationCellUsedAvailableUsage DCCA2563.6% EHXPLLL1250% TRELLIS_COMB1402242885.8% TRELLIS_FF162242880.7% TRELLIS_IO101975.1%
TimingClockAchievedConstraint $glbnet$clkp39.94 MHz25 MHz $glbnet$clkt303.67 MHz250 MHz

#FPGA #Icepi-Zero #HDL #VHDL
