I'm not sure how useful this information is, but...it's yours now.
I've figured out the 1394-byte message!
It's actually part of a set of three messages: two 1394-byte long and one 335.
As I suspected, those 1394 transmit map information. But the full map information is split across those 3 packets. Maybe because they're UDP and LEGO didn't want the packet to be too long not to cause problems..?
These 3 messages are sent every time the Toybox is closed by a player.

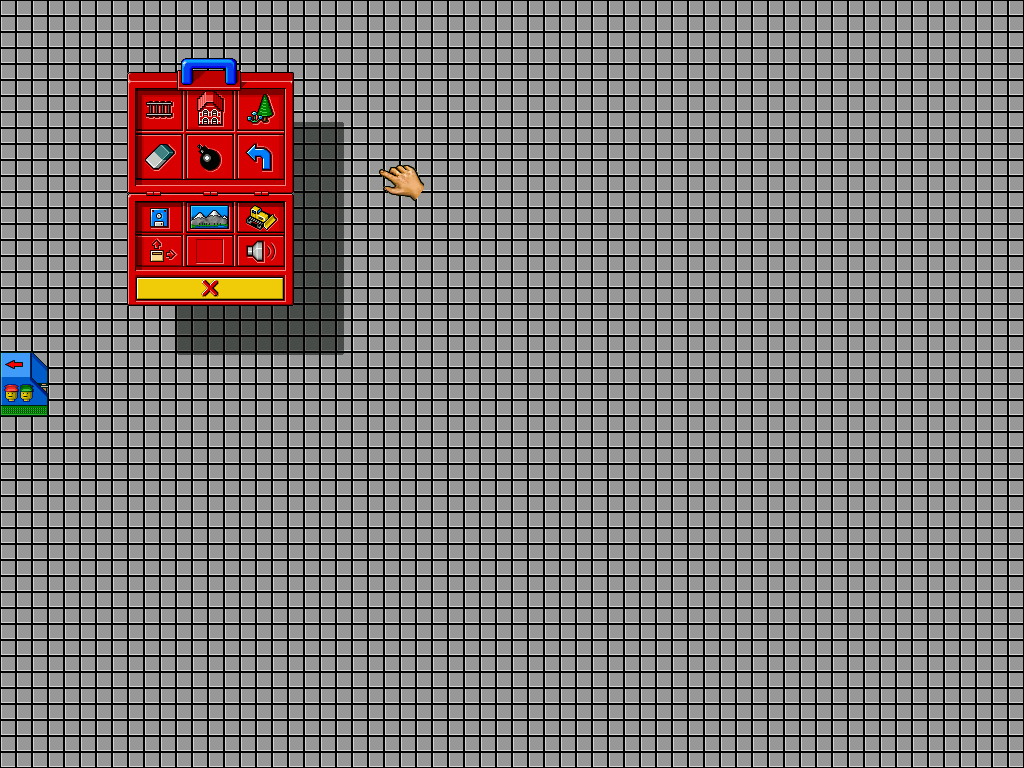

To figure out what the messages were and their structure, first I made Sarah destroy the full map with the bomb in the Toybox (the Blue Tunnel remains there though). Then I started adding elements such one track and one tile to coordinates (0,0), then the full first row, then the final row. Then the whole map.
Conclusions:
PS: I had written previously that the map was 48 by 48 tiles, which is wrong.
Tracks are represented by 0x05. Grey tiles by 0x07. Those are the only ones I checked for now.
A Blue Tunnel is a 3 by 3 square filled with 0x05.

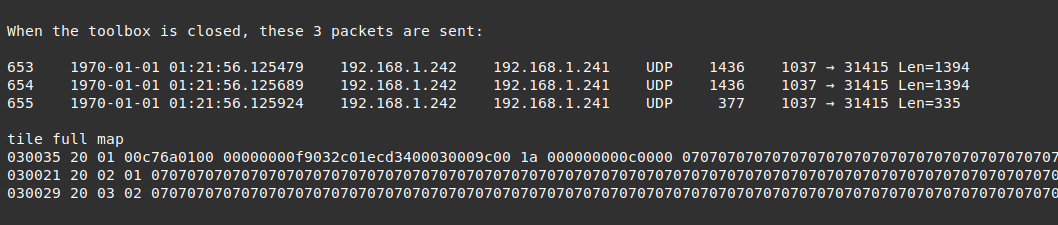

The screenshot shows what I've been able to figure out of the messages so far. I know there are some fixed bytes that seen to vary with the message number; some counters; there's the DirectPlay ID of the player who closed the Toybox; and of course the tile info.
But there are two chunks of bytes I have no idea about so far.
I really hope there are no checksums involved here
Just noticed that now right clicking on the Tunnel from John's side shows Sarah's map as all grey.
For a moment I thought this could mean Sarah was offline. Nope! It's a representation of Sarah's fully grey-tiled map! So it seems this view may actually show not only tracks and related buildings, but an overall view of what the other player has placed in the map!
I'm continuing to figure out the protocol for sending trains. I'm currently pretty sure about some parts of the message, such as train direction, speed, locomotive type... Now I'm trying to understand how carriages are specified.
Regarding speed, I thought I had that field pretty much figured out. I thought a specific byte at 0x01 meant half speed and 0x04 mean full speed (never mind the weird jump...). But then I saw a train at full speed with value 0x02. I thought "oh well, must not be the speed after all". But then... I realised steam locomotives move slower at full speed than "silver" locomotives!
The view below shows a race between a team locomotive and silver locomotive trains. Silver wins, which matches 0x04 vs 0x02 speeds 😁
I figured out a few more things in the "send train" messages. But I can't figure it out fully. Nor, more disappointingly, can I manage to send trains.
The image shows what I know about the messages involved in sending a train.
And here are some conclusions:
To figure out what I did of the messages, I sent quite a few trains with varying locomotive and carriage types, and among multiple players and their configurations on the overall map.
The first screenshot below shows two of the configurations I used. The remaining screenshots show what the map actually looked like for each of the three players.
It's cool that depending on the zone of the map LOCO creates for you a track that connects the tunnels in a way that make sense for your location on the map. So those three screenshots are from what LOCO did, it wasn't me creating those track configs.
Some bytes seems to be the locomotive or carriage types. I've taken note of the hex string for each type as I've understood it.
» Aakerbeere 🏖️
Sean Kleefeld
Fuzzy Leapfrog
It's FOSS
pitch R.
ultrageranium
datenwolf
Jan Beta
Christoph Stoettner
Unseen Japan
Gonçalo Ribeiro0418. yellow loco
0618. silver loco
0818. steam loco
6618. silver carriage
6818. blue carriage
6a18. green carriage
6c18. yellow carriage
6e18. gas carriage
7018. mail carriage
There's a one byte that seems to indicate the direction of travel between the maps of two players, as follows:
00 ↑
0e ←
5a →
b4 ↓
When a player right-clicks on a tunnel a window shows the overall look of each player's map and how they are connected. It also shows the location for players' trains.
When this view is opened there are two 14 and 24-byte messages that are exchanged between players every second. One of these clearly contains the coordinates for trains. I only did a cursory analysis of it though to verify the hypothesis.
One interesting thing I found is that the messages sent when the Toybox is closed (that contain map information) don't have information on the exact map elements as I thought before.
I tried placing different elements on the map to get a notion of their codes and found out only four below values (this wasn't an exhaustive test though).
From what I could understand each byte is just transmitting which colour should be shown on the map overview for each tile of the map. I've found the following approximate meanings for each.
0x02: nature (green)
0x03: buildings (brown)
0x05: track (black)
0x07: pavements (grey)
The images below show a screenshot of a map (from one LEGO LOCO's presets, which brings memories) and its representation when right-clicking a blue tunnel.
Regarding being unable to send trains... It's a shame I'm unable to send trains because that would allow me to run experiments and understand the protocol much faster... And probably find some weird stuff/quirks.
As a test I've tried to essentially replay trains that I captured in pcaps. I did this in multiple ways.
My basic attempt was just to send messages with perl + #ncat as follows. I sent the three main messages by putting these commands in script with a sleep of a few milliseconds between them.
perl -e 'print pack("H*", $ARGV[0])' <hex string> | ncat -vu 192.168.1.242 31415
As that didn't work I tried changing the message counter, the train ID, etc. I thought maybe the game checks for duplicate messages or something based on the counters, which would mean the replay of an exact previous message would fail.
Next, I had the theory that maybe the game was checking the source IP address of the packet to see it if matched the expected player's address based on the DirectPlay protocol phase.
So I added the following #iptables rule such that any traffic coming from the host towards Sarah's VM (192.168.1.242) would appear as if had come from James' VM (192.168.1.243).
iptables -t nat -A POSTROUTING -p udp -s <my ip> -d 192.168.1.242 -j SNAT --to-source 192.168.1.243
In the packet captures I could see that the source IP changed as intended and Sarah's game responded to these messages, but no trains were produced.
Lastly, I thought maybe I was missing something... maybe there was another message other than those three main ones which had to be send to say "okay, that's it, that' the train right there in the previous packets!"
So I tried to replay a set of packets exactly as I captured them. To do this I filtered a set of James's packets, saved a pcap with them and used #tcpreplay to send them.
Again... no train.
Worth to consider though that with this test I used the correct source address for James (with iptables rule), and sent exact packets seen before, so any counters or similar that may need incrementing were left as is, which may be problem.
In short, I can say for now I'm beat. (Or that at least I'm not willing to invest more time in this right now.)
I started this thread with the idea to explore a bit how things worked. I thought maybe it was a simple protocol which I could figure out and send some trains! Turns out it's not that simple.
But still, I found a few interesting things both in terms of gameplay and on how things work in the background to support that experience. So I still consider this a success in that regard.
Ah, I forgot to mention that I wrote a small diff tool to try to figure what was fixed on the messages of a specific train and what wasn't. This is in part because I suspect/suspected that there are extensive regions in a message that are/may be uninitialised.
What this differ tool does is I can feed it hex string from the same type of message and it will check for each nibble which values were found among the messages. Then it represents that by writing lines of hex and spaces where each column represents all the variations found for that nibble.
The screenshot below shows an output example, with a section of a message. Where there's only one value per column it means those nibbles were always the same, so they are probably constant for at least this type of train. There's an highlighted part which is something I had already the theory was constant and this output agreed with.
You'll notice many nibbles with value 0x2. This was purposely caused by filling Sarah's map with "nature" (0x2) elements such that any uninitialised memory had a higher probability of being filled with a recognisable pattern.
I suspect many of the parts in this section of the message (as an example) are uninitialised. But maybe if that was the case I'd have even more nibble values. So I don't really know...
To ease testing with multiple players I made LEGO LOCO run on startup via a registry key. The method in Windows 98 still exists today:
[HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Run]
"LOCO"="C:\Program Files\LEGO Media\Constructive\LEGO LOCO\Exe\Loco.exe"
I haven't yet tried "International Postcards" playing mode. Let's try it. I'm curious about the connections that does.
For that mode I start a single player game but add an Blue International Tunnel.
I've sent a train into the Blue Tunnel and... nothing on the network side. I see... that train had no postcards on it, that's why.
This map doesn't even have a post office, so I'll create a simple test for this next.
The videos below show creating a postcard and a train picking it up and going into a Blue Tunnel. (Note the bad lag in the videos is from the video itself. There's no lag in the game.)
Now there's network traffic. See the #Wireshark screenshot below.
First there's a DNS resolution over UDP of the domain loco.legomedia.com . There's an IP in the response! It's 194.216.90.10 . This IP is from AS702 Verizon Business and it's located in the UK. I've checked #Shodan and there's nothing seen open for it. I'm surprised an FQDN that's clearly specific to a game still has a specific IP associated with it. I write "specific" because legomedia.com or www.legomedia.com resolve to 62.199.219.133 , so this is not a wildcard resolution.
After the DNS resolution, there's a DirectPlay Enum Sessions message sent to the resolved IP over TCP and destination port 31415. There's no response even after TCP retransmissions. The same sequence happens twice with around 50 seconds difference.
Oh my! I wanted to do a last test before I wrapped this, and it was successful!
I could not send trains so far. But I have a good grasp of the map layout update messages. So I tried to send one of those. And it worked!
The video below shows me sending a message that alters the color or 4 tiles in Sarah's map overview as seen by John. I set 4 tiles to 0x02030507 (green, brown, black, gray). Then I increment the counter (message ID?) across the 3 packets (from 0x0e to 0x0f). Then I send the messages. You can notice on the right side that 4 tiles change color on Sarah's map! Then I proceed to change them back to colorless (0x00).
Although this result is simple it's great because it gives me confidence I can send messages to the game, and allows me to reach some conclusions. Namely:
I've iterated bytes from 0x00 to 0xff for each tile and these are the results in terms of colors they produce.
The image below was produced by interspersing incrementing byte values with 0x00 for ease of counting tiles.
The color names I took them from colorhexa.com .
0x00: transparent
0x01: ?? (very dark grayish orange, 686050)
0x02: nature (dark lime green, 008000)
0x03: buildings (dark orange [brown tone], a87430)
0x04: ?? (pure (or mostly pure) blue, 00a0f8)
0x05: track (black)
0x06: ?? (dark grayish lime green, 909490)
0x07: pavements (very dark gray, 505050)
0x08-0x1f: ?? (grayish orange, d0c0a0)
0x20-0xfe: ?? (light grayish lime green)
0xff: ?? (bright magenta, f848e0)
@robert yeah, I thought about doing that, but haven't tried. Since I saw the DirectPlay message I suspect the protocol will be pretty similar if not equal to the one used among players on LAN.
I could try just to point an International Postcards session at a multiplayer session server and see what happens...
