DJ6DP 🏳️‍⚧️ Daria

@[email protected]
14 Followers
19 Following
35 Posts
Radio amateur from Germany, first licensed in 2006.
I enjoy digital modes on HF, especially on 30 and 60m, but will also participate in SSB contests occasionally.
Mostly posting in English.
QTHJO42
Pronounsthey/them
Logbookhttps://logbook.qrz.com/lbstat/DJ6DP
DARC DOKH13
Show threadDJ6DP 🏳️‍⚧️ Daria2d ago

And another one! 📺

This pass had a higher max elevation, but the results weren't better than with the previous pass. Sometimes it even seems that shallower passes, despite the longer distance the signal has to travel through the atmosphere, work better.

With a proper cross yagi or even some circular polarized antenna as well as actual tracking this might be a completely different case of course. I don't have any of that and the great thing about @ARISS_Intl is its accessibilty! 🙂

#ARISS_SSTV

DJ6DP 🏳️‍⚧️ Daria2d ago

Also check out this beautiful QSL card I found in my mailbox the other day! 😃
This was probably my first contact with the country of Angola, done on 17m using digital modes.

I still enjoy collecting paper QSL and coincidentally I just sent a bunch out after a bit of a hiatus. 📨

DJ6DP 🏳️‍⚧️ Daria2d ago

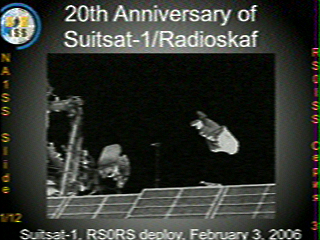

Enjoy some @ARISS_Intl #SSTV images fresh from space! 😊

RX: Yaesu FT-817 with rubber antenna
Decoder: qsstv 🐧

As I went with a handheld setup again, I disregarded automatic frequency correction and just did it by ear like I used to on VHF.
Gotta look into using an Android device for CAT control, that would be awesome.

DJ6DP 🏳️‍⚧️ Daria3d ago
ARISS - Amateur Radio on ISS4d ago

SSTV Series 32 is underway from the ISS with the theme of "World Peace" - it includes student drawn artwork on the theme.

Reminder that the ARISS-USA image library is currently offline, so hold your image decodes for future updates.

Meanwhile, why not share them here!

DJ6DP 🏳️‍⚧️ DariaApr 17
DARC e. V. | PR und ÖAFeb 2

🕐 Schon die neue Open-Source-Version von K0CJH ausprobiert?

OpenHamClock ist bereits in Betrieb und wird fast täglich um neue Funktionen erweitert! Ein modernes, browserbasiertases Tool für Raumwetter, Propagation und DX-Cluster – vollständig quelloffen und unabhängig von zentralen Servern.

✨ Was kann OpenHamClock?

Echtzeit-Raumwetterdaten & Funkausbreitung

Interaktive Kartendarstellung mit mehreren Projektionen

DX-Cluster, POTA/SOTA & WSPR-Spots

Lokal konfigurierbar – läuft auf jedem Server

Ein liebevolles Tribut an Elwoods Erbe – die Community bringt HamClock in die Moderne!

🔗 https://openhamclock.com/
🐙
https://github.com/accius/openhamclock

#Amateurfunk #OpenSource #HamRadio #K0CJH

Show threadDJ6DP 🏳️‍⚧️ DariaApr 17
So having a USB dongle that does it all seemed very intriguing and it seems to indeed do a proper job. The only downside I found so far is that it's poorly documented, and even the documentation I found online was partially wrong regarding the pinout.
I have not yet tried the CI-V controls as it requires a separate cable and probably also some jumper settings (again, poor documentation). That's a project for when I am either really bored or too annoyed with setting the QRG manually. 😅
DJ6DP 🏳️‍⚧️ DariaApr 17
Finally got around to try out a cheap "USB2RIG" interface that I ordered off a well-known chinese retail website with my Icom IC-728 today.
I used to use a self-built interface to hook the radio up to a computer for digital modes, but that is rather bulky and also only does PTT via serial RTS and audio isolation, so a separate USB sound card is required (modern notebook soundcards don't work well). If I also want frequency and controls via CI-V the whole situation becomes even messier...
DJ6DP 🏳️‍⚧️ DariaApr 12
Damn, those kits from QRP Labs look really interesting. I might become weak and order their 630m transceiver, a band that I have only explored receiving so far. 160m is one of my favourite bands in winter, but why stop there?
Show threadDJ6DP 🏳️‍⚧️ DariaApr 12
Decoding was done with the trusty old #MMSSTV which runs perfectly fine on a modern day Linux system using WINE.
The Robot36 app for Android has delivered slightly better results in difficult conditions for me, but I couldn't quickly find a decent 3,5mm audio splitter as I like to listen to what's being decoded in parallel. 😅 TRRS adapters are a mess as well, I've spent way too much time trying different resistors to get both the level and sensing on different devices right.
DJ6DP 🏳️‍⚧️ DariaApr 12

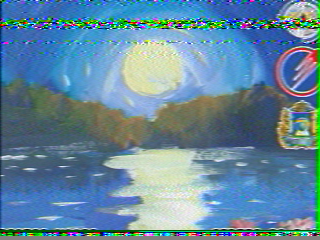

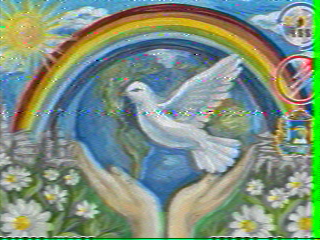

Very clean reception of the current @ARISS_Intl SSTV transmissions, probably the best I've ever had with a simple handheld setup.
The Doppler shift on UHF is more challenging than on VHF though. And while gpredict could do automatic compensation, it would mean carrying a computer with me, making the setup more bulky. So far, I am recording the audio onto my PCM recorder for later decoding, which has proven useful for several reasons.
