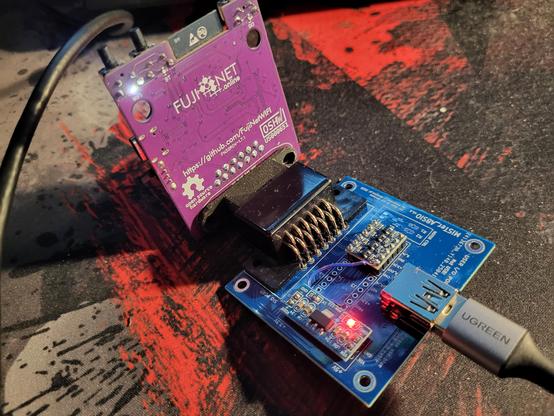

The latest version of the adapter allowing you to connect #atari8bit peripherals to #MiSTerFPGA. The entire project is available on my GitHub:
https://github.com/pmandes/MiSTer_A8SIO

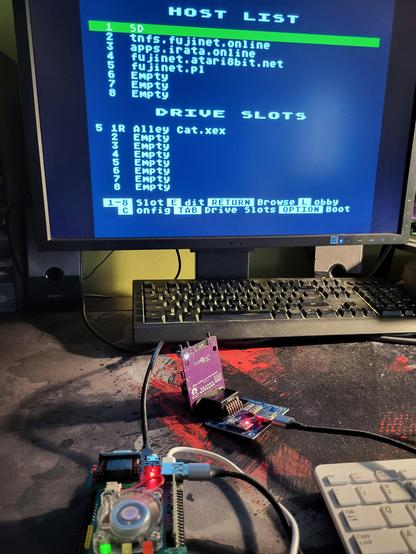

Now you can connect such SIO devices like Atari 1050 floppy disk drive or FujiNet wifi adapter 😎
The replica works in 130XE mode (128kb)! DRAM chips, a faulty PIA chip, and the Freddy chip replacement have been done. Cartridges and FujiNet are operational. All tests pass successfully 😎
#Atari130XE motherboard replica v1.1. All minor mistakes detected in the prototype corrected. I have also updated the BOM and the documentation on the project github page.

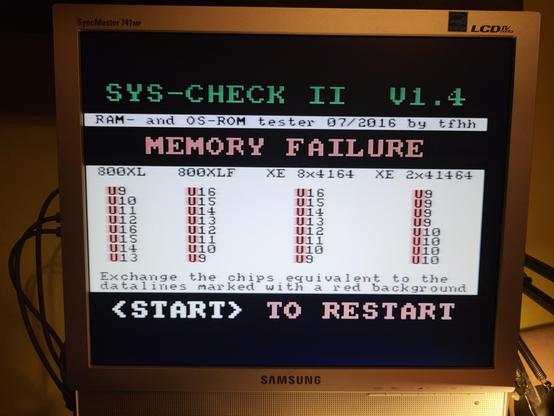

#Atari130XE replica starts to live. Status after the weekend: first blackscreen, then solved problem with address lines and lack of color (poor soldering). Now SysCheck is able test the memory...
The moment has come. All the parts installed. The project got a little dusty for lack of time, but it's time to get it up and running.

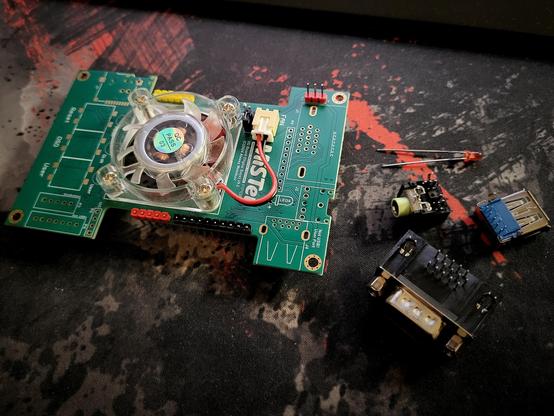

Basic I/O fan board from @TakiUdon_ upgrade. Just add some missing components.... 😎

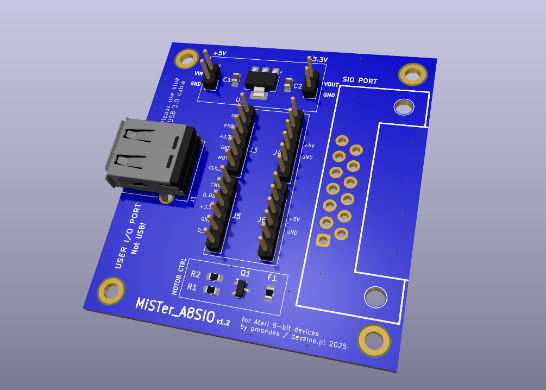

A special adapter will allow you to connect any SIO device to the User Port on the #MiSTerFPGA. The project is on my github:
https://github.com/pmandes/MiSTer_A8SIO
More tests soon...
