🔵 Orifice flow meters are 100+ years old.
🏭 Yet they’re still installed in modern plants alongside the latest “smart” instruments.

💡 There’s a reason for that.

📊 In this short carousel, I’ve broken down the essentials:

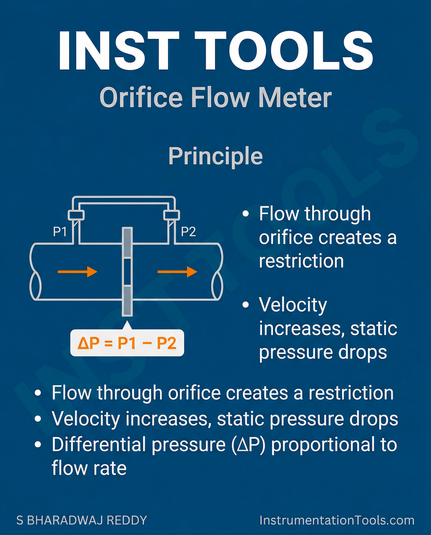

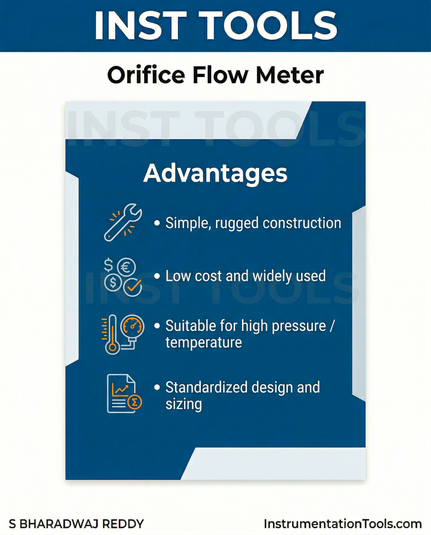

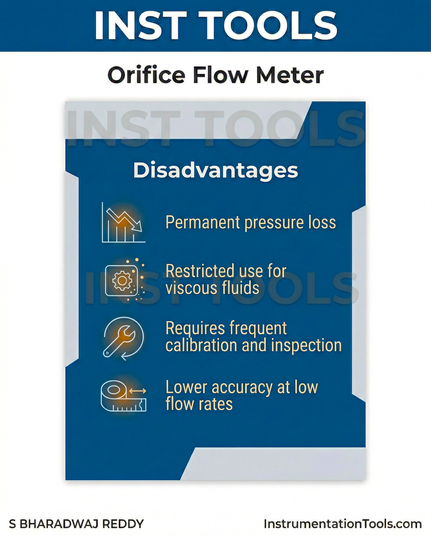

⚙️ Principle – Differential pressure across a restriction (orifice plate) is related to flow rate (Bernoulli’s principle).
🧩 Typical elements – Orifice plate + primary tap + DP transmitter + impulse lines.

📐 Important Design Parameters

📏 Beta ratio (β) – Ratio of

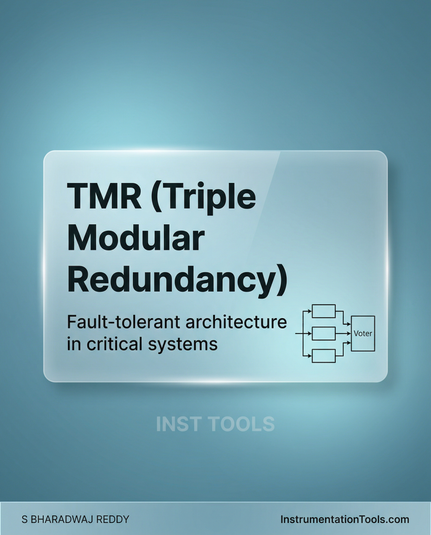

🛡️ TMR (Triple Modular Redundancy) in Safety Systems

When a single controller failure cannot be tolerated, industries use TMR architecture to keep systems safe and reliable.

Here’s the idea in simple terms 👇

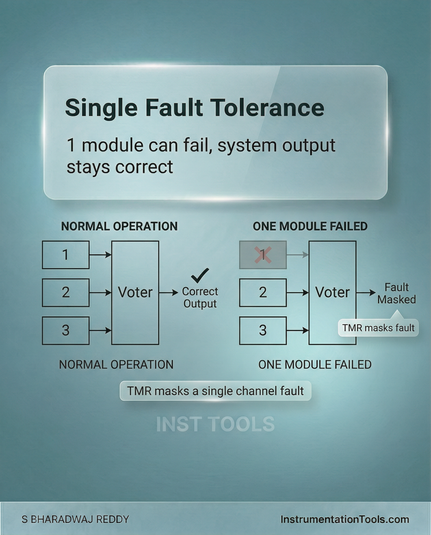

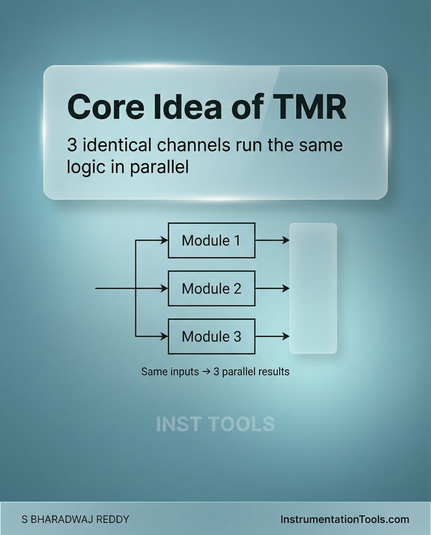

⚙️ What is TMR?

➡️ TMR = Triple Modular Redundancy

The system uses three identical controllers running the same logic simultaneously.

The final output is determined using majority voting (2 out of 3).

🧠 How TMR works

Three controllers process the same input signals.

🔹

🛡️ #2oo3D Voting Logic Explained (Two out of Three with Diagnostics)

➡️ In Safety Instrumented Systems (SIS), reliability and fault detection are critical.
➡️ One advanced architecture used in modern safety systems is 2oo3D voting logic.

Let’s break it down 👇

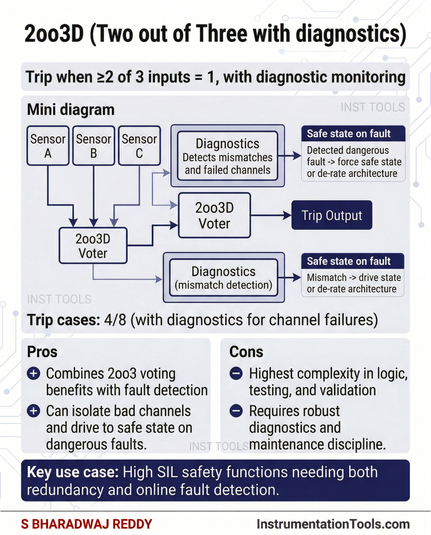

⚙️ What does 2oo3D mean?

➡️ 2oo3 = Two out of Three sensors required to trip
➡️ D = Diagnostics

The system uses three sensors, and at least two must agree before a shutdown occurs, while diagnostics continuously monitor sensor

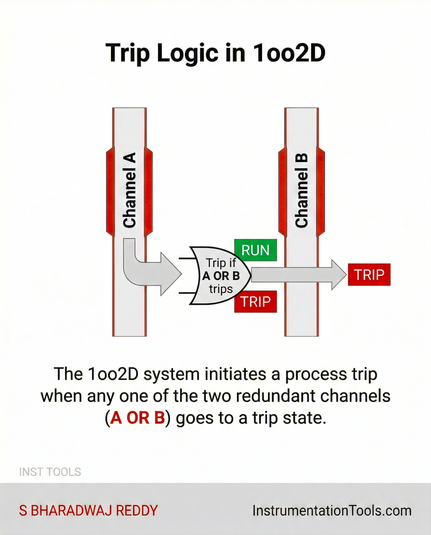

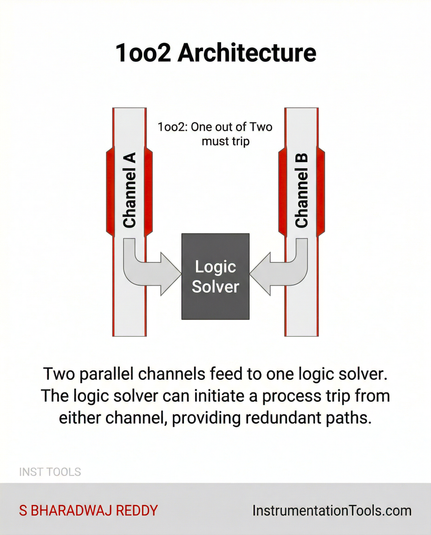

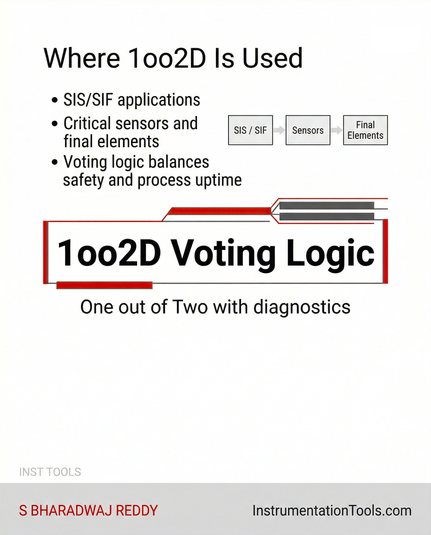

🛑 1oo2D Voting Logic Explained (One out of Two with Diagnostics)

In Safety Instrumented Systems (SIS), reliability is critical.
One common architecture used to improve safety and availability is 1oo2D voting logic.

Let’s understand it quickly 👇

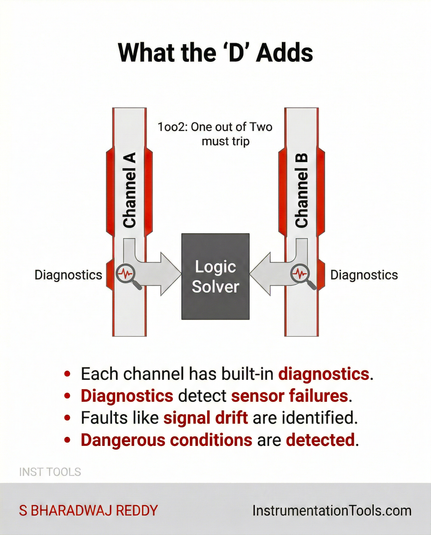

⚙️ What does 1oo2D mean?

➡️ 1oo2 = One out of Two sensors required to trip
➡️ D = Diagnostics

The system continuously monitors sensor health and faults using diagnostics.

🧠 How it works

Two sensors measure the same process variable.

🔹 Sensor

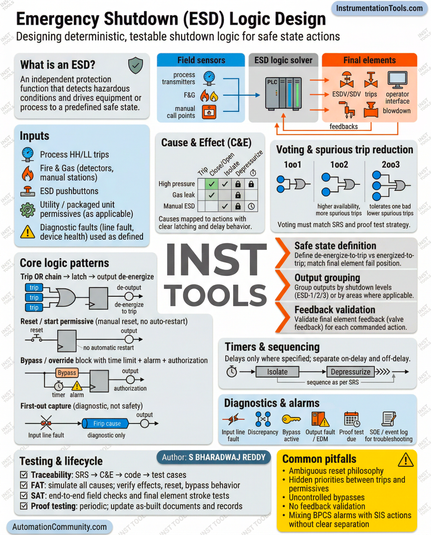

🛑 Safety Voting Logic Explained Simply (SIS / ESD Systems)

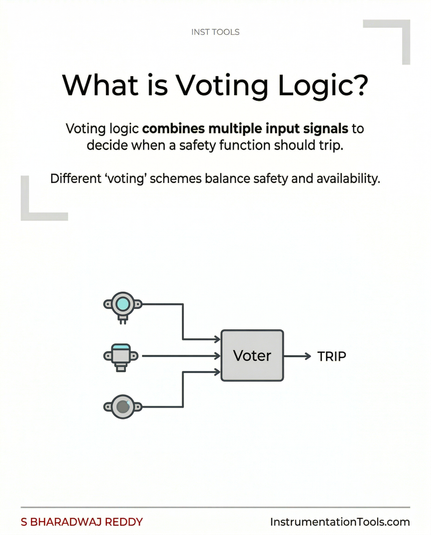

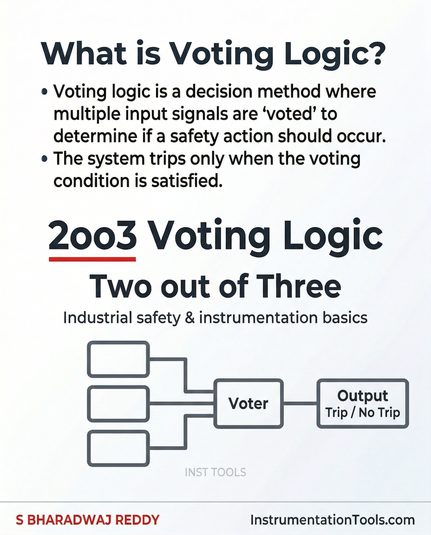

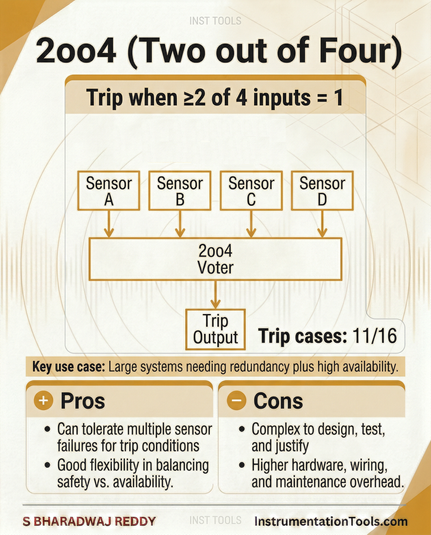

In safety systems, voting logic determines when a shutdown should occur based on signals from multiple sensors.
The goal is to balance Safety and Plant Availability ⚙️.

Here are the common voting logics used in industry 👇

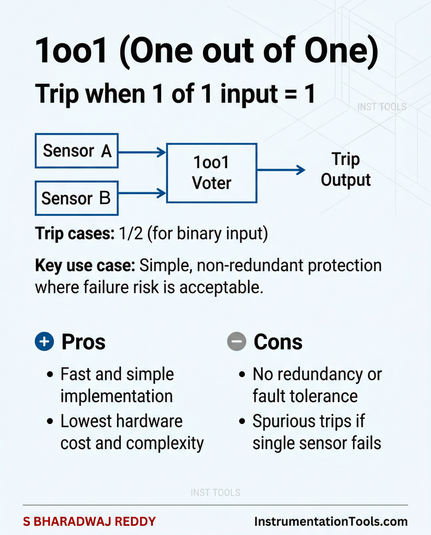

🟢 #1oo1 Voting Logic (One out of One)
➡️ Trip occurs if 1 sensor detects danger

⚡ Fastest response
🔧 No redundancy
⚠️ Sensor failure can cause false trip

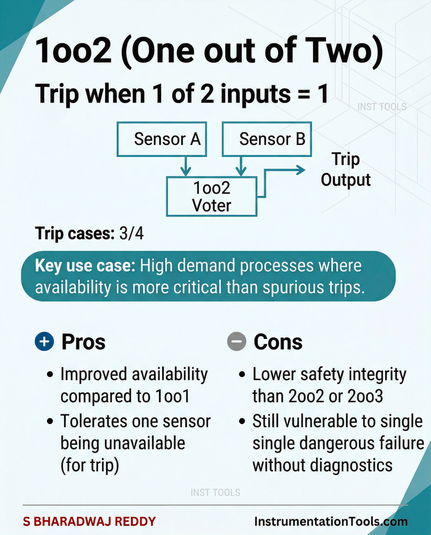

🟢 #1oo2 Voting Logic (One out of Two)
➡️ Trip occurs

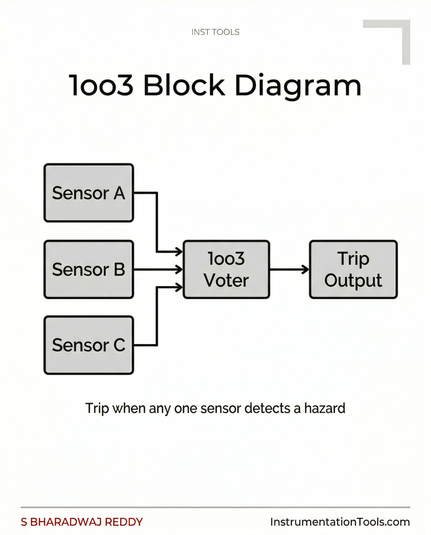

🚨 What is 1oo3 #Voting #Logic in Safety Systems?

In critical industrial processes, fast protection is sometimes more important than avoiding nuisance trips.
That’s where #1oo3 voting logic is used.

Let’s understand it simply. 👇

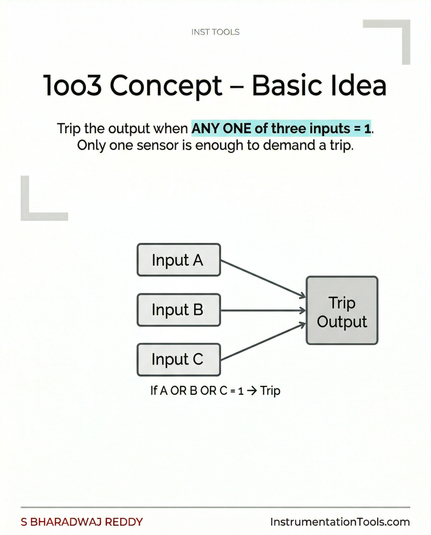

🔹 What does 1oo3 mean?

➡️ 1oo3 = One out of Three

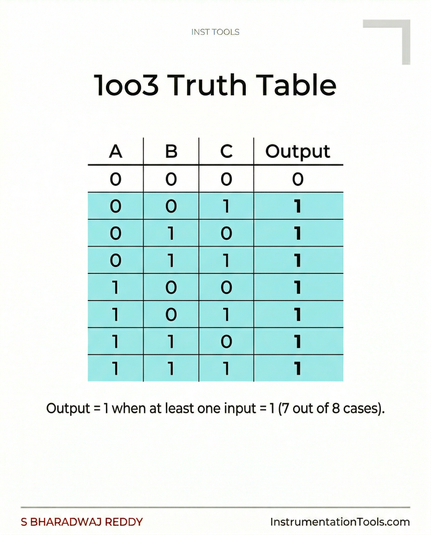

The safety system will activate a trip if ANY one sensor detects a dangerous condition.

⚙️ How it works

Three sensors monitor the same process variable.

• Sensor 1
• Sensor 2
• Sensor 3

If just one sensor

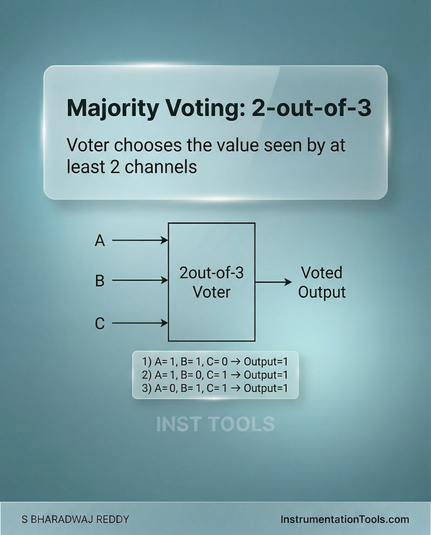

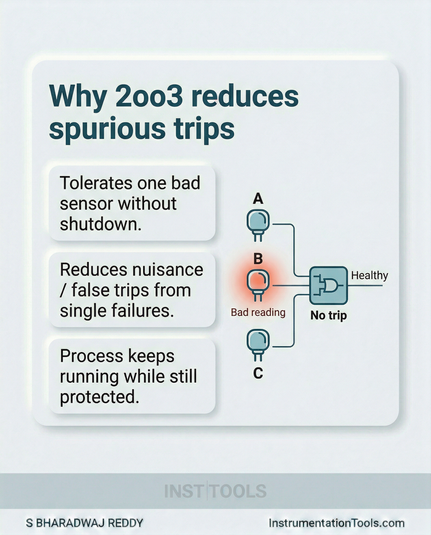

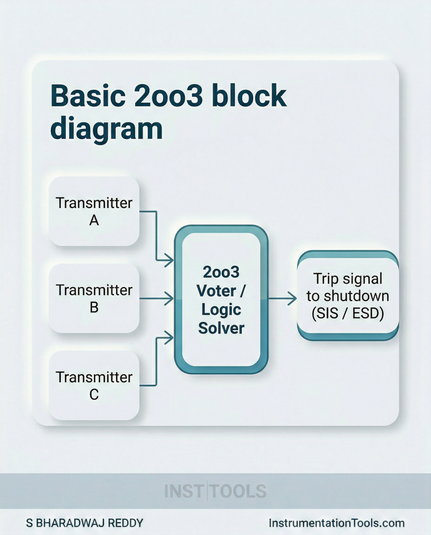

🚨 What is 2oo3 (Two out of Three) Voting Logic in Safety Systems?

In safety-critical industrial processes, false trips and missed trips can both be dangerous.
To improve reliability and safety, systems often use 2oo3 voting logic.

Let’s break it down simply. 👇

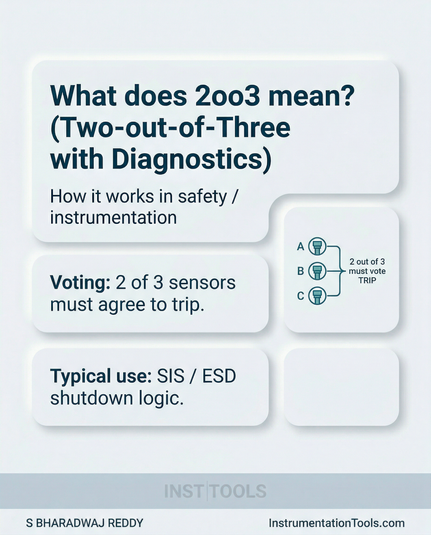

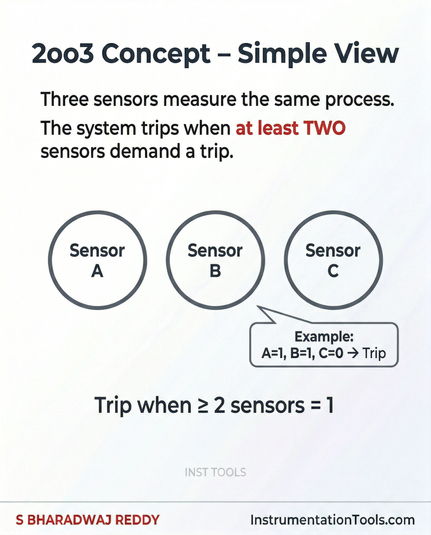

🔹 What does 2oo3 mean?

➡️ 2oo3 = Two out of Three

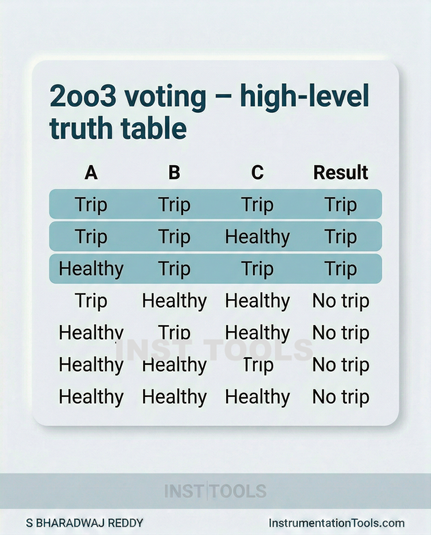

This means the safety system requires at least two signals out of three sensors to agree before taking an action.

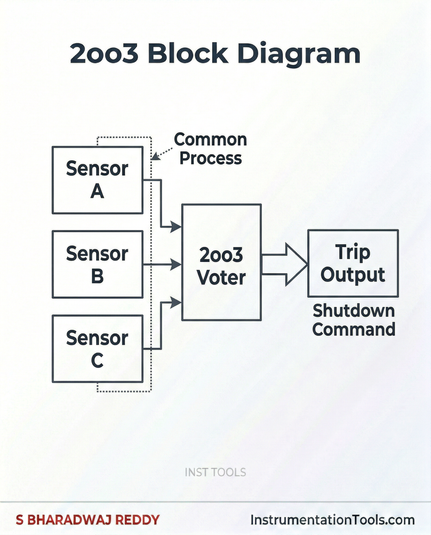

⚙️ How it works

Imagine three pressure transmitters monitoring

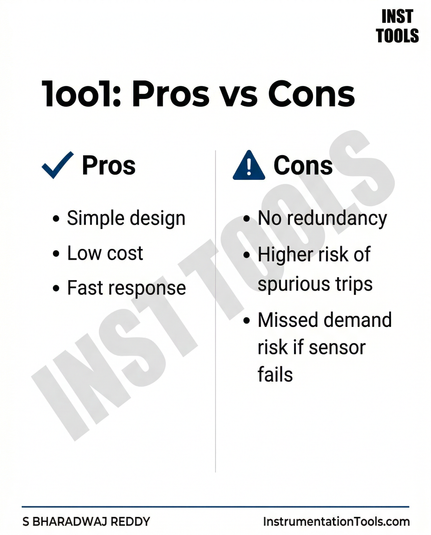

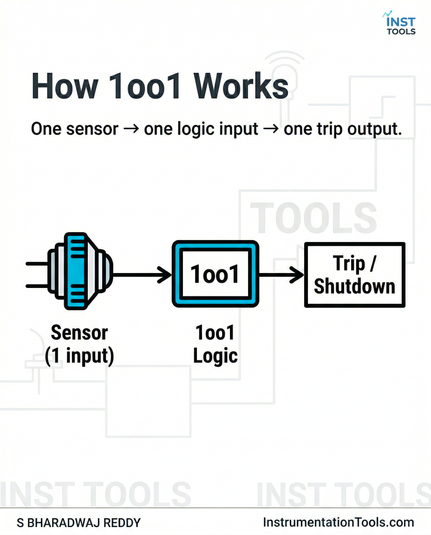

🛑 We talk a lot about #1oo2 and #2oo3, but most trips in plants still run on simple 1oo1 logic.

📖 Plain language:

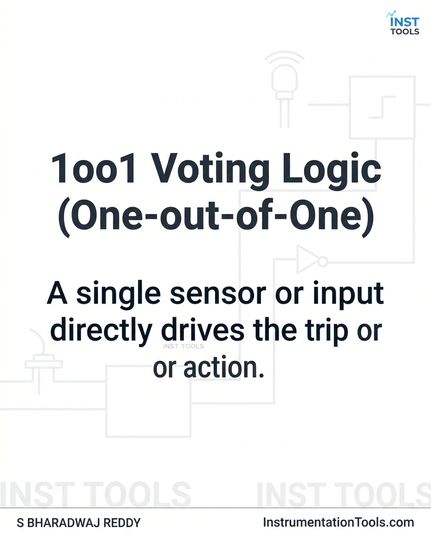

1oo1 = “one out of one” must act to #trip.
You have a single sensor/input. If it goes into trip condition, the logic trips. No second opinion.

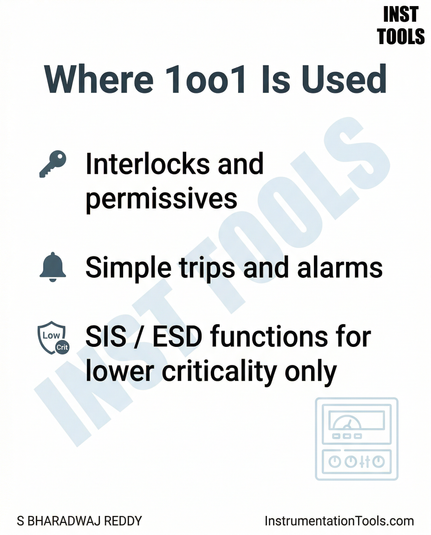

📍 Where you see 1oo1:

🔹 Basic permissives and #interlocks
⚙ Simple trips on PLC/DCS
🟡 Low-risk shutdowns
🛡 Sometimes in SIS/ESD for non-critical or low SIL demands

⚡ Behavior with a single #sensor:

✅ Sensor healthy + process safe →

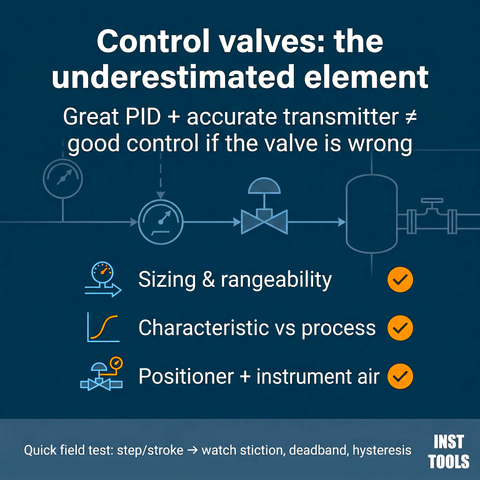

Then a poorly selected control valve ruins the entire loop.

Even with:

- perfectly tuned PID
- accurate and calibrated transmitters

…you will not get stable control if the valve is the weak link. Wrong size, wrong characteristic, or poor maintenance will show up as cycling, offsets, and frustrated operators.

When a loop misbehaves during the Commissioning, start by checking the valve:

1) Sizing & rangeability

- Is the valve operating mostly between 20–80% open?
- Is it oversized
