🛡️ Integration of SIS with DCS — Explained Simply
In modern plants, SIS and DCS work together… but they must remain independent 👇
⚙️ What is DCS?
➡️ Distributed Control System
➡️ Handles normal process control
Controls:
🔹 Temperature
🔹 Pressure
🔹 Flow
🔹 Level
👉 Goal = Keep process running
⚙️ What is SIS?
➡️ Safety Instrumented System
➡️ Protects plant during dangerous conditions
👉 Goal = Keep process safe
🔗 Why integrate SIS with DCS?
Even though they are separate systems, operators still need:
⚡ Alarm monitoring
⚡ Trip indications
⚡ Status monitoring
⚡ Diagnostics & event logs

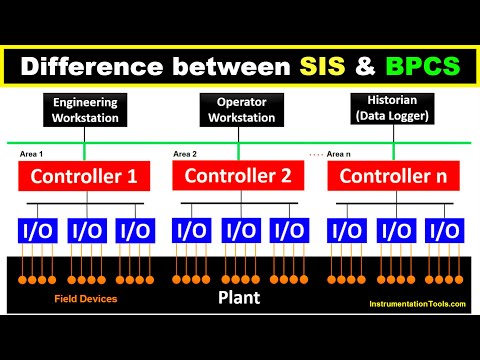

👉👉 Video:
https://www.youtube.com/watch?v=y5lw5rYrvgU&list=PLI78ZBihrkE16q3wWOVERKVd_r0wakGYF&index=5
🧠 How integration happens
Typically through:
🔹 Modbus
🔹 OPC
🔹 Profibus
🔹 Ethernet/IP
🔹 Proprietary safety communication
👉 SIS shares information with DCS
⚠️ Important rule
❌ DCS should NOT control SIS safety logic
✅ SIS must remain independent
🏭 Typical integration data
📡 Trip status
📡 Bypass status
📡 SOE (Sequence of Events)
📡 Fault diagnostics
📡 Shutdown indications
🚨 Real example
🔥 High pressure detected
👉 DCS tries normal control
👉 If pressure continues rising → SIS trips process
👉 DCS displays trip/alarm to operator
🎯 Key takeaway
🟢 DCS = Process control
🔴 SIS = Process protection
Both communicate…
but SIS always remains independent for safety integrity
💡 Simple understanding
👉 DCS runs the plant
👉 SIS saves the plant
