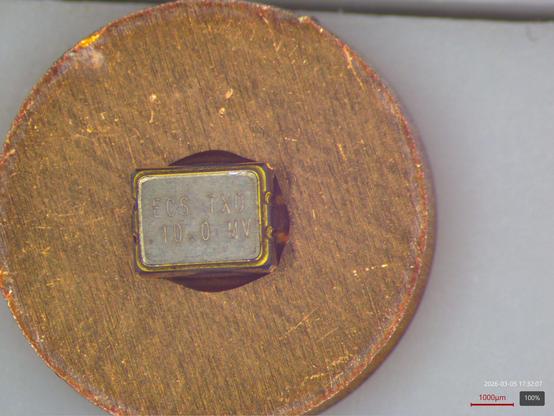

I wasn't sure if I could mount it to the mill table without it flying off because it was so small, so I mounted it to a ~1cm copper disk with some crystalbond wax.

This will make it much easier to find if I drop it, and give more area for me to attach to the chuck with double-sided tape.

Pretty happy with the results for a surgical decap.

It looks like the quartz crystal sits on top and the oscillator driver is under it. Unfortunately we can't see the oscillator die without destroying the crystal.

Nothing looks obviously damaged, I'll do some higher mag images next.

Composite of three focal planes (upper bond pads/crystal surface, lower bond pads, top of package) on the Labsmore/Mitutoyo system.

The left two pads clearly have connections to the driver IC but aren't very visible with the DOF of this system at the chosen focal planes.

It's interesting that the quartz is a somewhat textured surface, I expected a mirror polish.

Nothing looks obviously broken here. Given the fact that the thing isn't oscillating and the history of ultrasonic cleaning I expected to see the quartz plate come out in multiple fragments (one of the reason I wanted to be so cautious opening it, I didn't want to lose shards of it).

Any ideas on other tests or angles I should do before I try to remove the quartz (likely destroying it in the process) to expose the controller die and see if maybe something is up with the wire bonds?

I don't think I can test electrical connectivity between the quartz and the mounting pads with my current setup, gut feeling is that touching it with any of my existing probe needles would shatter it. Maybe I'll try if I'm going to rip it out or something.

Wire bonds from the controller die to the package, seen through the quartz crystal so pretty blurry.

But they definitely look like second / wedge bonds from gold ball bonding.

Bottom right terminal with focal plane swept from top surface down to the package pad.

No visually evident damage or cracks here.
